Service Specifications

ENGINE SPECIFICATIONS

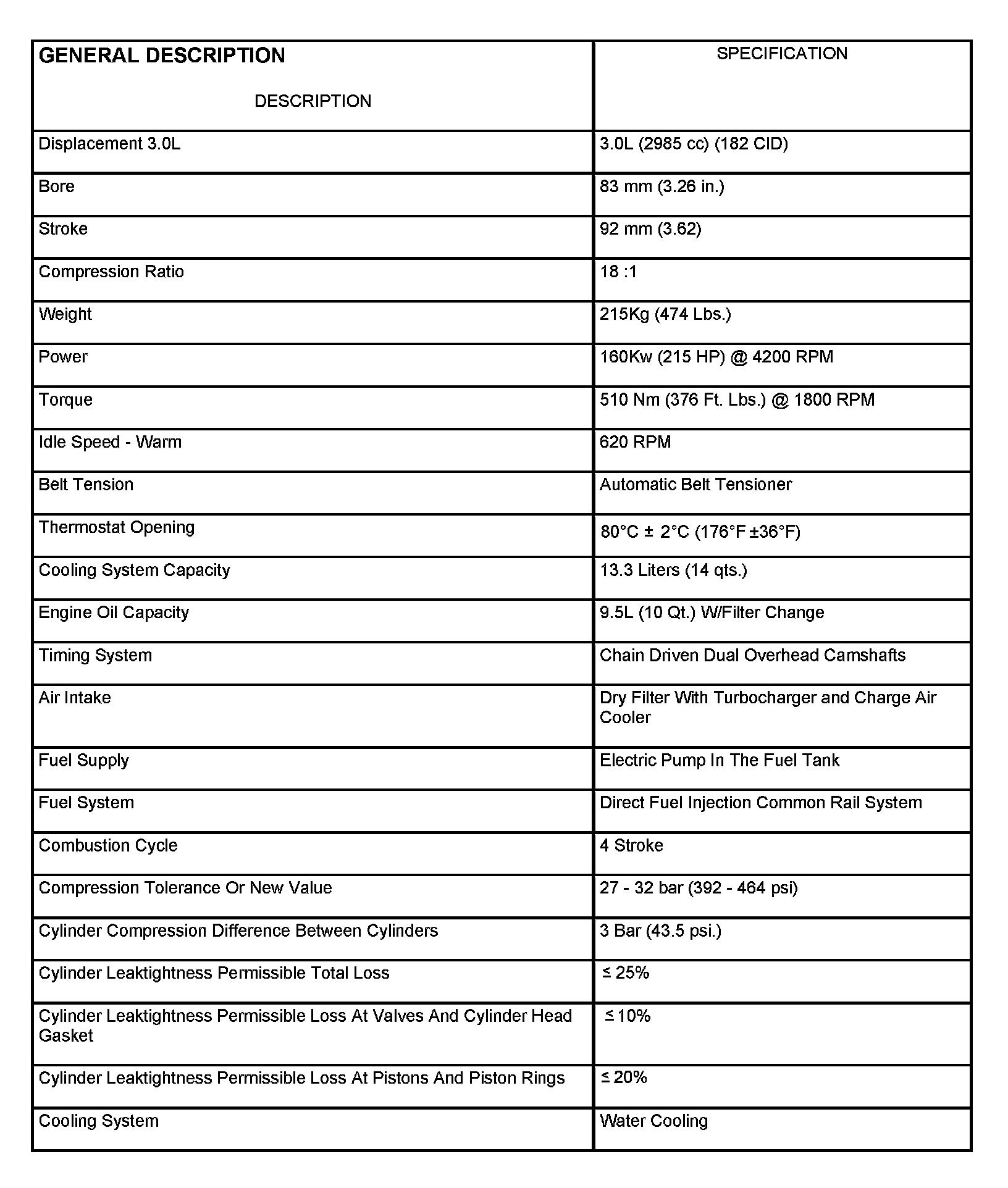

General Description (Part 1):

General Description (Part 1)

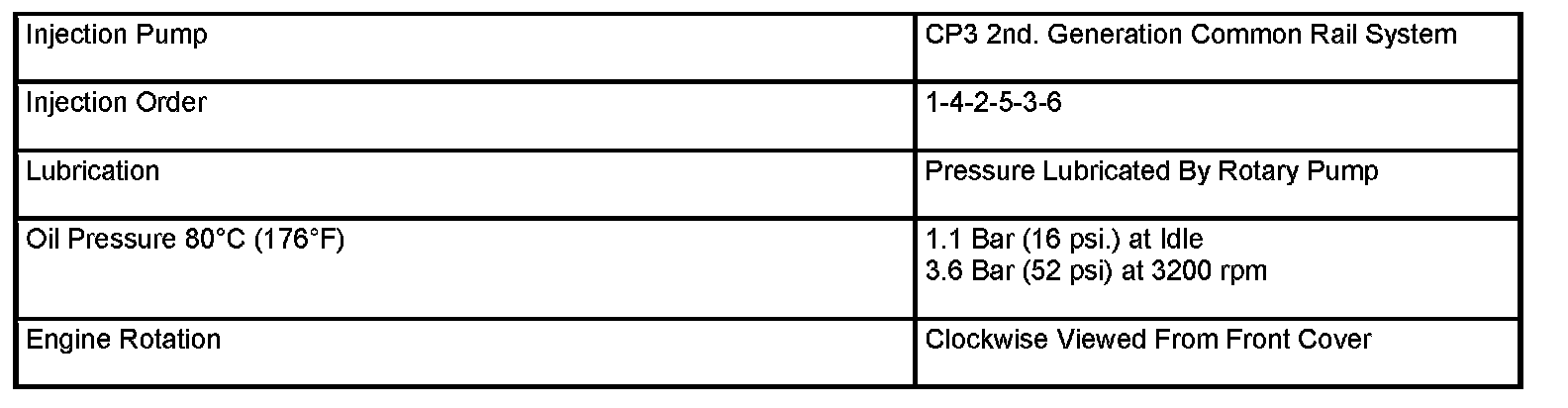

General Description (Part 2):

General Description (Part 2)

Crankshaft (Part 1):

Crankshaft (Part 1)

Crankshaft (Part 2):

Crankshaft (Part 2)

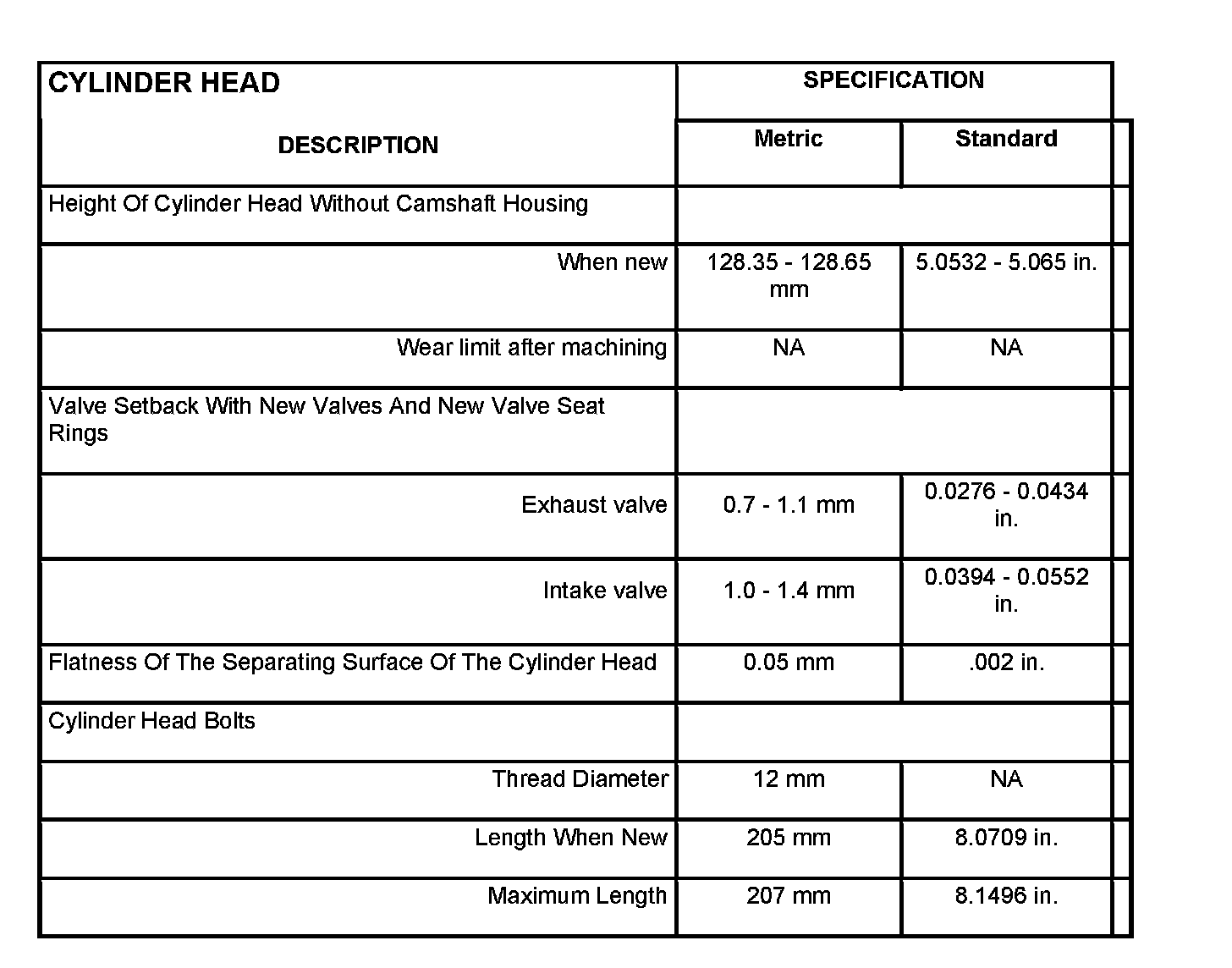

Cylinder Head:

Cylinder Head

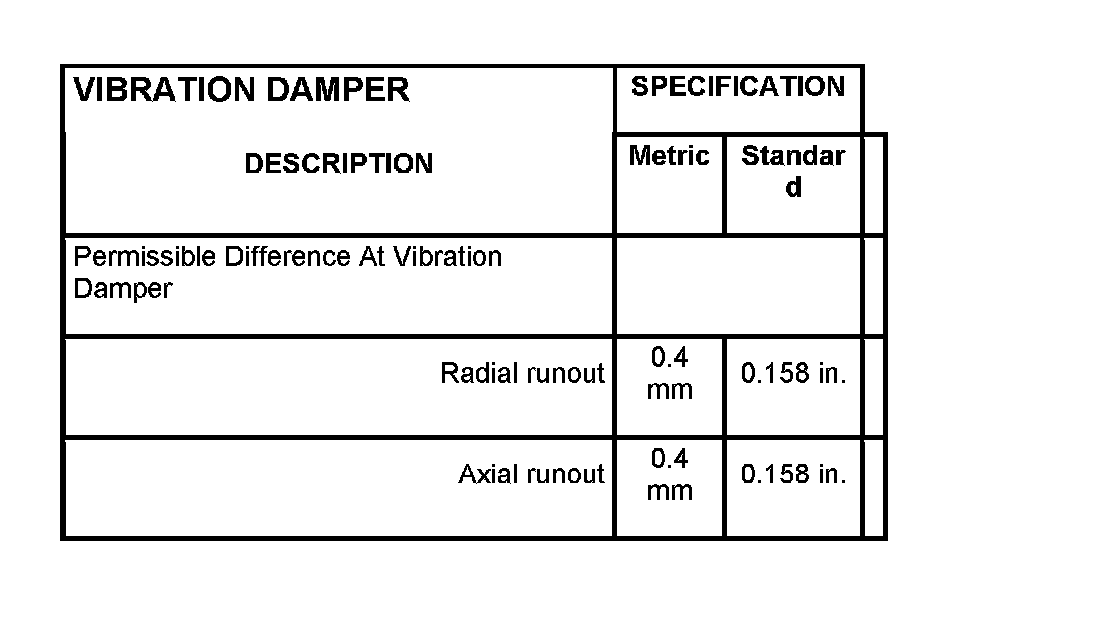

Vibration Damper:

Vibration Damper

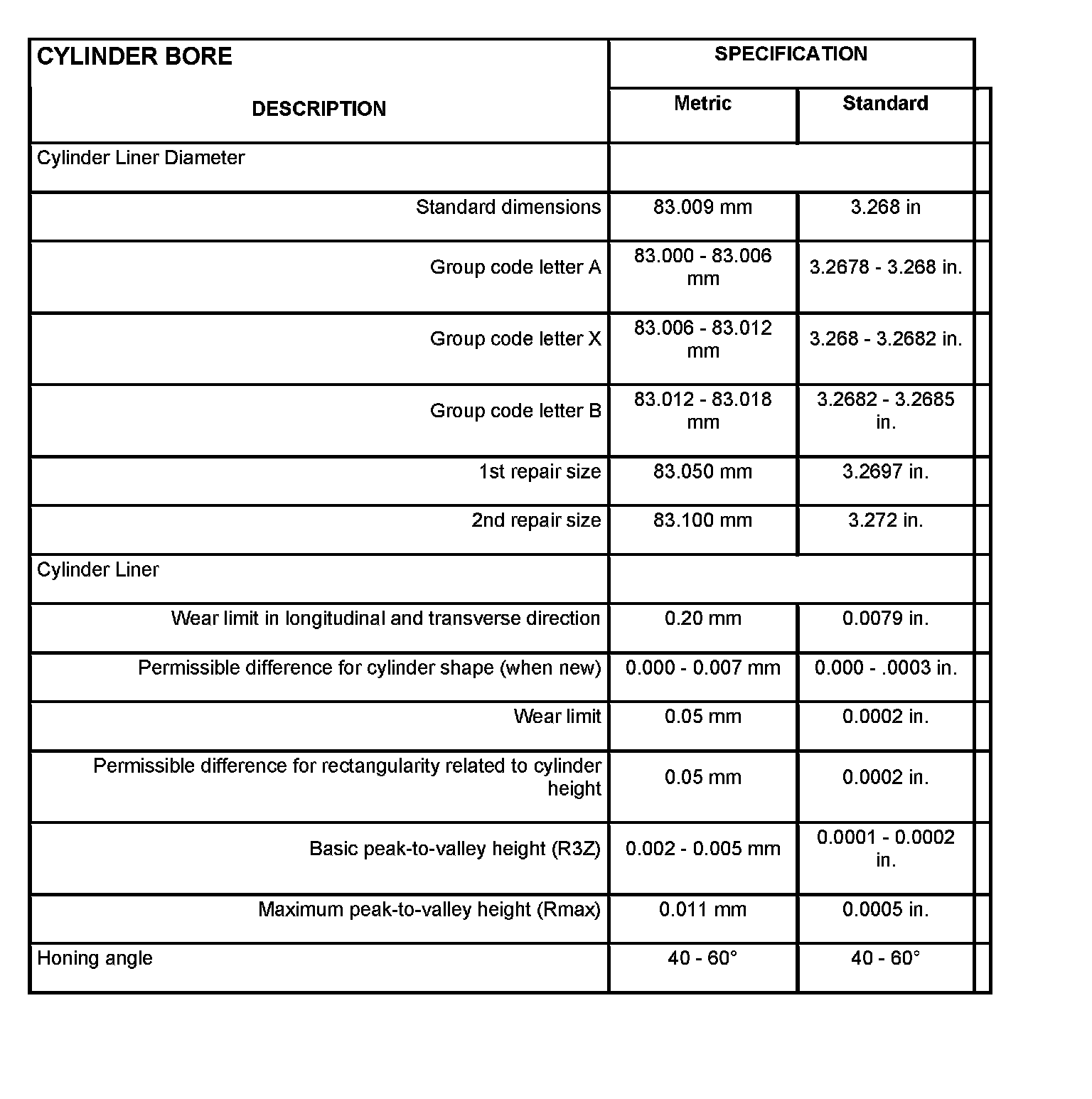

Cylinder Bore:

Cylinder Bore

Crankcase:

Crankcase

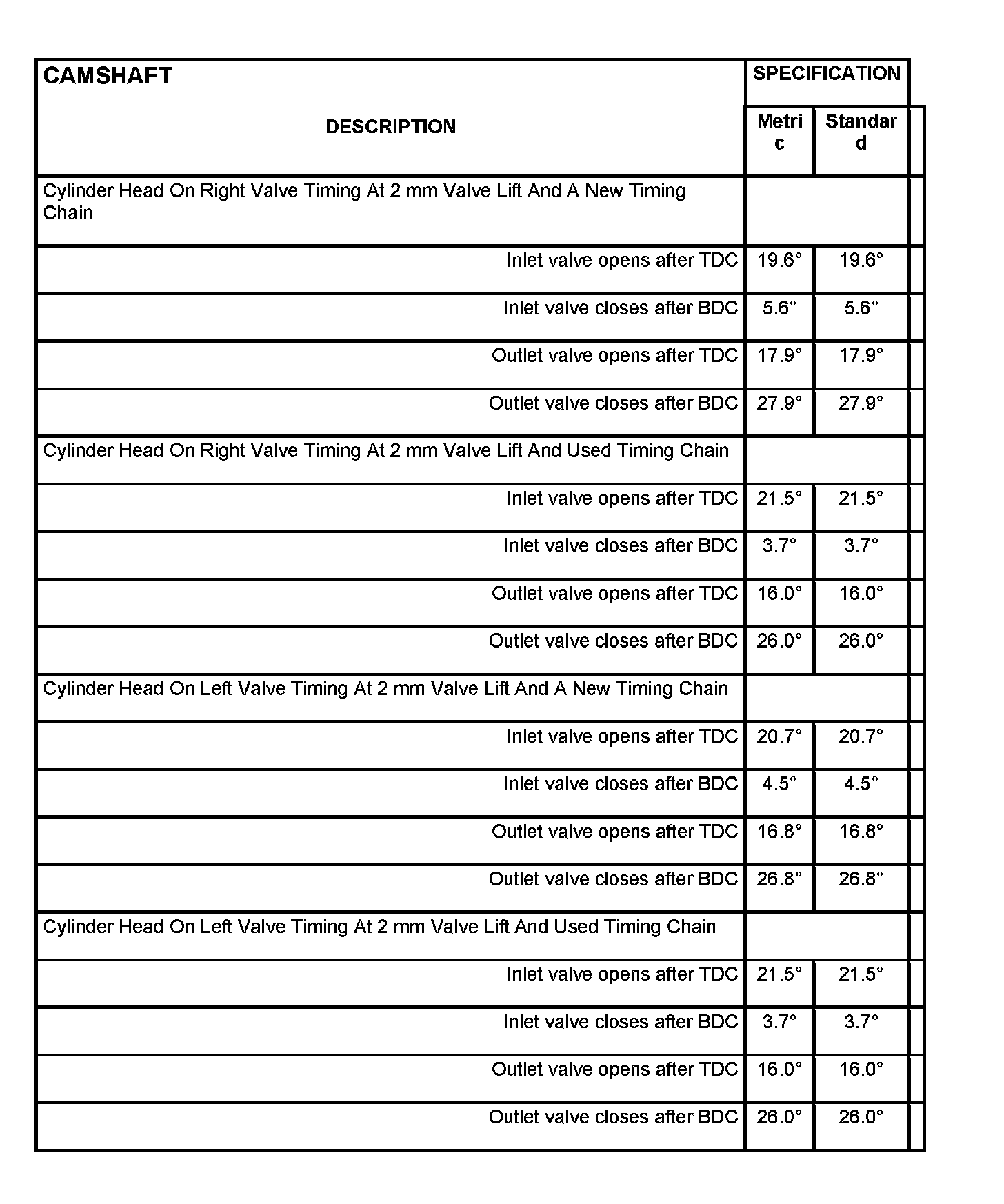

Camshaft:

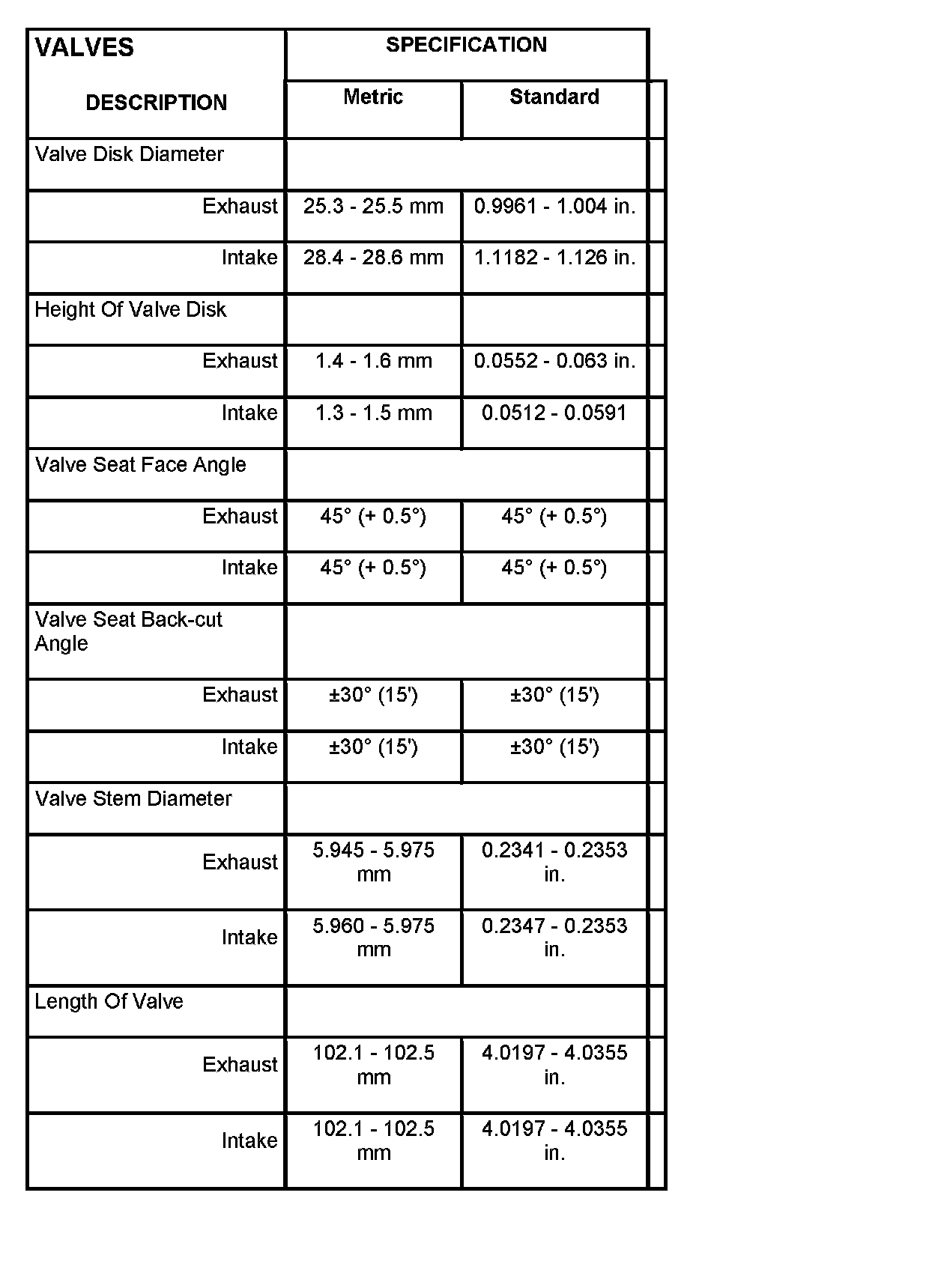

Valves:

Valves

Pistons:

Pistons

Piston Rings:

Connecting Rods:

Connecting Rods
