Engine Torque Specifications

TORQUE

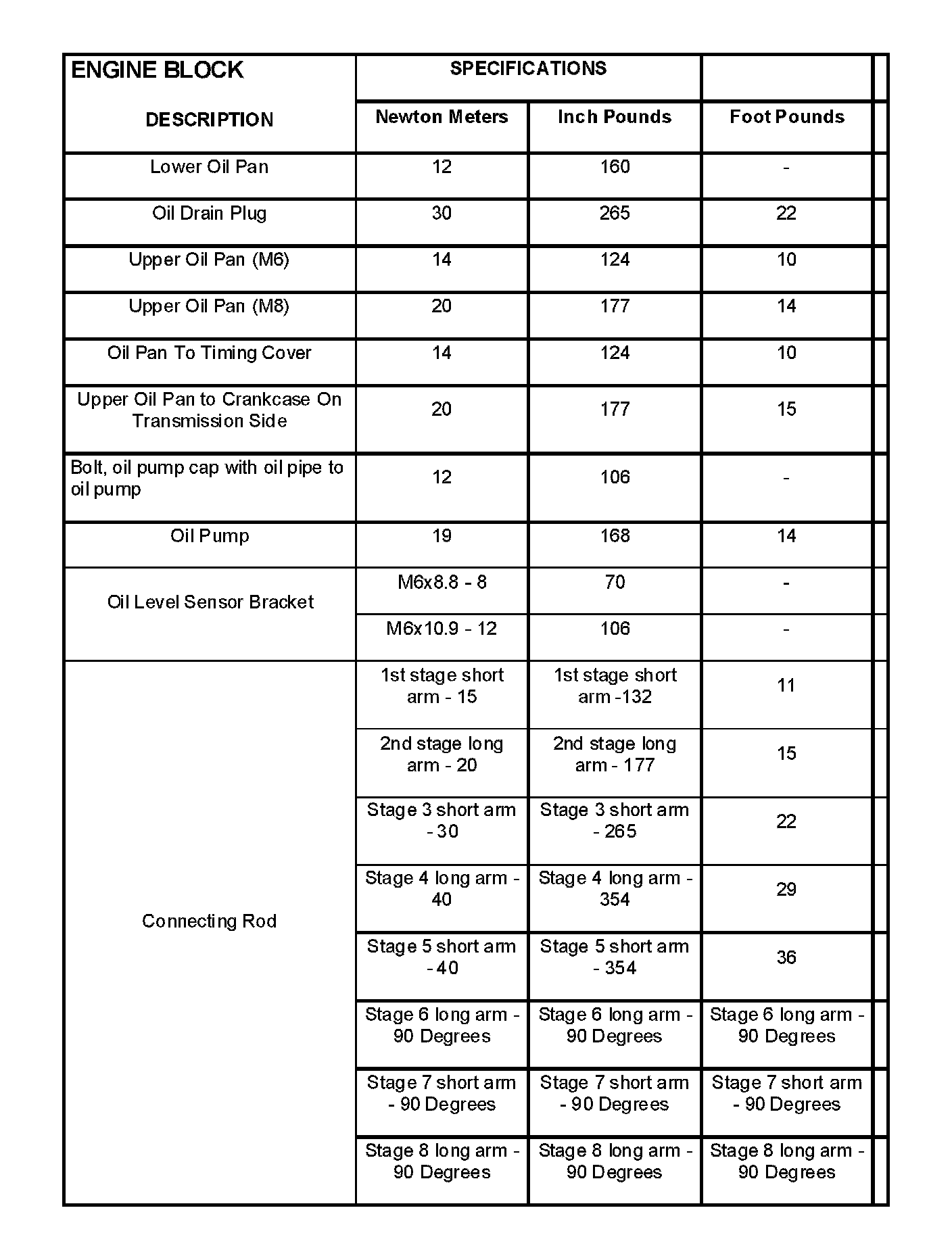

Engine Block (Part 1):

Engine Block (Part 1)

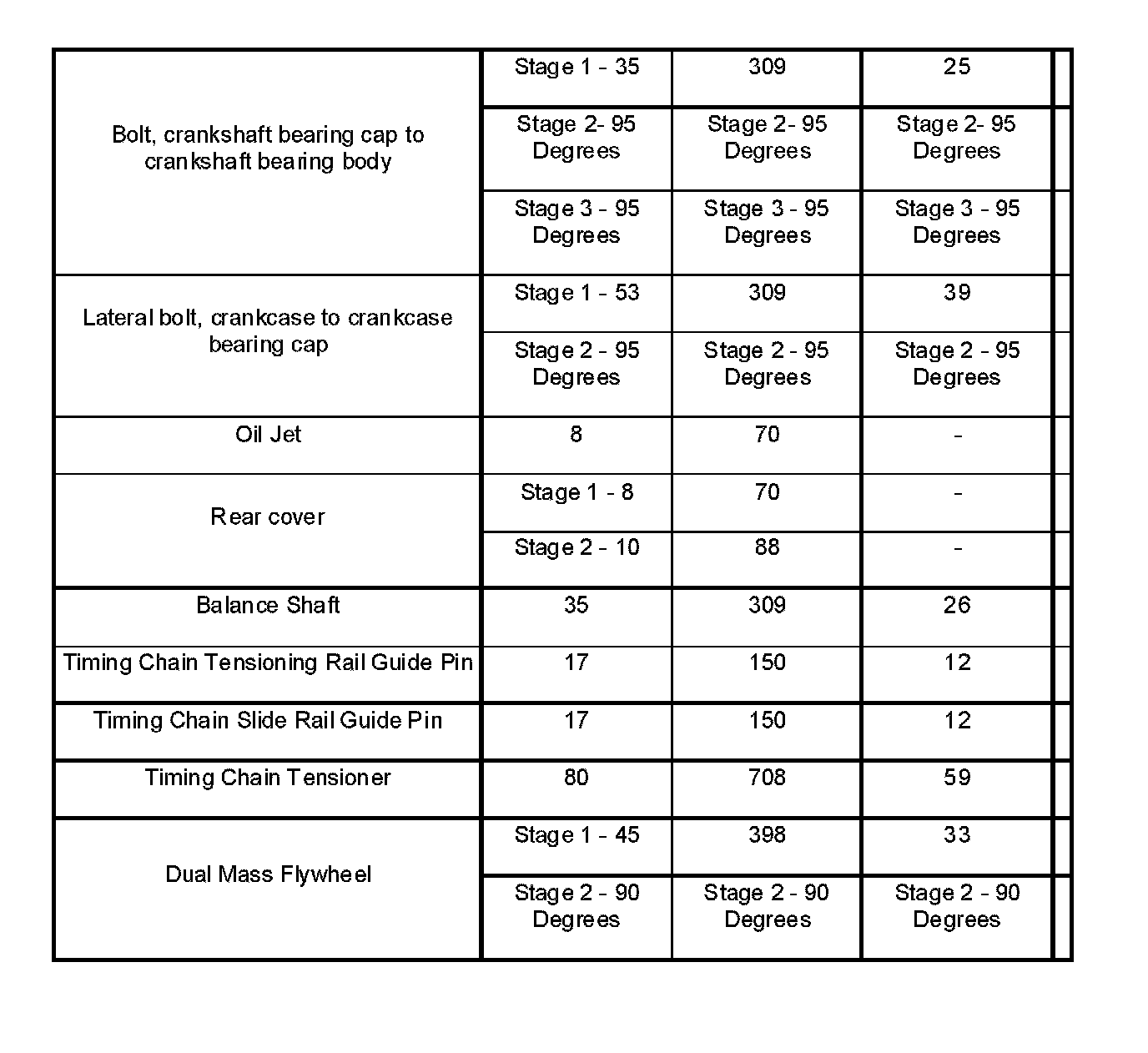

Engine Block (Part 2):

Engine Block (Part 2)

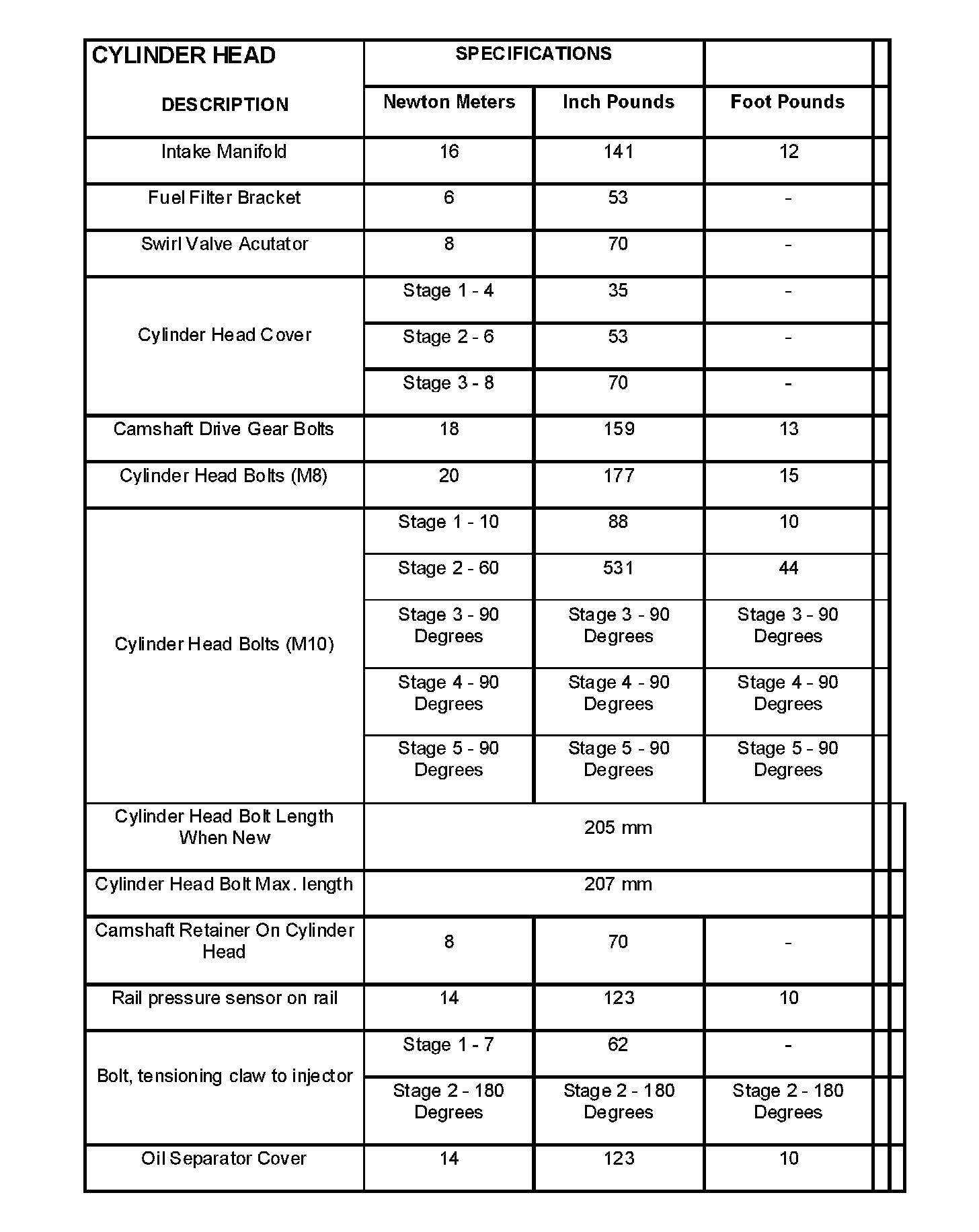

Cylinder Head (Part 1):

Cylinder Head (Part 1)

Cylinder Head (Part 2):

Cylinder Head (Part 2)

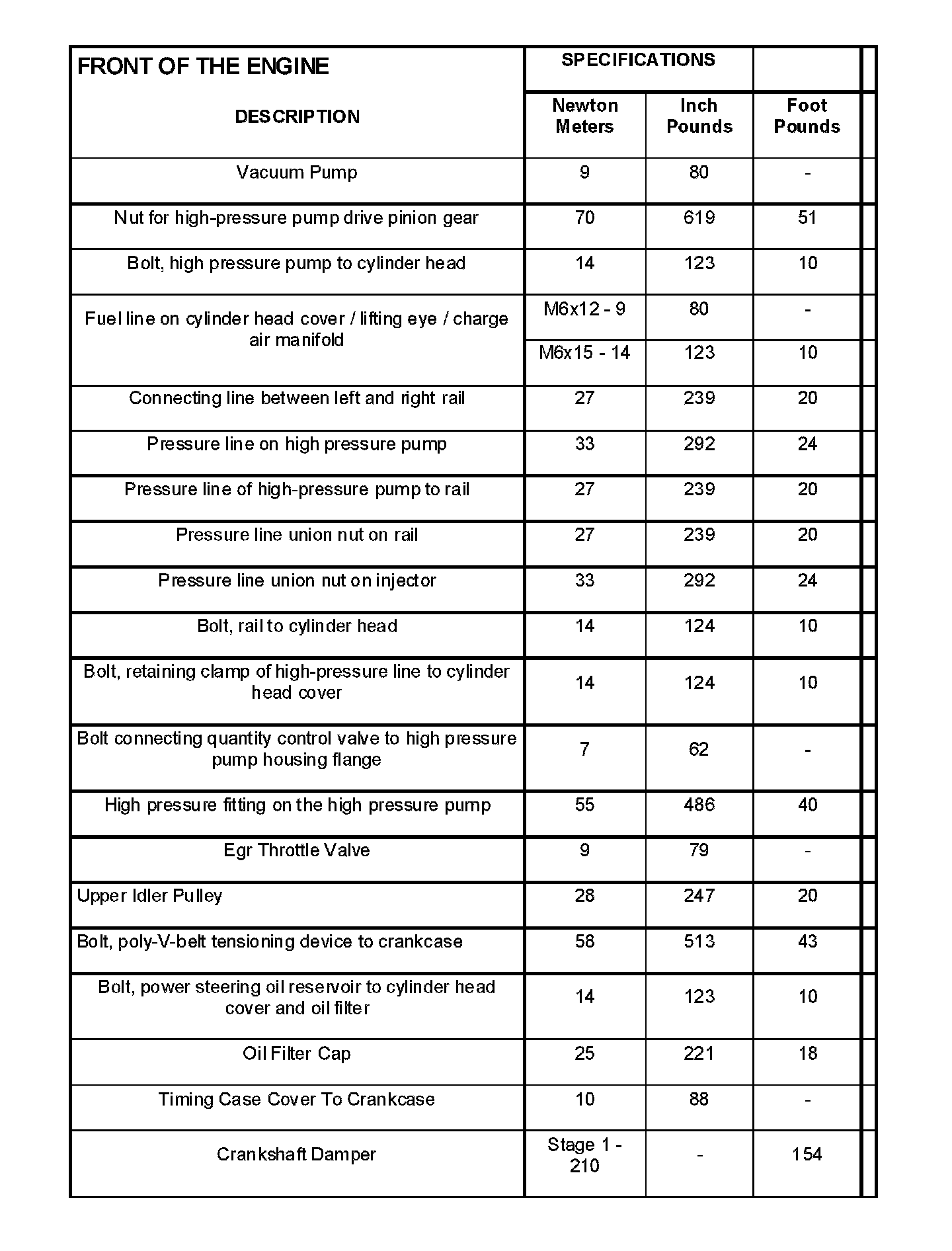

Front Of The Engine (Part 1):

Front Of The Engine (Part 1)

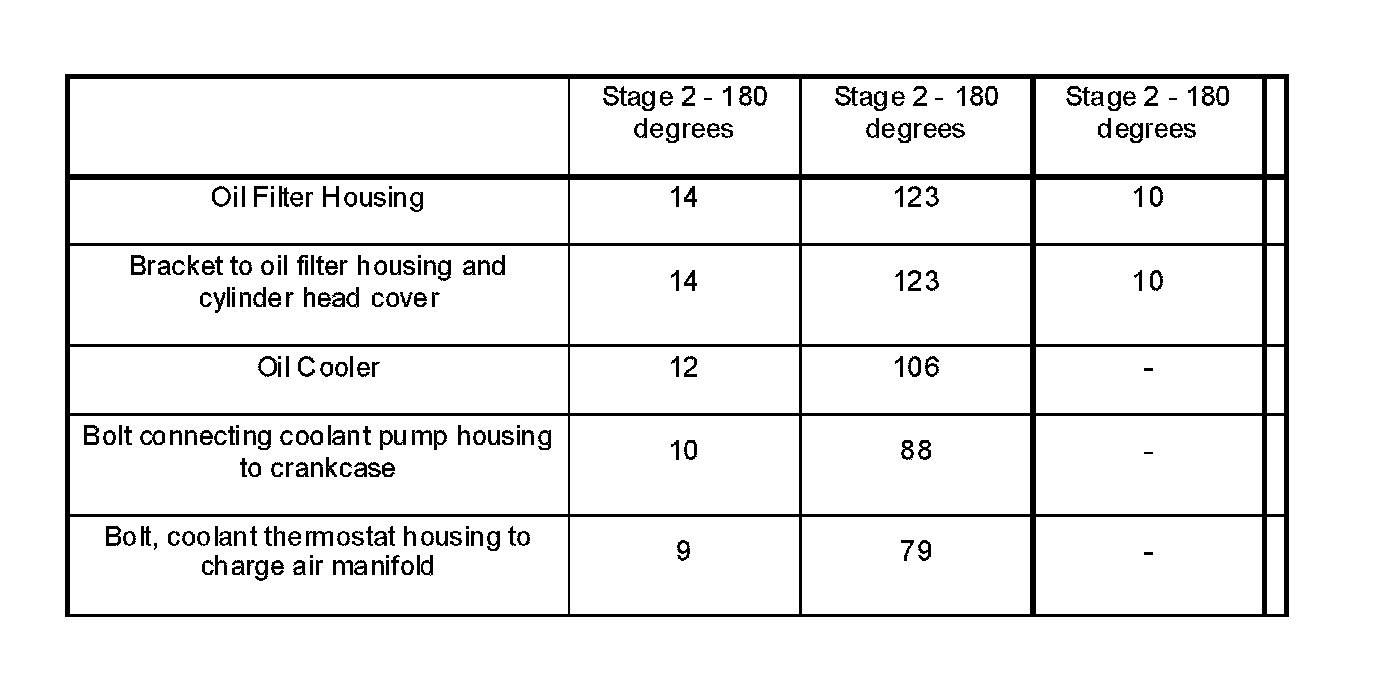

Front Of The Engine (Part 2):

Front Of The Engine (Part 2)

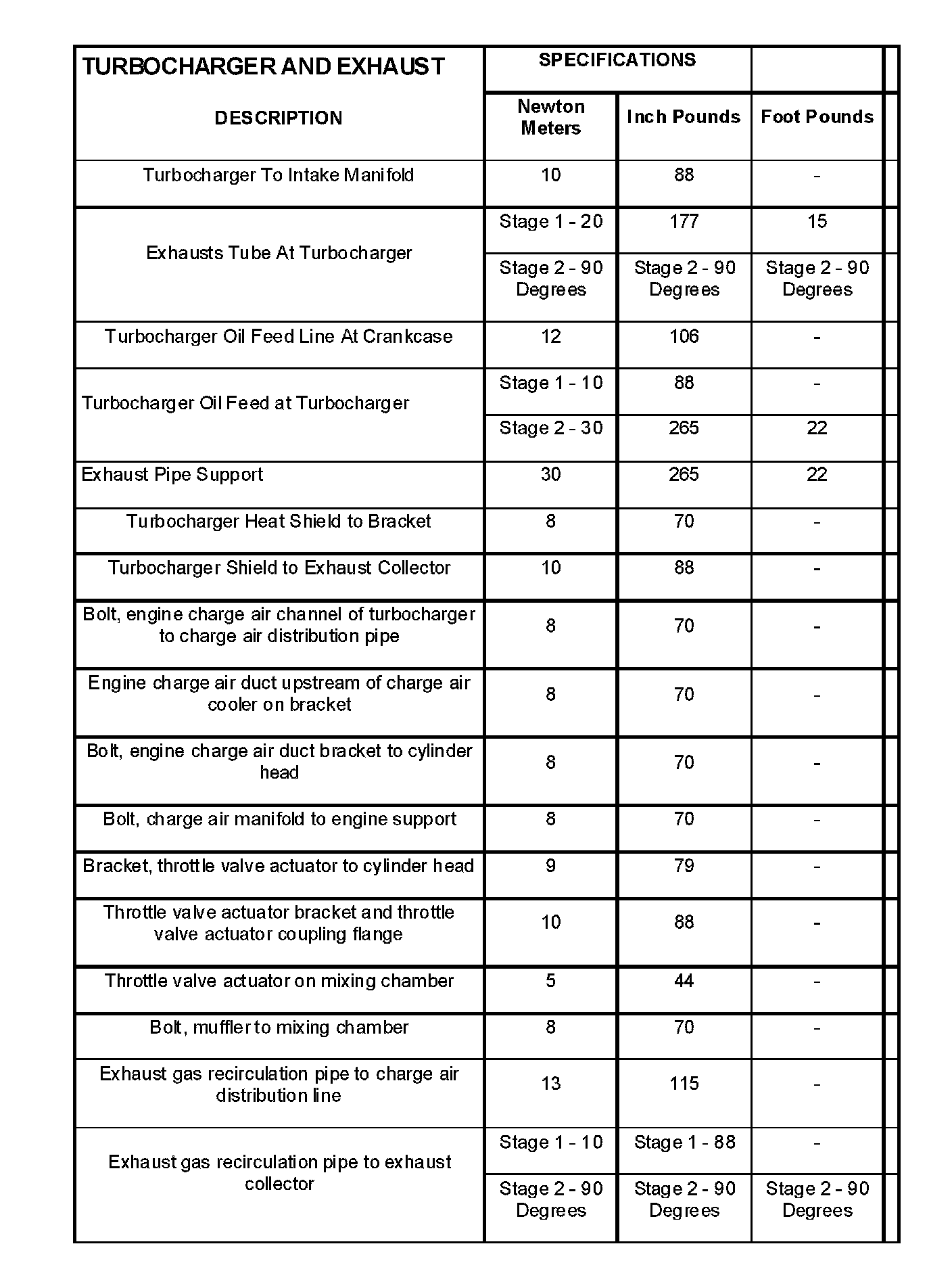

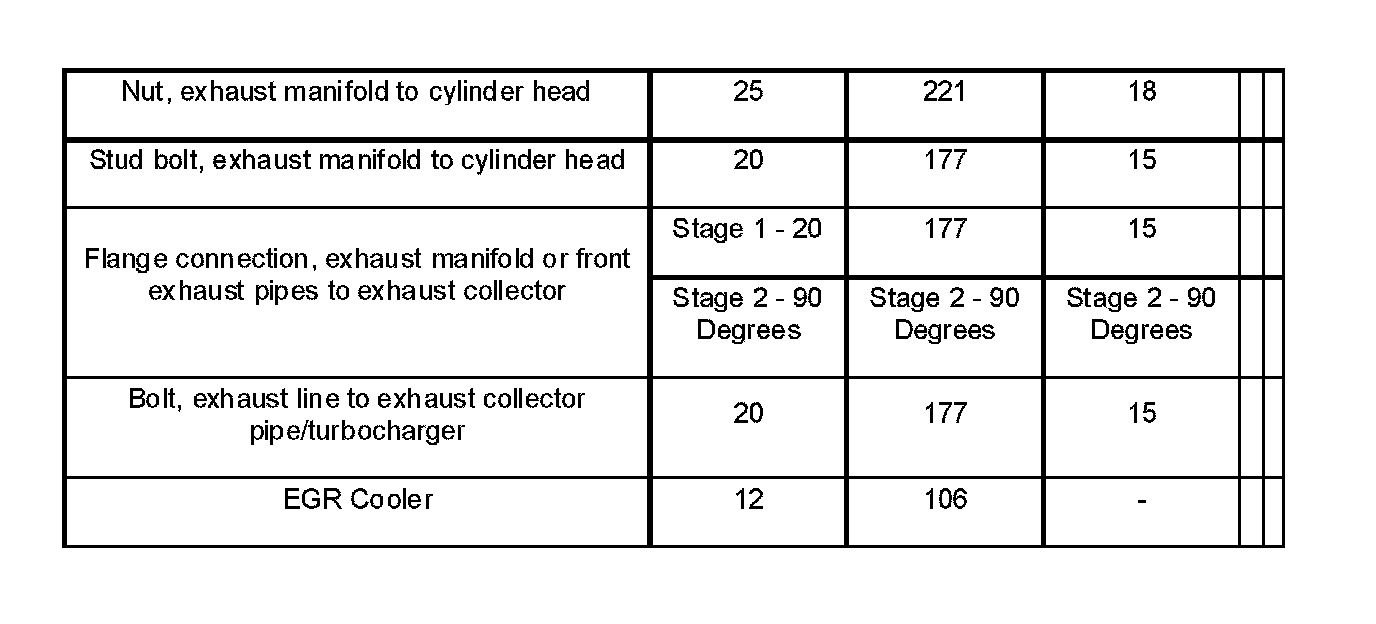

Turbocharger And Exhaust (Part 1):

Turbocharger And Exhaust (Part 1)

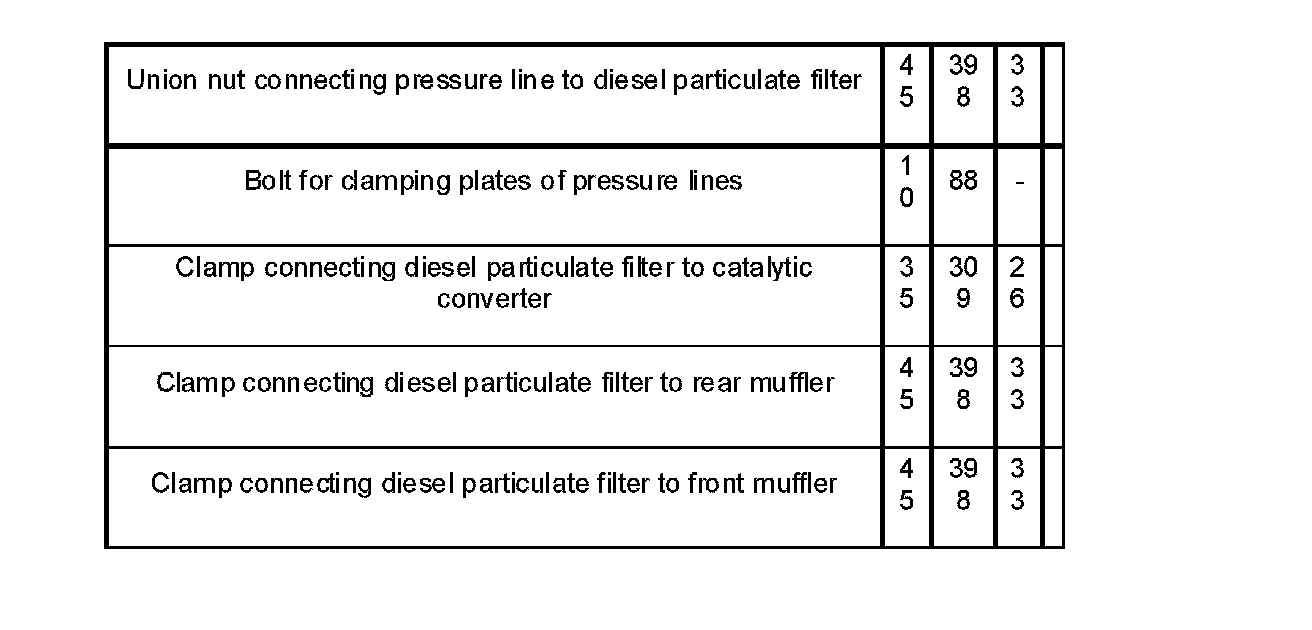

Turbocharger And Exhaust (Part 2):

Turbocharger And Exhaust (Part 2)

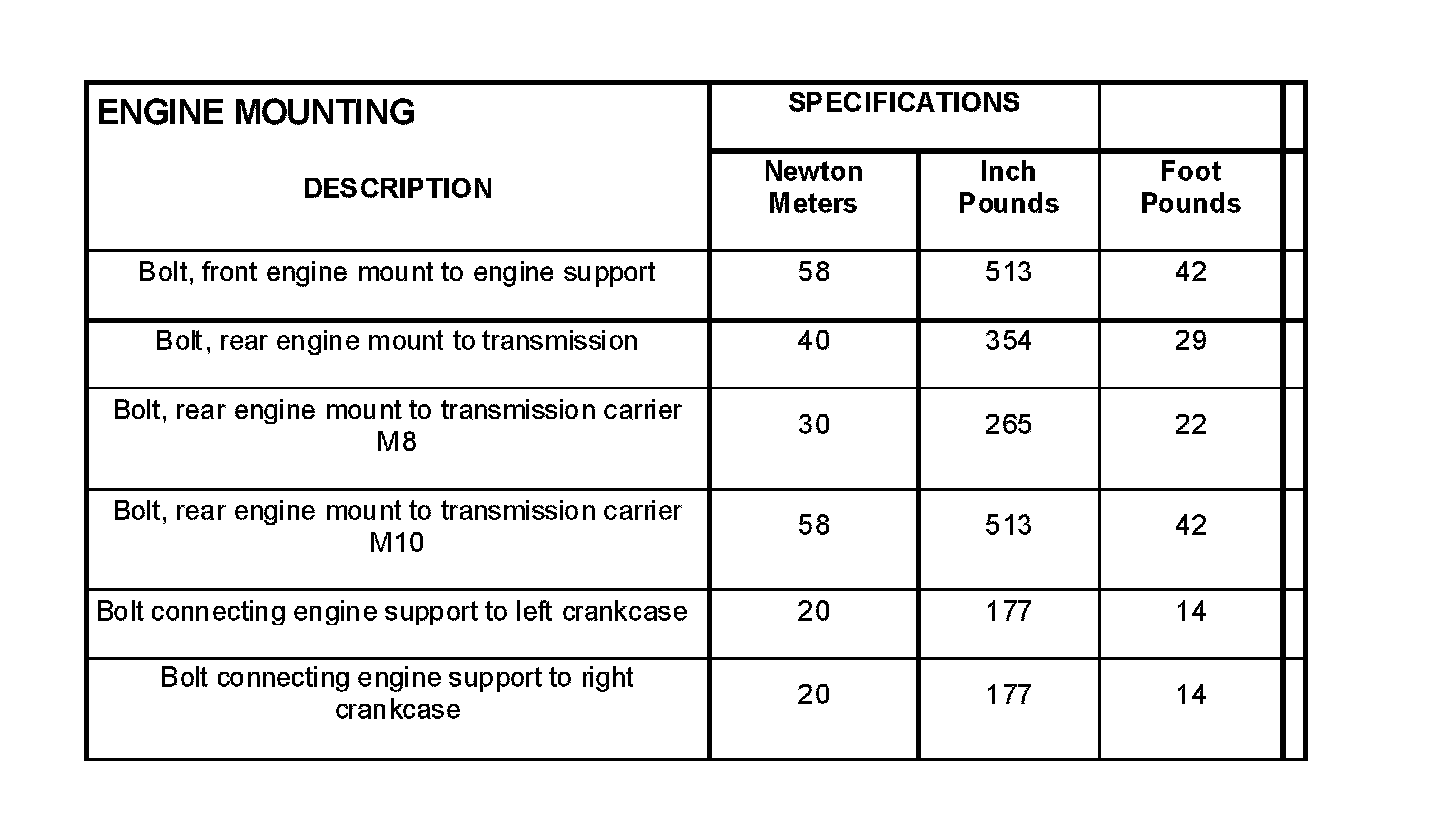

Engine Mounting:

Engine Mounting





Crankshaft Main Bearing Cap Torque Sequence
