All Models

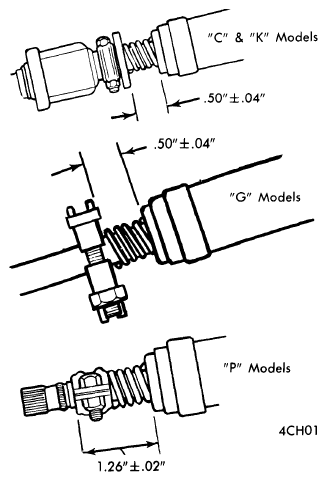

Check dimension as shown in illustration. To adjust, apply force on steering wheel end of steering shaft while loosening shaft clamp on pot joint bolt. Tighten when specified dimension is obtained.
TIGHTENING SPECIFICATIONS (1965-72)
| Application | Ft.Lbs. | |
| Lower Column Bearing Clamp | ||
| "P" Models | 10 | |
| All Others | 32 | |
| Column-To-Dash Panel Clamp | ||
| "G" Models | 17 | |
| All Others | 10 | |
| Lower Coupling-To-Wormshaft Clamp | ||
| "P" Models | 75 | |
| All Others | 30 | |
| Application | INCH Lbs. | |
| Floor Pan Cover Plate | ||
| "G" Models | 44 | |
| "P" Models | 24 | |
| All Others | 30 | |

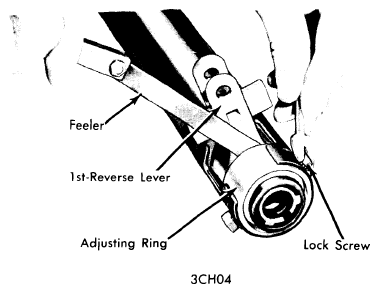

| Lower Bearing Adjusting Ring Bolts | 70 | |
| Firewall Bracket | ||
| P-10 | 120 | |
| P-20, 30 | 98 | |
| All Others | 90 | |
