Thrust Bearing Alignment

Pry crankshaft forward as far as possible and check crankshaft end play with a feeler gauge inserted between front of rear main bearing and crankshaft. Replace rear main bearing if end play not to specifications.

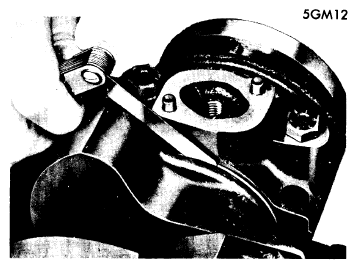

Fig 1: CHECKING CRANKSHAFT ENDPLAY

Courtesy of GENERAL MOTORS COMPANY
