1973-74 Time Relay

Remove temperature switch connector. Check relay to make sure that it is cool, then turn ignition on. Vacuum advance solenoid should energize for 20 seconds and then de-energize. If solenoid does not de-energize, remove blue lead from time relay. Solenoid will de-energize if relay is at fault.

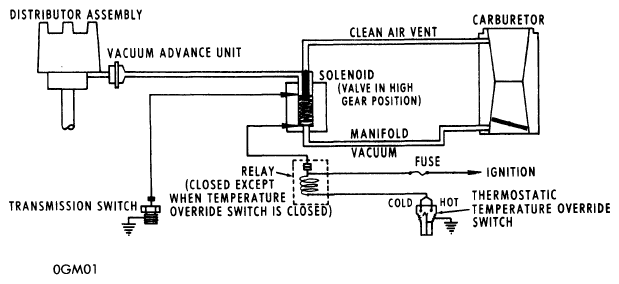

Fig 1: 1970 TCS SYSTEM

Courtesy of GENERAL MOTORS COMPANY

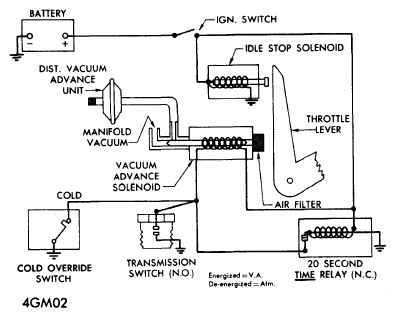

Fig 2: 1972-74 TCS SYSTEM (ENGINE OFF)

Courtesy of GENERAL MOTORS COMPANY

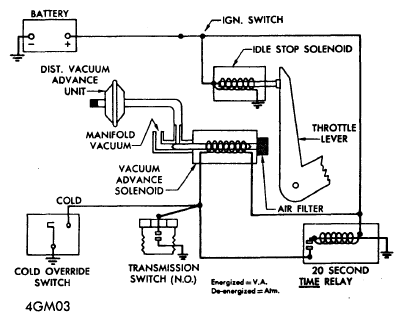

Fig 3: 1972-74 TCS SYSTEM (LOW GEAR)

Courtesy of GENERAL MOTORS COMPANY

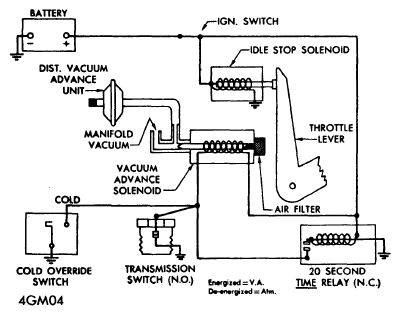

Fig 4: 1972-74 TCS SYSTEM (HIGH GEAR)

Courtesy of GENERAL MOTORS COMPANY

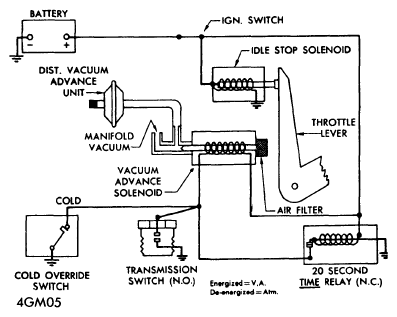

Fig 5: 1972-74 TCS SYSTEM (COLD TEMP. OVERRIDE ENERGIZED)

Courtesy of GENERAL MOTORS COMPANY
