Reversing Relay

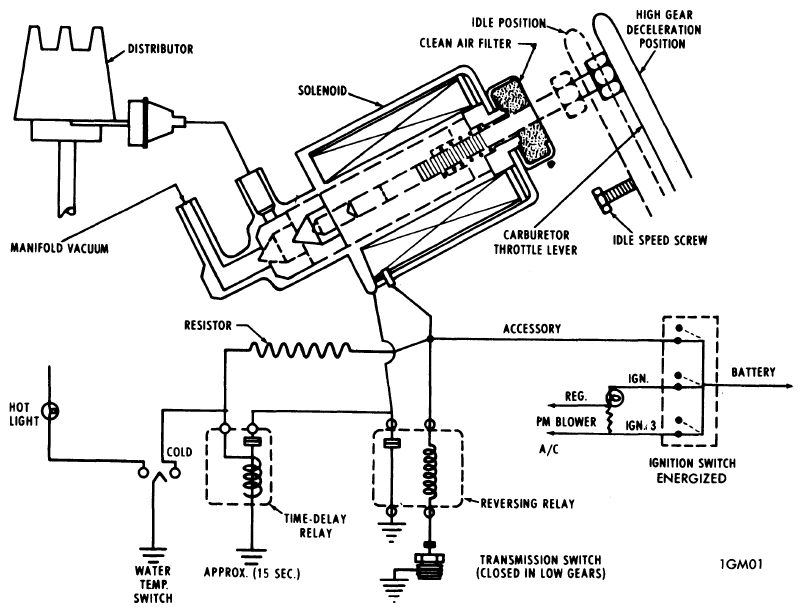

Reversing relay is a magnetically controlled two position switch. In its normally closed position lever makes contact with ground terminal and completes a circuit through CEC solenoid. Contact is broken when transmission mounted switch points are closed which completes a circuit from battery through ignition switch. This circuit sets up a magnetic field in relay which pulls points open and breaks circuit to CEC solenoid, de-energizing it and blocking vacuum to distributor advance unit. When transmission is in high gear, transmission switch points open, breaking circuit from battery through ignition switch and reversing relay. Reversing relay points close, thus providing a circuit through grounded relay to CEC solenoid, energizing solenoid and providing vacuum to distributor advance unit.
