Ignition System Trouble Shooting

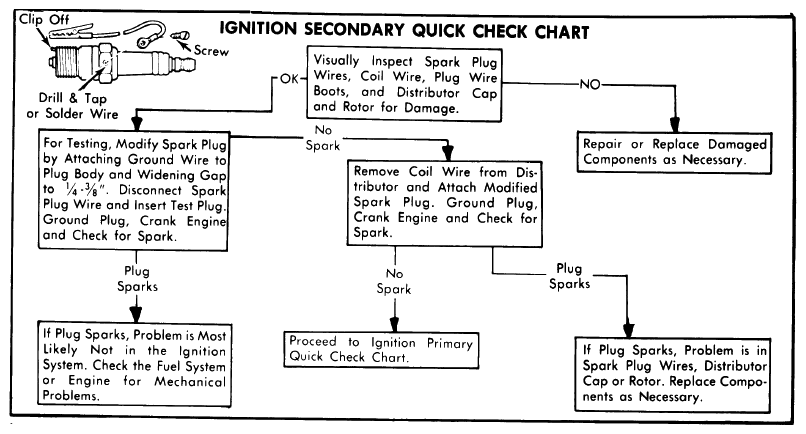

Fig 1: IGNITION SECONDARY QUICK CHECK CHART
G09337330Courtesy of GENERAL MOTORS COMPANY

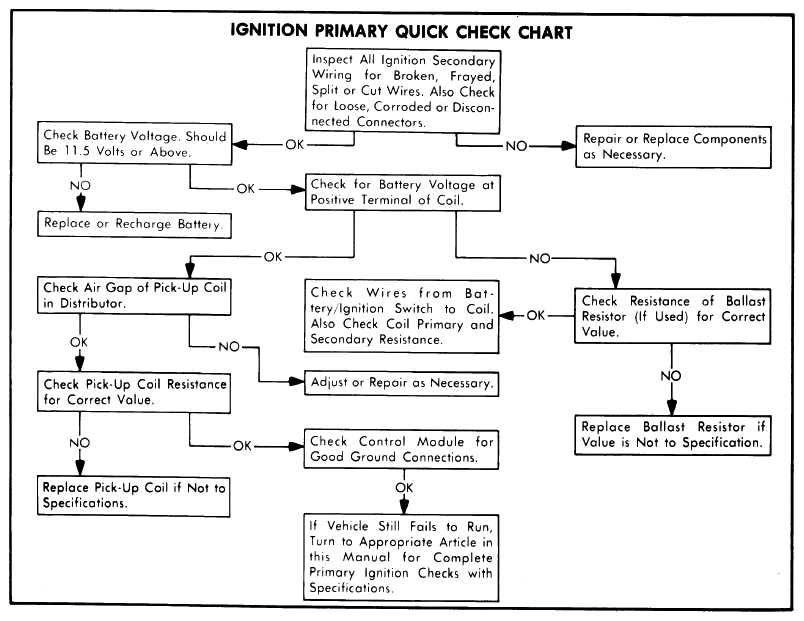

Fig 2: IGNITION PRIMARY QUICK CHECK CHART
G09337331Courtesy of GENERAL MOTORS COMPANY
