Toe-Out On Turns

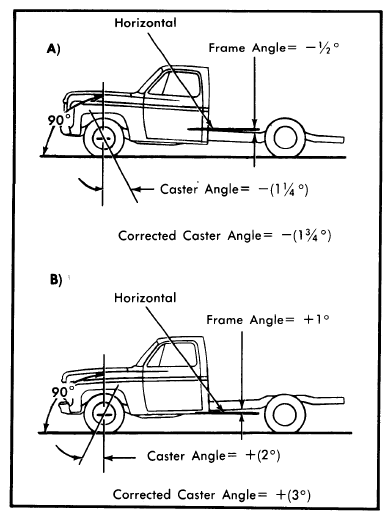

Fig 1: Determining Corrected Caster Angle

Courtesy of GENERAL MOTORS COMPANY

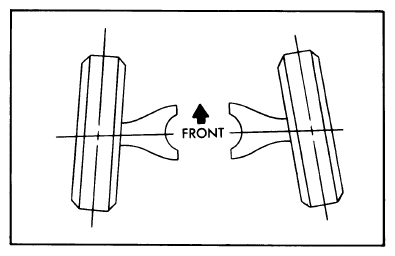

Fig 2: Wheel Toe-In

Courtesy of GENERAL MOTORS COMPANY

Toe-out check is a check for bent or damaged parts, and not a service adjustment. With caster, camber, and toe-in properly adjusted, check toe-out with weight of vehicle on wheels (use full-floating turn table under each wheel), repeating test with each wheel positioned for right and left turns.
Incorrect toe-out generally indicates a bent steering arm. Replace arm and recheck all wheel alignment adjustments.

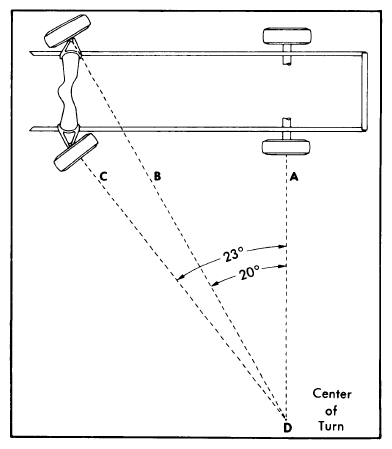

Fig 3: Wheel Toe-Out On Turns Steering Axis Inclination
