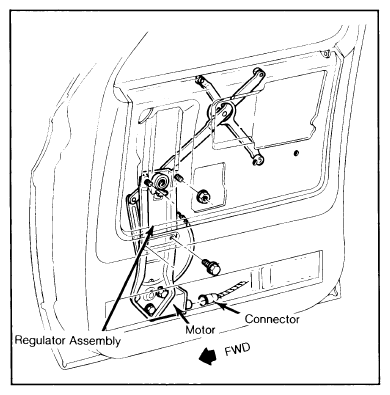

Window Regulator & Motor
CAUTION:
Disconnect electrical connections before removing regulator assembly from window or injury may result.
- Raise window to full "UP" position and tape glass to door frame to prevent it from falling. Disconnect negative battery cable and remove door trim panel.
- Remove remote control bolts and place control assembly aside. Remove regulator-to-door panel attaching screws. Disconnect harness from regulator.
- Slide regulator assembly rearward, disengaging rollers from sash panel. Remove regulator assembly.CAUTION: Step 4) must be performed when regulator is removed from door. Serious injury can result if motor is removed without locking sector gear.
- Drill a hole through sector gear and back plate. Do not drill closer than 1/2" (13 mm) to edge of sector gear or back plate. Install sheet metal screw into hole to lock sector gear.
- Remove motor-to-regulator attaching screws and remove regulator from motor.
- To install, reverse removal procedures. Note that the motor drive gear and regulator sector gear should be lubricated with an approved lubricant that is effective down to -20°F. (-29°C).
