Window Motor

Check power feed to motor terminals. If power is available, check motor ground. Inspect window regulator and channels for possible binding. Connect a jumper wire to the other motor terminal. Motor should operate window up and down. If not, replace motor.

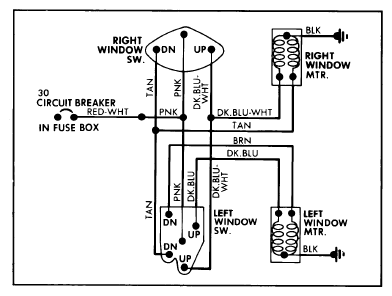

Fig 1: General Motors Light Truck Power Window Wiring Diagram
G09337509Courtesy of GENERAL MOTORS COMPANY
