Coolant Recovery Systems: Operation

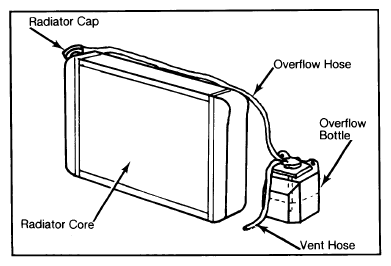

As coolant temperature rises and pressure in system exceeds pressure relief valve of radiator cap, excess coolant flows into overflow bottle. As engine cools and coolant contracts, vacuum is formed in system, drawing coolant, stored in overflow bottle, back into radiator. In a properly maintained cooling system, the only coolant losses will be through evaporation.
System should eliminate loss of coolant.
