General Cooling System Servicing: Testing: Thermostat

Visually inspect thermostat for corrosion and proper sealing. If this is satisfactory, suspend thermostat and a thermometer in a container of water. Do not allow either thermostat or thermometer to touch bottom of container as this concentration of heat could cause an incorrect reading. Heat water until thermostat just begins to open. If thermostat does not open, replace.

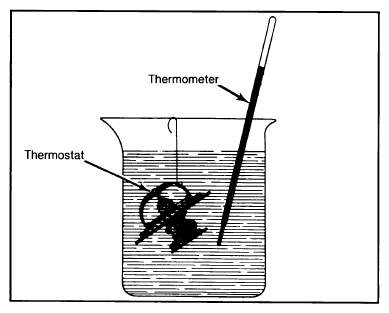

Fig 1: Testing Thermostat
G09347436Courtesy of NOT AVAILABLE

Thermostat should open as water is heated.
