Toe-Out On Turns
- Toe-out check is a check for bent or damaged parts and not a service adjustment. With caster, camber and toe-in properly adjusted, check toe-out with weight of vehicle on wheels. Use full-floating turn table under each wheel and repeat test with each wheel positioned for right and left turns.
- Incorrect toe-out generally indicates a bent steering arm. Replace arm and recheck wheel alignment adjustments. Do not attempt to correct by straightening parts.

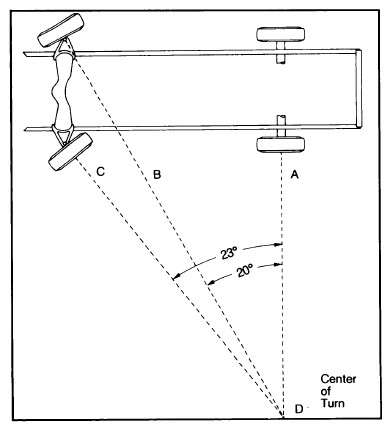

Test each wheel in right andleft turn positions.
