Pitman Arm Replacement
- Raise vehicle on hoist. Remove cotter pin from pitman arm ball stud and remove nut. Remove pitman arm or relay rod from ball stud by tapping on side of rod or arm (in which stud mounts) with a hammer while using heavier hammer as a backing. Remove pitman arm nut from shaft or clamp bolt from pitman arm, and mark arm-to-shaft position. Remove pitman arm from shaft using suitable puller.

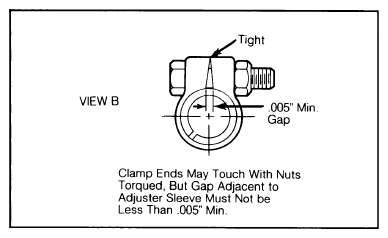

Courtesy of GENERAL MOTORS COMPANY
- To install, reverse removal procedure. If a clamp type pitman arm is used, spread pitman arm with a wedge just enough to slip arm onto shaft by hand pressure. Do not hammer on or damage to steering gear may result. Be sure to reinstall the hardened steel washer before installing nut.
