Trouble Shooting: Notes

NOTE: Trouble shooting charts should be used only after ensuring that the glow plug system is properly installed. Check that all connectors are properly installed and that all connections are clean and tight.

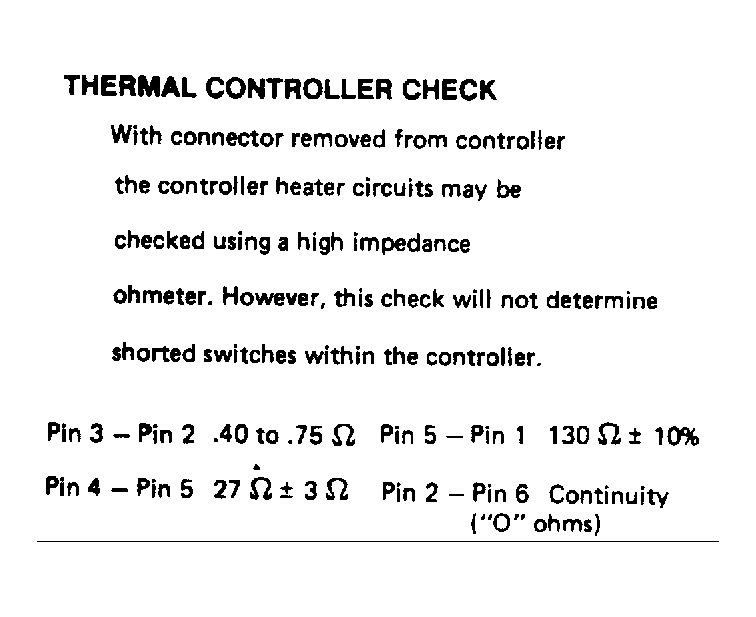

Fig 1: Thermal Controller Check
