Electronic Spark Control (ESC) Testing: Notes

NOTE: Electronic Spark Control (ESC) is used on some Chevrolet and GMC models using the 5.0L 4-Bbl. (VIN LE9) engine.

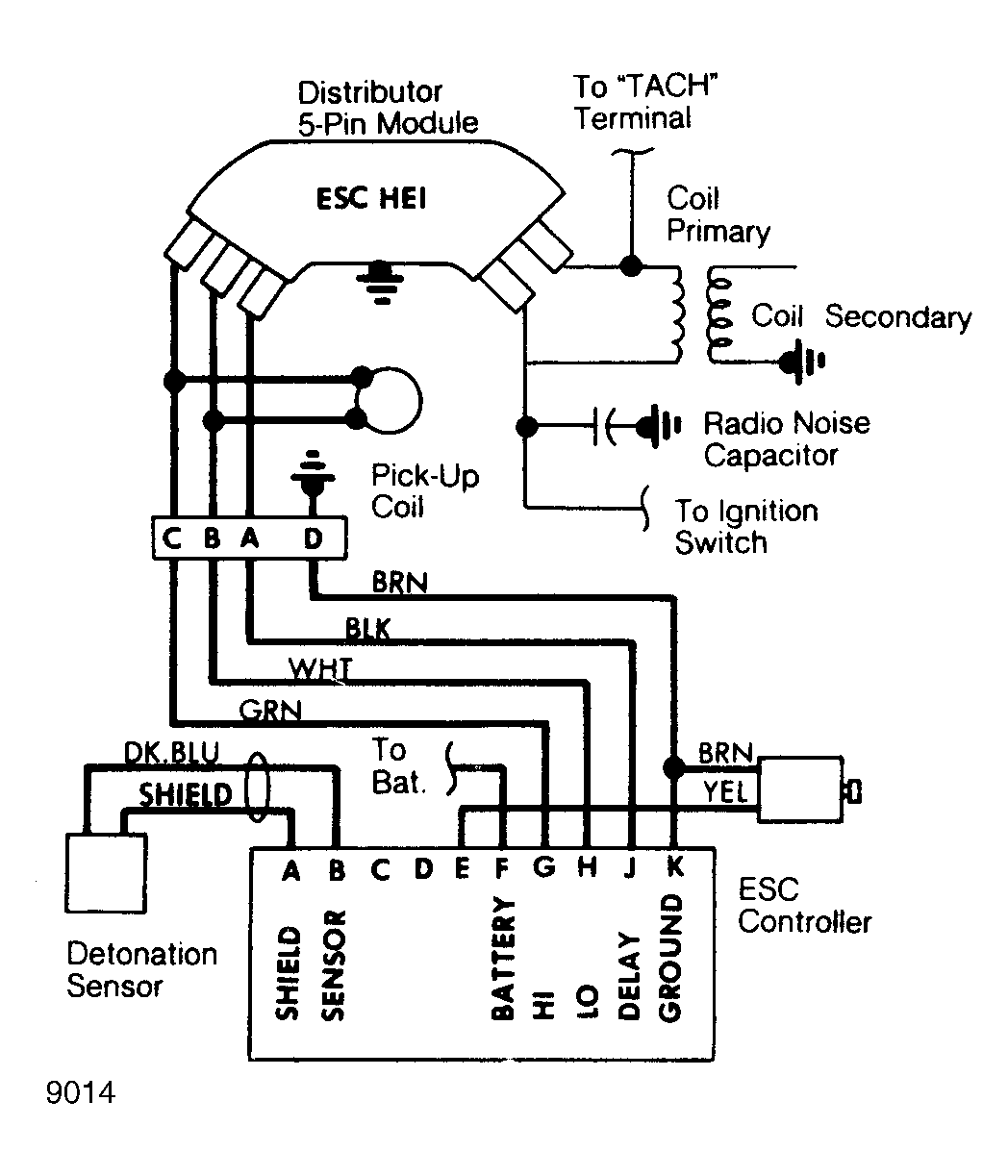

Fig 1: Wiring Diagram for HEI Sys. w/Electronic Spark Control (ESC)
G9014
