Air Management Check

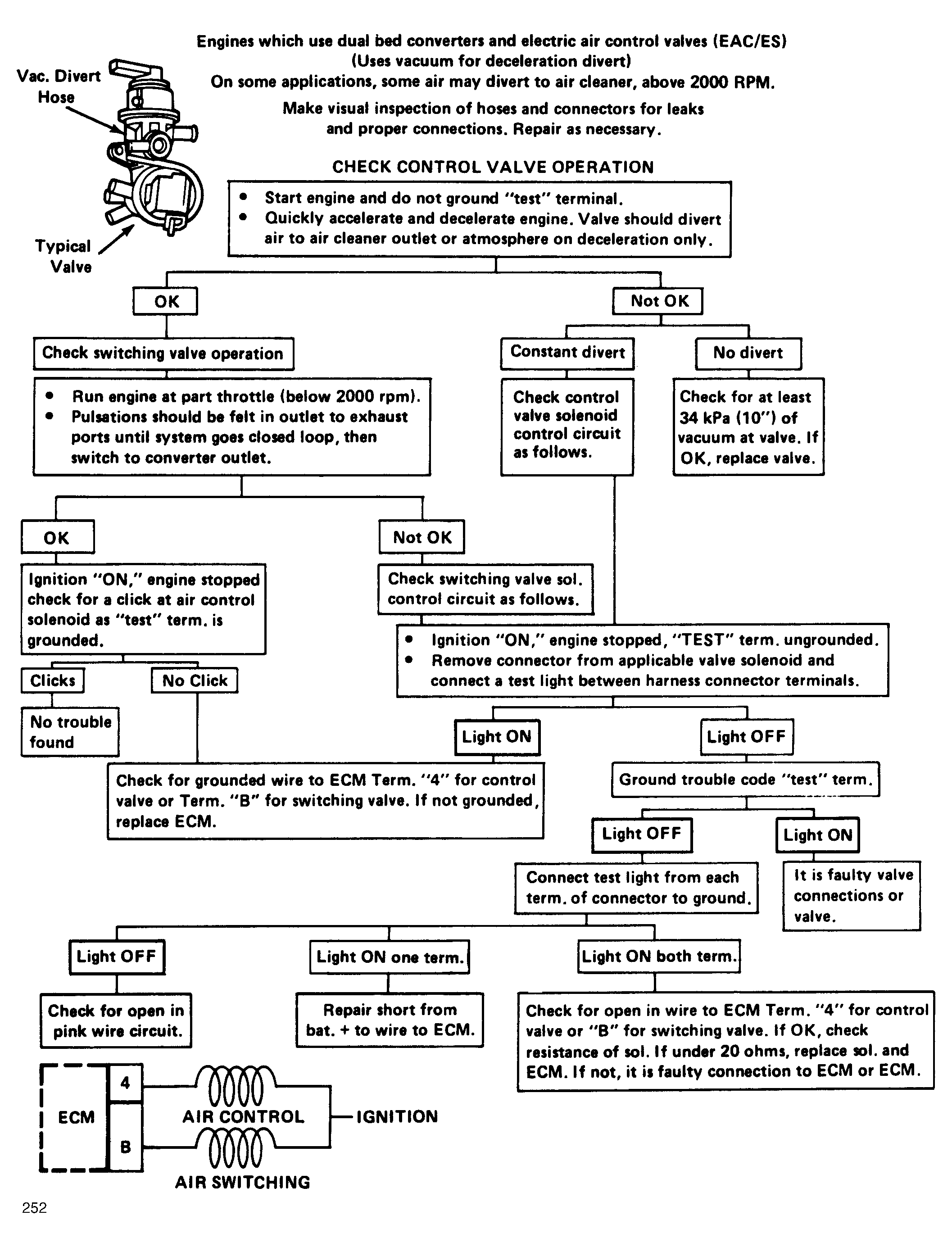

Fig 1: Flow Chart - Air Mgmt Sys Chk W/ Elec Air Cont & Elec Switch Valve
G252

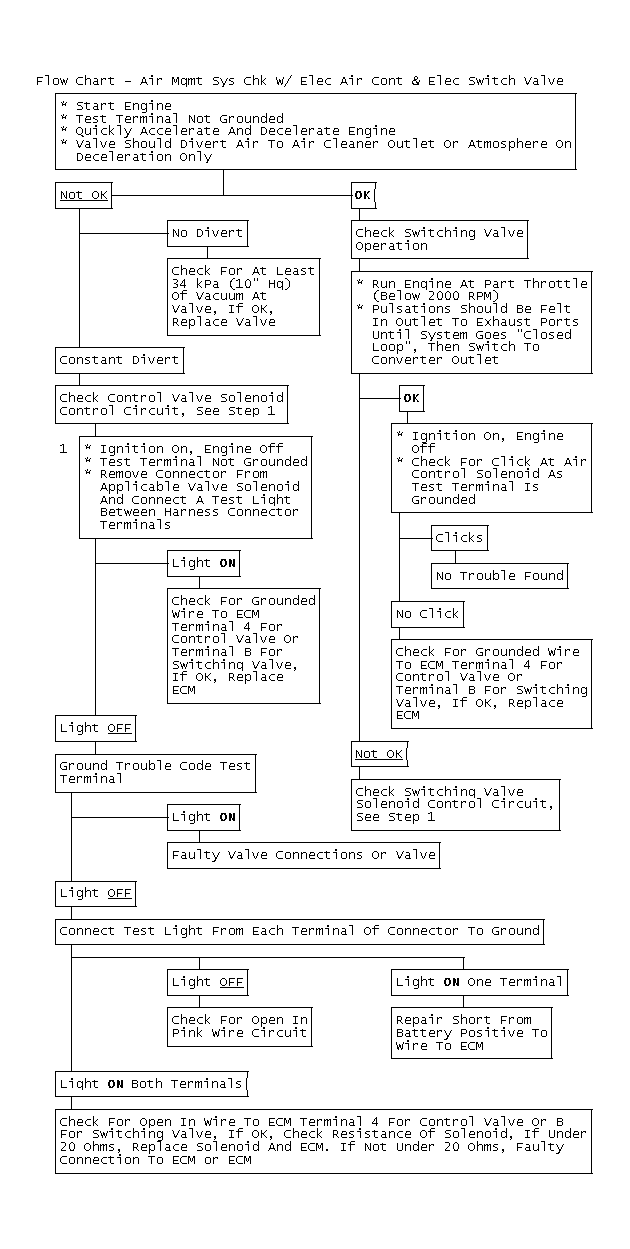

Fig 2: Flow Chart - Air Mgmt Sys Chk W/ Elec Air Cont & Elec Switch Valve
GB0046397
