Jimmy 6.2 C
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Feedback Carburetor Component Test
>>
No Code 12 Displayed
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
No Code 12 Displayed

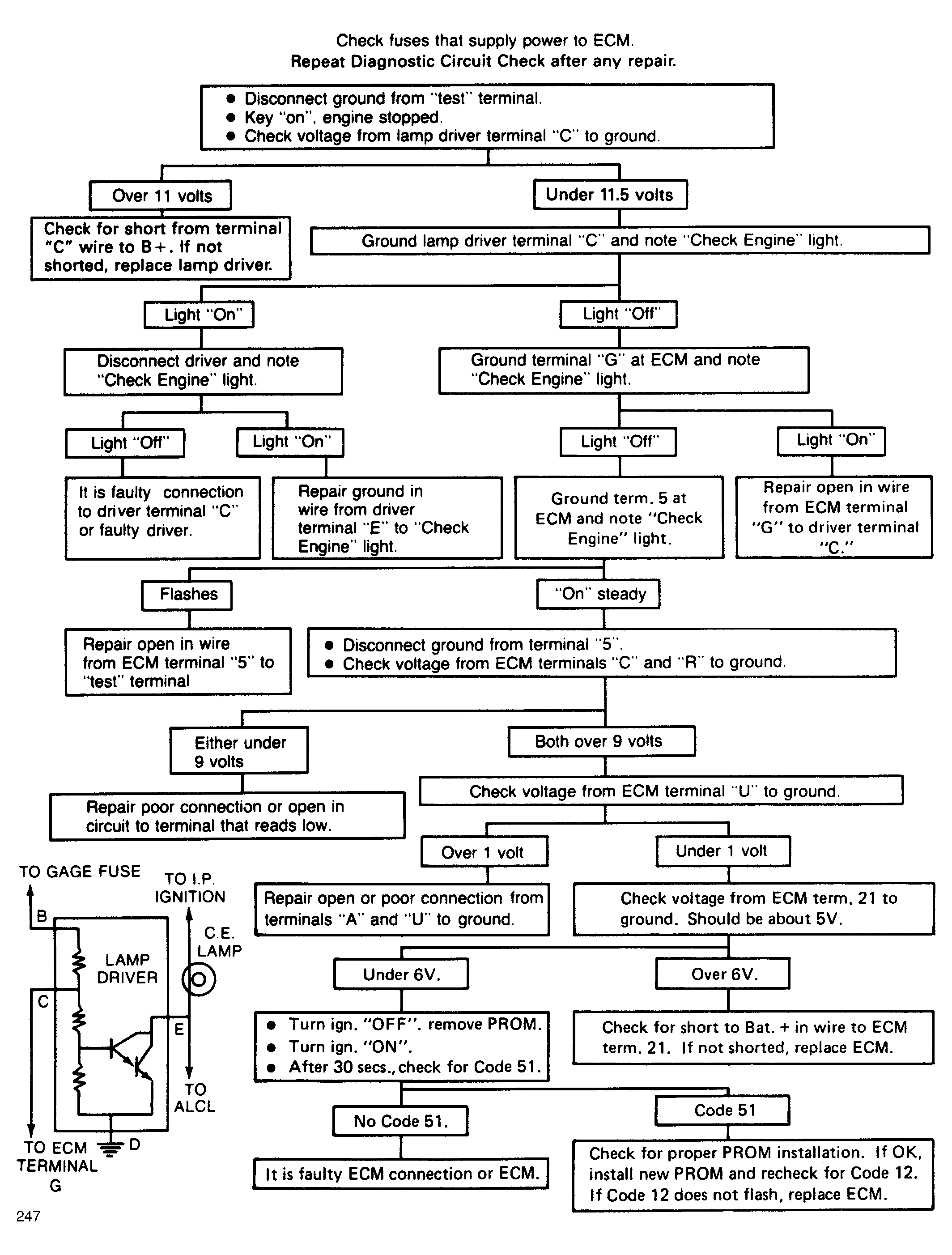

Fig 1: CHART 6 - Won't Flash Code 12 (Remote Lamp Driver In Harness)
