PULSAIR Solenoid Check

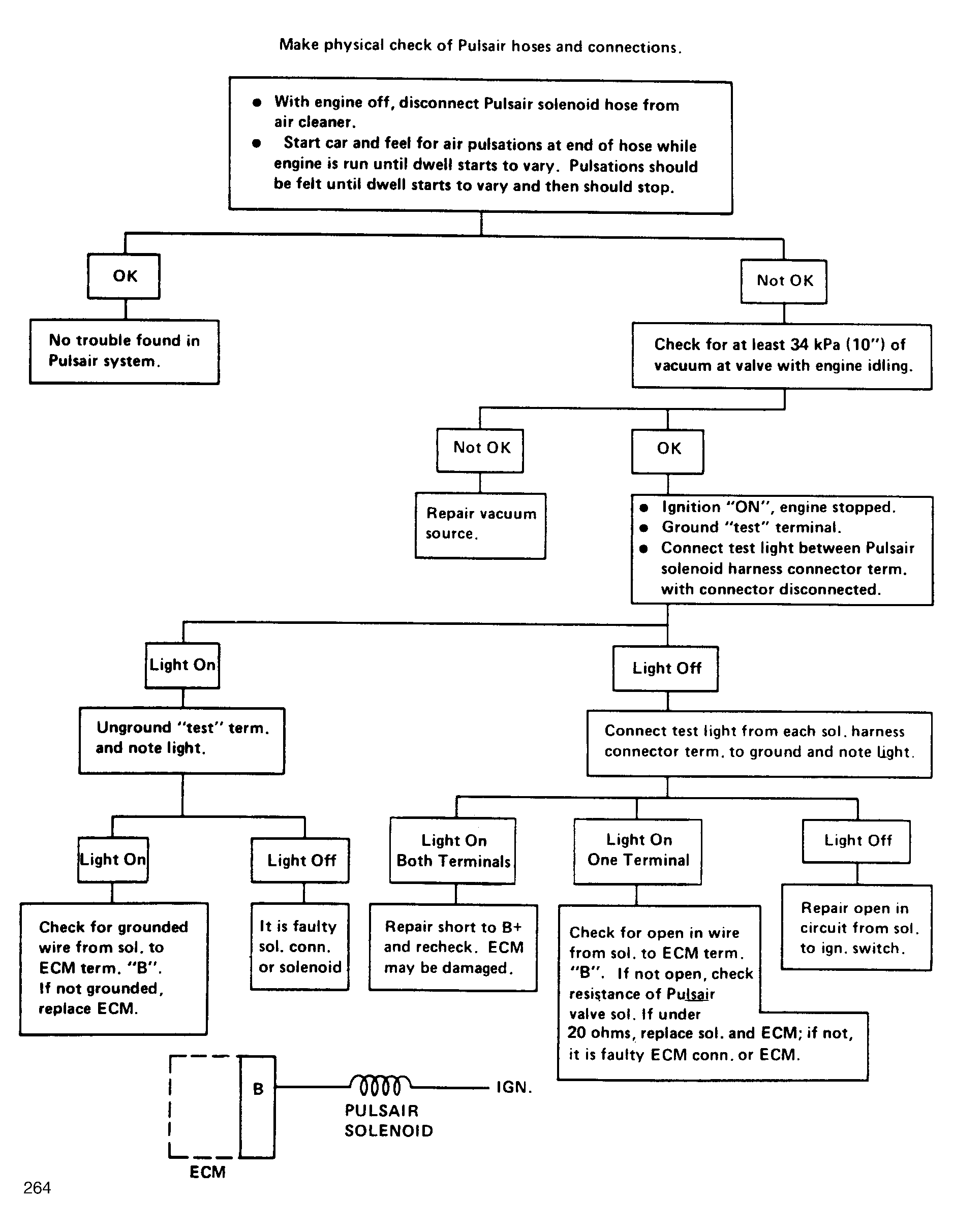

Fig 1: Flow Chart - Pulsair Solenoid Check

G264

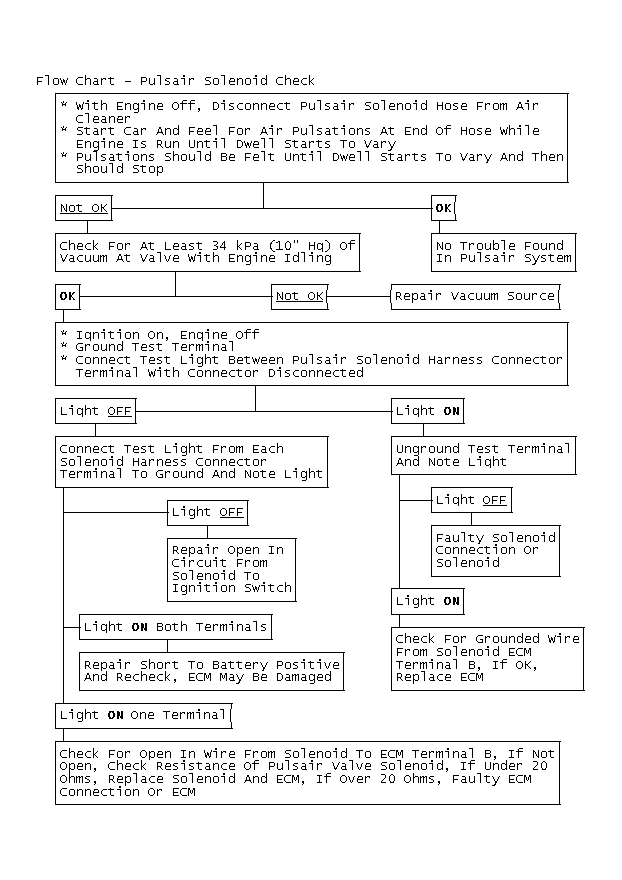

Fig 2: Flow Chart - Pulsair Solenoid Check

GB0046407
