Chart C4D - Est Performance Check

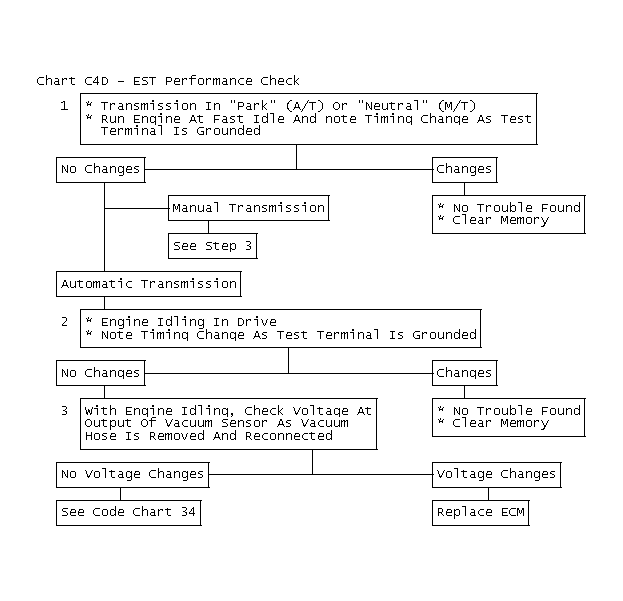

Fig 1: Flow Chart C4D - EST Performance Check

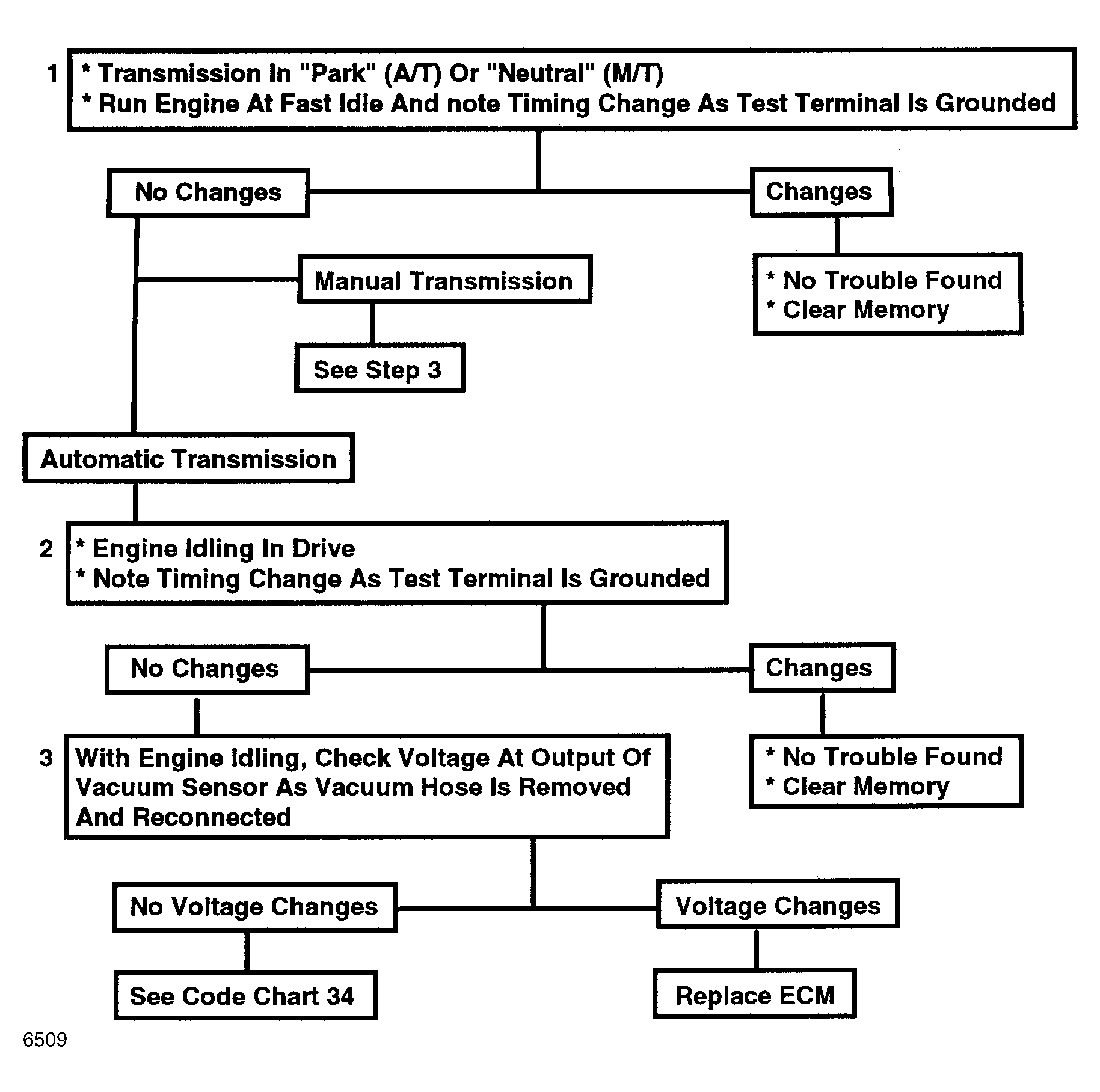

Fig 2: Flow Chart C4D - EST Performance Check
