Chart C7C - EGR Valve Check (Non-ECM Controlled)

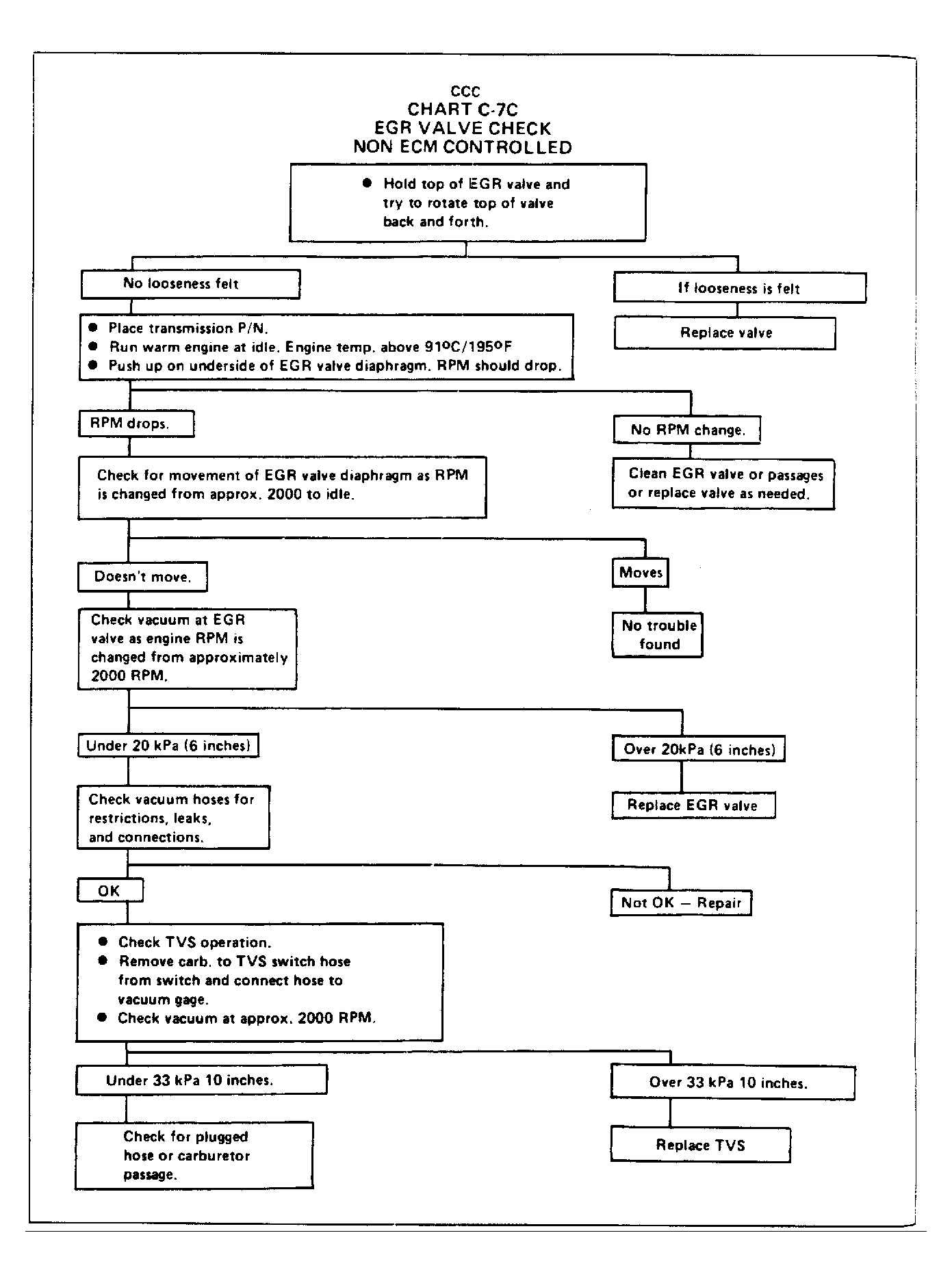

Fig 1: Flow Chart C7C - EGR Valve Check (Non-ECM Controlled)
G6512

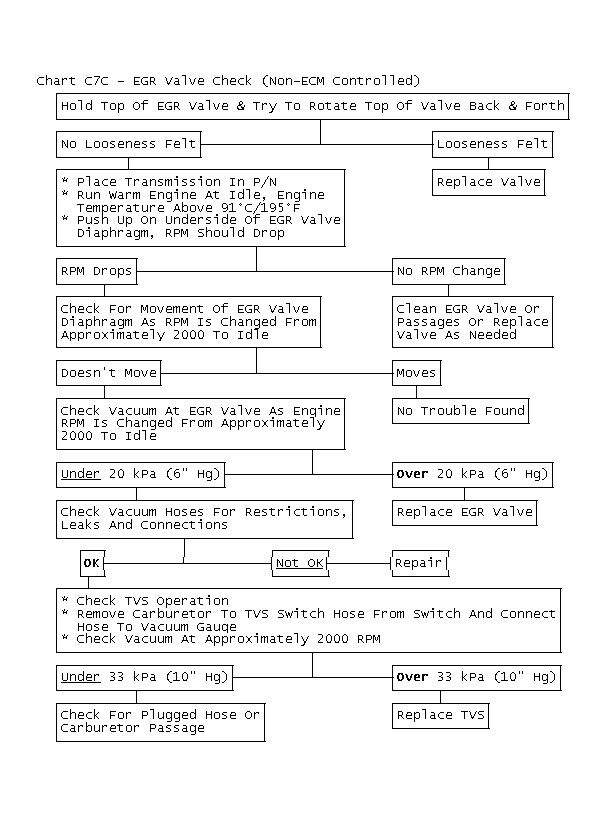

Fig 2: Flow Chart C7C - EGR Valve Check (Non-ECM Controlled)
GB0048281
