Component Locations

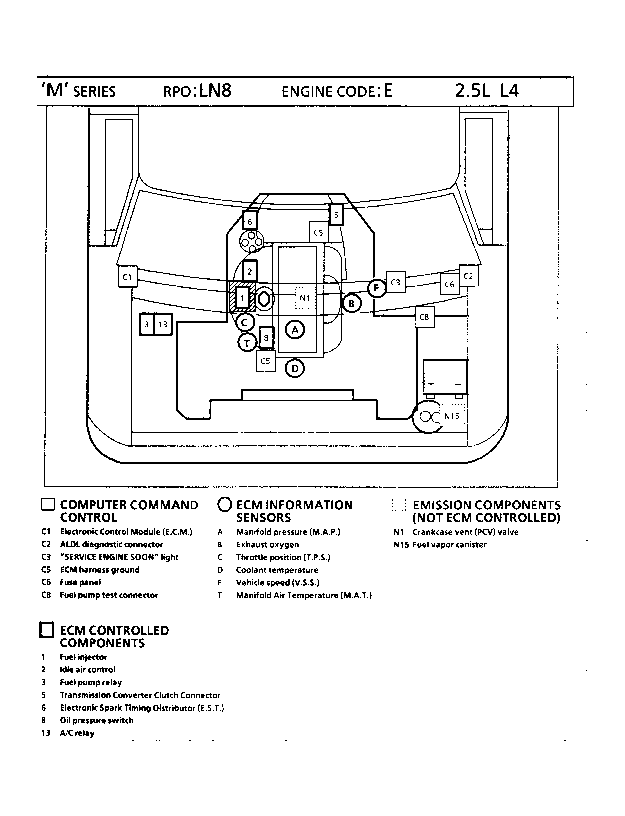

Fig 1: 2.5L VIN "E" - Astro & Safari Component Locations

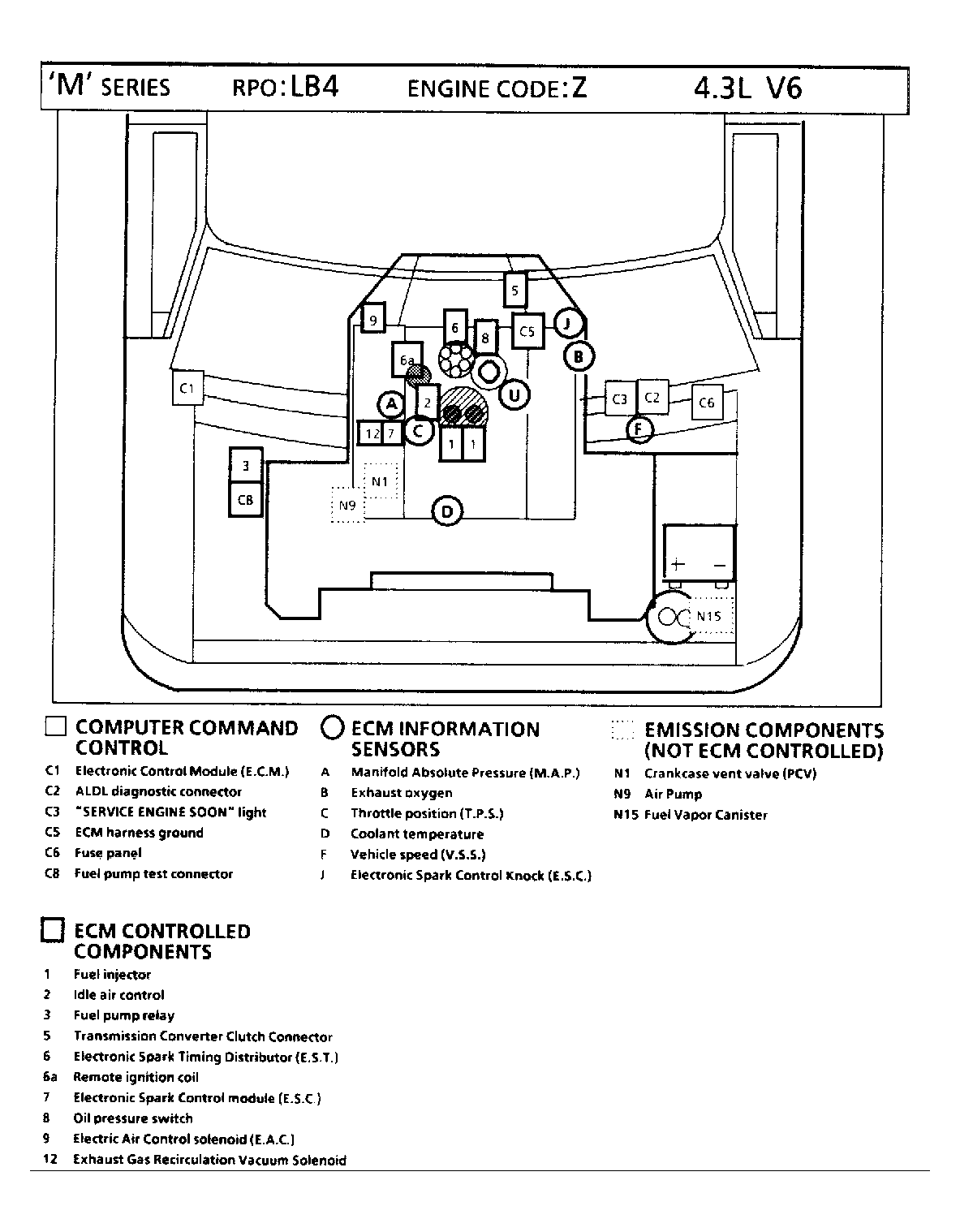

Fig 2: 4.3L VIN "Z" - Astro & Safari Component Locations

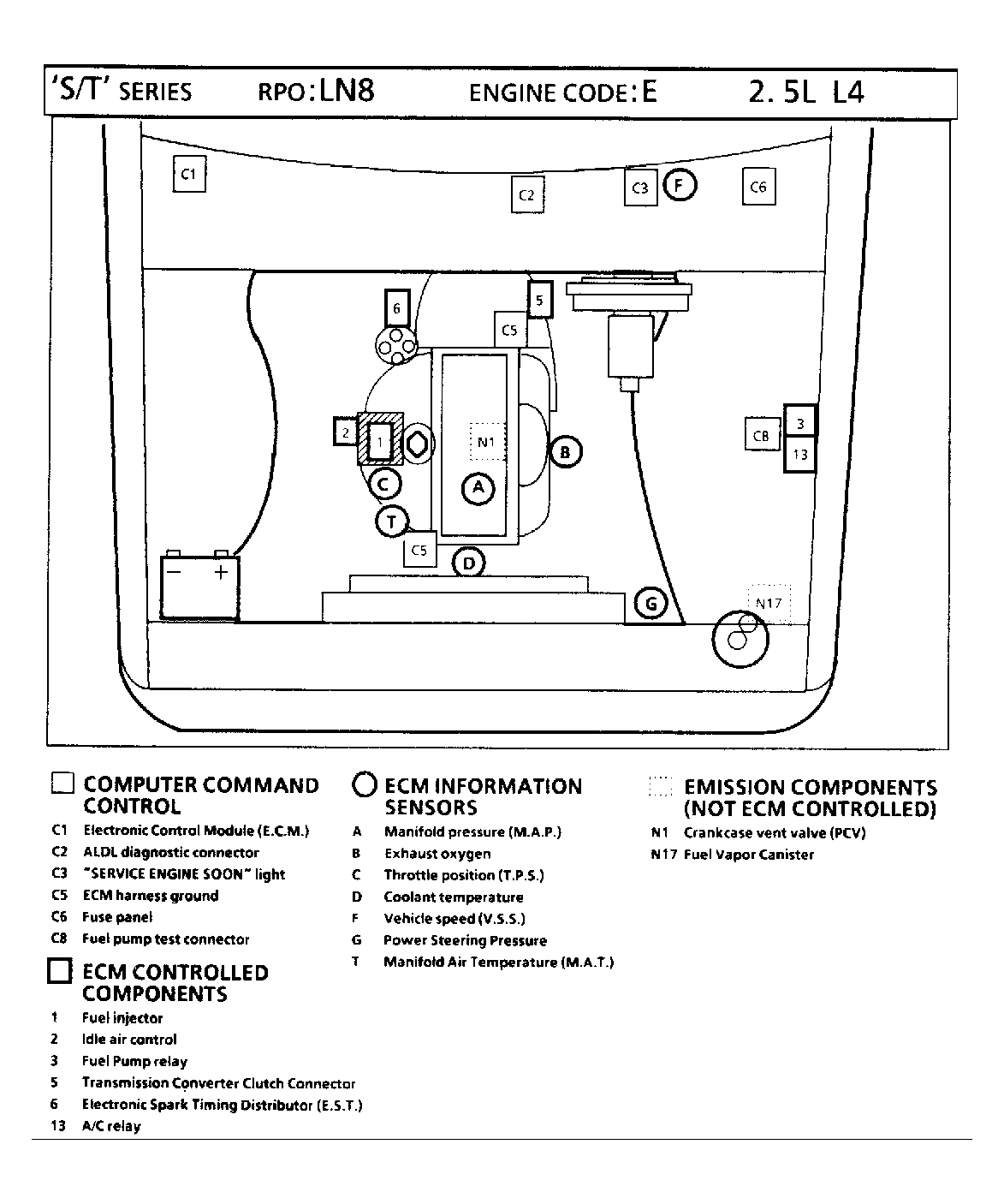

Fig 3: 2.5L VIN "E" - "S/T" Series Truck Component Locations

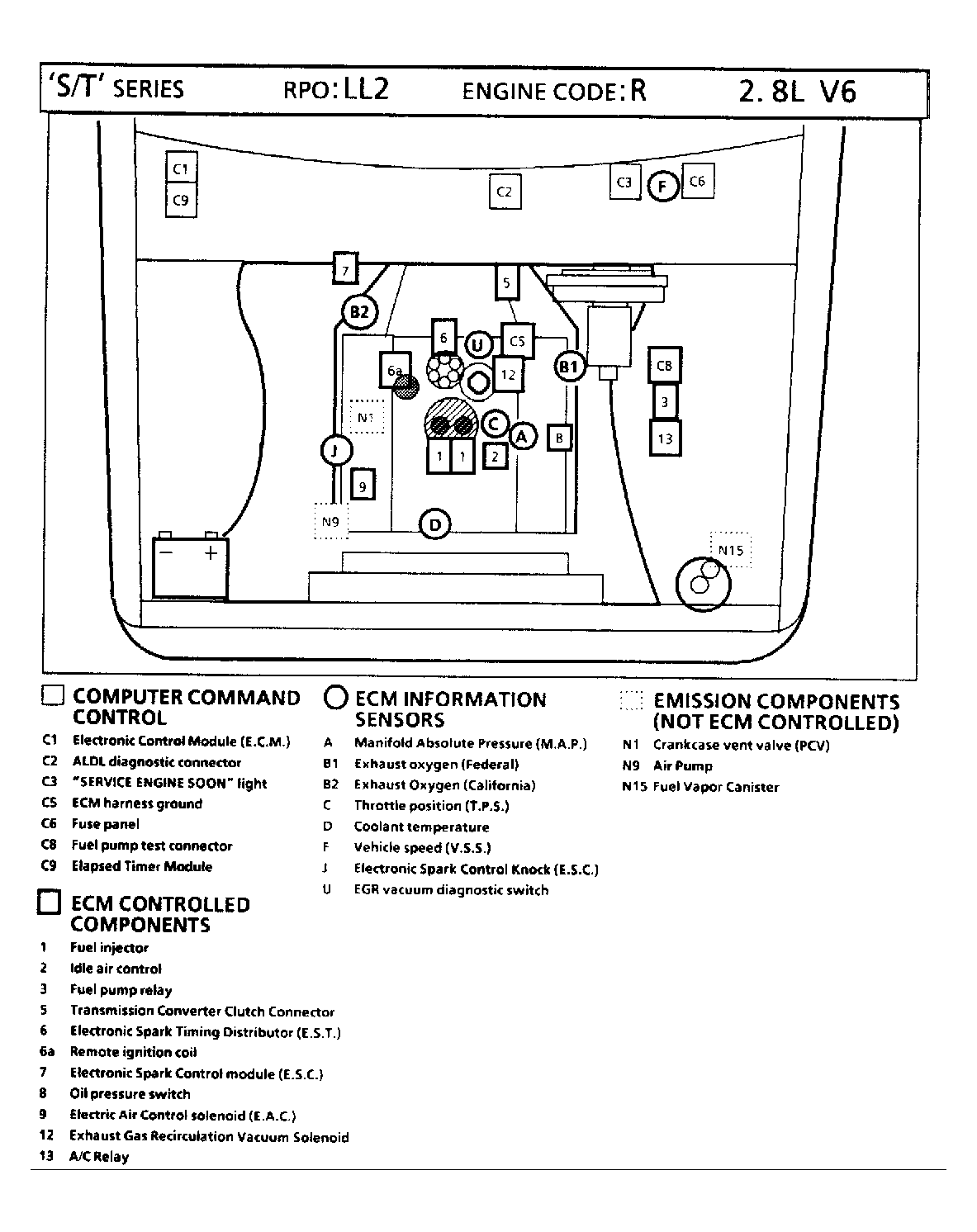

Fig 4: 2.8L VIN "R" - "S/T" Series Truck Component Locations

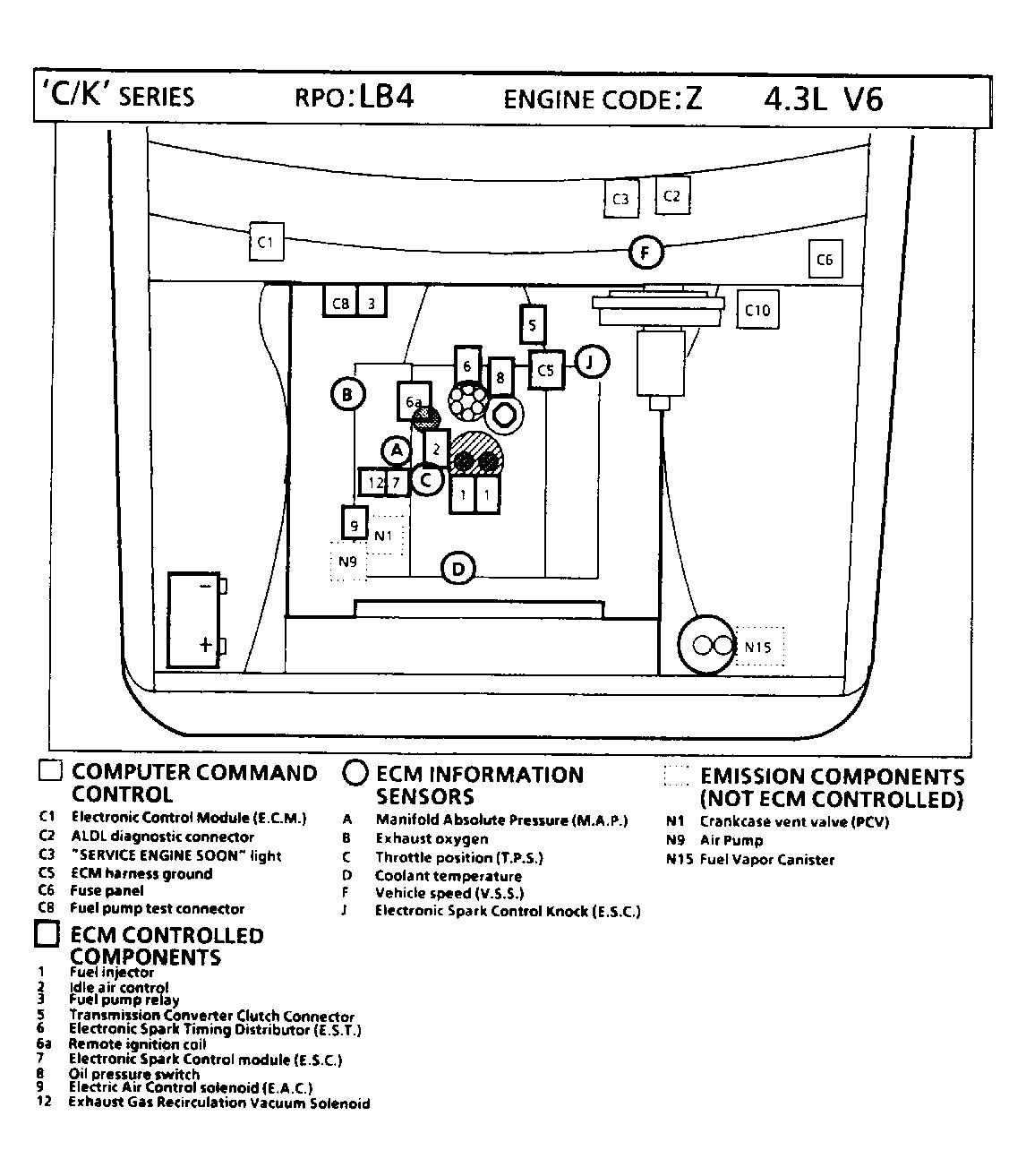

Fig 5: 4.3L VIN "Z" - "C/K" Series Truck Component Locations

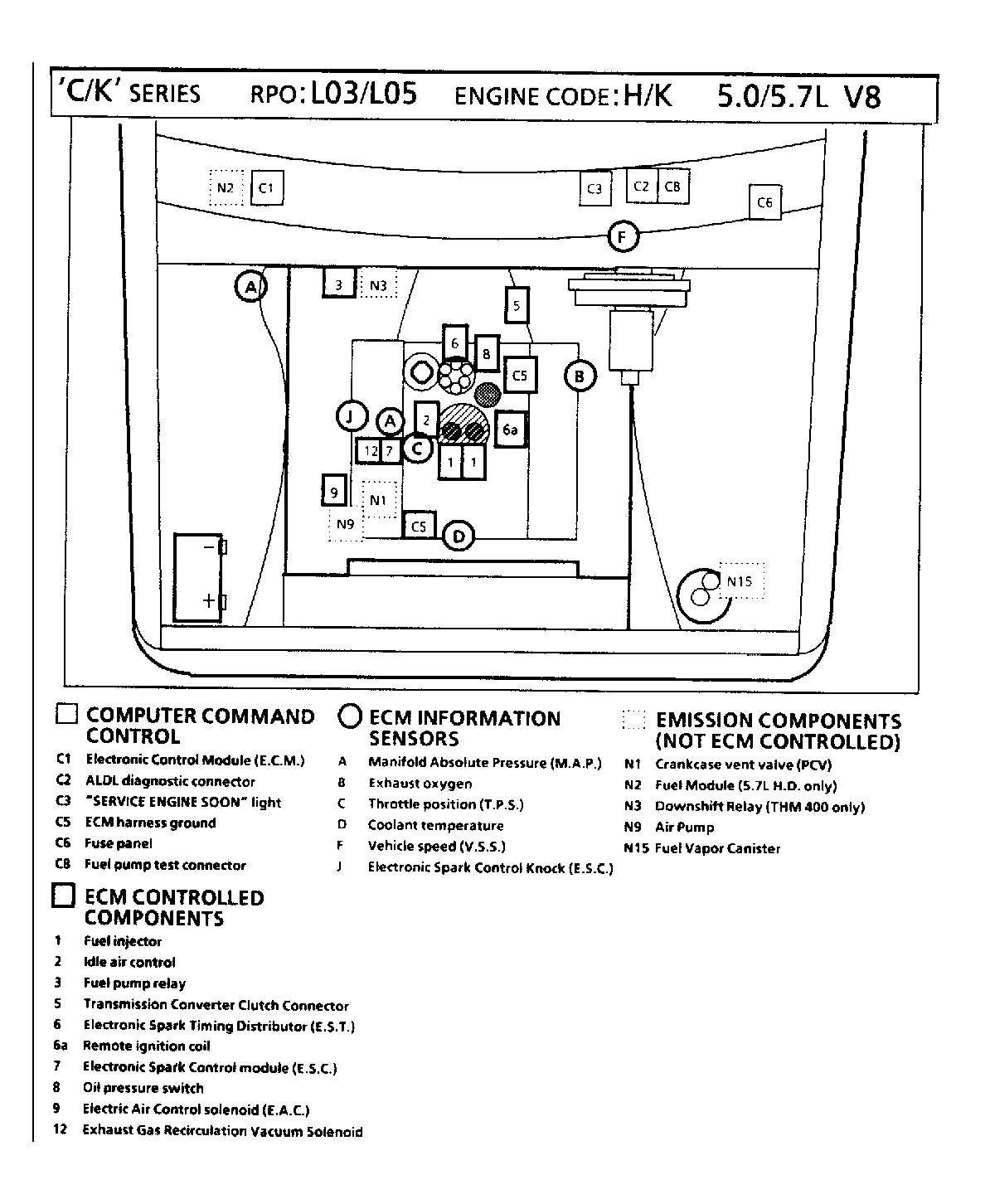

Fig 6: 5.0L VIN "H" & 5.7L VIN "K" - "C/K" Component Locations

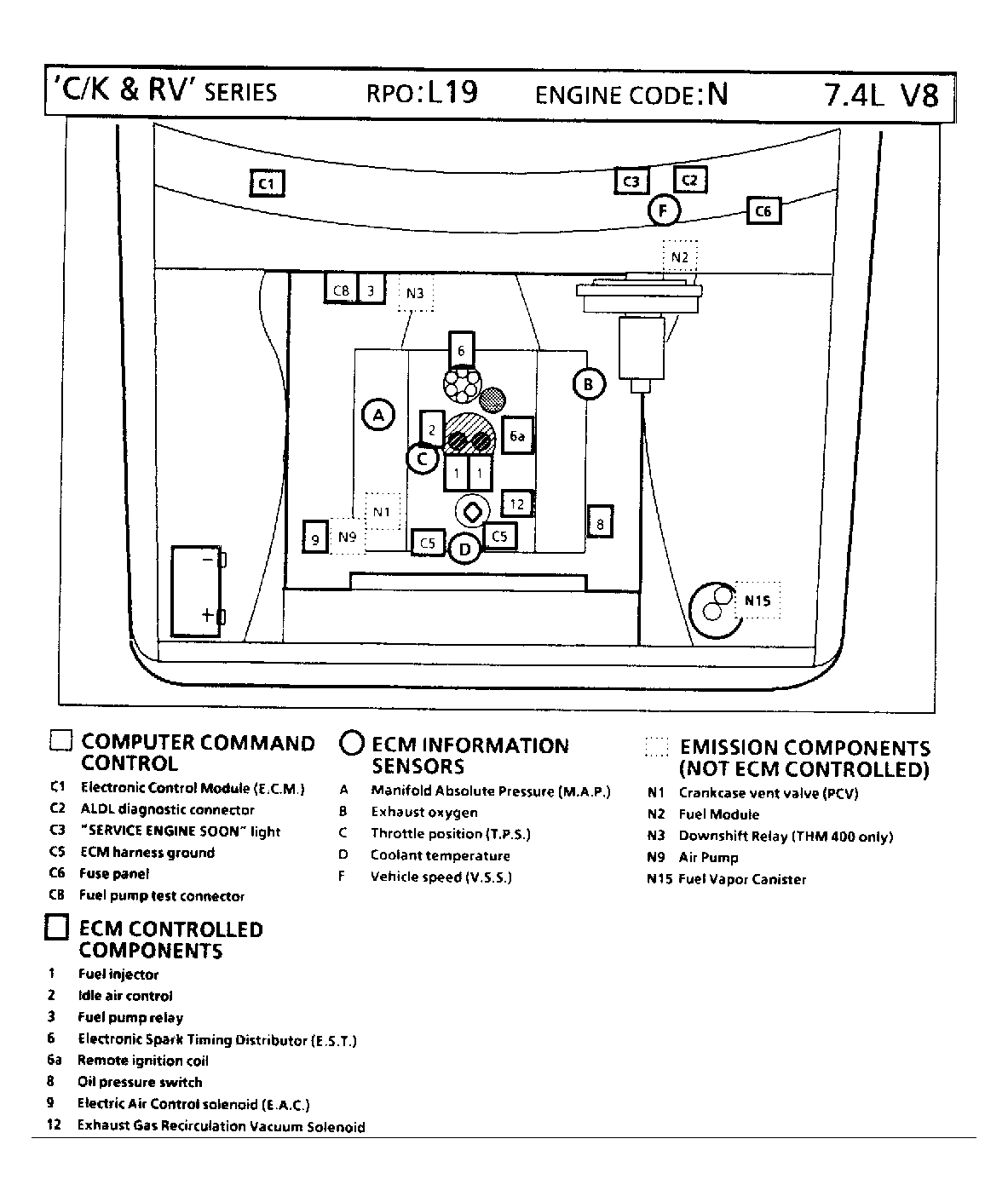

Fig 7: 7.4L VIN "N" - "C/K" & "R/V" Series Truck Component Locations

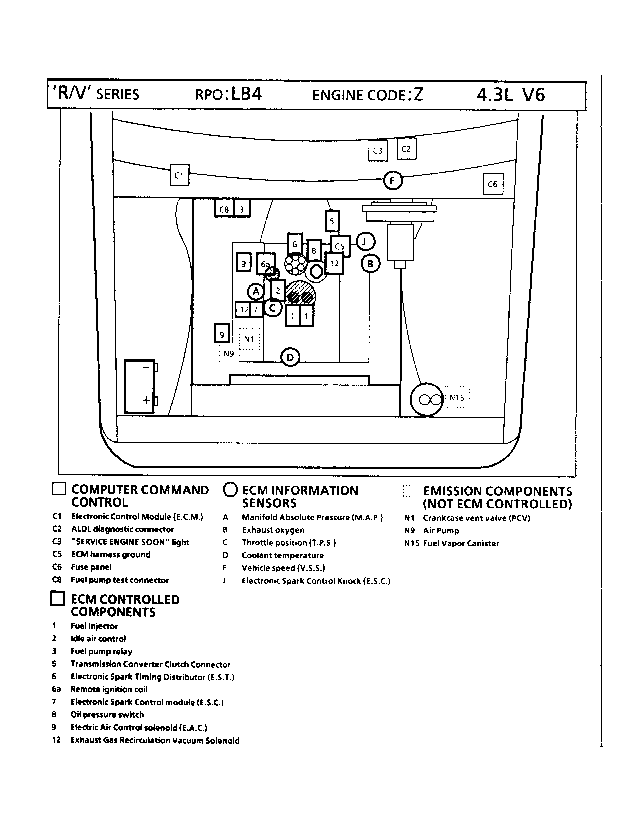

Fig 8: 4.3L VIN "Z" - "R/V" Series Truck Component Locations

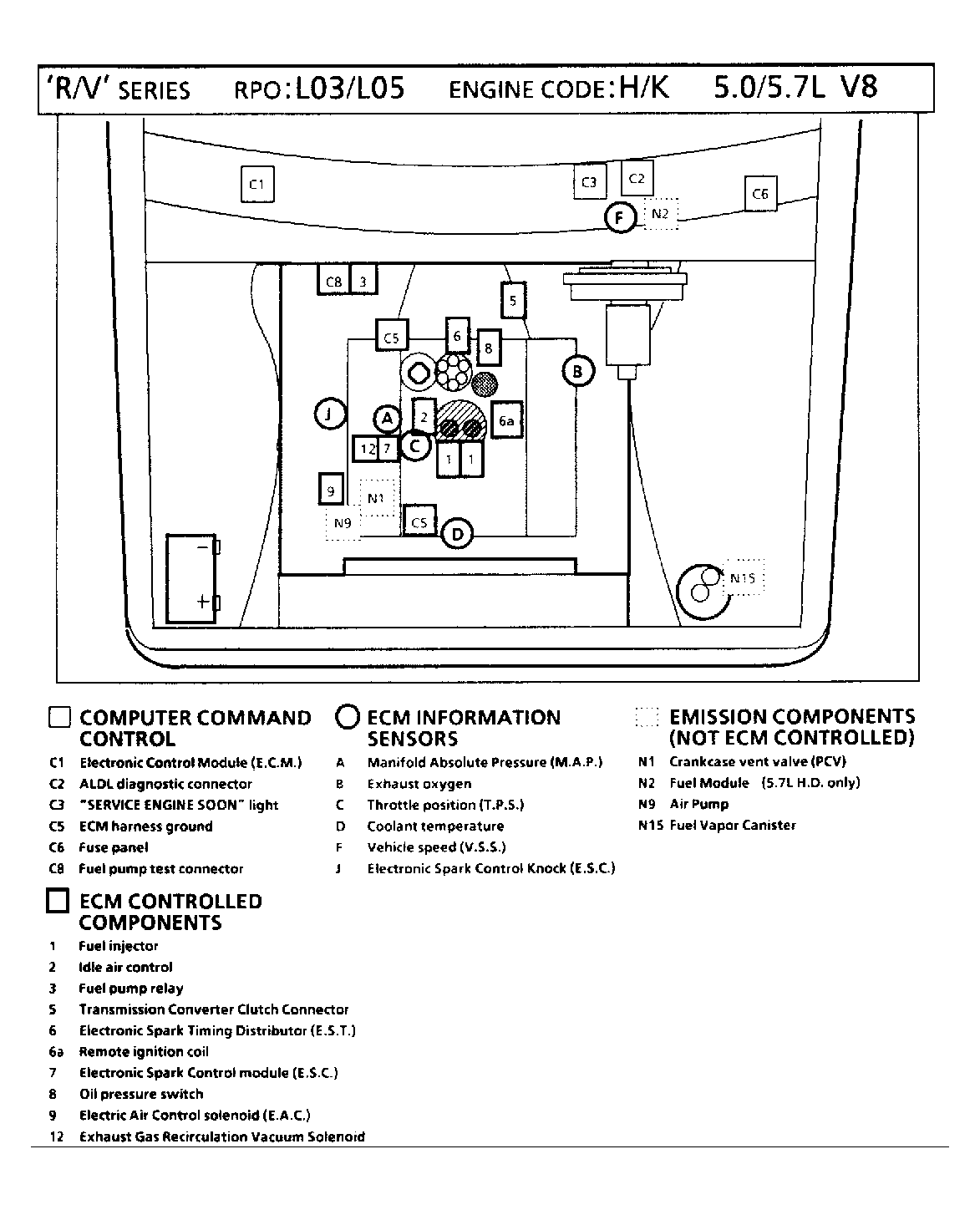

Fig 9: 5.0L VIN "H" & 5.7L VIN "K" - "R/V" Component Locations

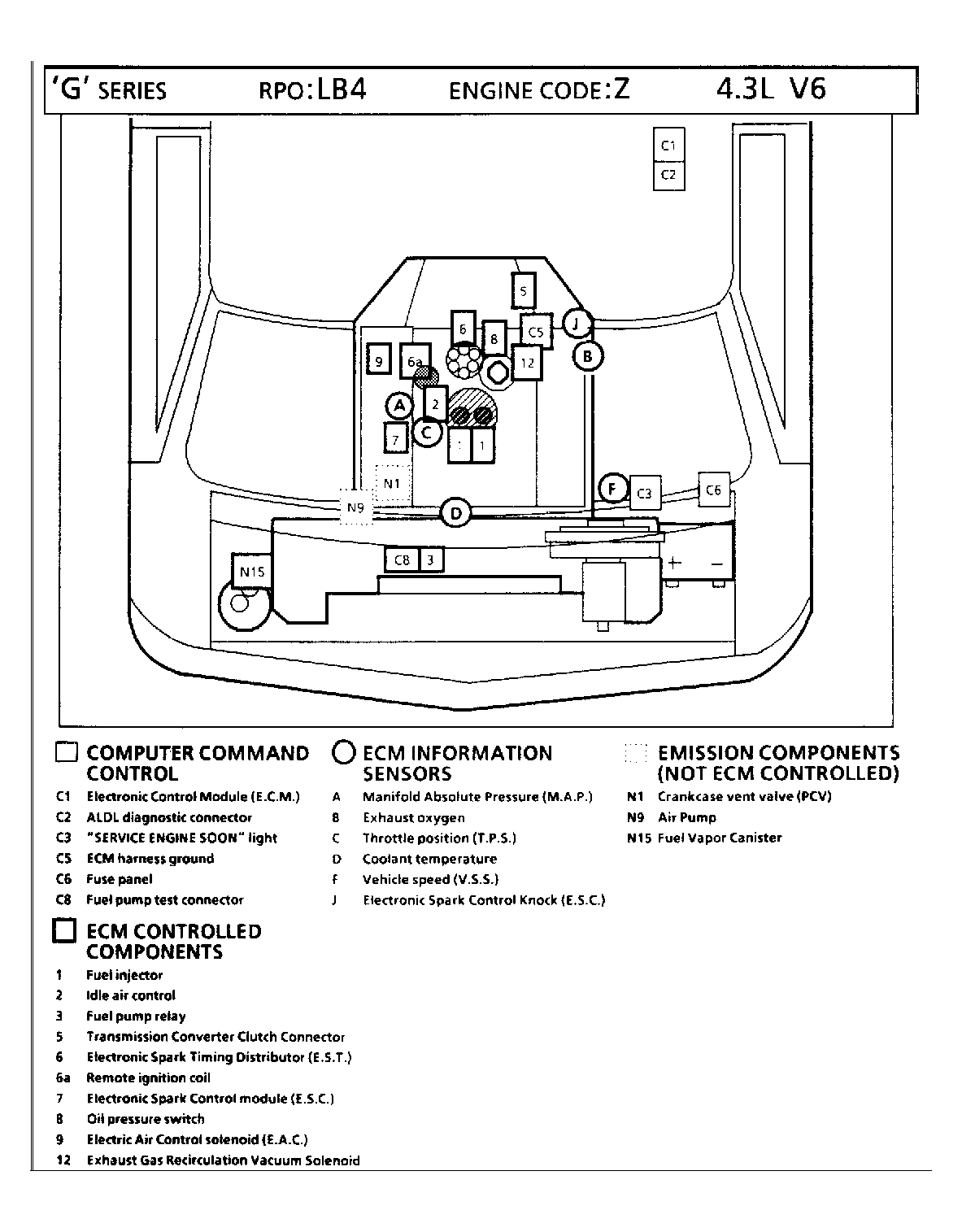

Fig 10: 4.3L VIN "Z" - "G" Series Van Component Locations

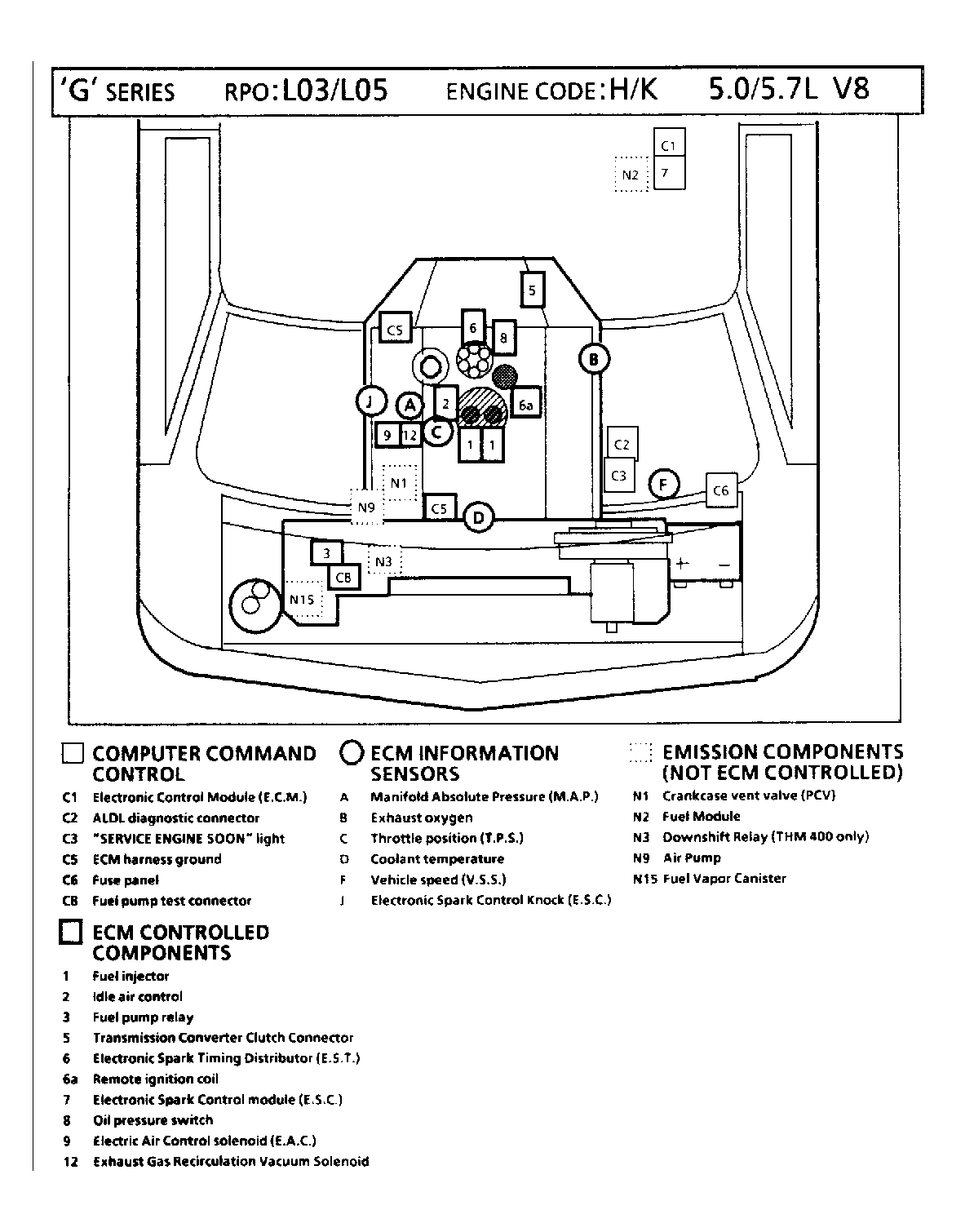

Fig 11: 5.0L VIN "H"/5.7L VIN "K" "G" Series Van Component Locations

Fig 12: 7.4L VIN "K" - "P" Series Parcel Van Component Locations
