ECM Terminal Id

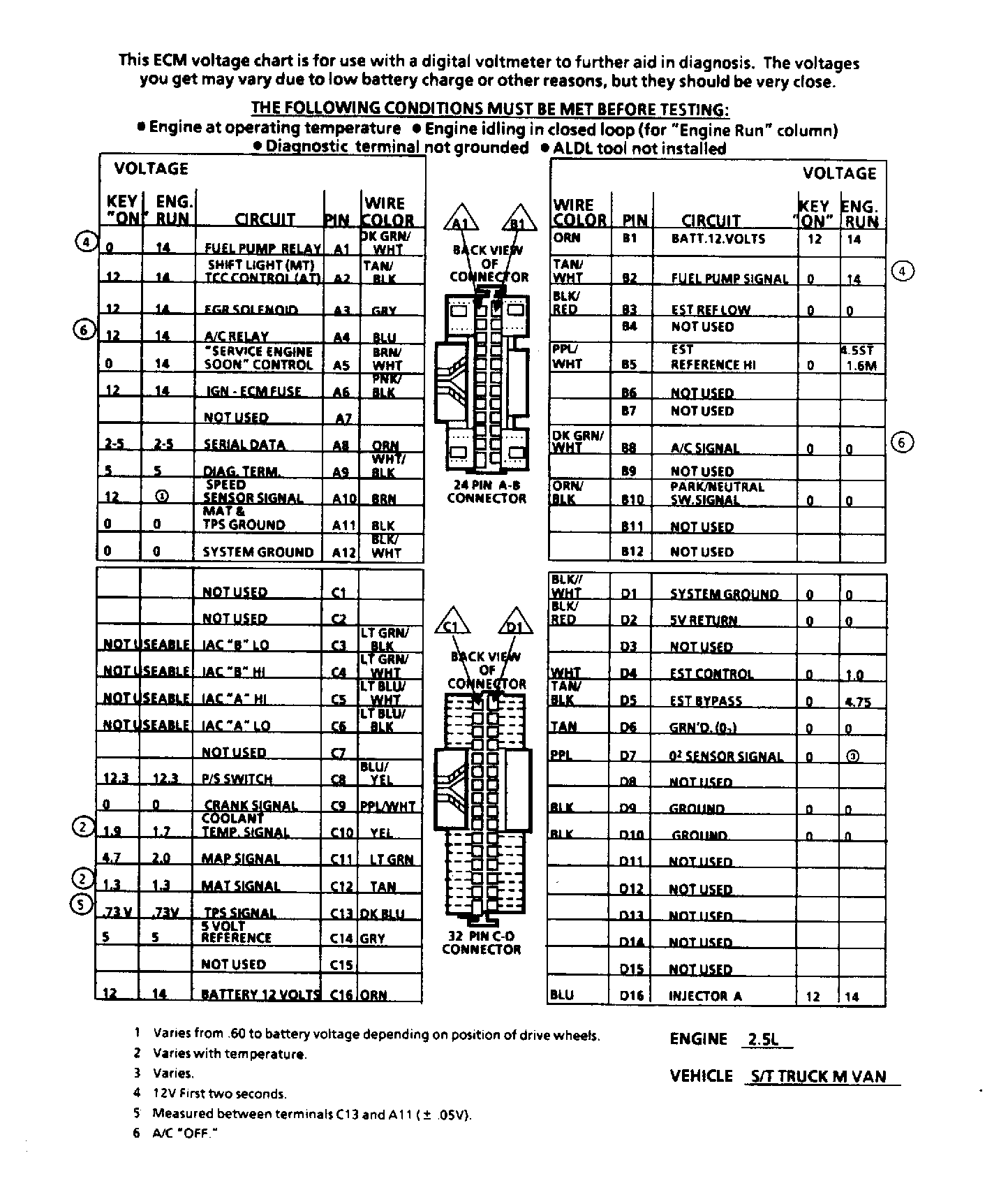

Fig 1: ECM Terminal ID & Voltage Values (2.5L)
G120867

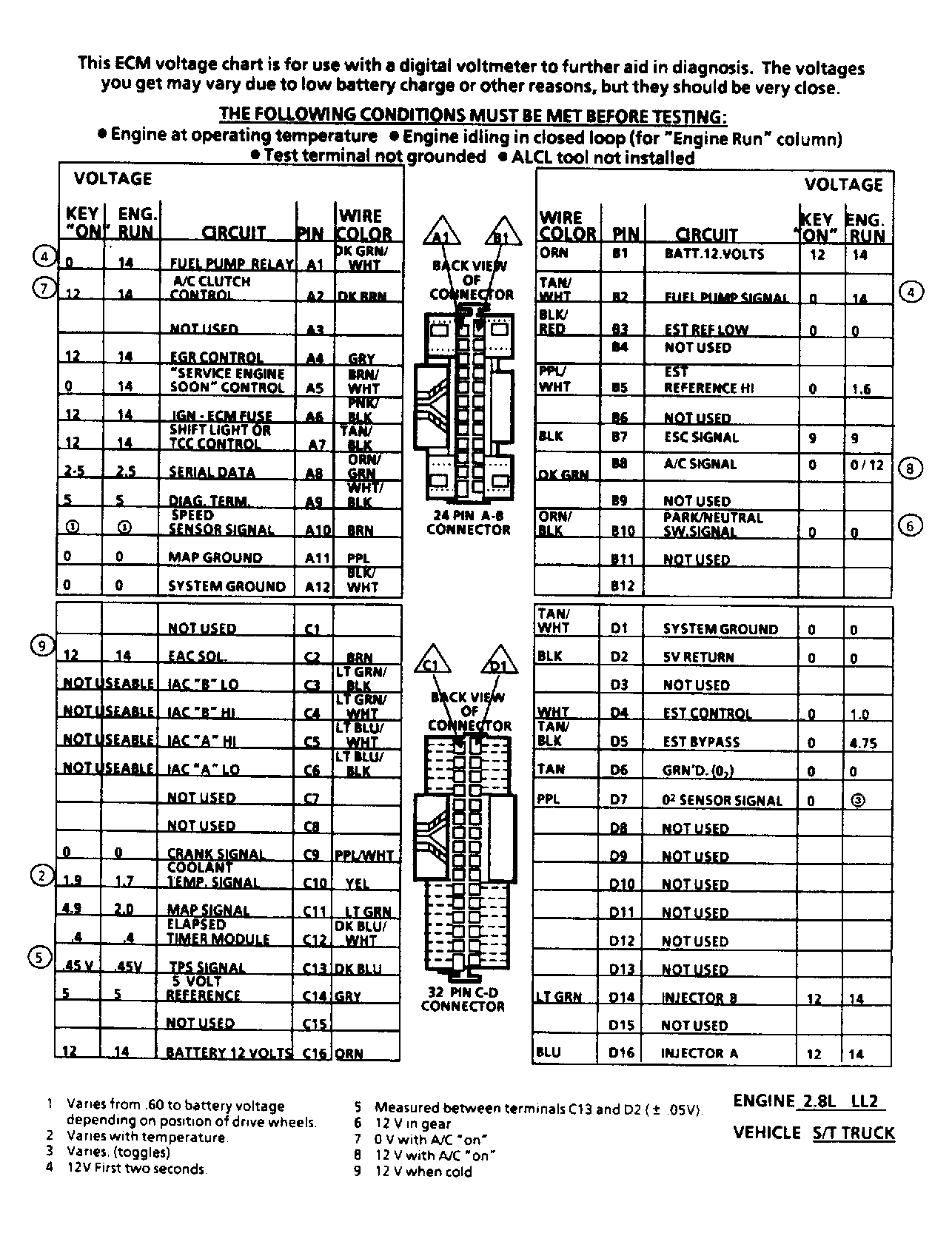

Fig 2: ECM Terminal ID & Voltage Values (2.8L)
G120868

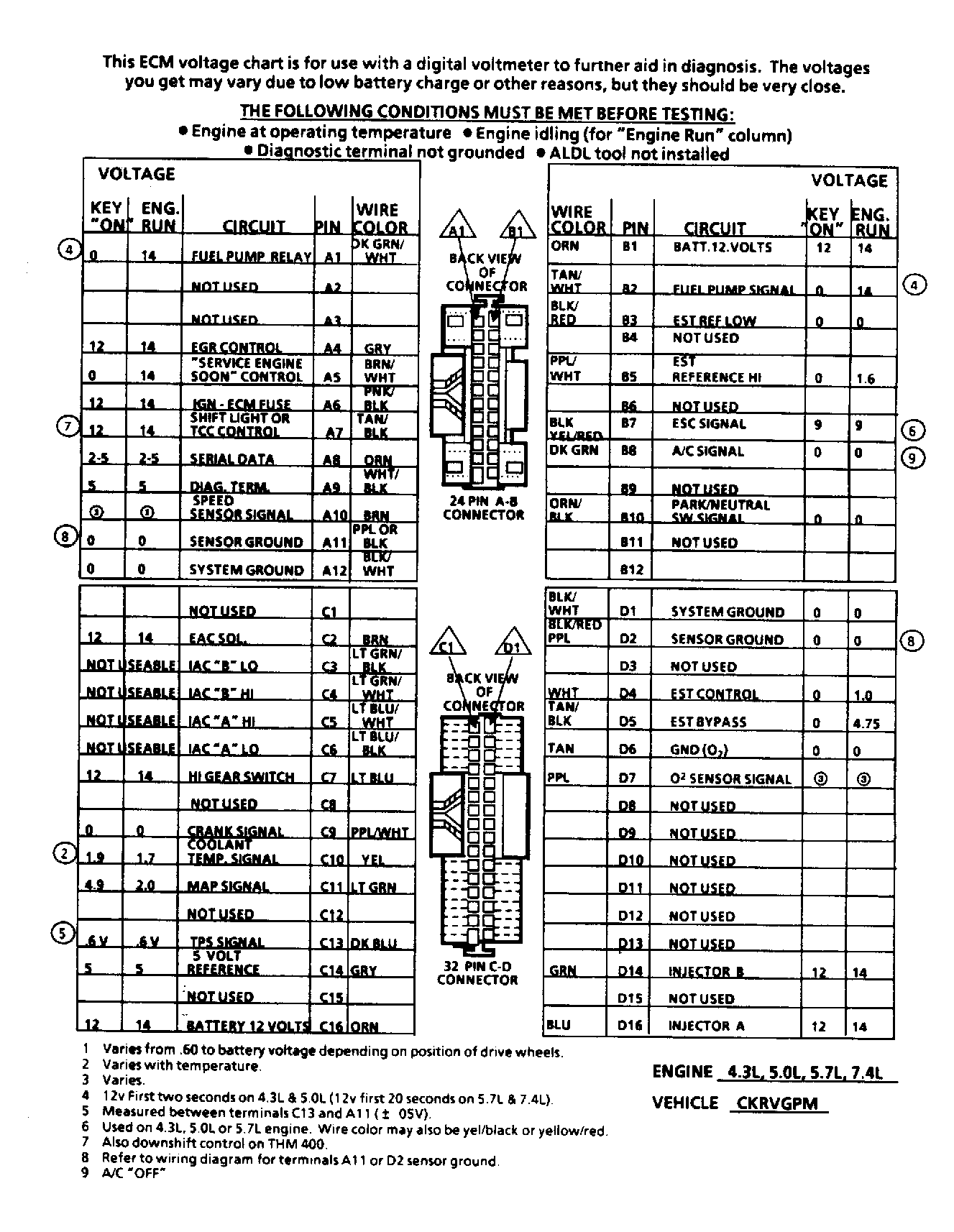

Fig 3: ECM Terminal ID & Voltage Values (4.3L, 5.0L, 5.7L & 7.4L)
G120869
