Fuel Injector

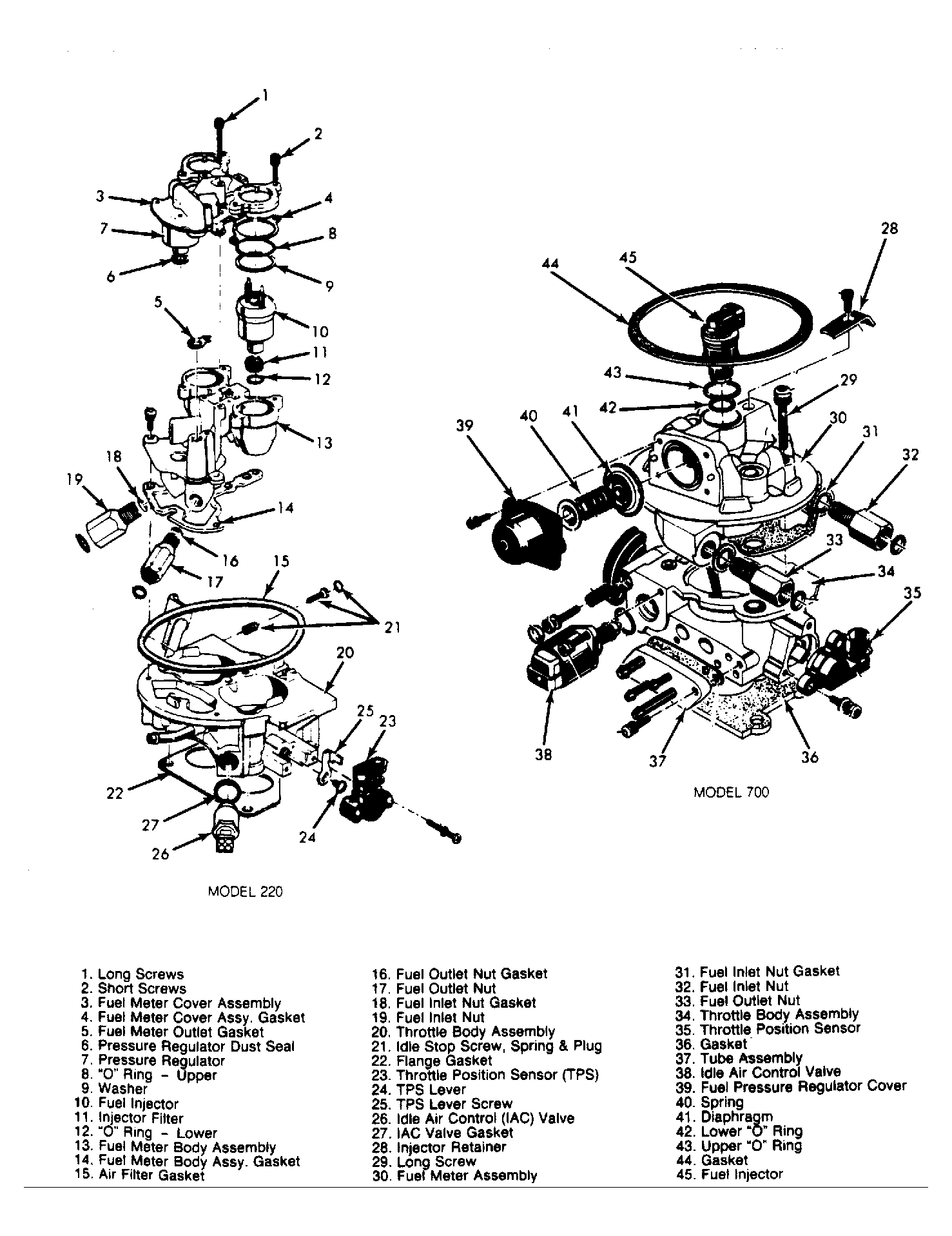

- Lubricate "O" rings with automatic transmission fluid. Make sure upper "O" ring is in groove and that lower "O" ring is flush against filter. See Figure.
- Press injector into fuel cavity. Ensure injector electrical connector is facing cut-out in fuel meter body for wire grommet. Apply Loctite to injector retainer screw. Install injector retainer and screw.
