Wiring Diagrams

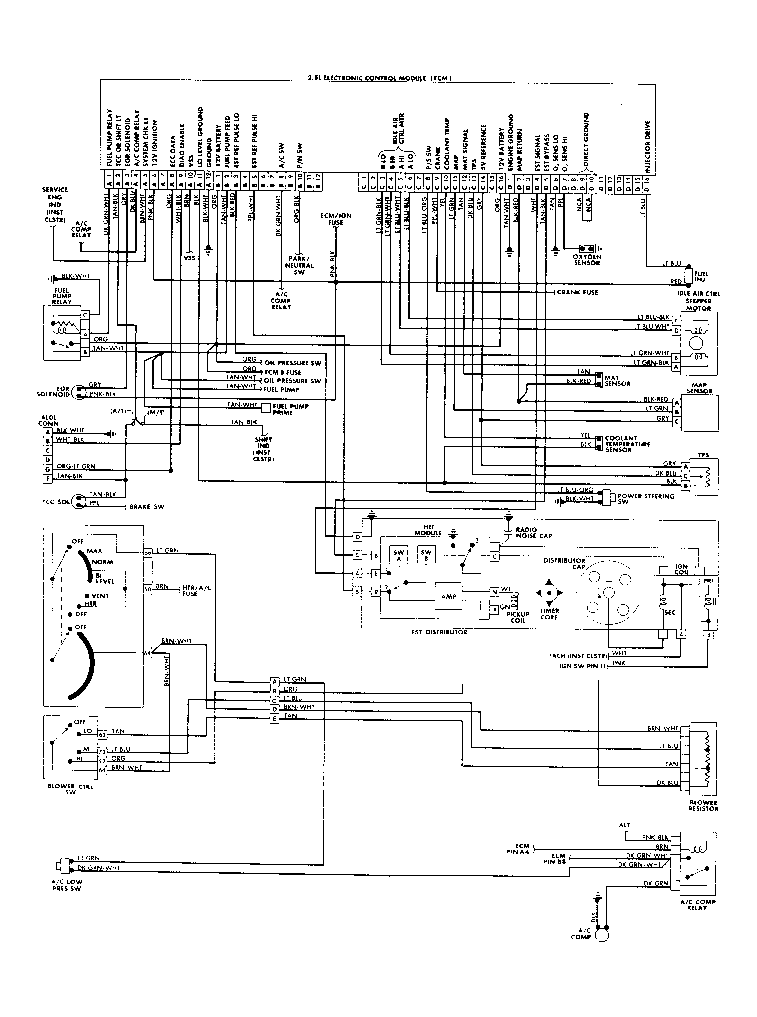

Fig 1: Astro & Safari (2.5L) Wiring Diagram

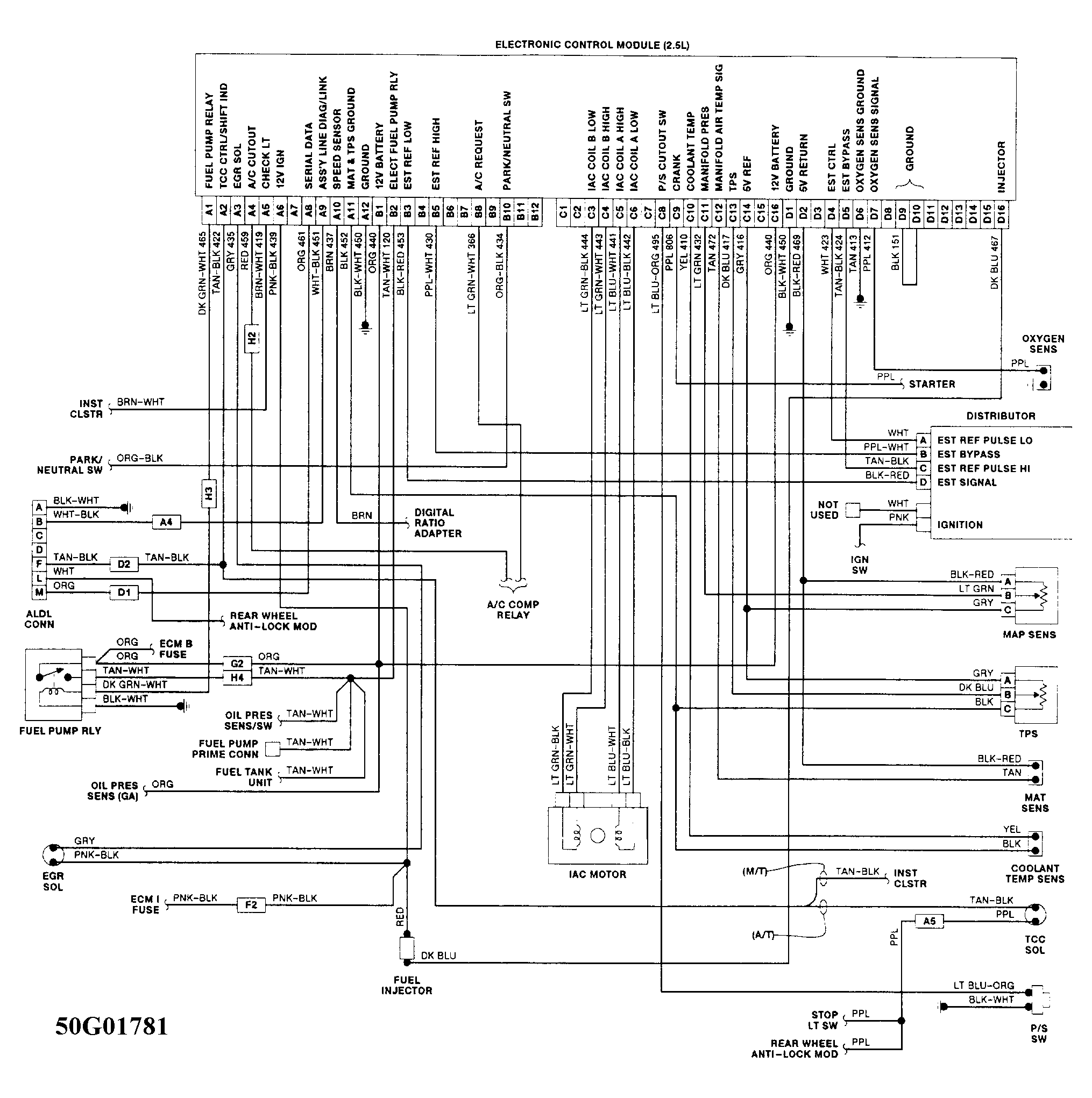

Fig 2: "S/T" Series (2.5L) Wiring Diagram

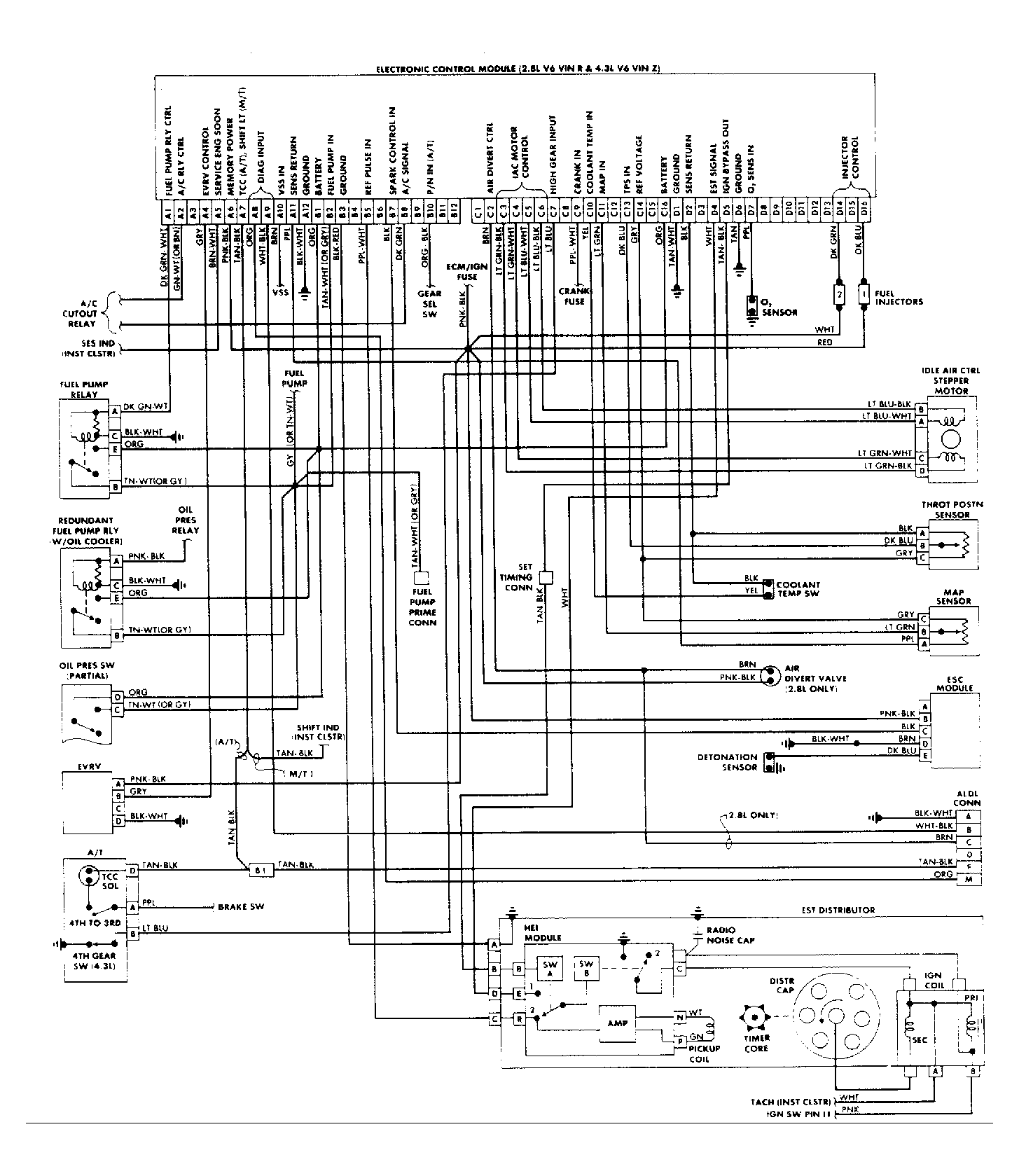

Fig 3: "S/T" Series (2.8L & 4.3L) Wiring Diagram

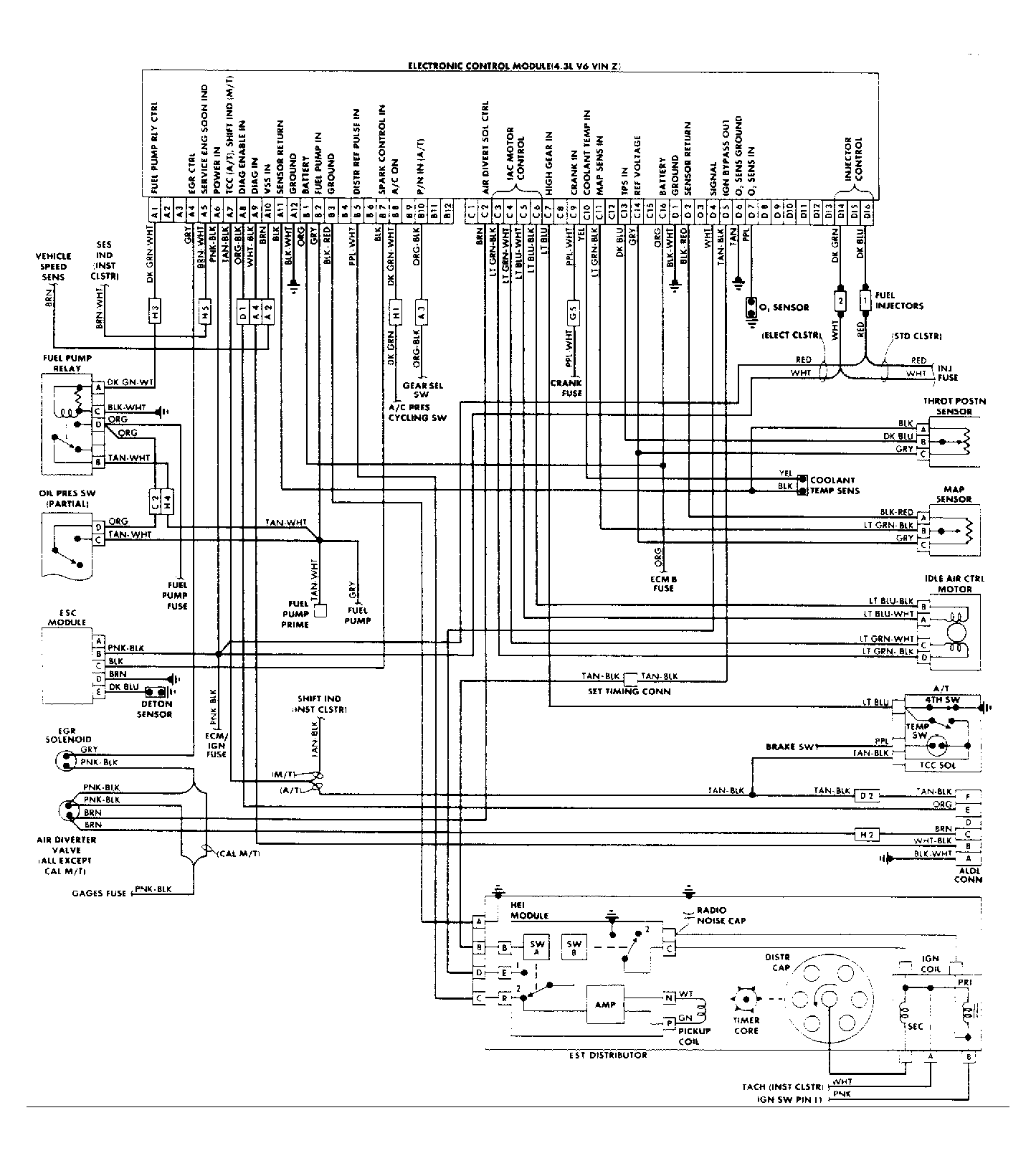

Fig 4: "M" Series: Astro & Safari (4.3L) Wiring Diagram

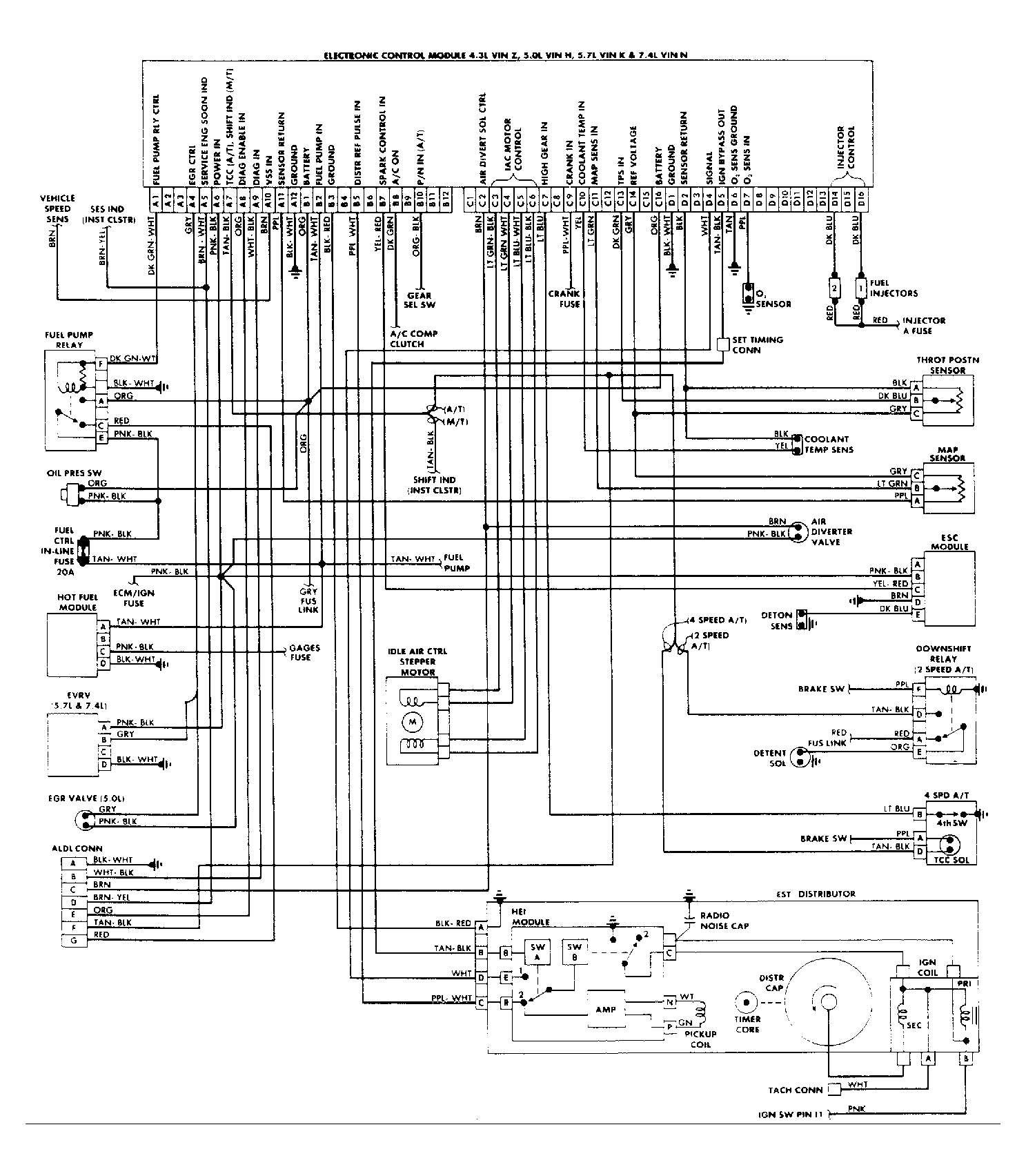

Fig 5: "G" Series Van (4.3L, 5.0L & 5.7L & 7.4L) Wiring Diagram

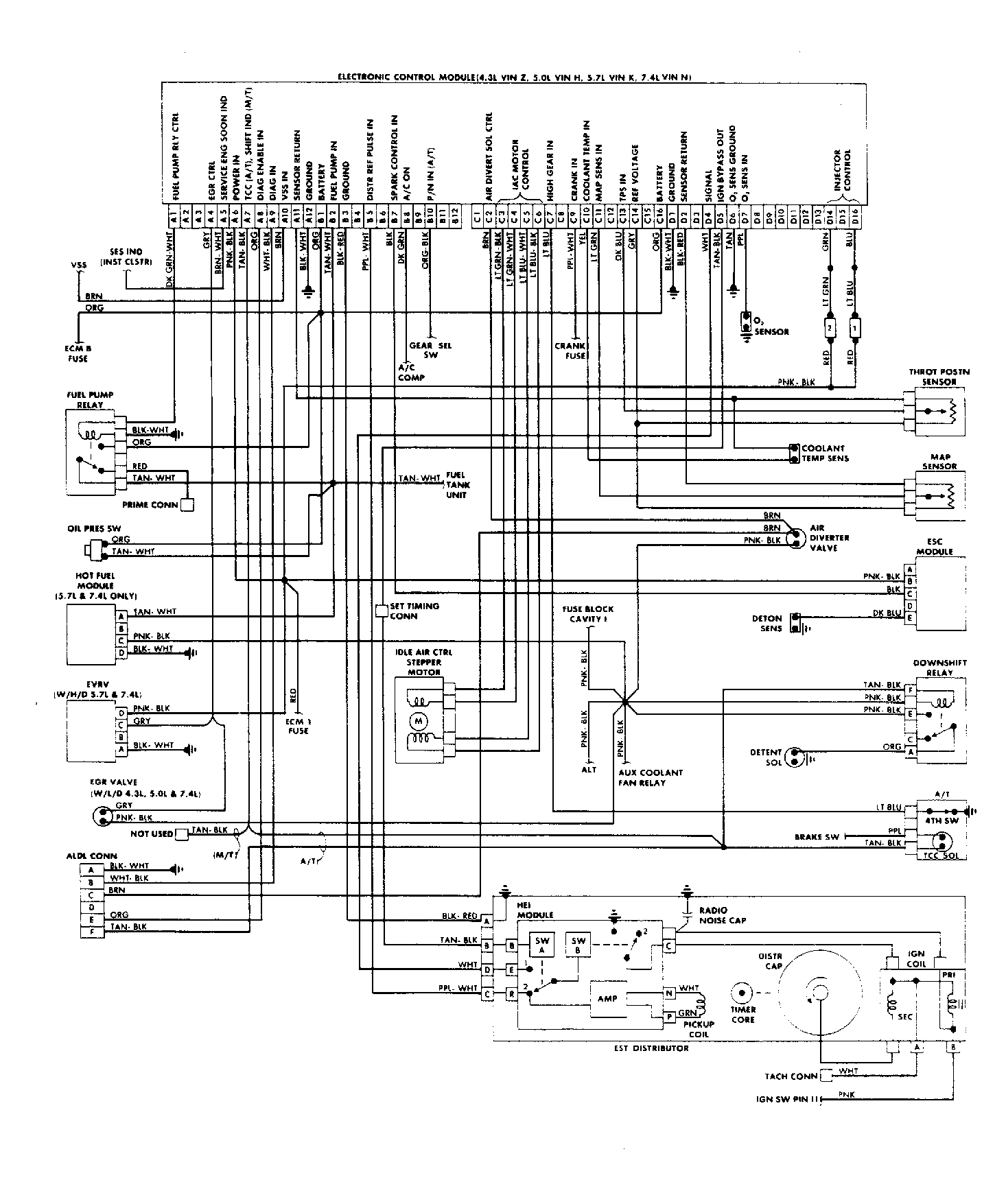

Fig 6: "C/K" Series (4.3L, 5.0L, 5.7L & 7.4L) Wiring Diagram

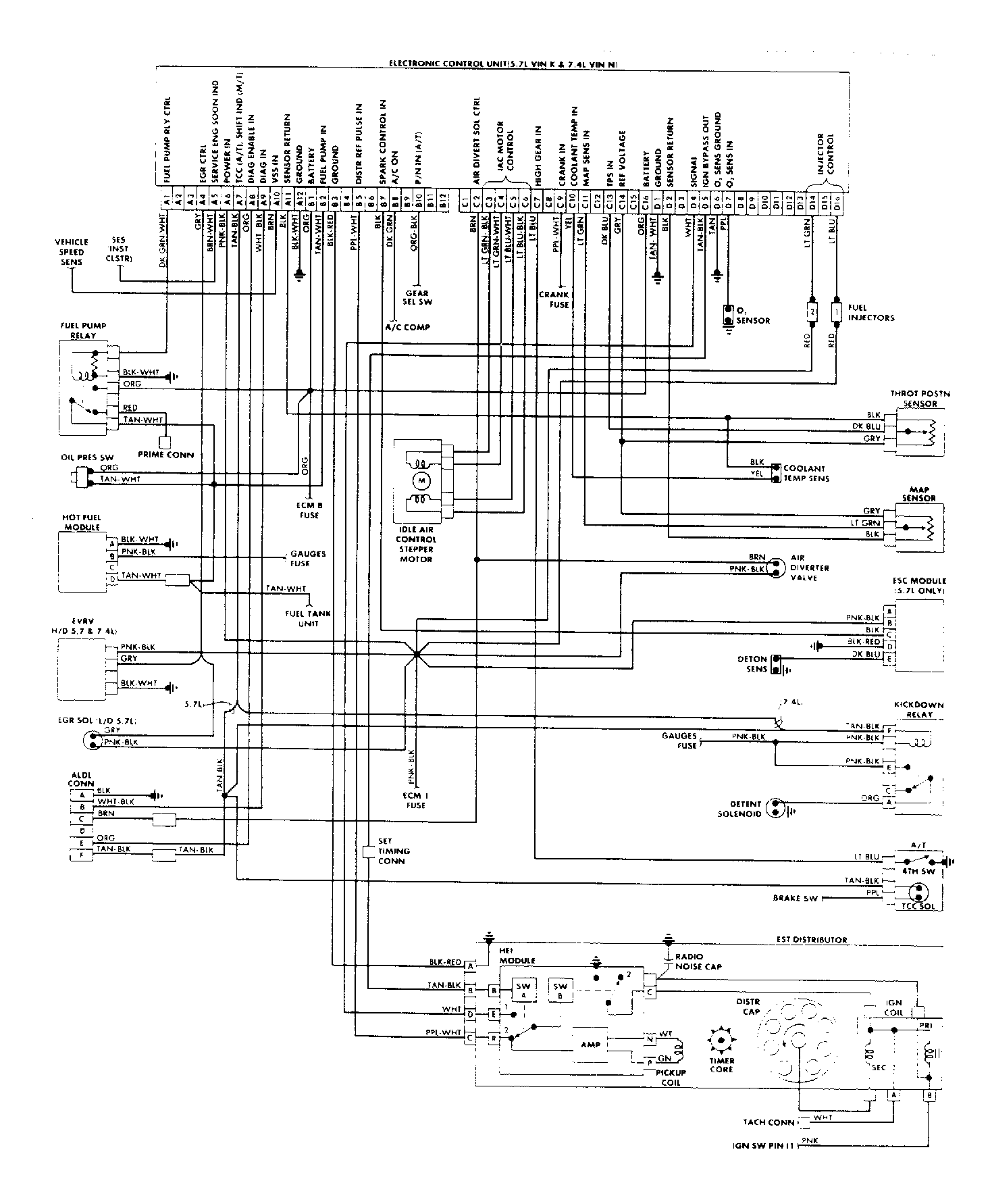

Fig 7: "R/V" Series (5.7L & 7.4L) Wiring Diagram

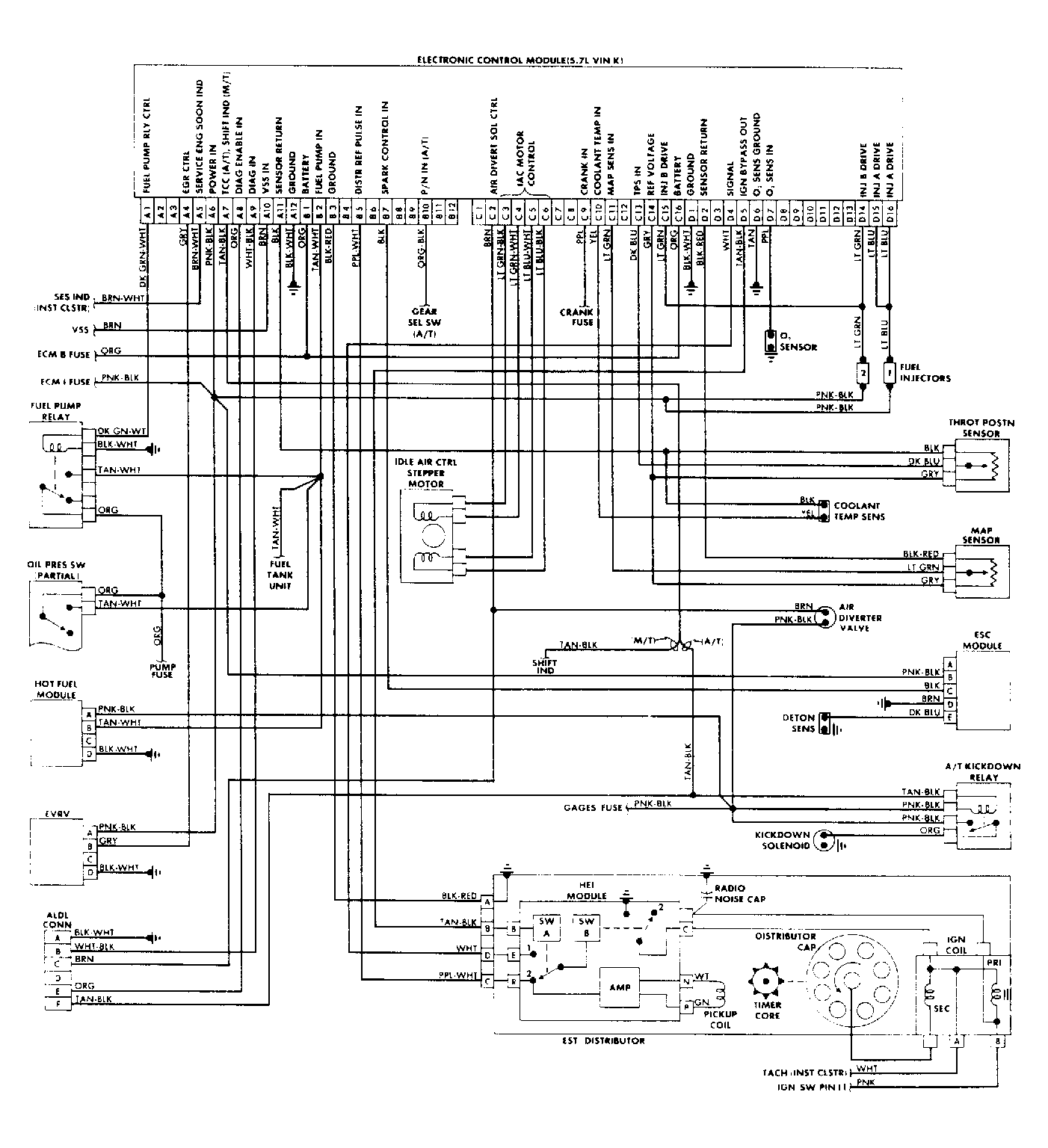

Fig 8: "P" Series Vans (5.7L) Wiring Diagram
