Wiring Diagrams

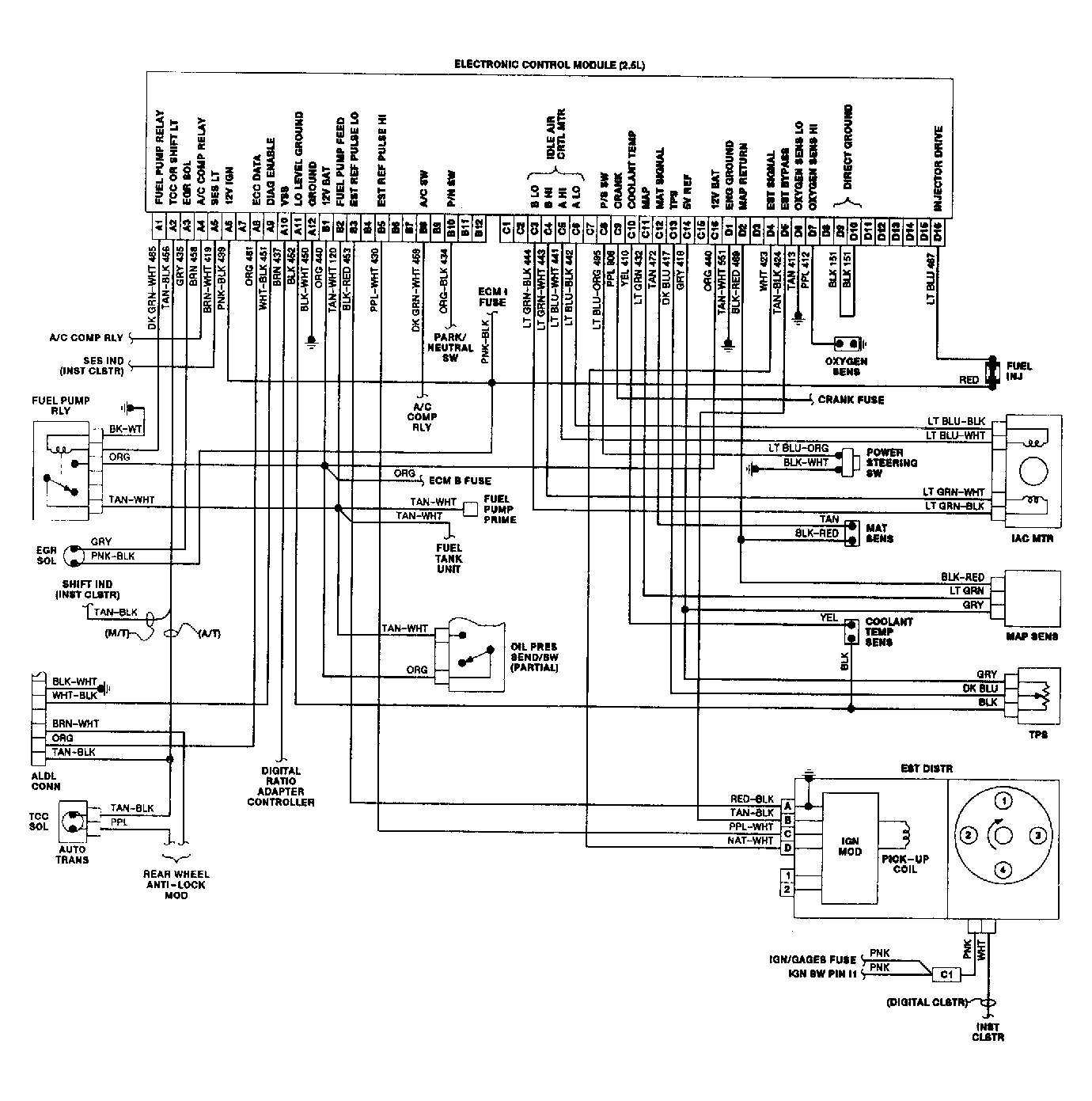

Fig 1: Astro & Safari 2.5L TBI/CCC Wiring Diagram

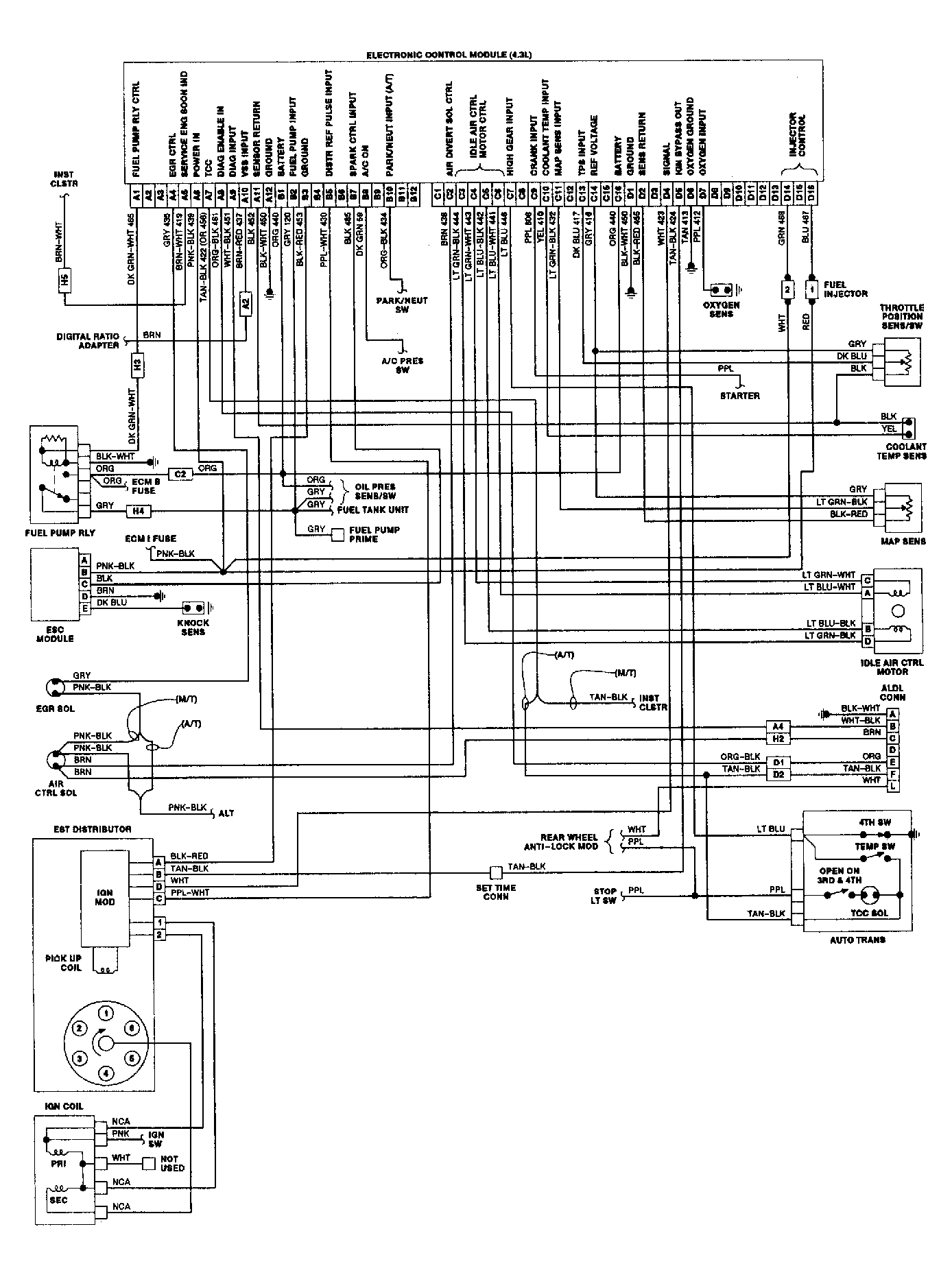

Fig 2: Astro & Safari 4.3L TBI/CCC Wiring Diagram

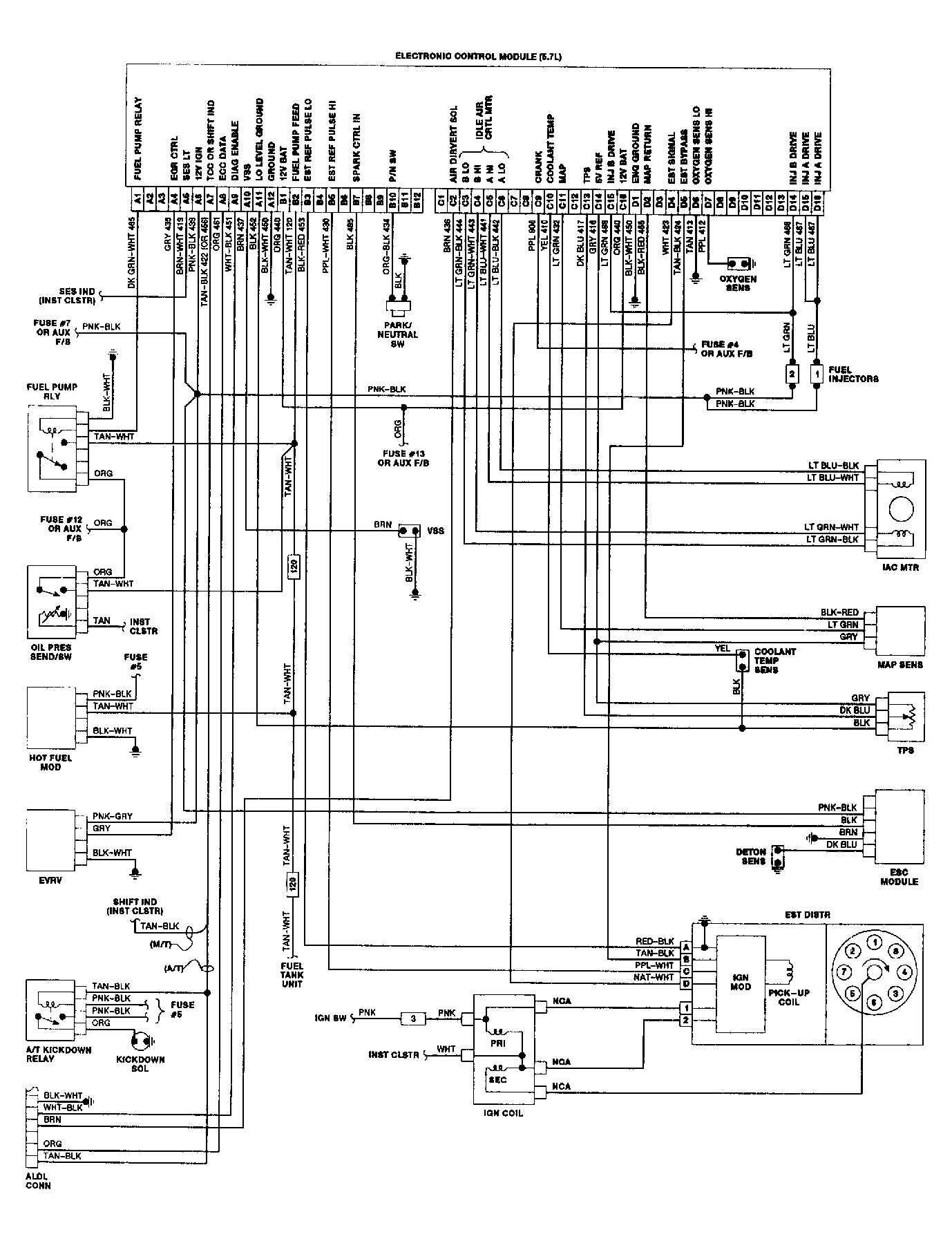

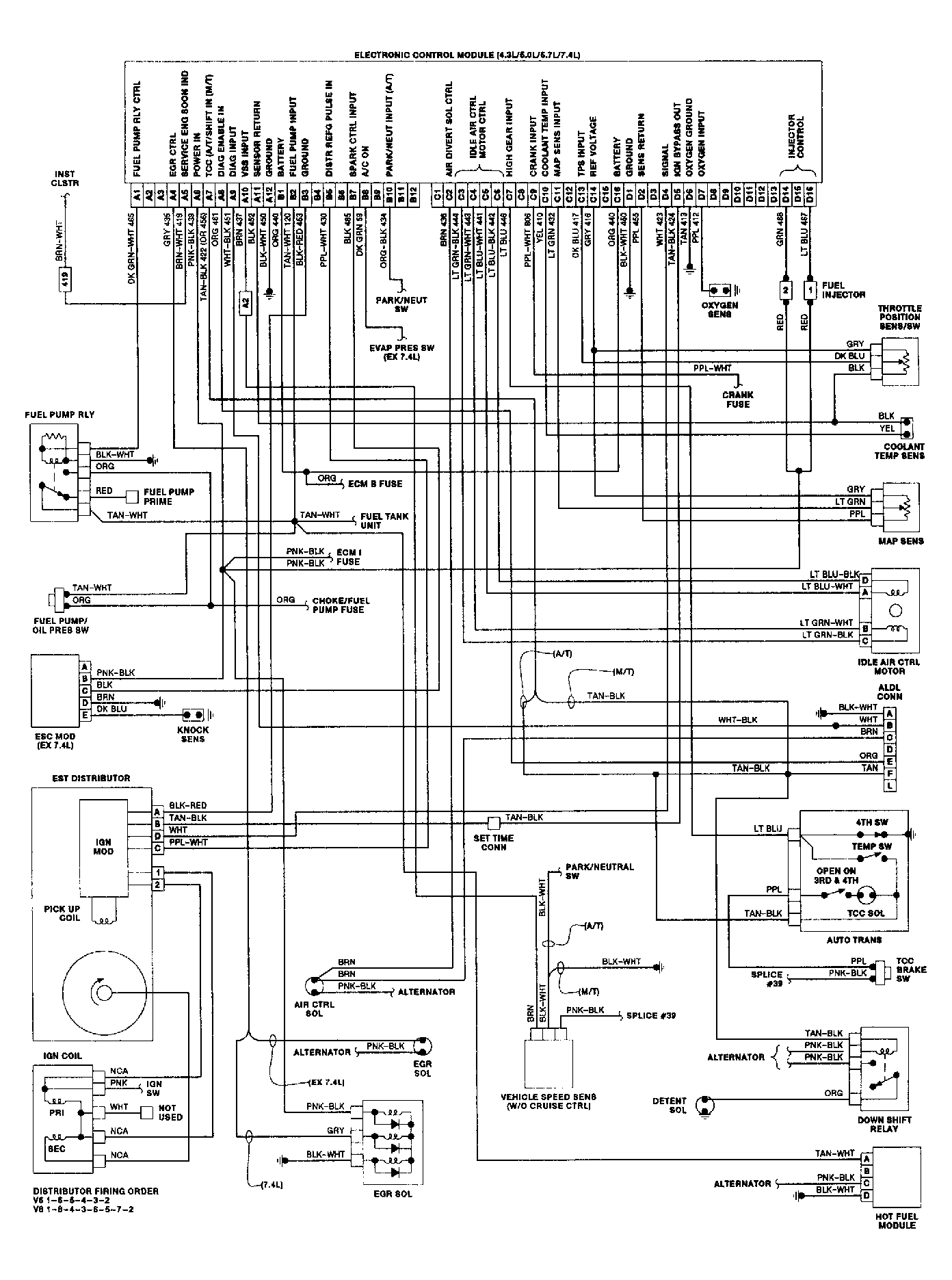

Fig 3: "C" & "K" Series 4.3L, 5.0L, 5.7L & 7.4L TBI/CCC Wiring Diagram

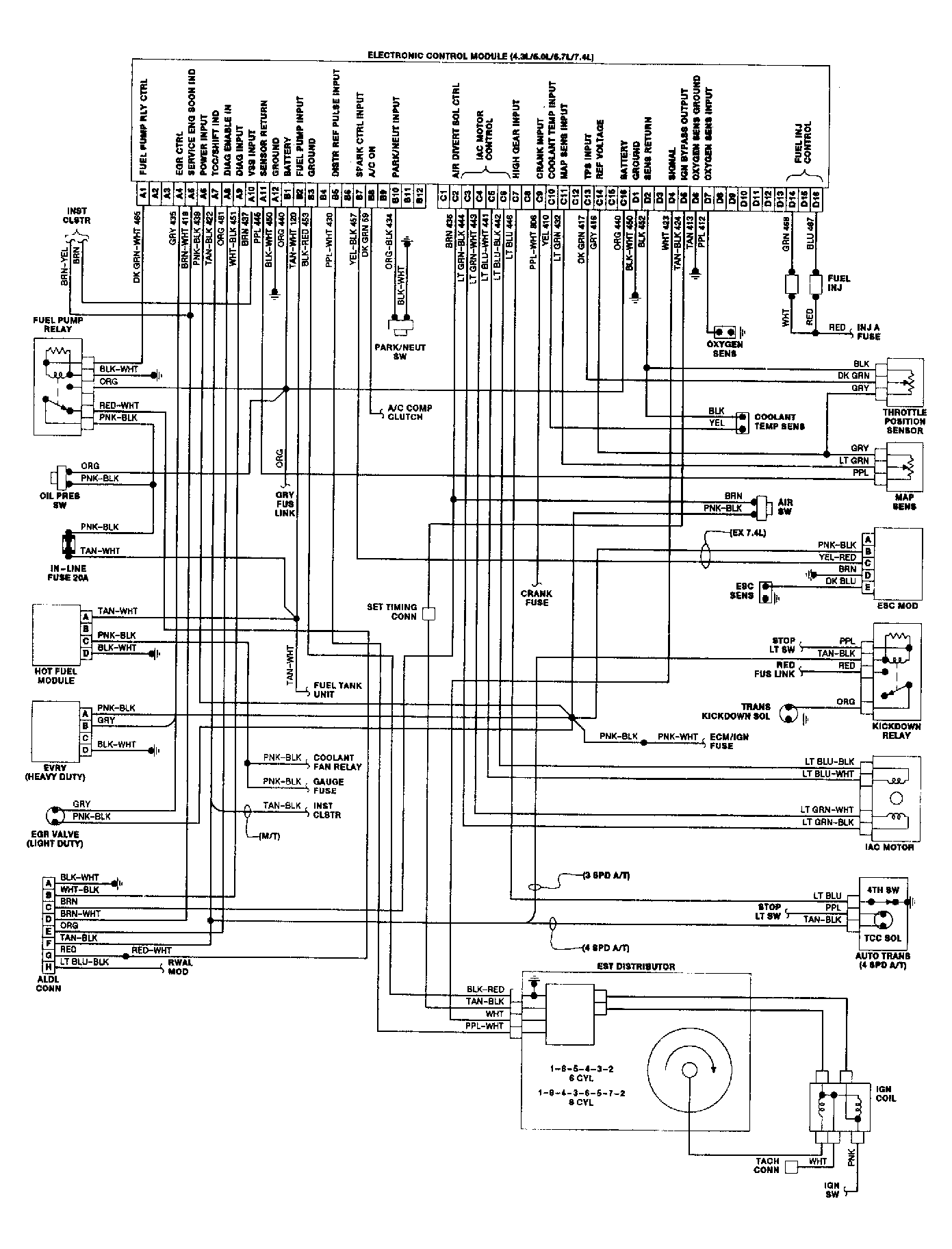

Fig 4: "G" Series TBI/CCC Wiring Diagram

Fig 5: "P" Series TBI/CCC Wiring Diagram

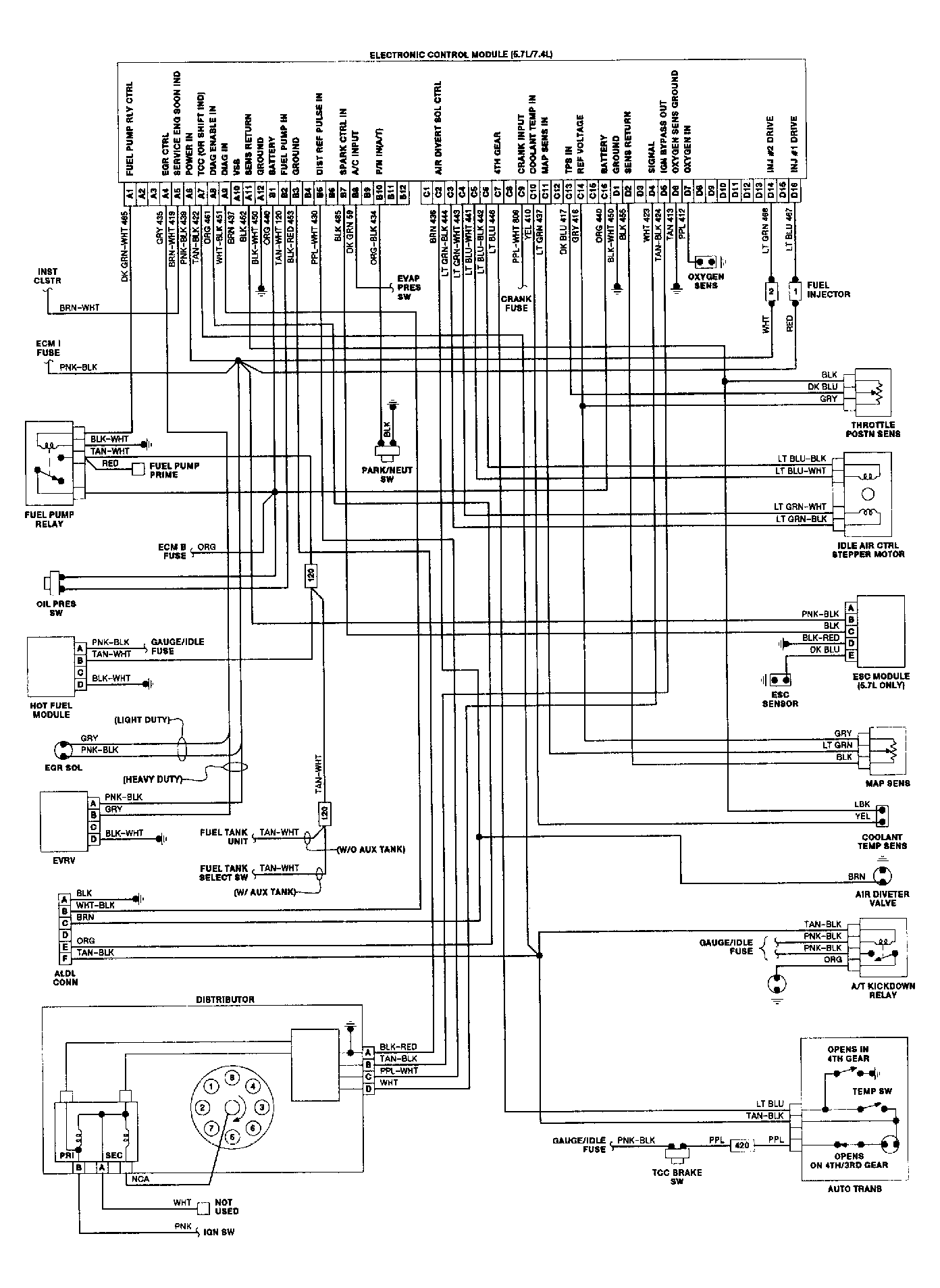

Fig 6: "R" & "V" Series TBI/CCC Wiring Diagram

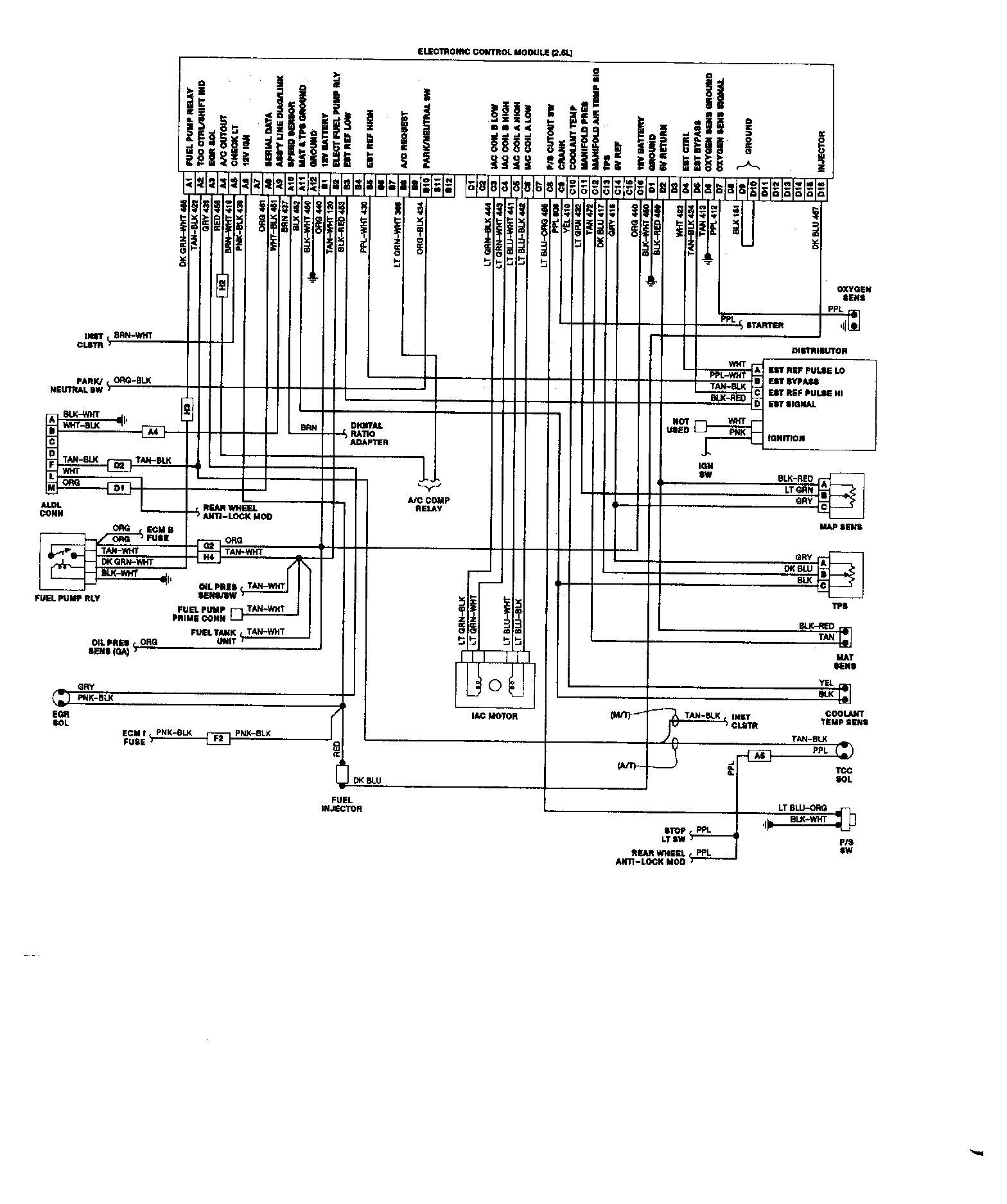

Fig 7: "S" & "T" Series 2.5L TBI/CCC Wiring Diagram

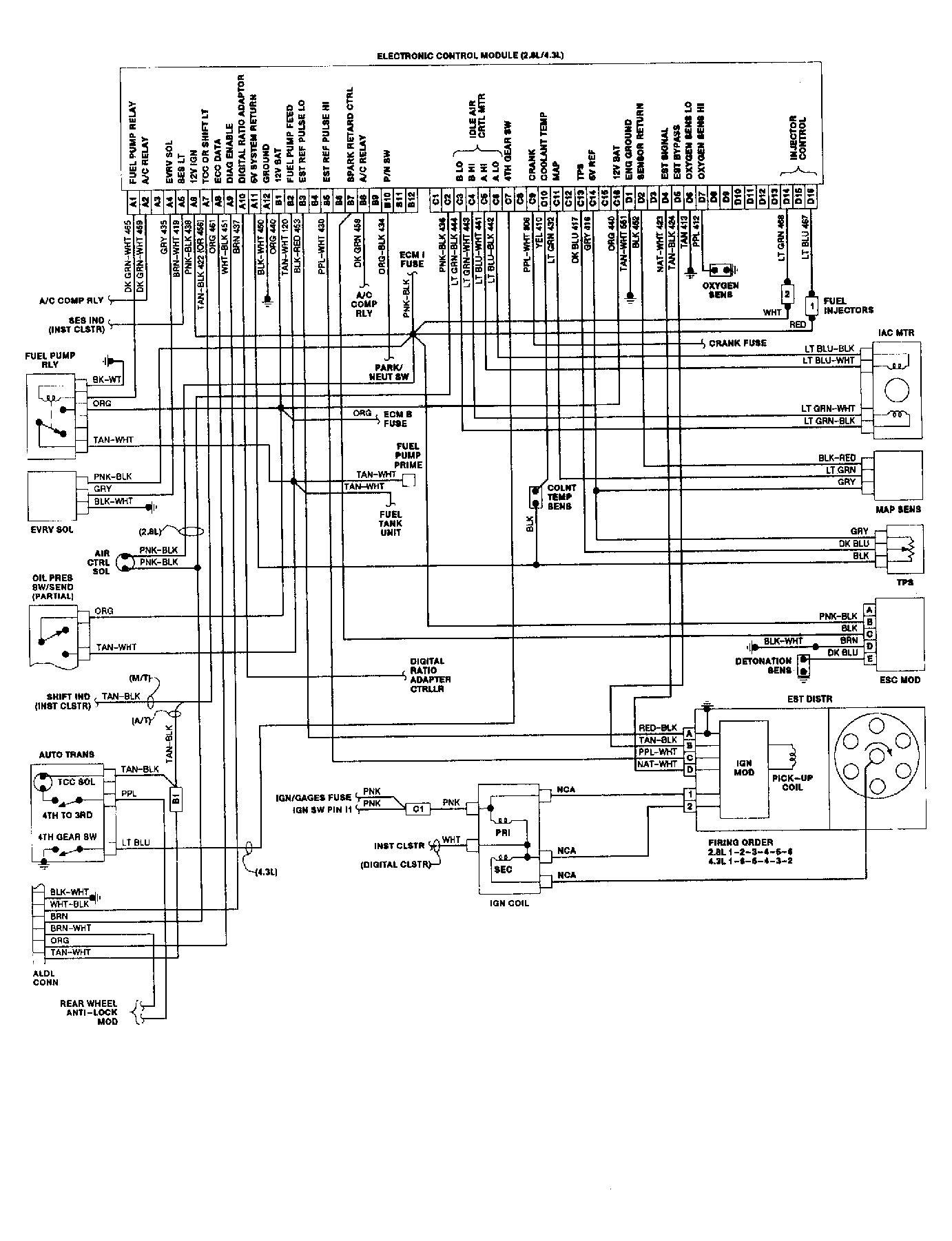

Fig 8: "S" & "T" Series 2.8L & 4.3L TBI/CCC Wiring Diagram
