Caster Specification Table

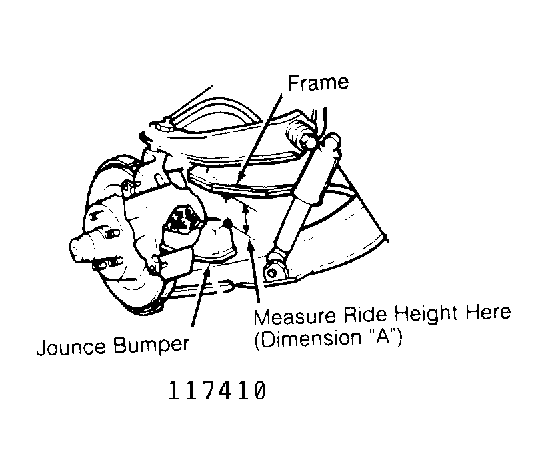

Measure ride height. See Figure. Use ride height measurement (measurement "BC") with the following table to find the proper caster setting for vehicle.

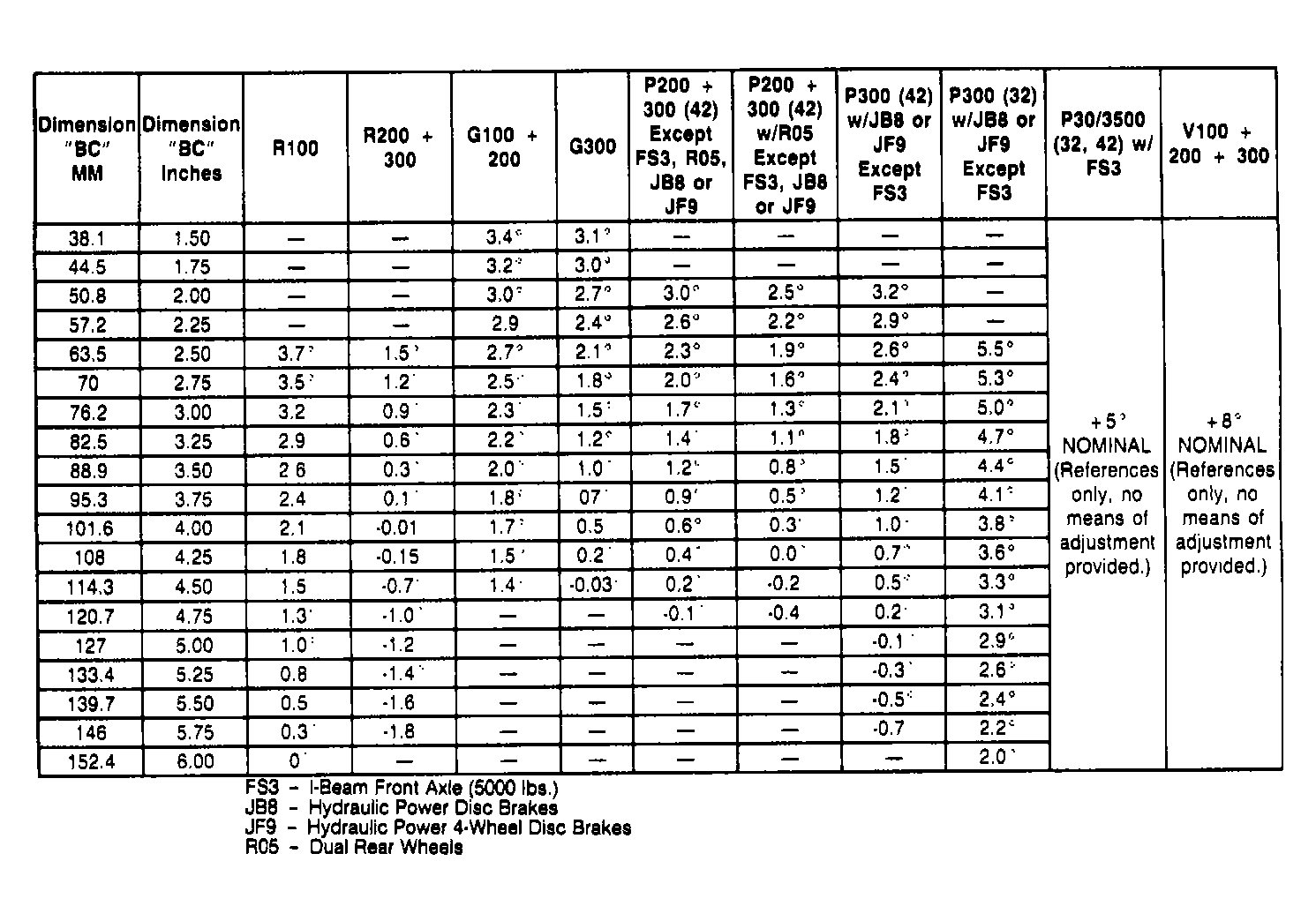

Fig 1: Caster Specifications ("G", "P", "R" & "V" Series)
G90B04490Courtesy of GENERAL MOTORS CORP.
