Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location | |
|---|---|---|
| Battery Junction Block (1989 ONLY) | On left side of firewall. | |
| Circuit Breakers | ||
| Headlight/Parking Light | In headlight switch. | |
| Power Door Lock | On fuse block. | |
| Power Window | On fuse block. | |
| Rear A/C | On firewall. | |
| Convenience Center | Under left side of dash. | |
| Fuse Block | ||

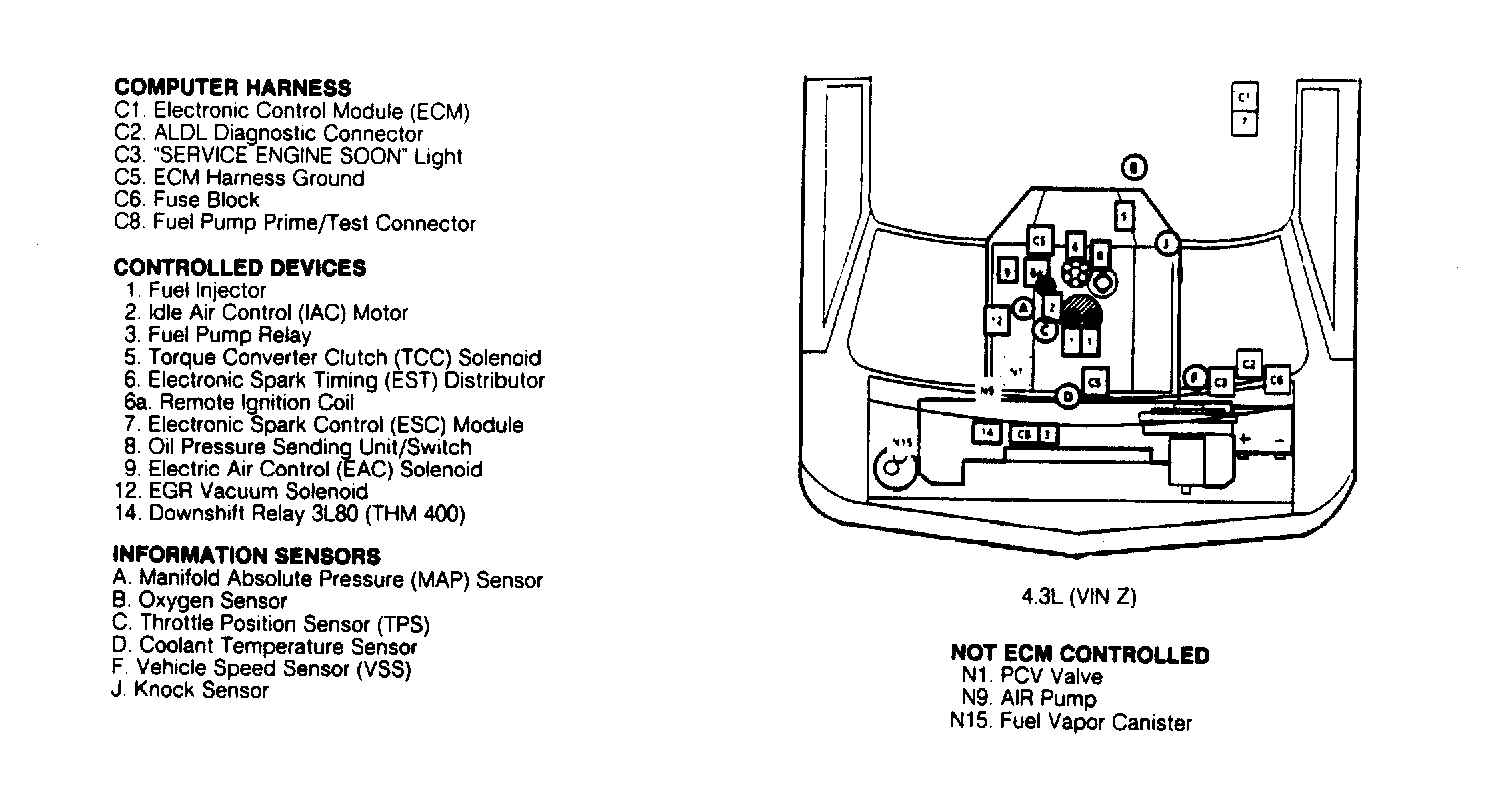

| 4.3L | Under left side of dash. See Figure. | |

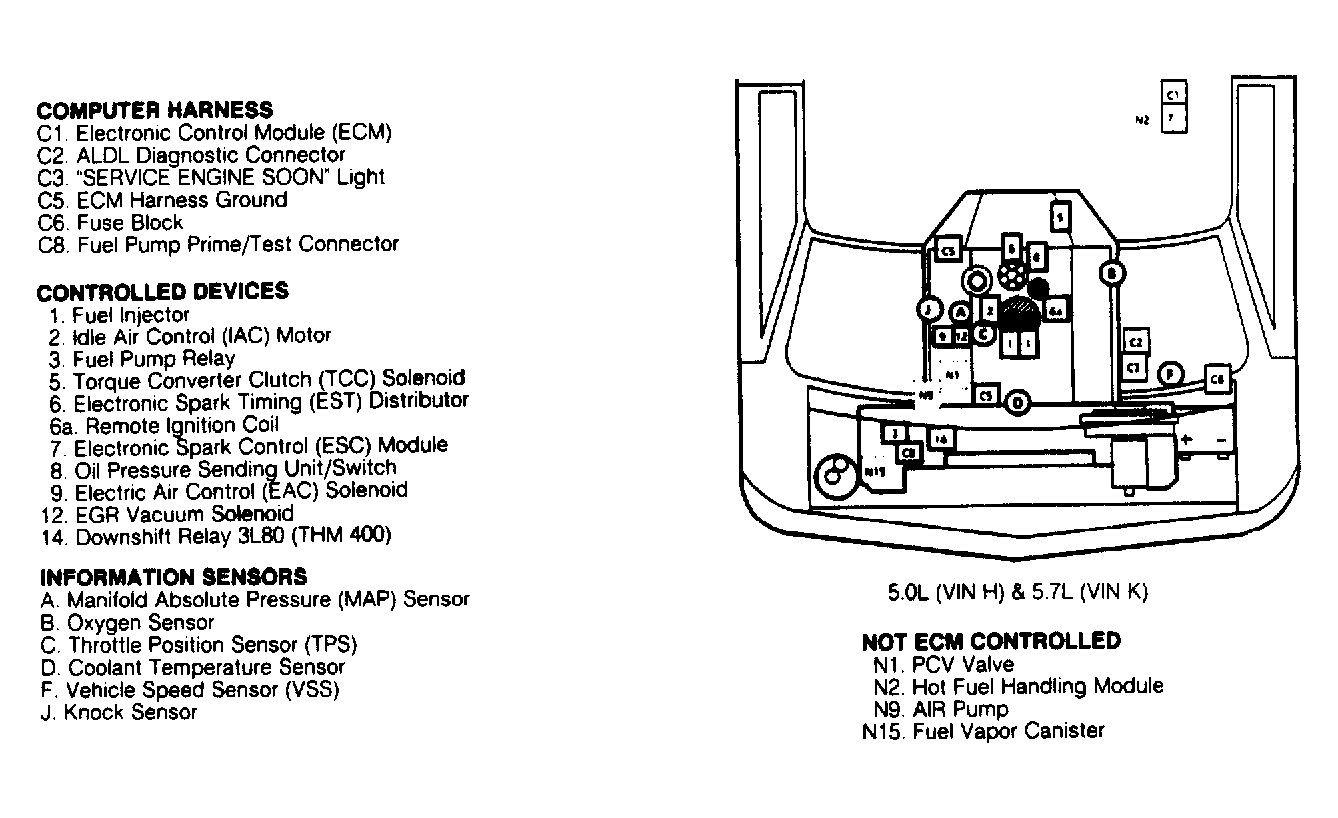

| 5.0L & 5.7L - 1989 | Under left side of dash. See Figure. | |
| 5.0L & 5.7L - 1990 | Under left side of dash. See Figure. | |

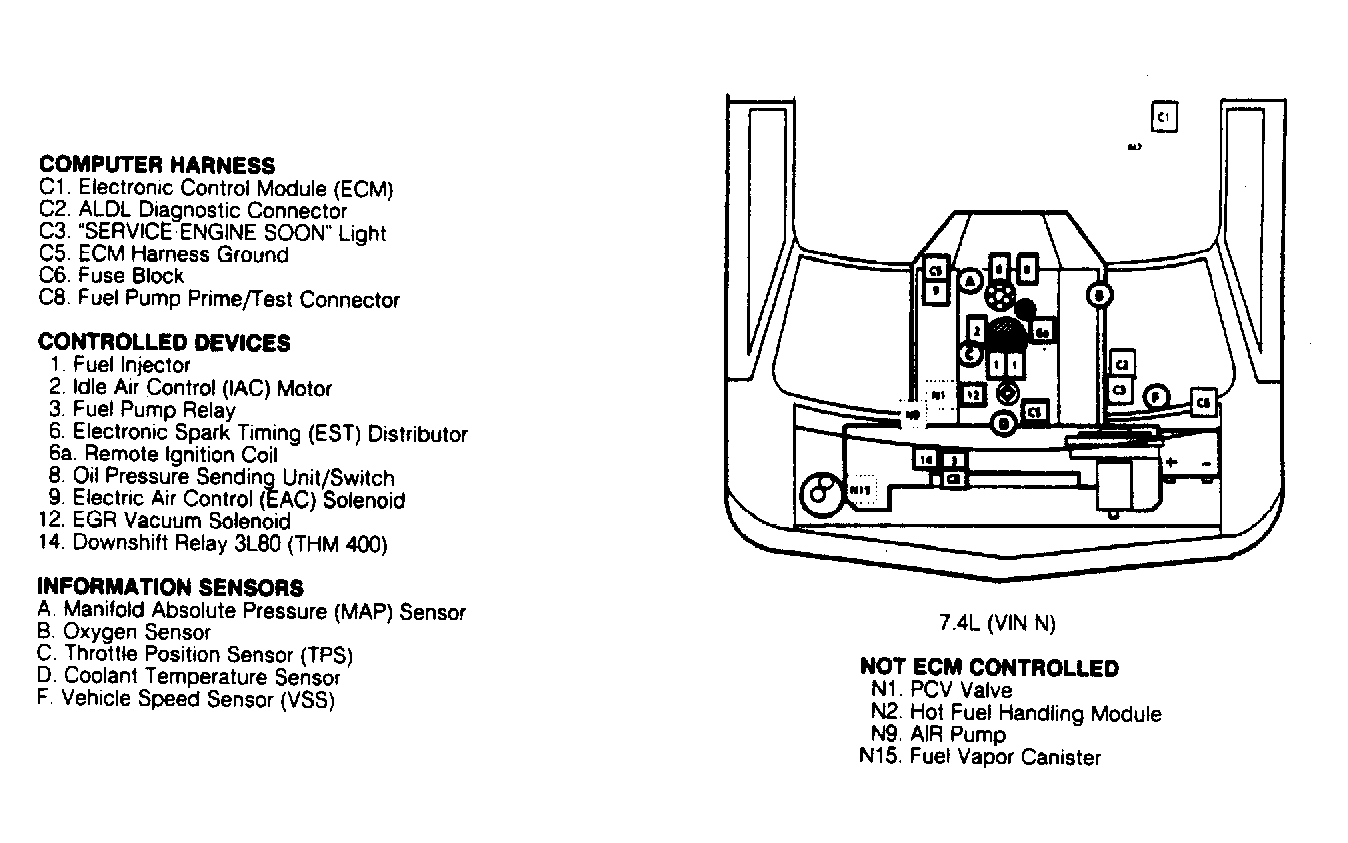

| 7.4L - 1989 | Under left side of dash. See Figure. | |
| 7.4L - 1990 | Under left side of dash. See Figure. | |
| Fusible Links | ||
| A/C-Heater (Red) | At battery junction block (rear unit). | |
| Alternator (Rust) | At battery junction block. | |
| Auxiliary Cooling Fan Relay (Rust) | At battery junction block. | |
| Glow Plug Controller (Rust) (Diesel) | At starter solenoid. | |
| Ignition Switch (Rust) | At battery junction block (2 links). | |
| Power Accessories (Rust) | At battery junction block. | |
