EGR Problem

EGR valve sticking open at idle is usually accompanied by a rough idle and/or stalling. If Code 45 is intermittent, see INTERMITTENTS in H - TESTING W/O CODES article.

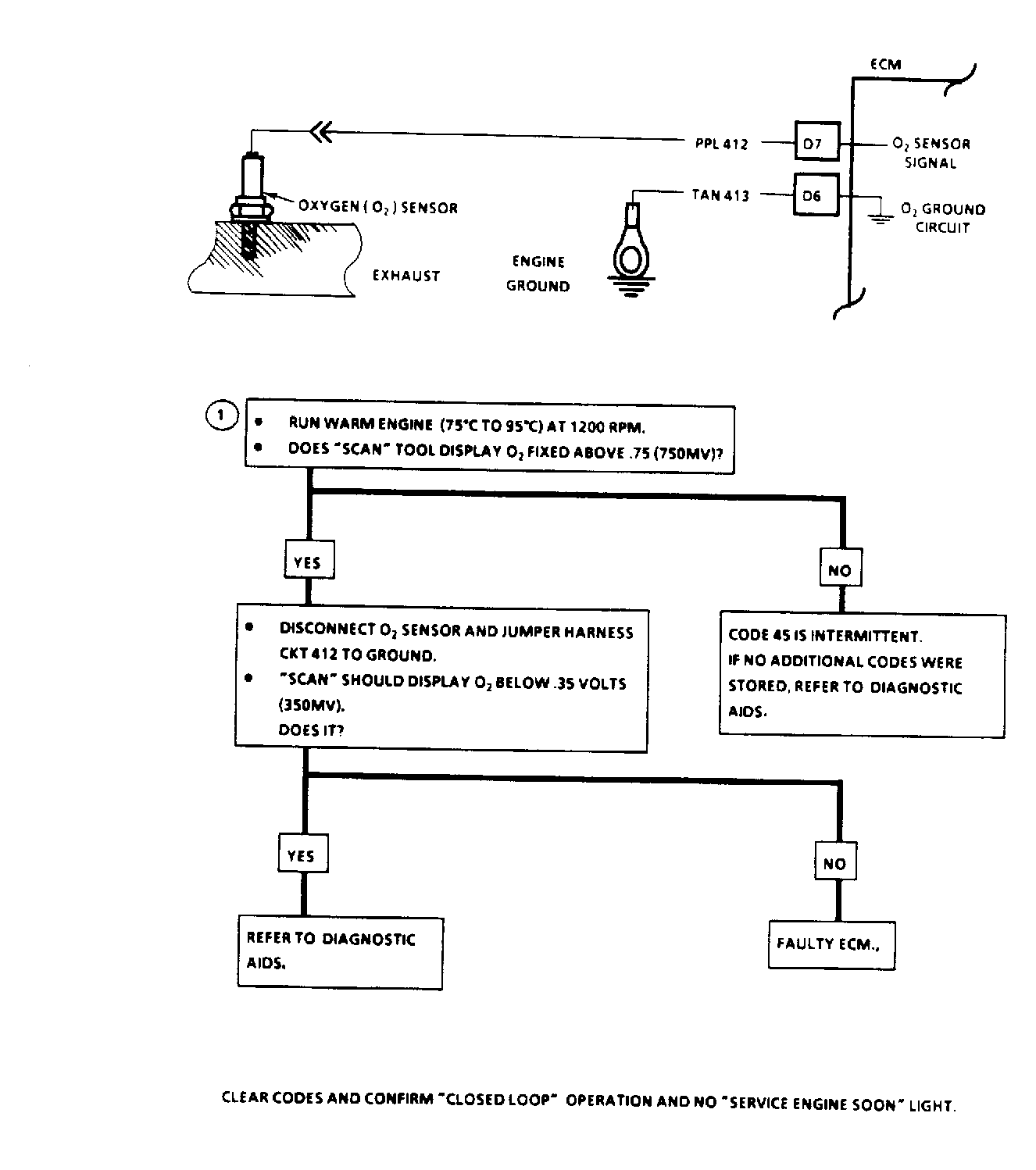

Fig 1: Code 45: Flow Chart Rich Exhaust Indication
G120824
