Ride Height

Proper ride height is necessary for correct wheel alignment. Ensure tires are correctly inflated, cargo compartment is empty and fuel tank is full. Bounce vehicle several times to normalize ride height.
Most vehicles provide front wheel alignment specifications which allow camber and caster adjustment for a large range of ride heights. See RIDE HEIGHT SPECIFICATIONS table. Ride height measurement points are shown. See Fig 1-Fig 6 .

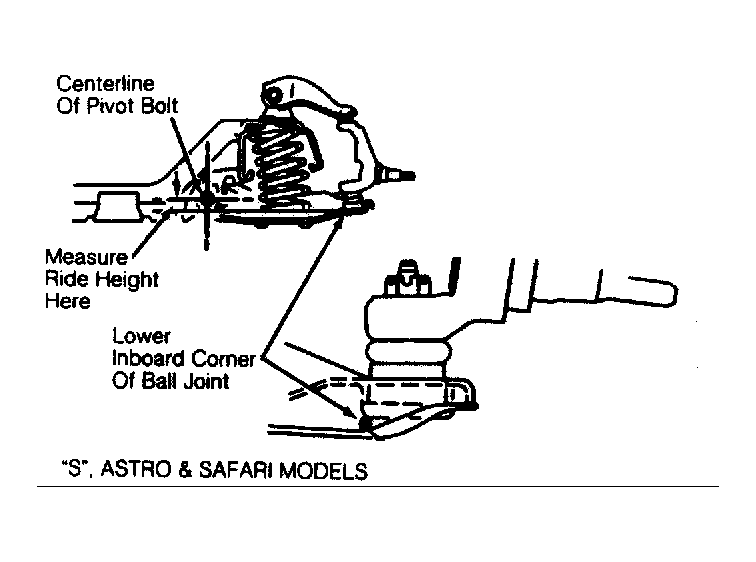

Fig 1: Measuring Points (Astro, Safari & "S" Series)

Courtesy of GENERAL MOTORS CORP.

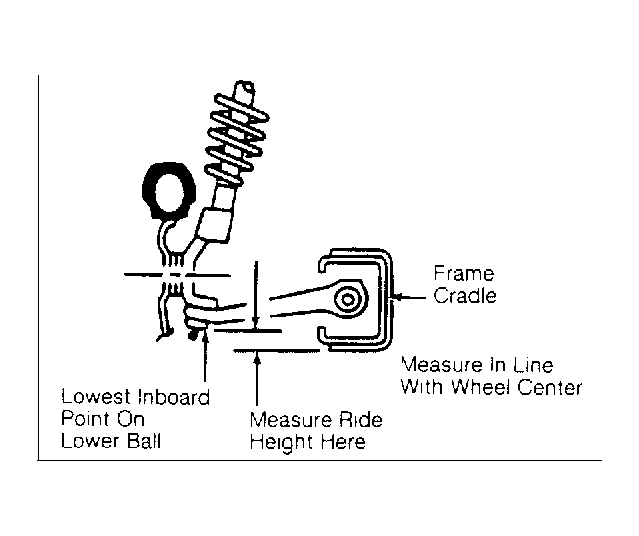

Fig 2: Measuring Points (Lumina APV, Silhouette, & Trans Sport)

Courtesy of GENERAL MOTORS CORP.

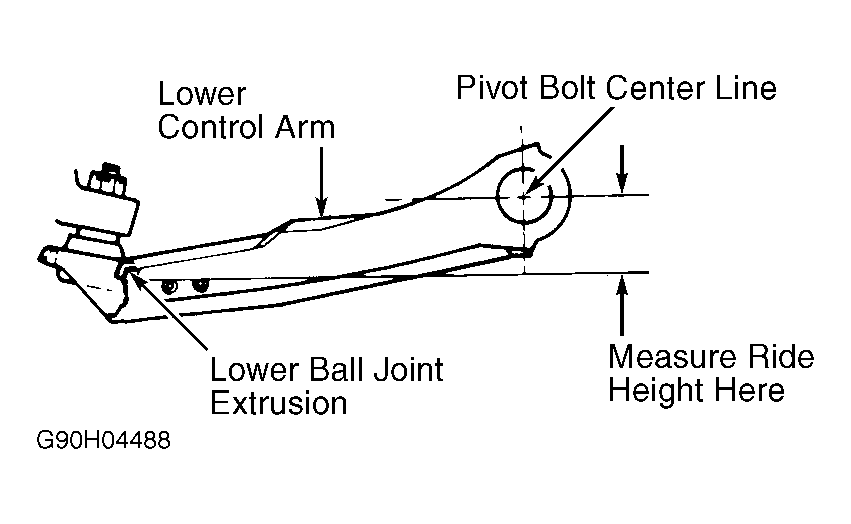

Fig 3: Measuring Points ("C" Series)

Courtesy of GENERAL MOTORS CORP.

Fig 4: Measuring Points ("G", "P" & "R" Series)

Courtesy of GENERAL MOTORS CORP.

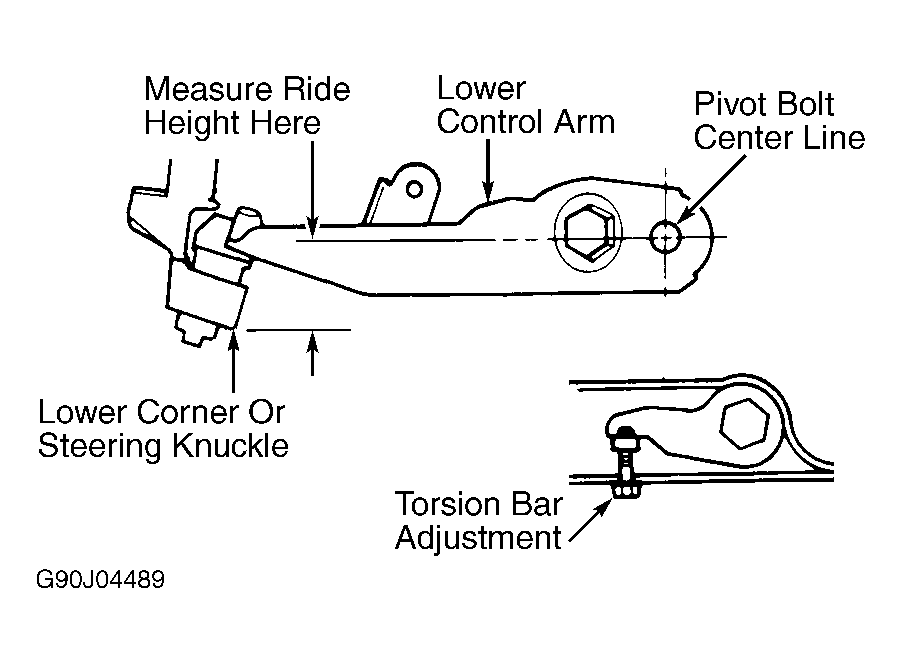

Fig 5: Measuring Points ("K" Series)

Courtesy of GENERAL MOTORS CORP.

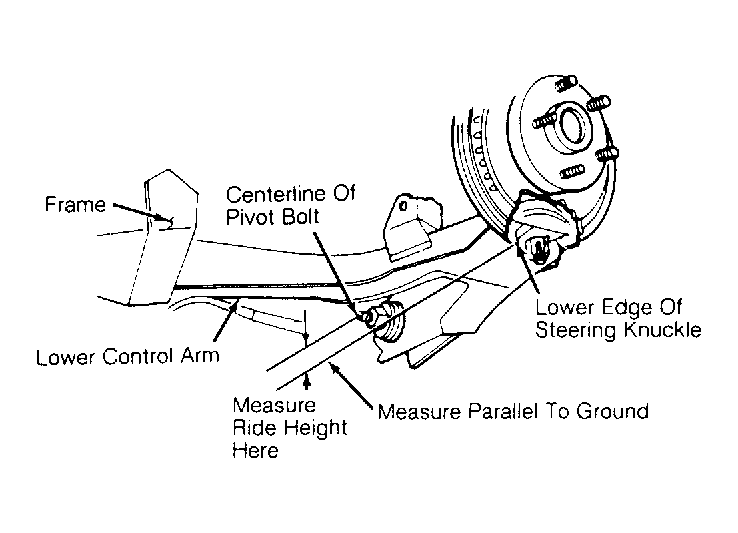

Fig 6: Measuring Points ("T" Series)

Courtesy of GENERAL MOTORS CORP.

RIDE HEIGHT SPECIFICATIONS

Application

Ride Height Dimension: In. (mm)

Astro & Safari

2WD

3.1 ± 0.2 (80 ± 6.0)

4WD

5.4 ± 0.2 (136 ± 6.0)

"C" & "K" Series

C10/35

3.7 ± 0.2 (95 ± 6.0)

K10/20 (W/O F60) ⁽¹⁾

6.2 ± 0.2 (157 ± 6.0)

K10/20 (W/F60) ⁽¹⁾

7.2 ± 0.2 (183 ± 6.0)

K30 (W/O F60) ⁽¹⁾

5.7 ± 0.2 (145 ± 6.0)

K30 (W/F60) ⁽¹⁾

6.8 ± 0.2 (173 ± 6.0)

"G", "P", "R" & "V" Series

⁽²⁾

Lumina APV, Silhouette & Trans Sport

0 ± .04 (0 ± 1)

"S" Series

2.8 ± 0.2 (73 ± 6.0)

"T" Series

4.8 ± 0.2 (122 ± 6.0)

⁽¹⁾	F60 is heavy duty front spring.

⁽²⁾	Ride height is not adjustable.
