Component Locations

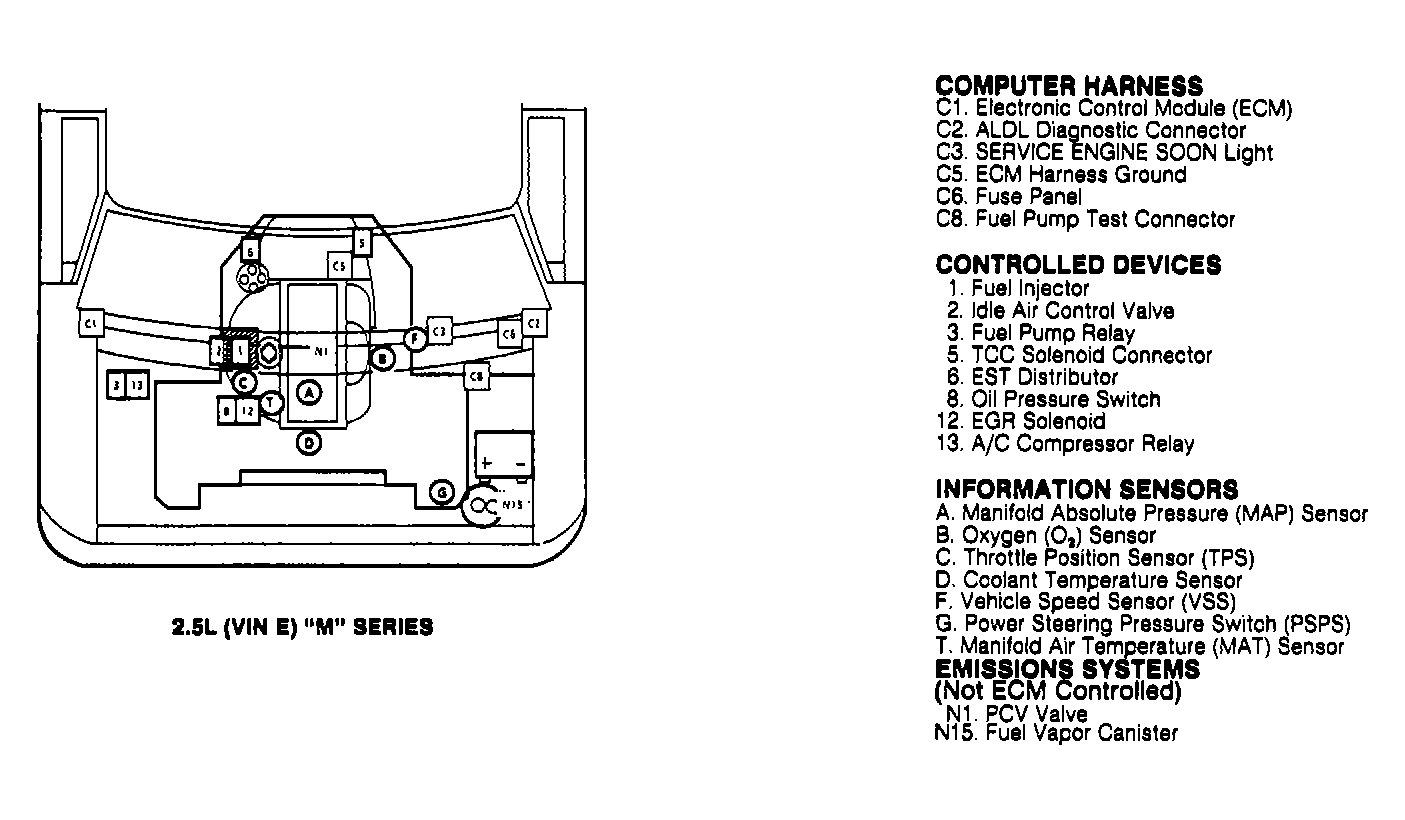

Fig 1: 2.5L (VIN E) "M" Series (Astro & Safari)

Courtesy of GENERAL MOTORS CORP.

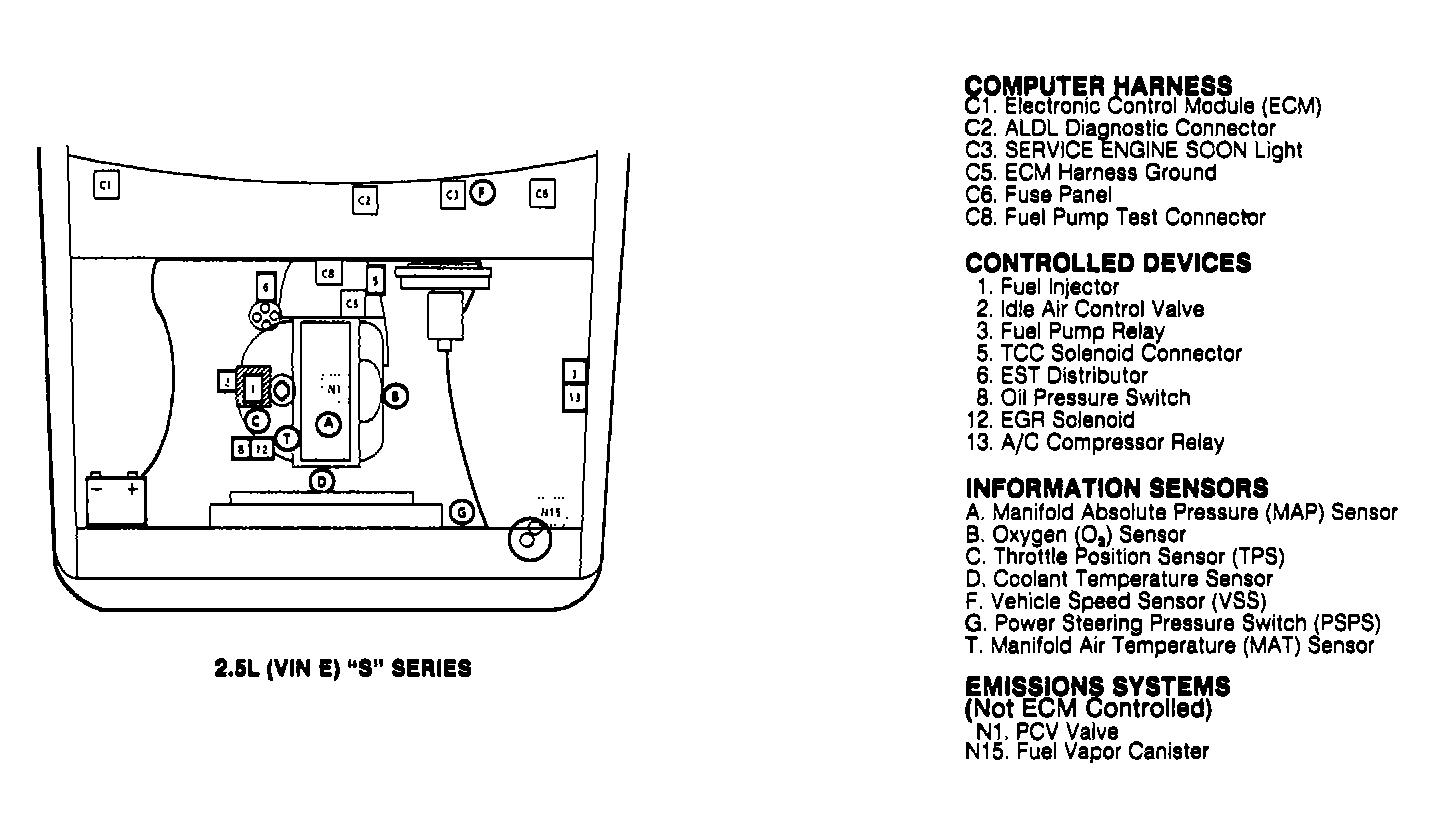

Fig 2: 2.5L (VIN E) "S" Series

Courtesy of GENERAL MOTORS CORP.

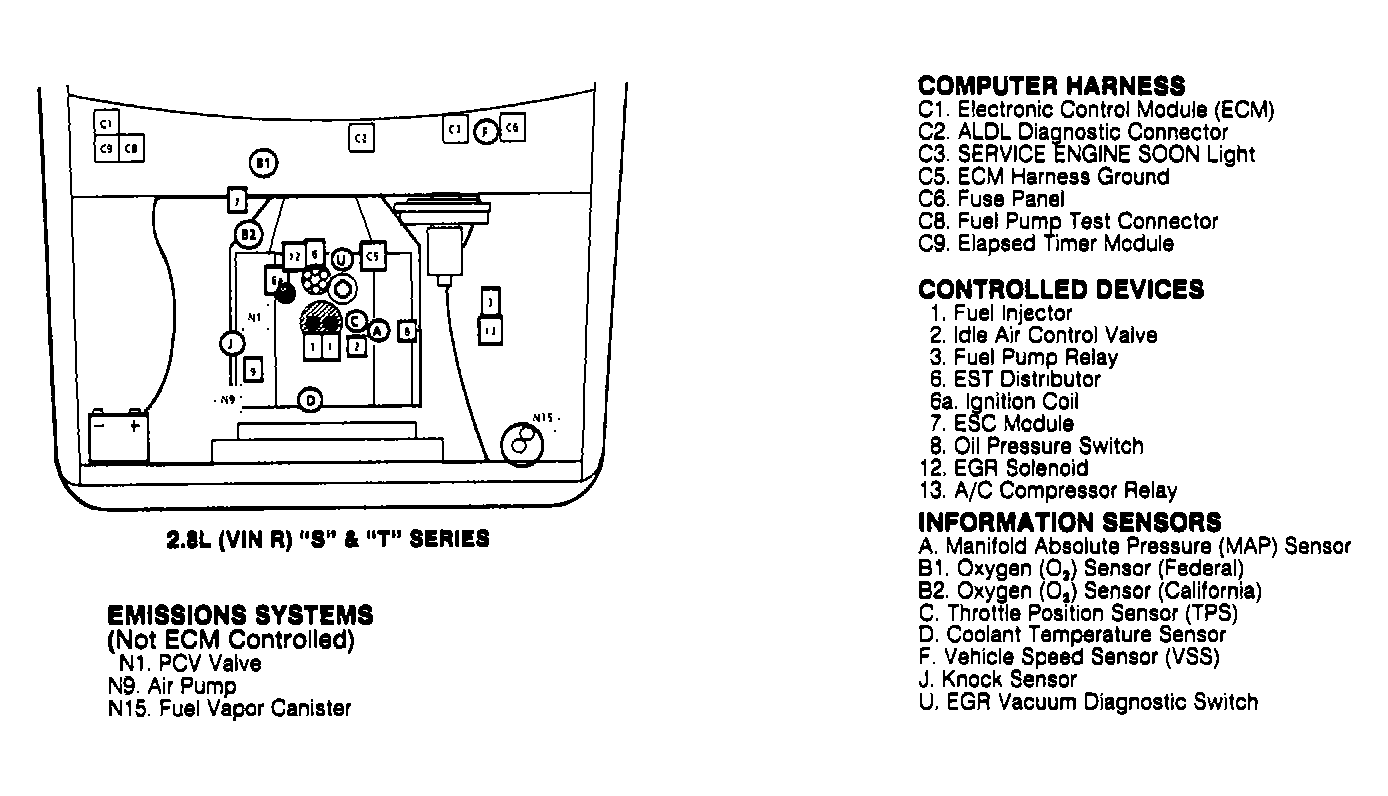

Fig 3: 2.8L (VIN R) "S" & "T" Series

Courtesy of GENERAL MOTORS CORP.

Fig 4: 3.1L (VIN D) "U" Series (Lumina APV, Silhouette & Trans Sport)

Courtesy of GENERAL MOTORS CORP.

Fig 5: 4.3L (VIN Z) "C" & "K" Series

Courtesy of GENERAL MOTORS CORP.

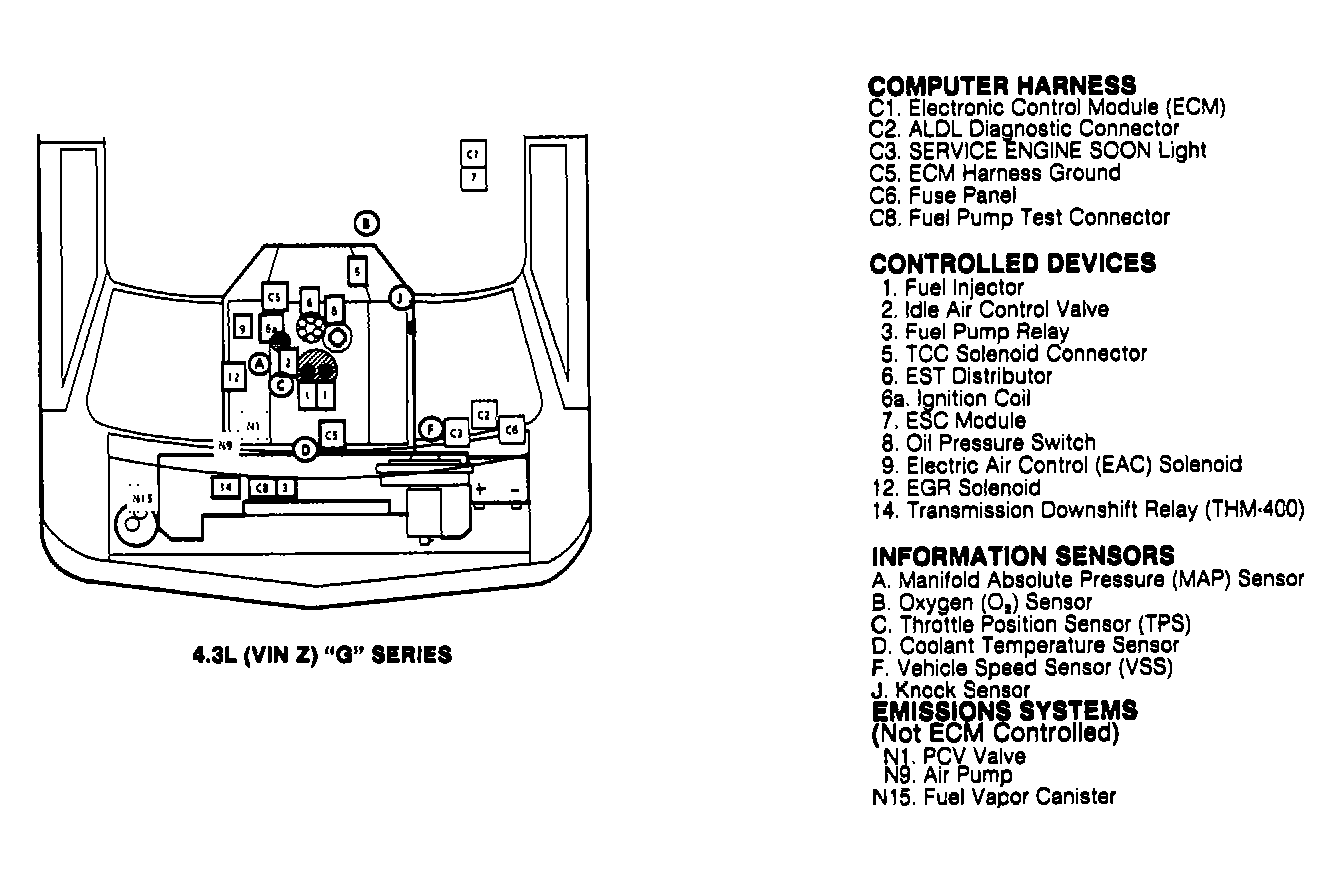

Fig 6: 4.3L (VIN Z) "G" Series

Courtesy of GENERAL MOTORS CORP.

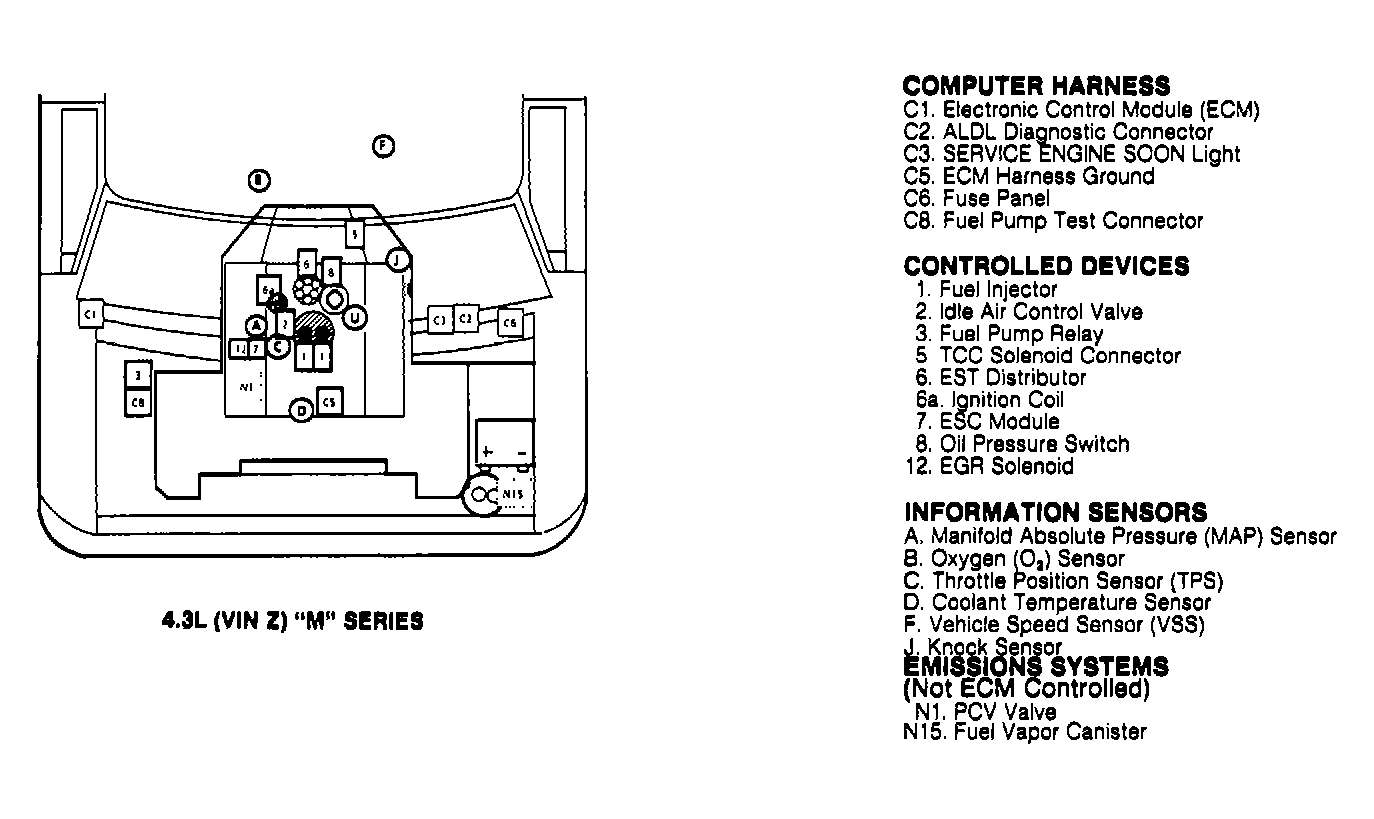

Fig 7: 4.3L (VIN Z) "M" Series (Astro & Safari)

Courtesy of GENERAL MOTORS CORP.

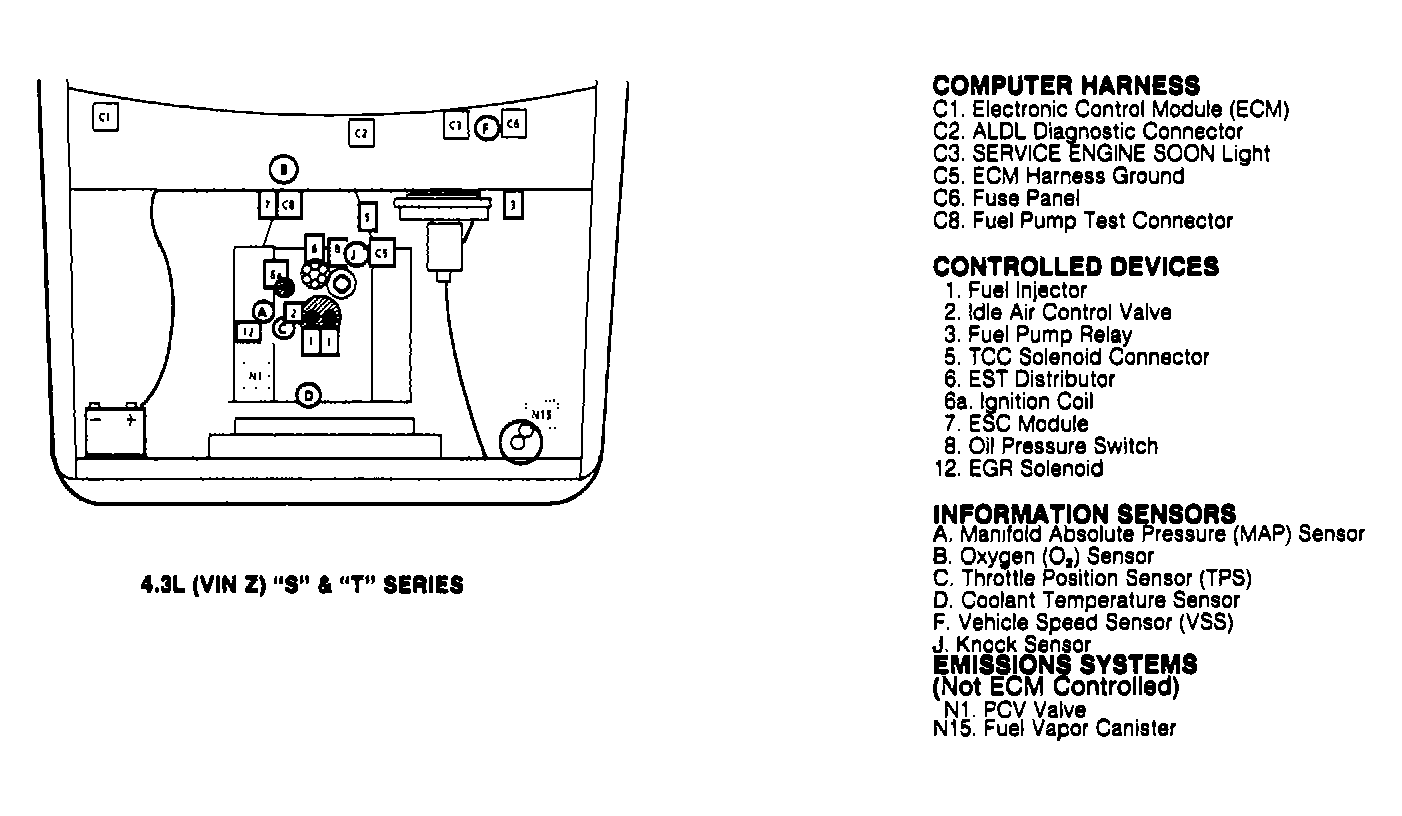

Fig 8: 4.3L (VIN Z) "S" & "T" Series

Courtesy of GENERAL MOTORS CORP.

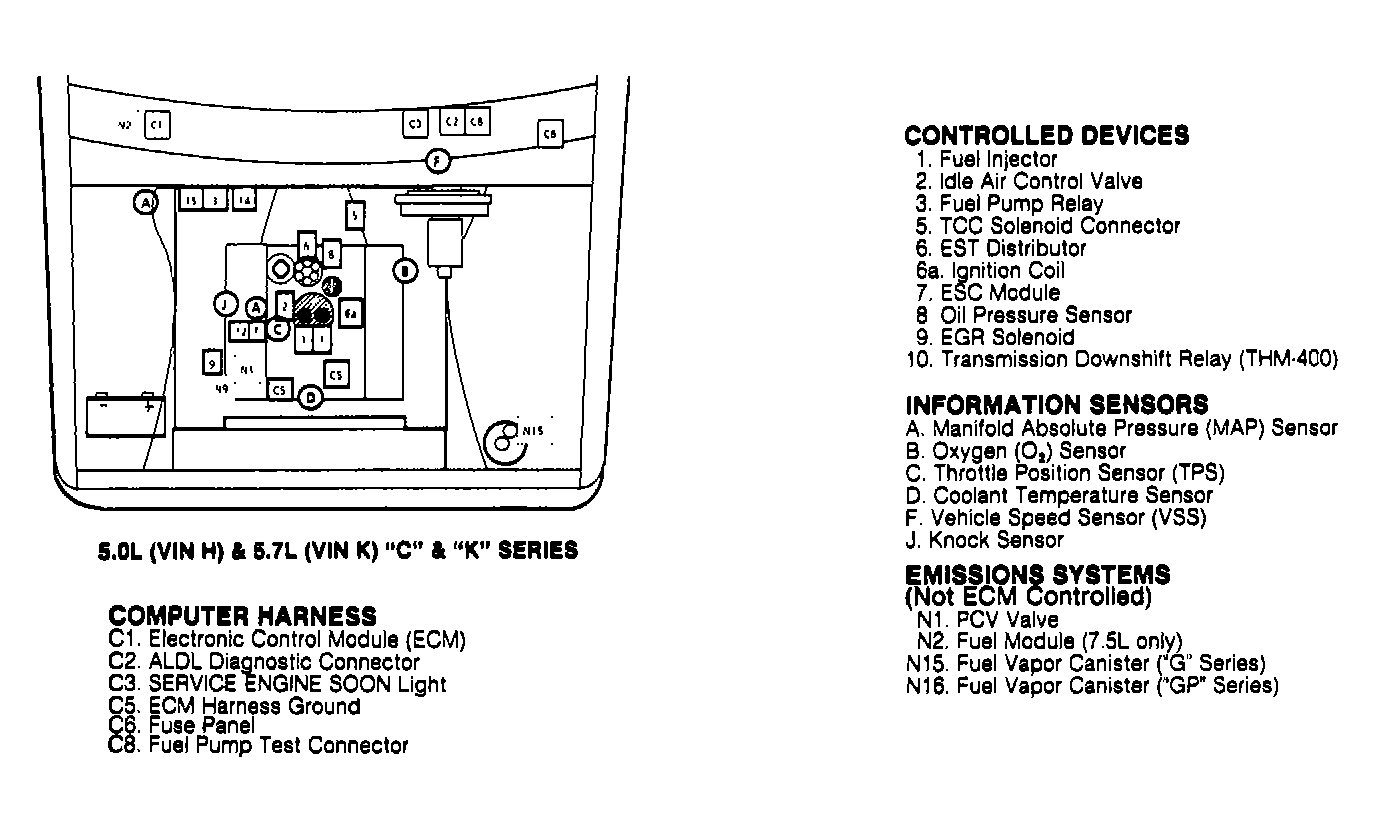

Fig 9: 5.0L (VIN H) & 5.7L (VIN K) "C" & "K" Series

Courtesy of GENERAL MOTORS CORP.

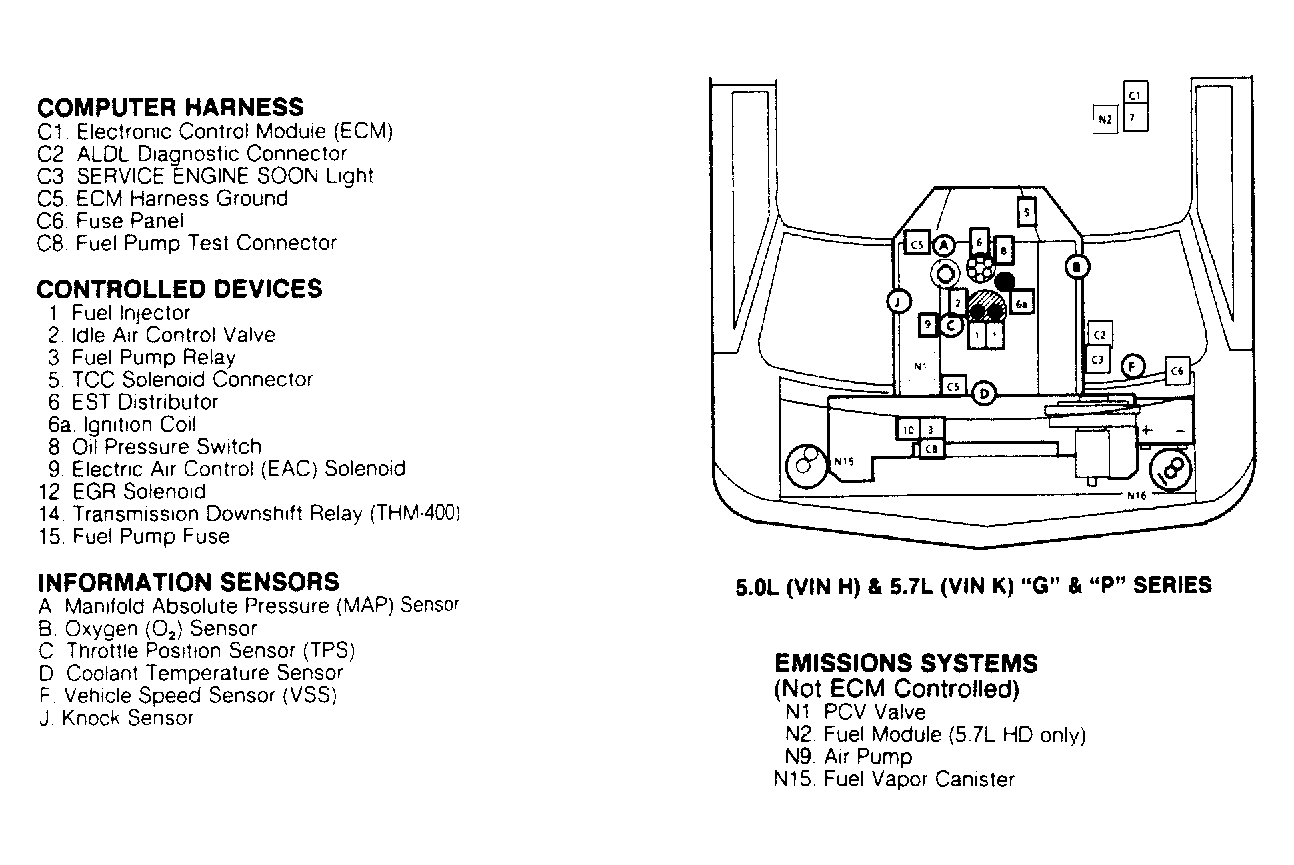

Fig 10: 5.0L (VIN H) & 5.7L (VIN K) "G" & "P" Series

Courtesy of GENERAL MOTORS CORP.

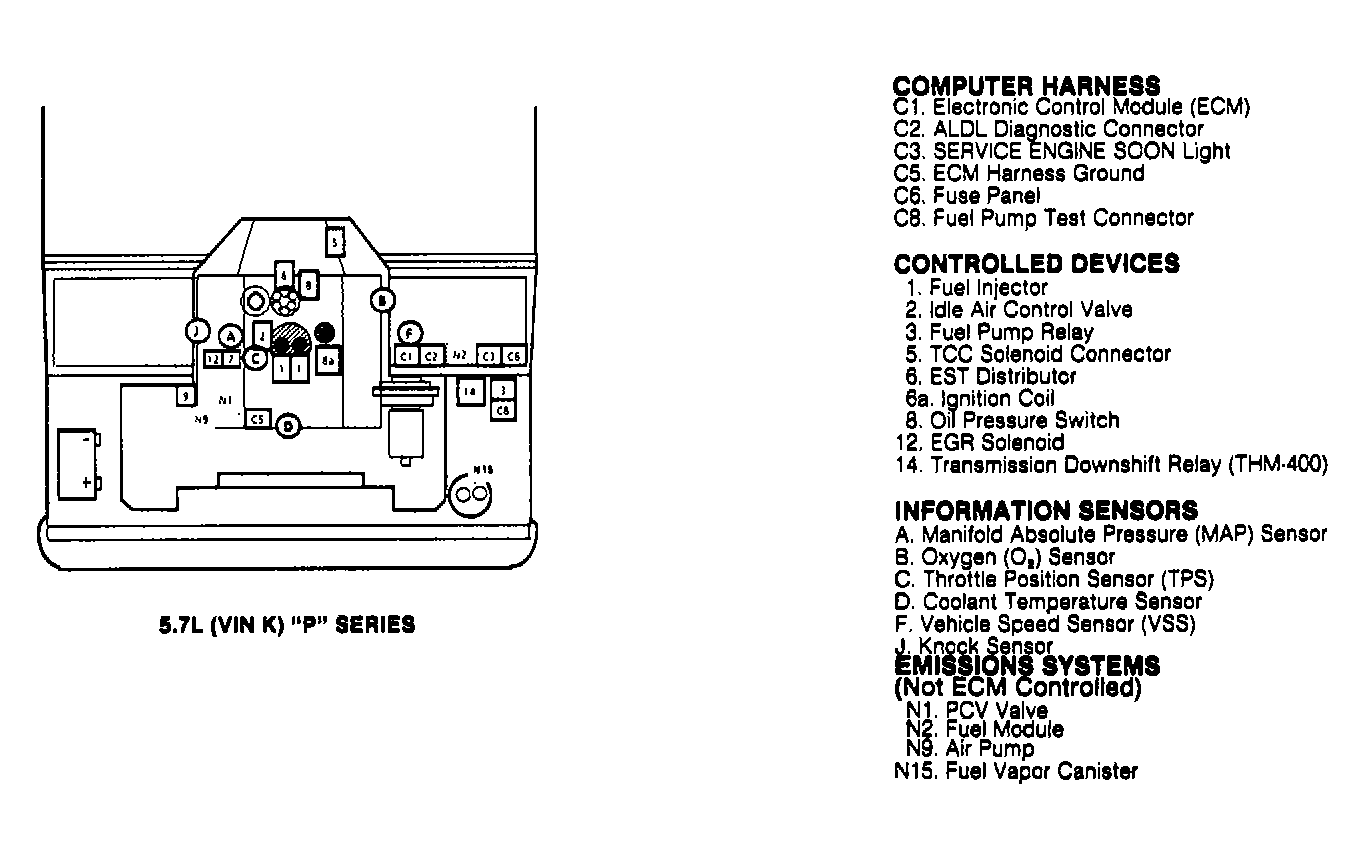

Fig 11: 5.7L (VIN K) "P" Series

Courtesy of GENERAL MOTORS CORP.

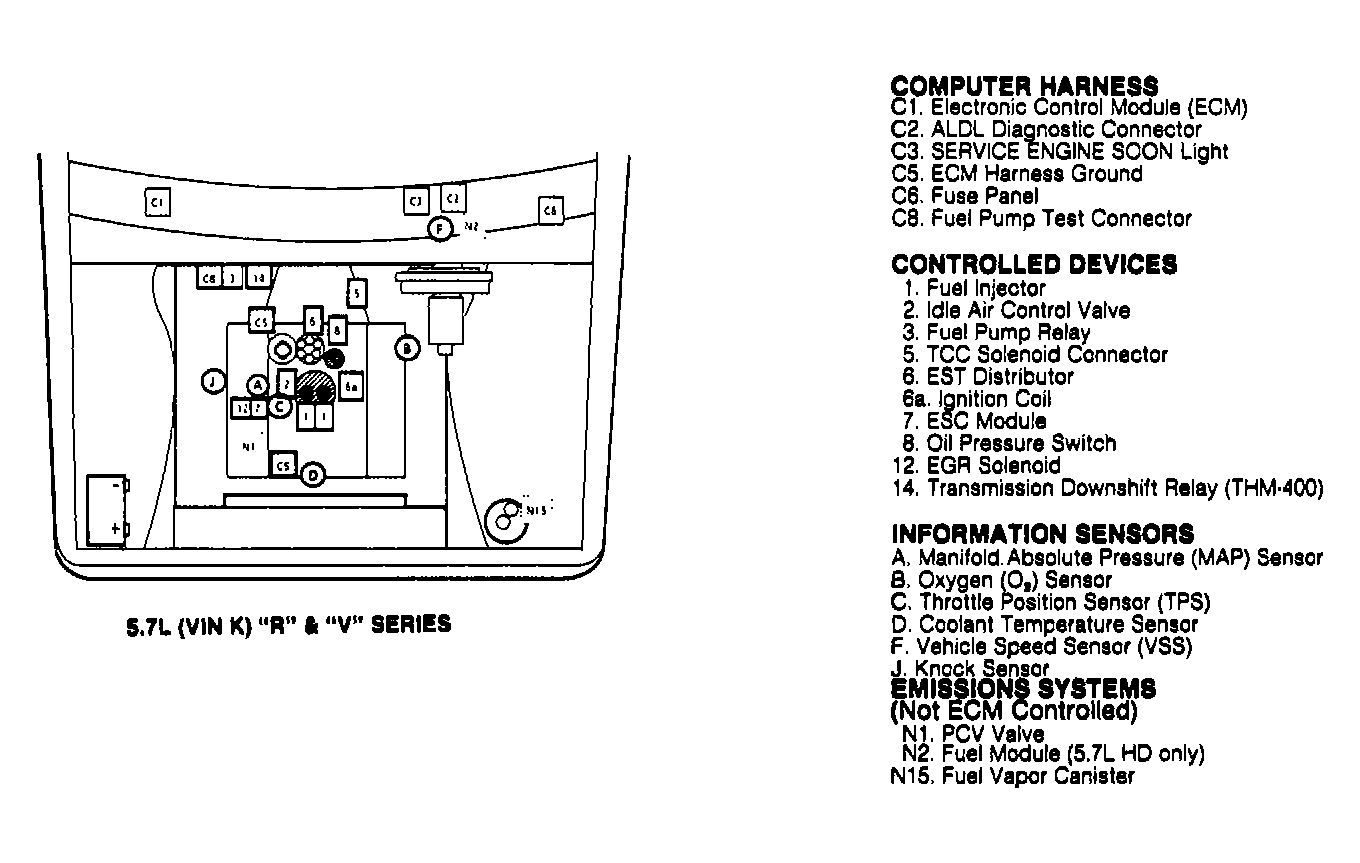

Fig 12: 5.7L (VIN K) "R" & "V" Series

Courtesy of GENERAL MOTORS CORP.

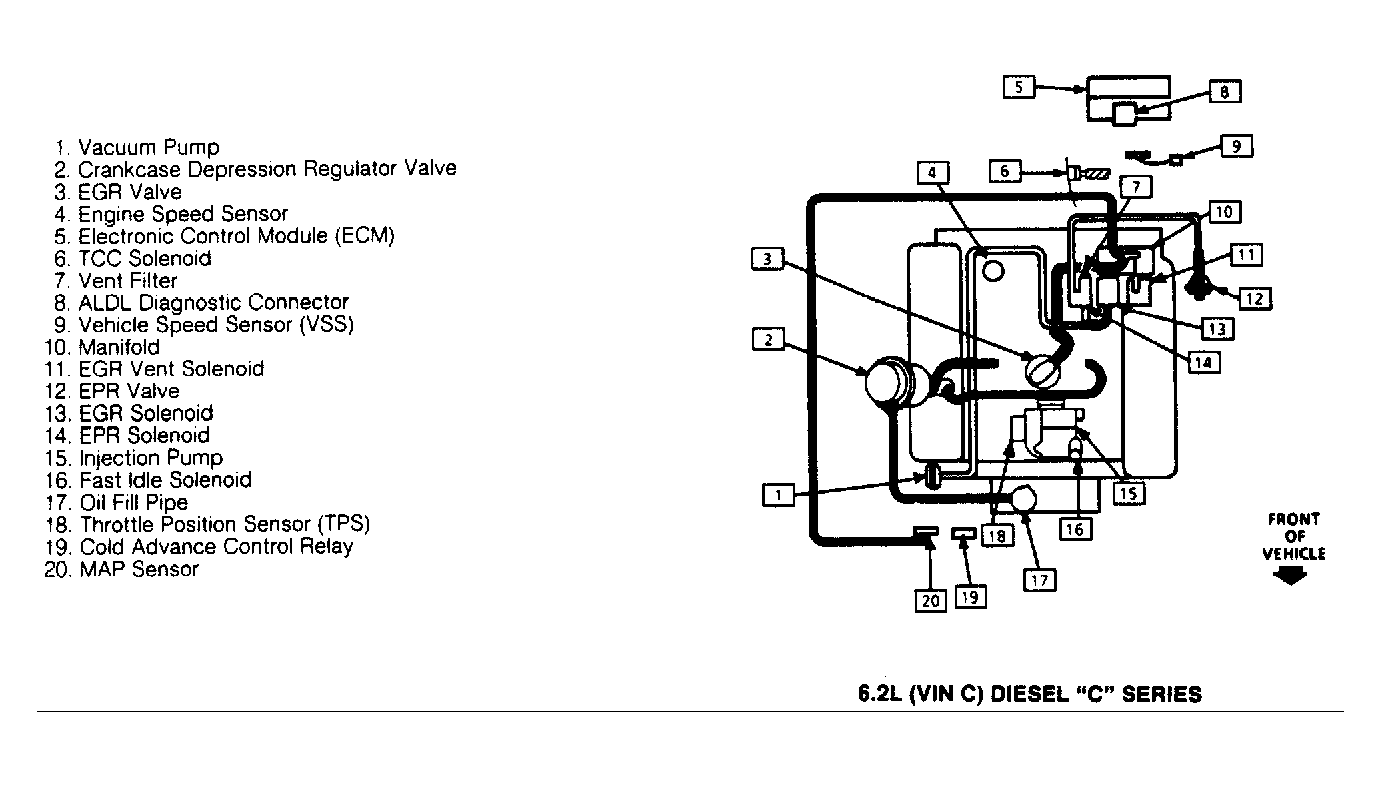

Fig 13: 6.2L (VIN C) DIESEL "C" Series

Courtesy of GENERAL MOTORS CORP.

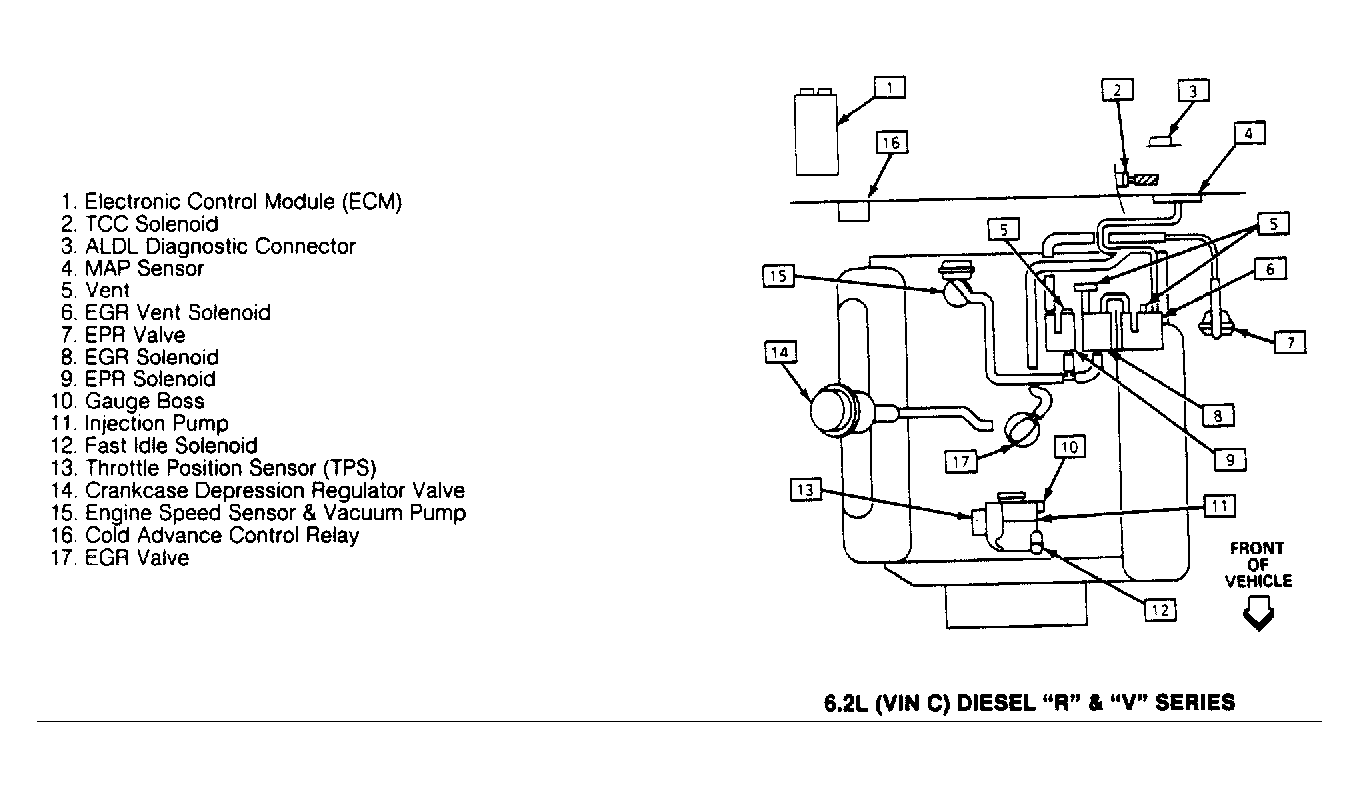

Fig 14: 6.2L (VIN C) DIESEL "R" & "V" Series

Courtesy of GENERAL MOTORS CORP.

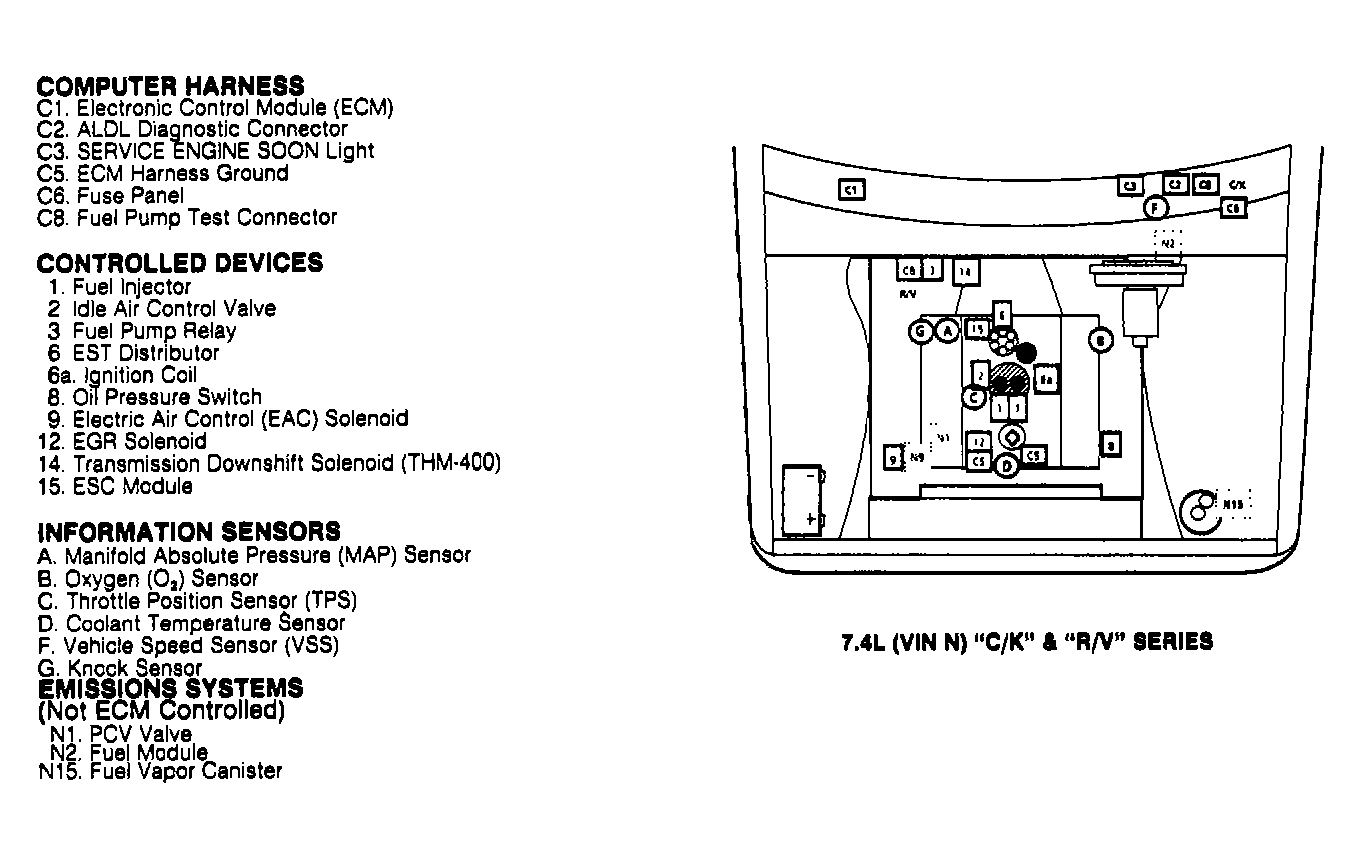

Fig 15: 7.4L (VIN N) "C/K" & "R/V" Series

Courtesy of GENERAL MOTORS CORP.

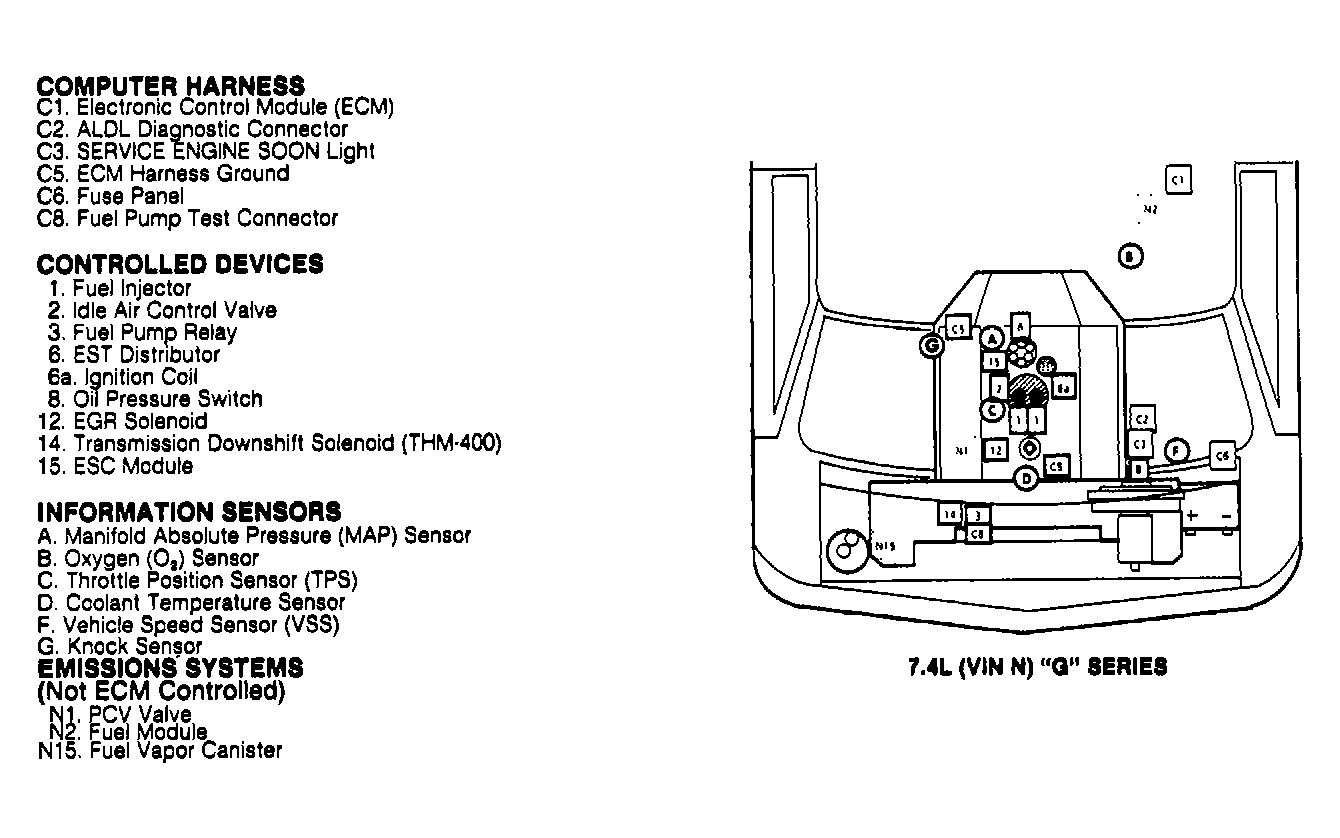

Fig 16: 7.4L (VIN N) "G" Series

Courtesy of GENERAL MOTORS CORP.

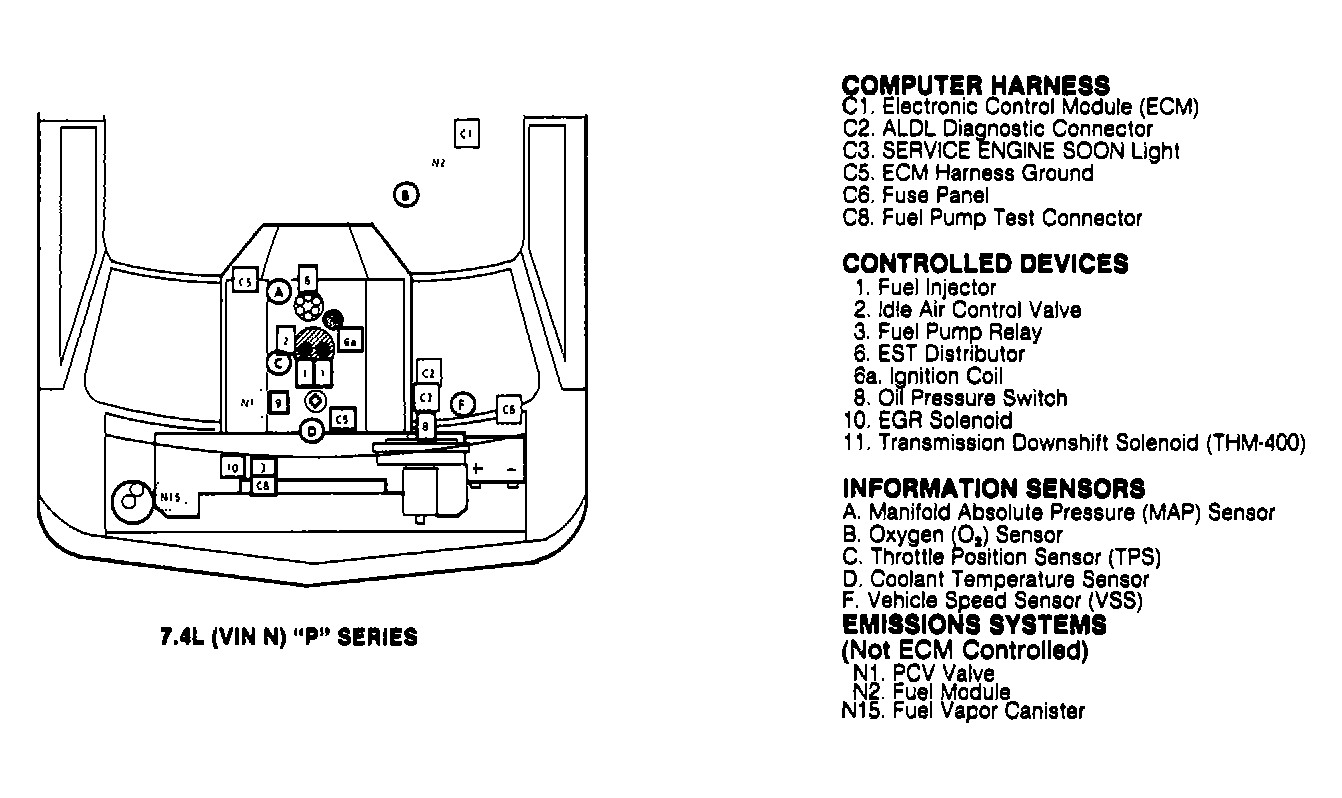

Fig 17: 7.4L (VIN N) "P" Series

Courtesy of GENERAL MOTORS CORP.
