Component Locations

NOTE: All figures are courtesy of General Motors Corp.

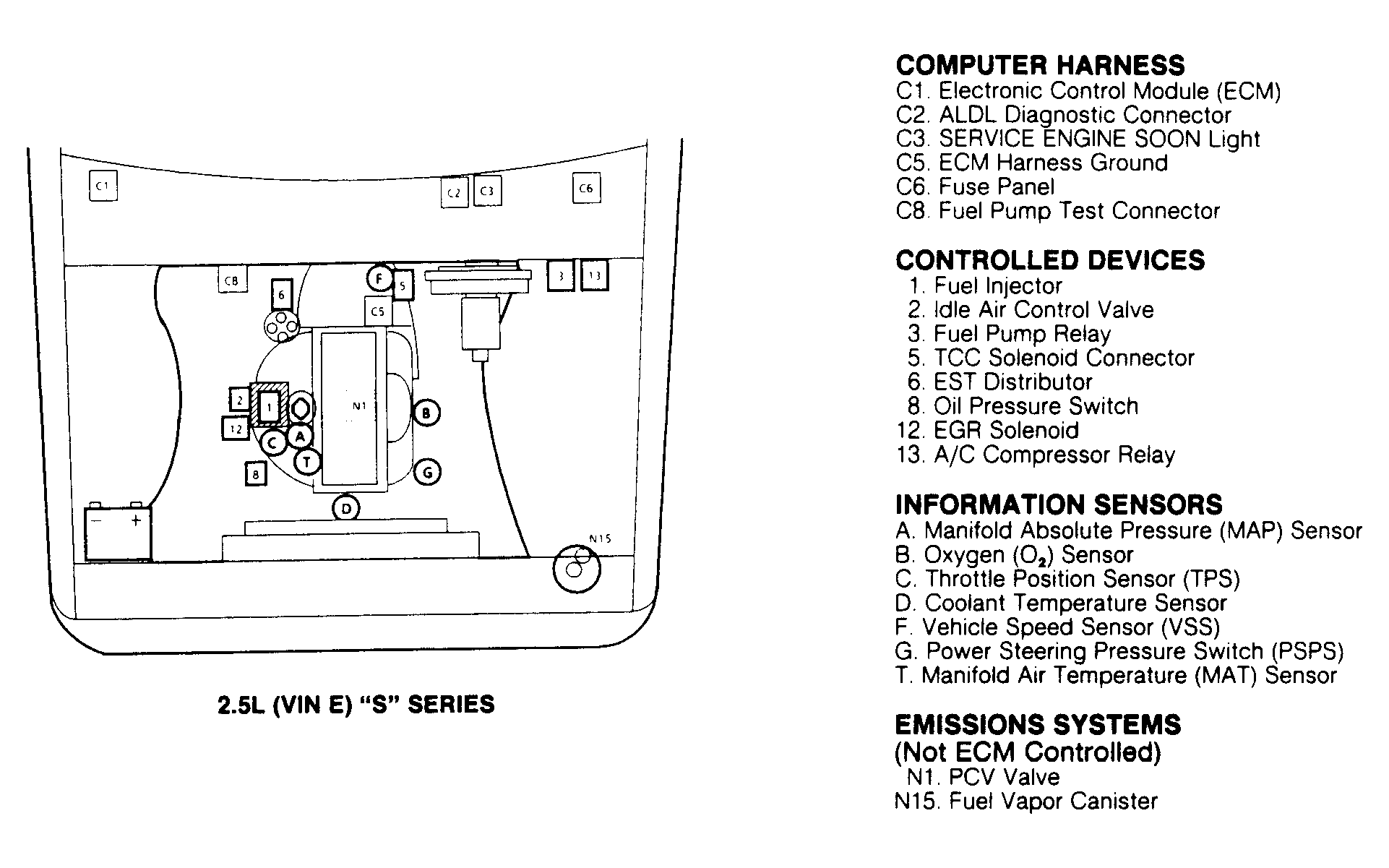

Fig 1: Component Location for 2.5L (VIN E) "S" Series

Courtesy of GENERAL MOTORS CORP.

Fig 2: Component Location for 2.8L (VIN R) "S" Series

Courtesy of GENERAL MOTORS CORP.

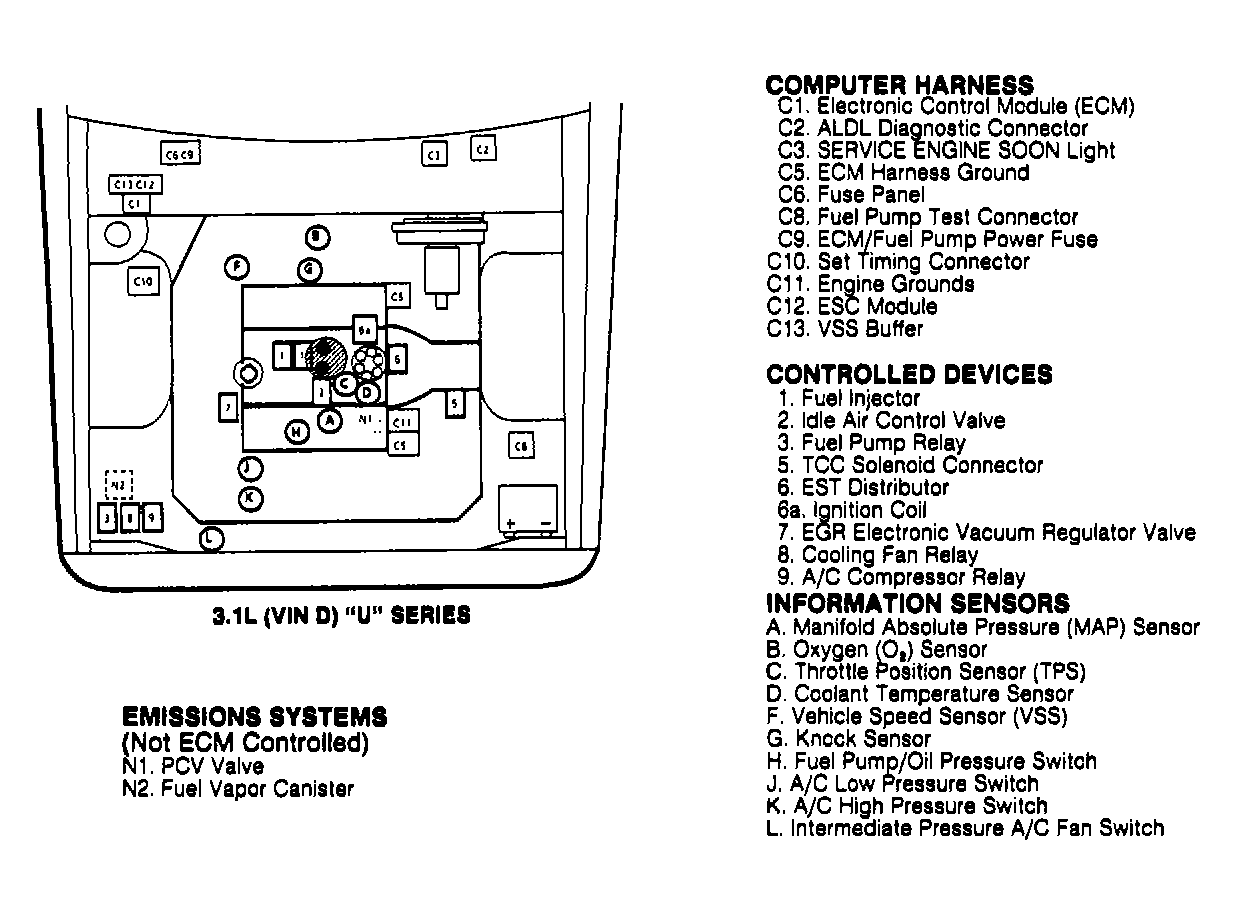

Fig 3: Component Location for 3.1L (VIN D) "U" Series (Lumina APV, Silhouette & Trans Sport)

Courtesy of GENERAL MOTORS CORP.

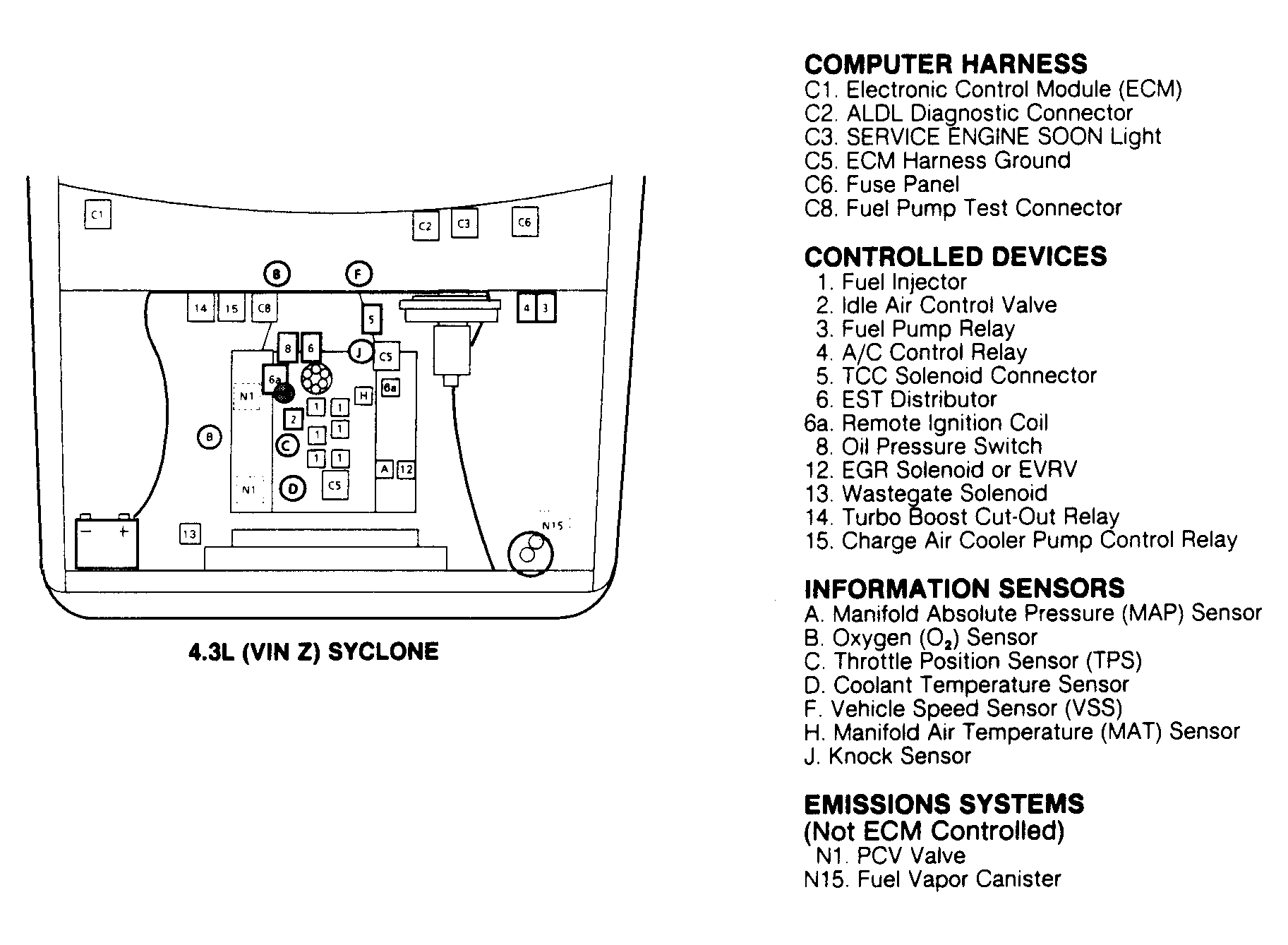

Fig 4: Component Location for 4.3L (VIN Z) Syclone

Courtesy of GENERAL MOTORS CORP.

Fig 5: Component Location for 4.3L (VIN Z) "C" & "K" Series

Courtesy of GENERAL MOTORS CORP.

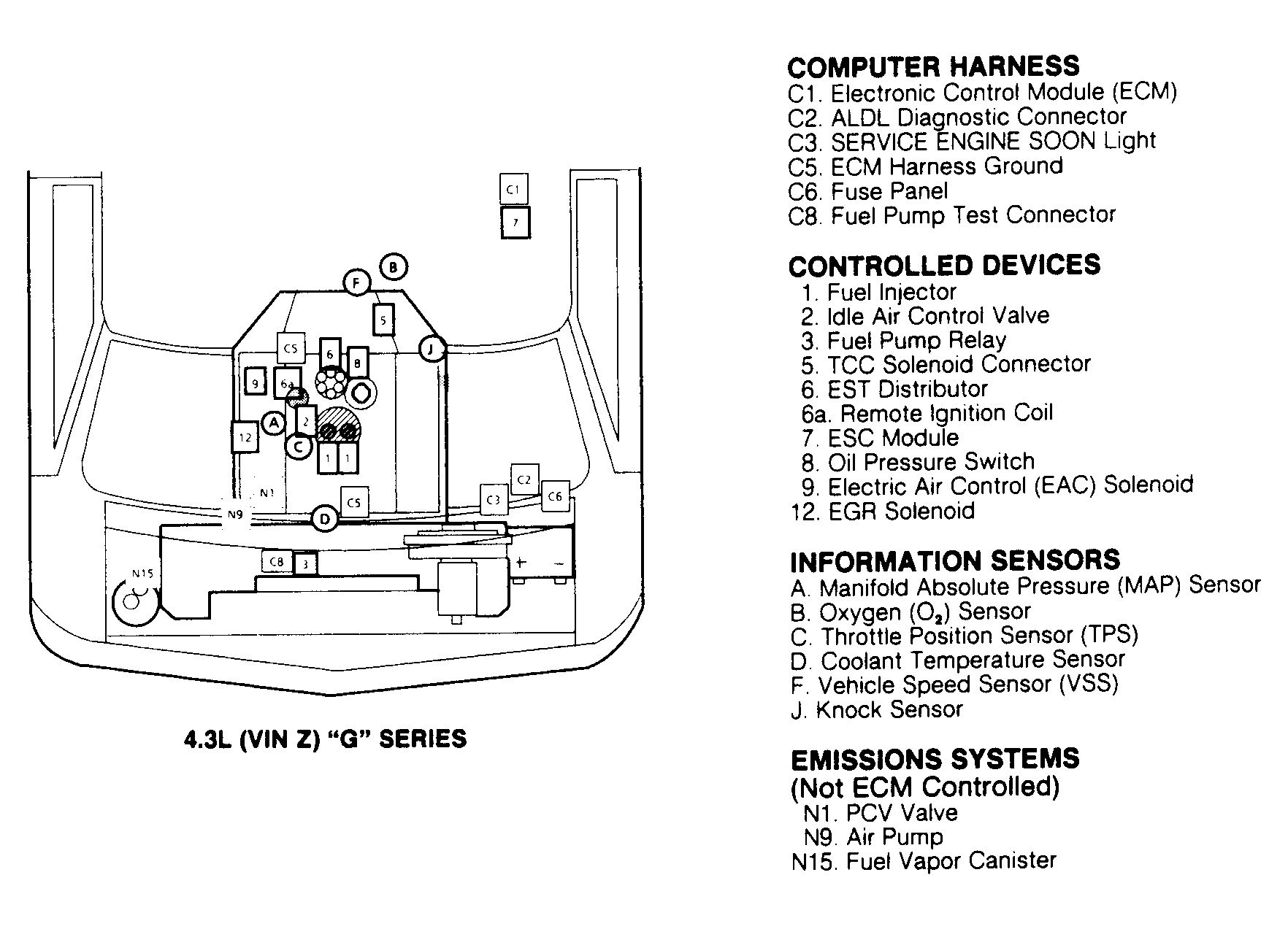

Fig 6: Component Location for 4.3L (VIN Z) "G" Series

Courtesy of GENERAL MOTORS CORP.

Fig 7: Component Location for 4.3L (VIN Z) "L" & "M" Series (Astro & Safari)

Courtesy of GENERAL MOTORS CORP.

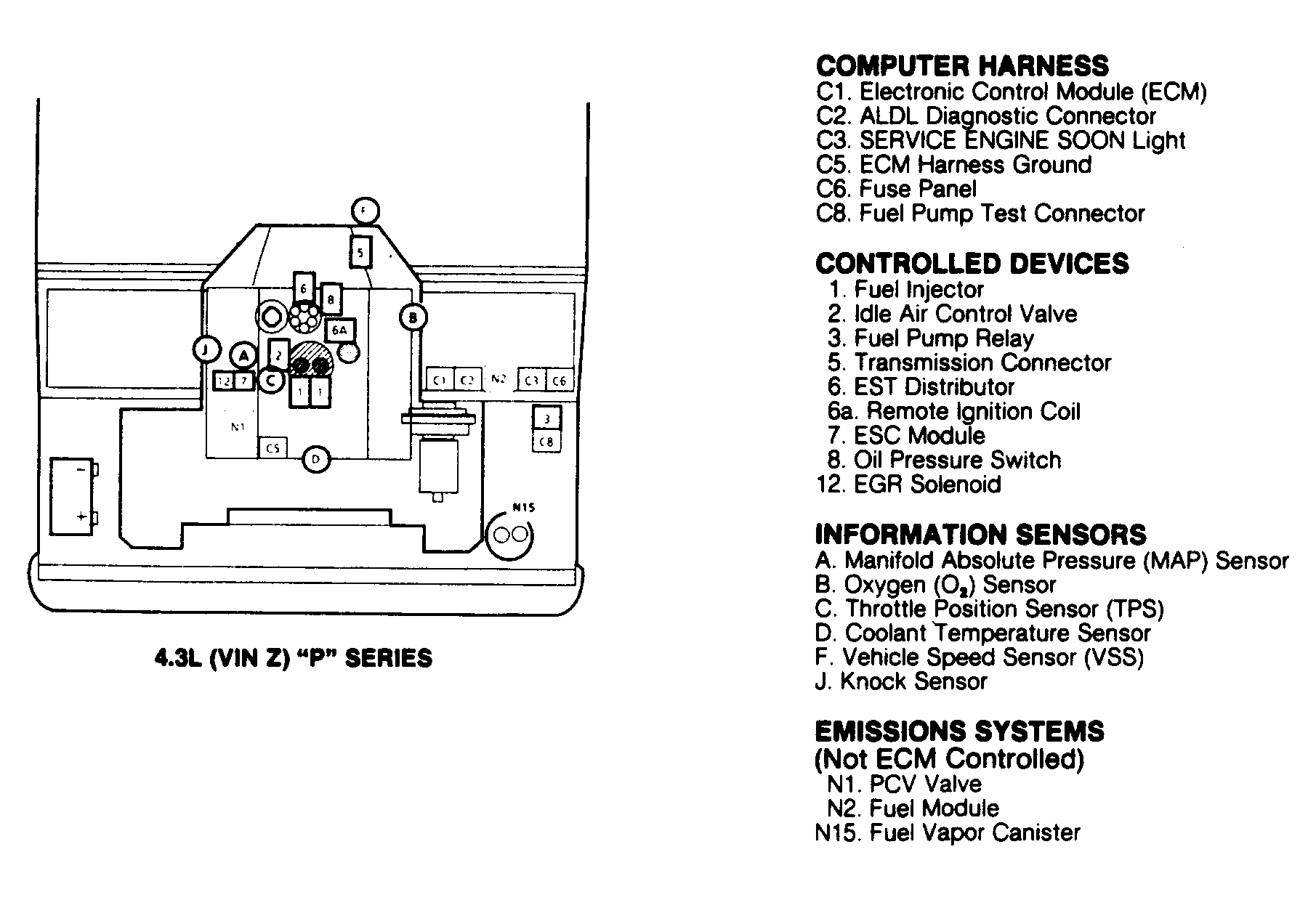

Fig 8: Component Location for 4.3L (VIN Z) "P" Series

Courtesy of GENERAL MOTORS CORP.

Fig 9: Component Location for 4.3L (VIN Z) "S" & "T" Series

Courtesy of GENERAL MOTORS CORP.

Fig 10: Component Location for 5.0L (VIN H) & 5.7L (VIN K) "C" & "K" Series

Courtesy of GENERAL MOTORS CORP.

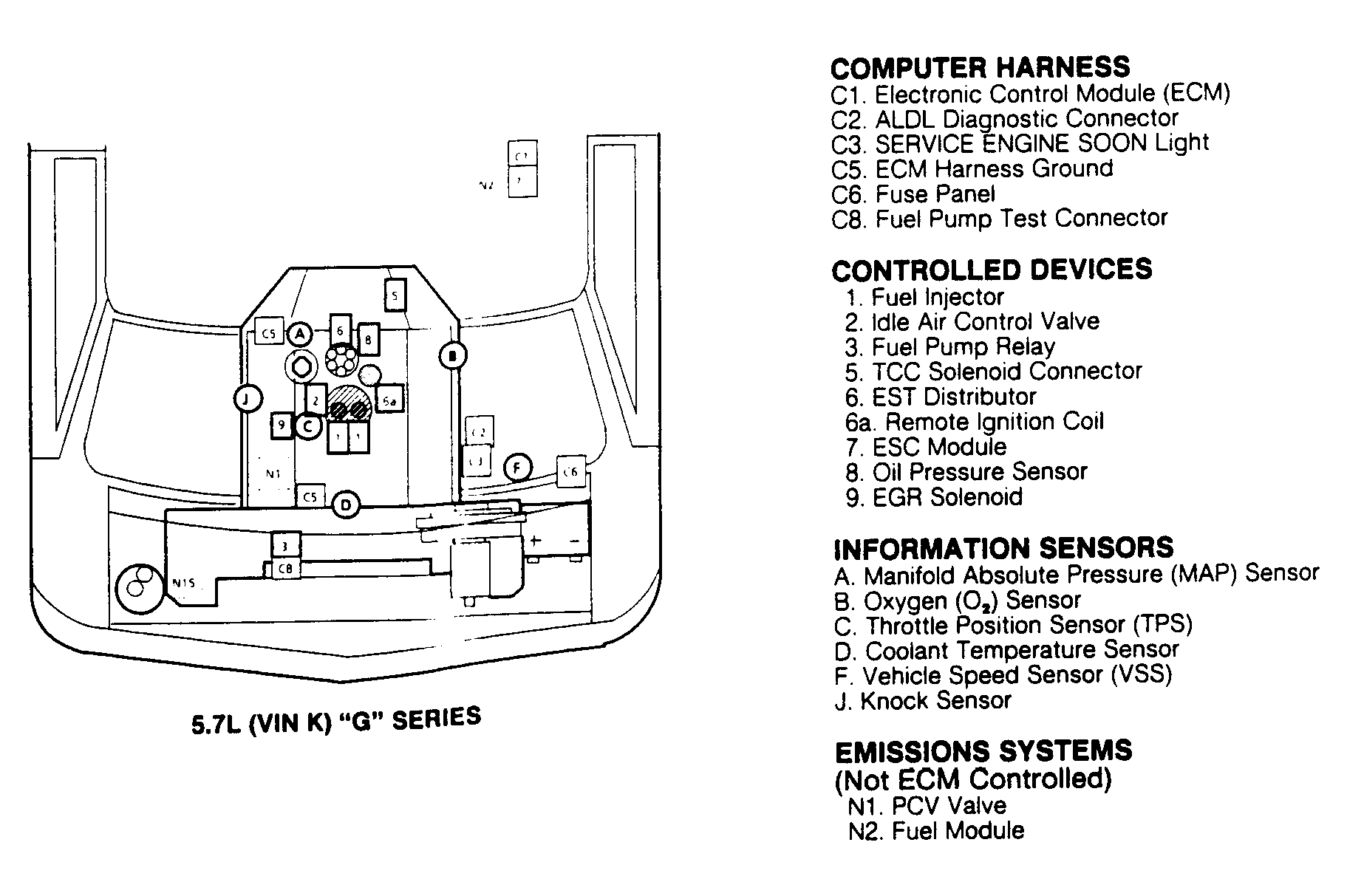

Fig 11: Component Location for 5.7L (VIN K) "G" Series

Courtesy of GENERAL MOTORS CORP.

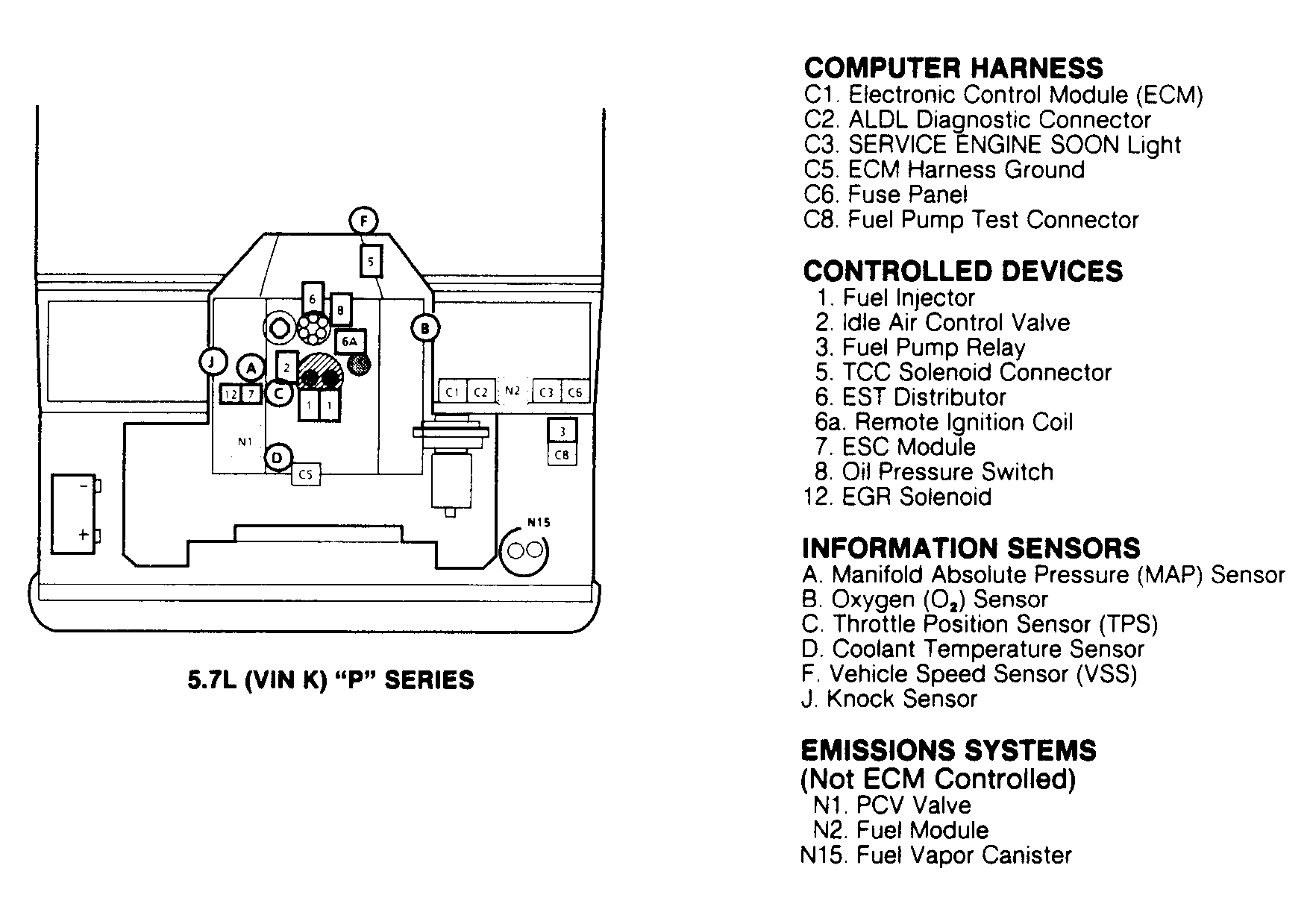

Fig 12: Component Location for 5.7L (VIN K) "P" Series

Courtesy of GENERAL MOTORS CORP.

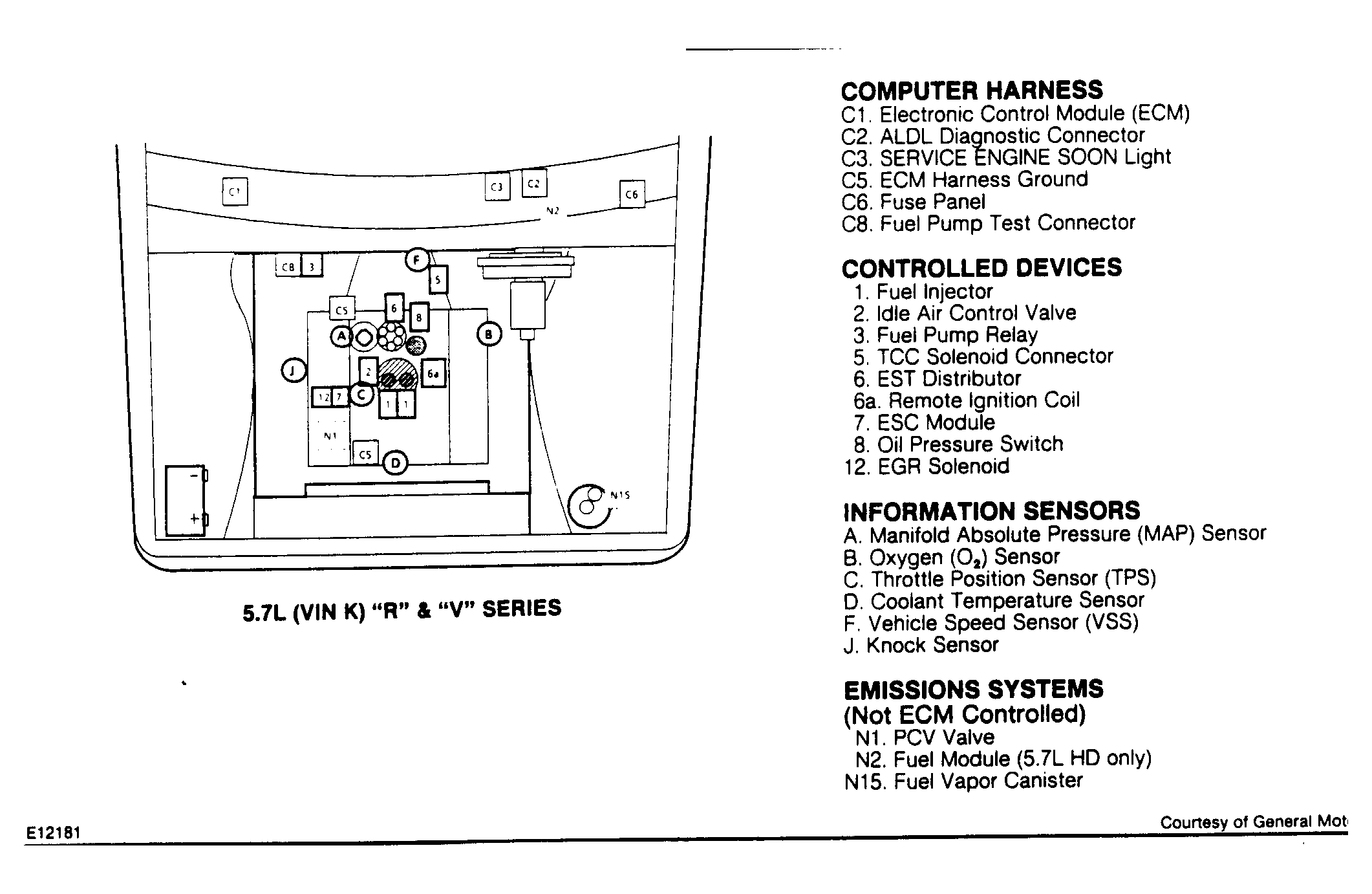

Fig 13: Component Location for 5.7L (VIN K) "R" & "V" Series

Courtesy of GENERAL MOTORS CORP.

Fig 14: Component Location for 6.2L (VIN C) Diesel "C" & "K" Series

Courtesy of GENERAL MOTORS CORP.

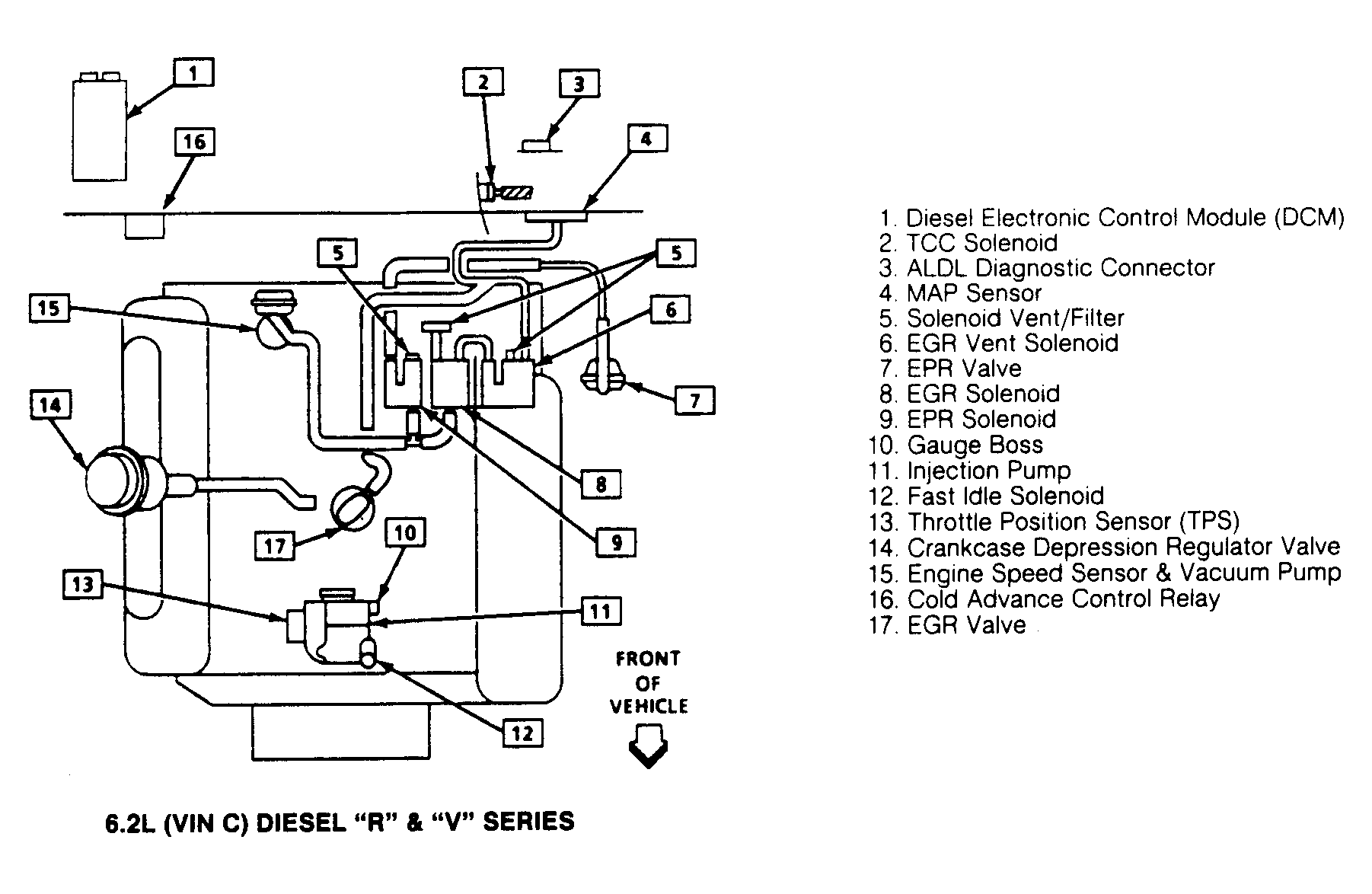

Fig 15: Component Location for 6.2L (VIN C) Diesel "R" & "V" Series

Courtesy of GENERAL MOTORS CORP.

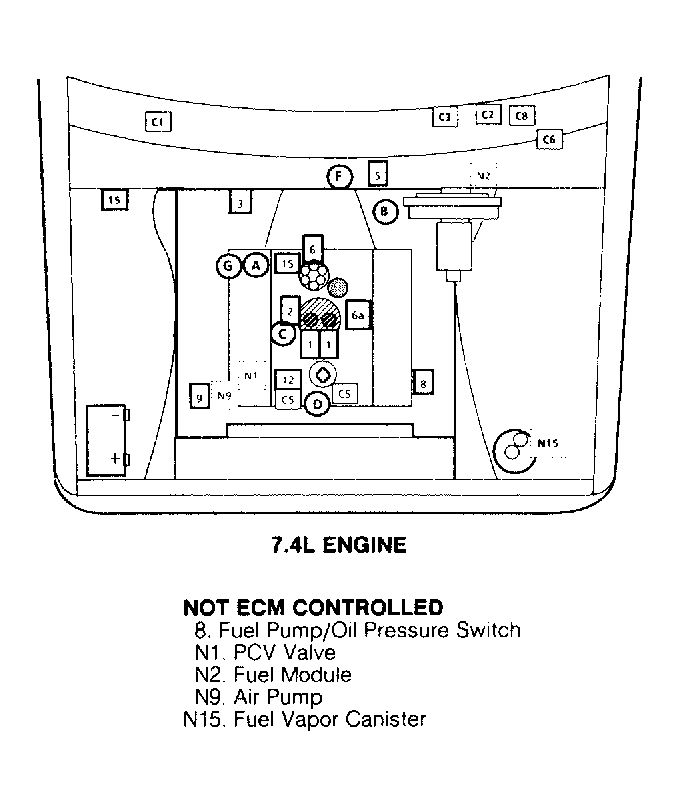

Fig 16: Component Location for 7.4L (VIN N) "C/K" Series

Courtesy of GENERAL MOTORS CORP.

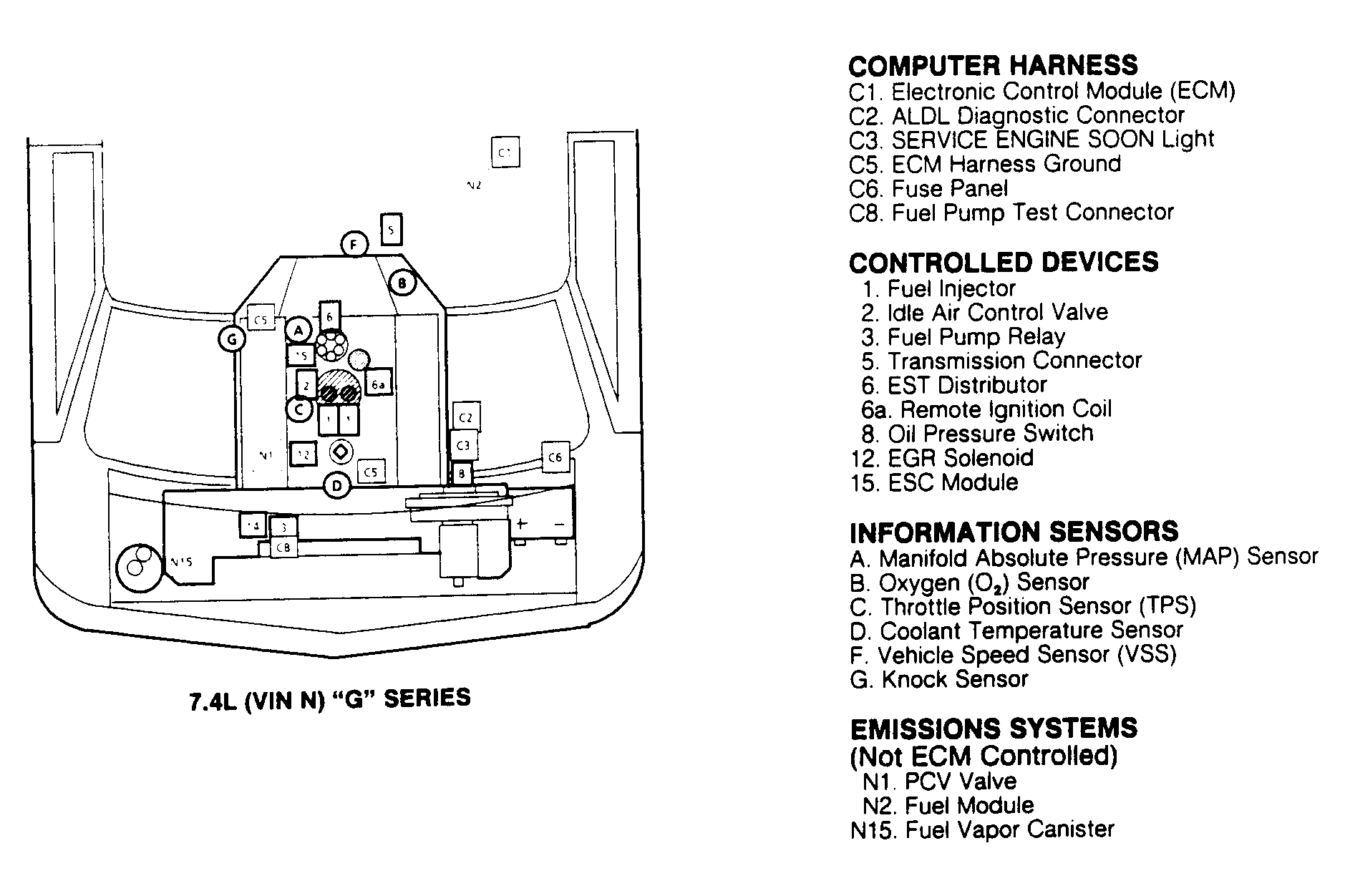

Fig 17: Component Location for 7.4L (VIN N) "G" Series

Courtesy of GENERAL MOTORS CORP.

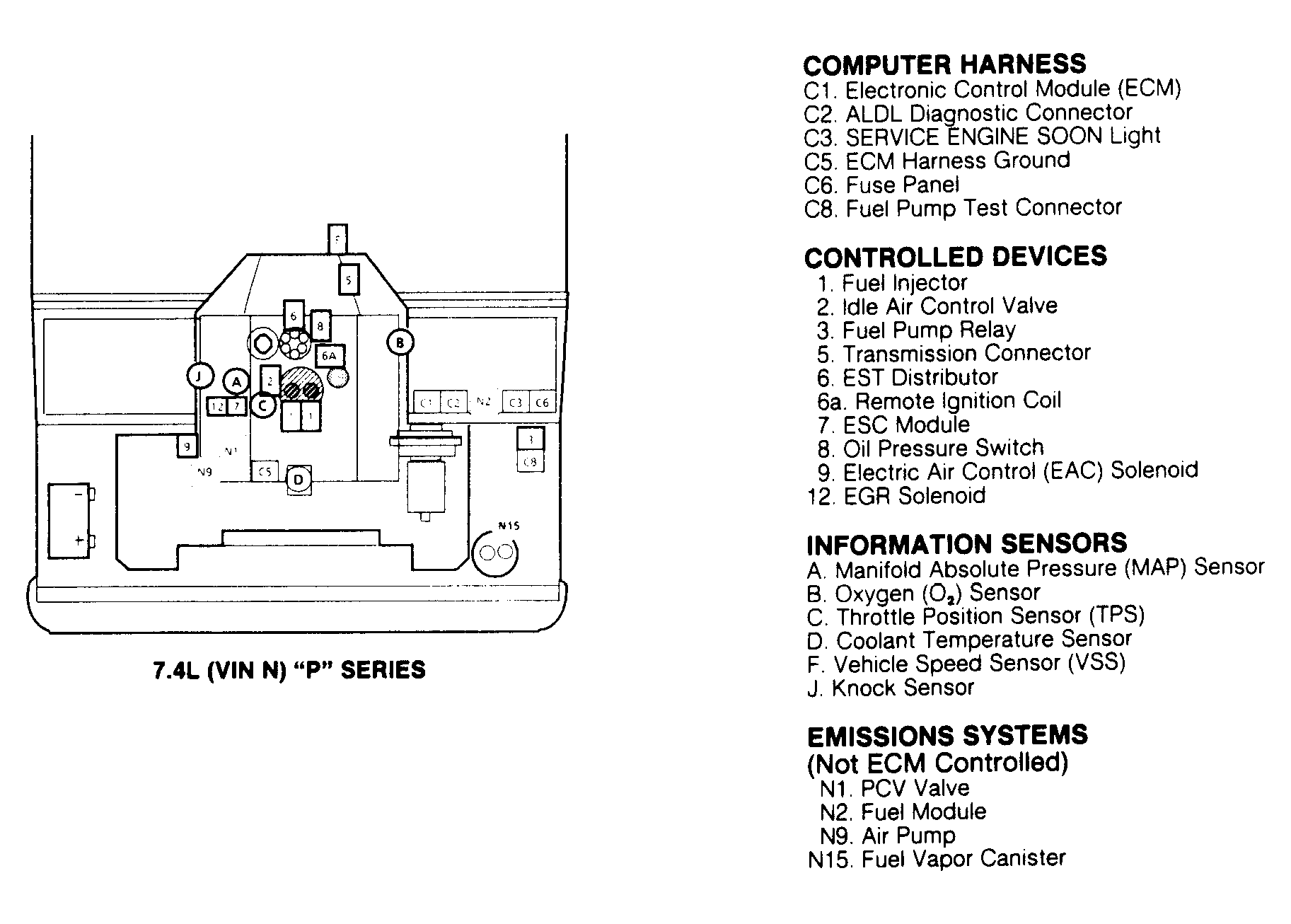

Fig 18: Component Location for 7.4L (VIN N) "P" Series

Courtesy of GENERAL MOTORS CORP.

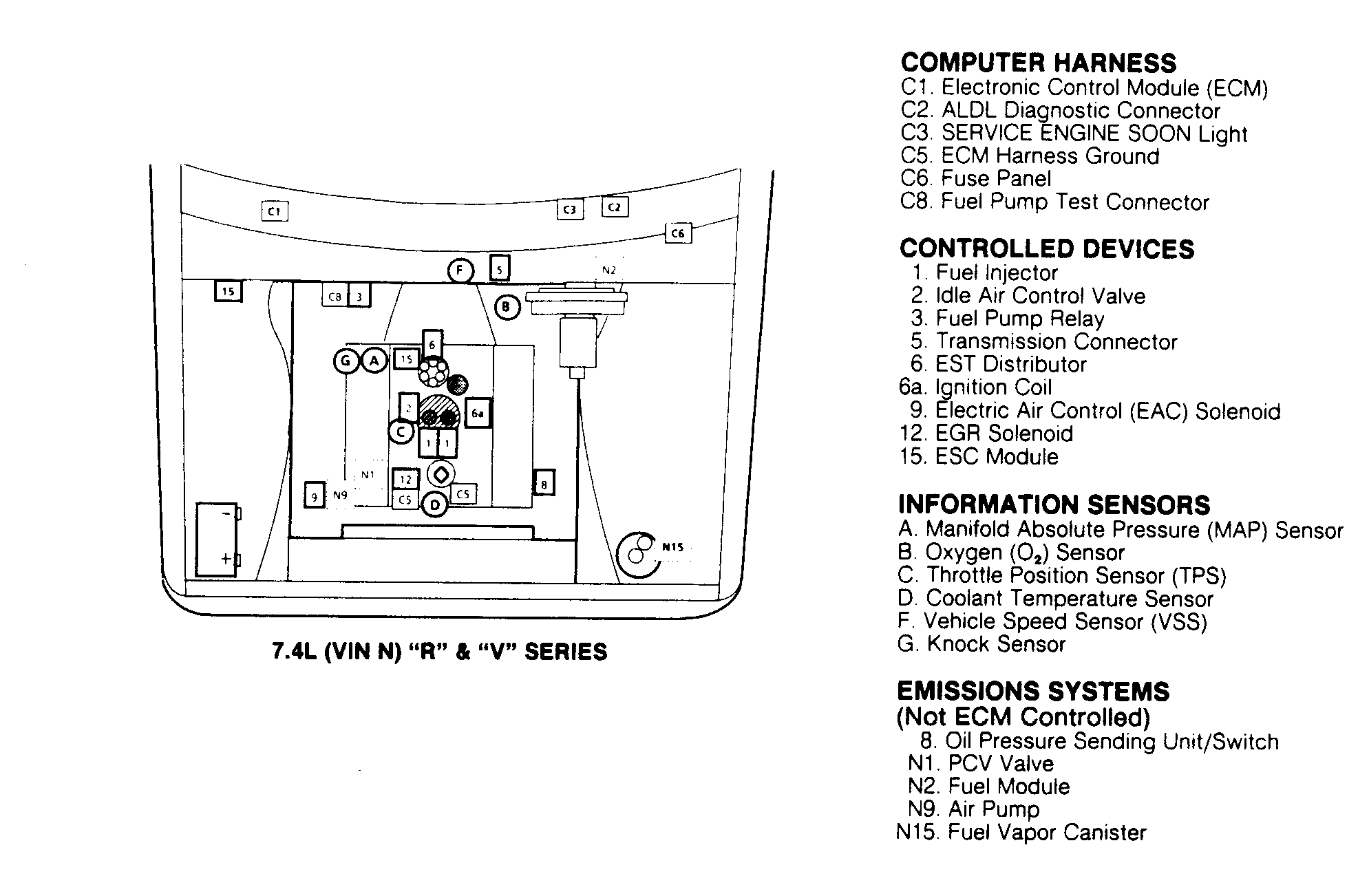

Fig 19: Component Location for 7.4L (VIN N) "R" & "V" Series

Courtesy of GENERAL MOTORS CORP.
