Starting System: Overhaul

NOTE: Overhaul procedures are not available from manufacturer. See Fig 1-Fig 3 for exploded views of starters. The 28MT starter is not serviceable.

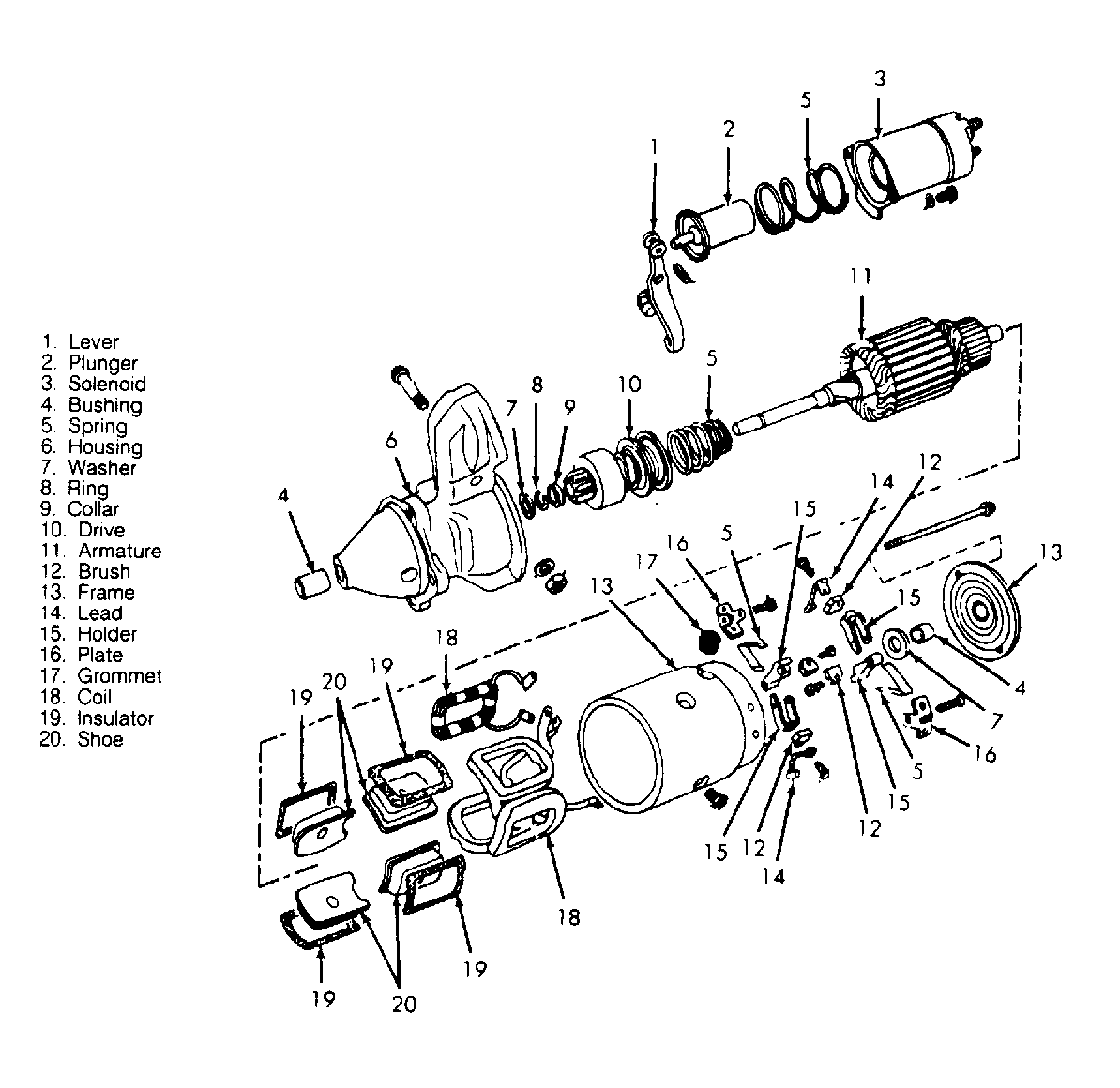

Fig 1: Exploded View of Starter Assembly (SD-210 & SD-260)

Courtesy of GENERAL MOTORS CORP.

Fig 2: Exploded View of Starter Assembly (SD-200)

Courtesy of GENERAL MOTORS CORP.

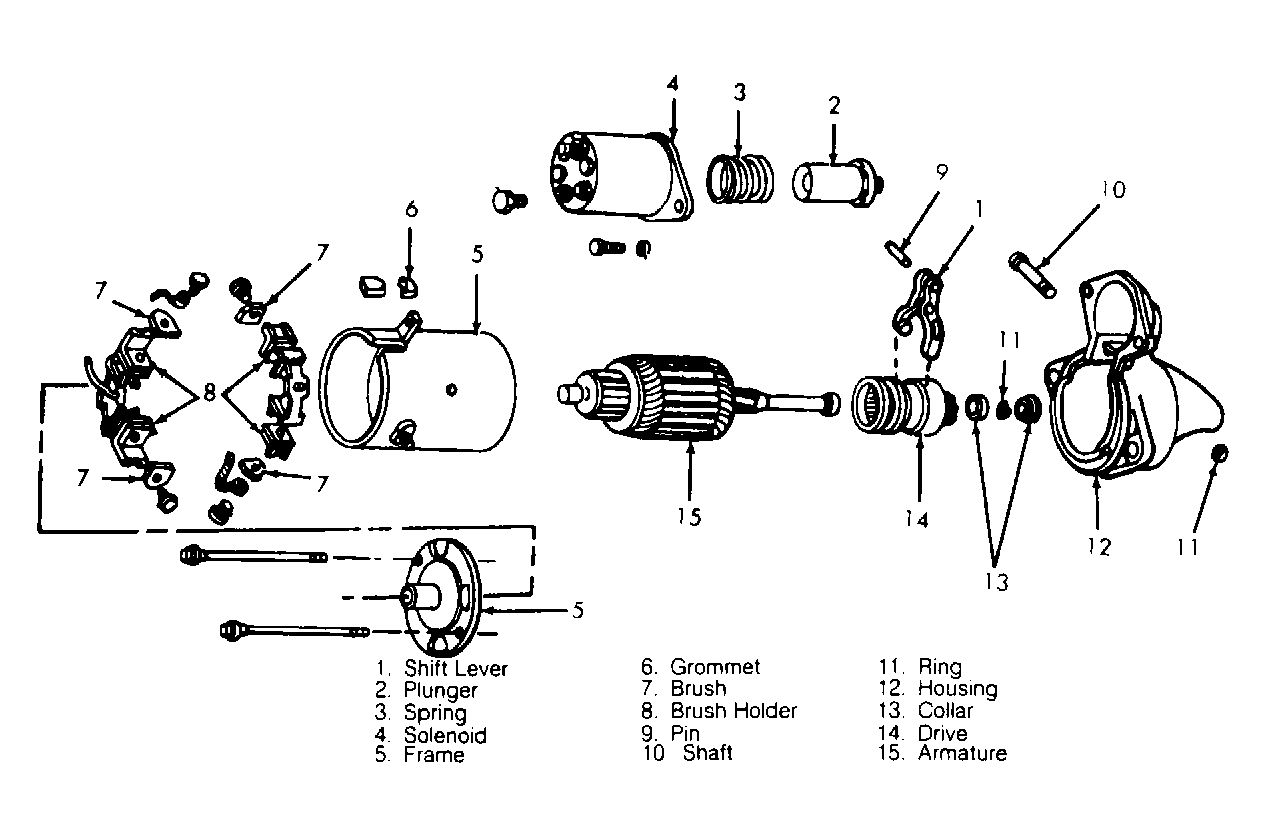

Fig 3: Exploded View of Starter Assembly (SD-300)

Courtesy of GENERAL MOTORS CORP.
