Idle Air Control System Check Chart: Notes

NOTE: If a repair has been made refer to IAC RESET PROCEDURE before retesting.

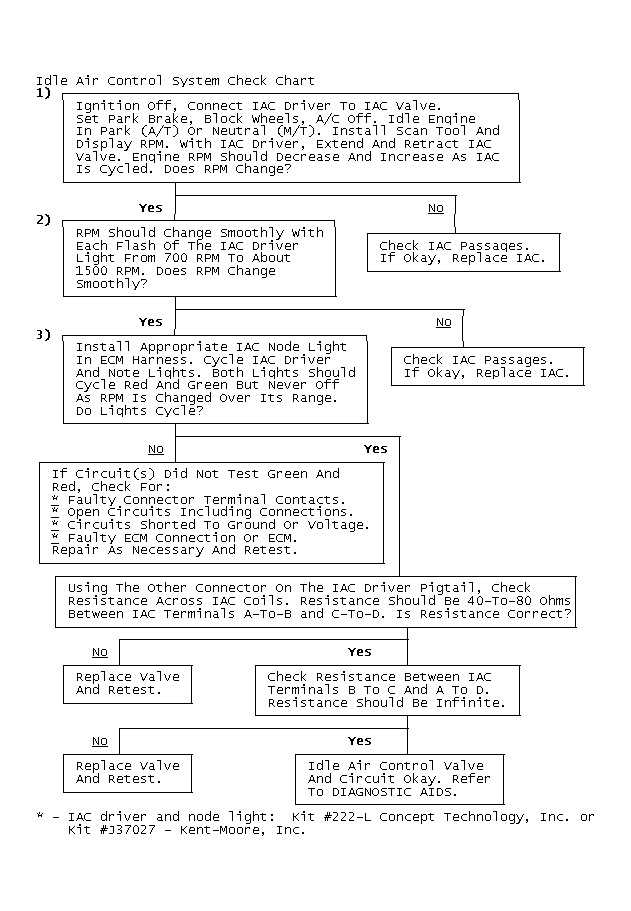

Fig 1: Idle Air Control System Check Chart
GB0011412
