Diagnostic Aids

Check for poor connections at PCM/TCM, especially at transmission pass-thru connector.

Fig 1: Force Motor Circuit Check, Schematic

Courtesy of GENERAL MOTORS CORP.

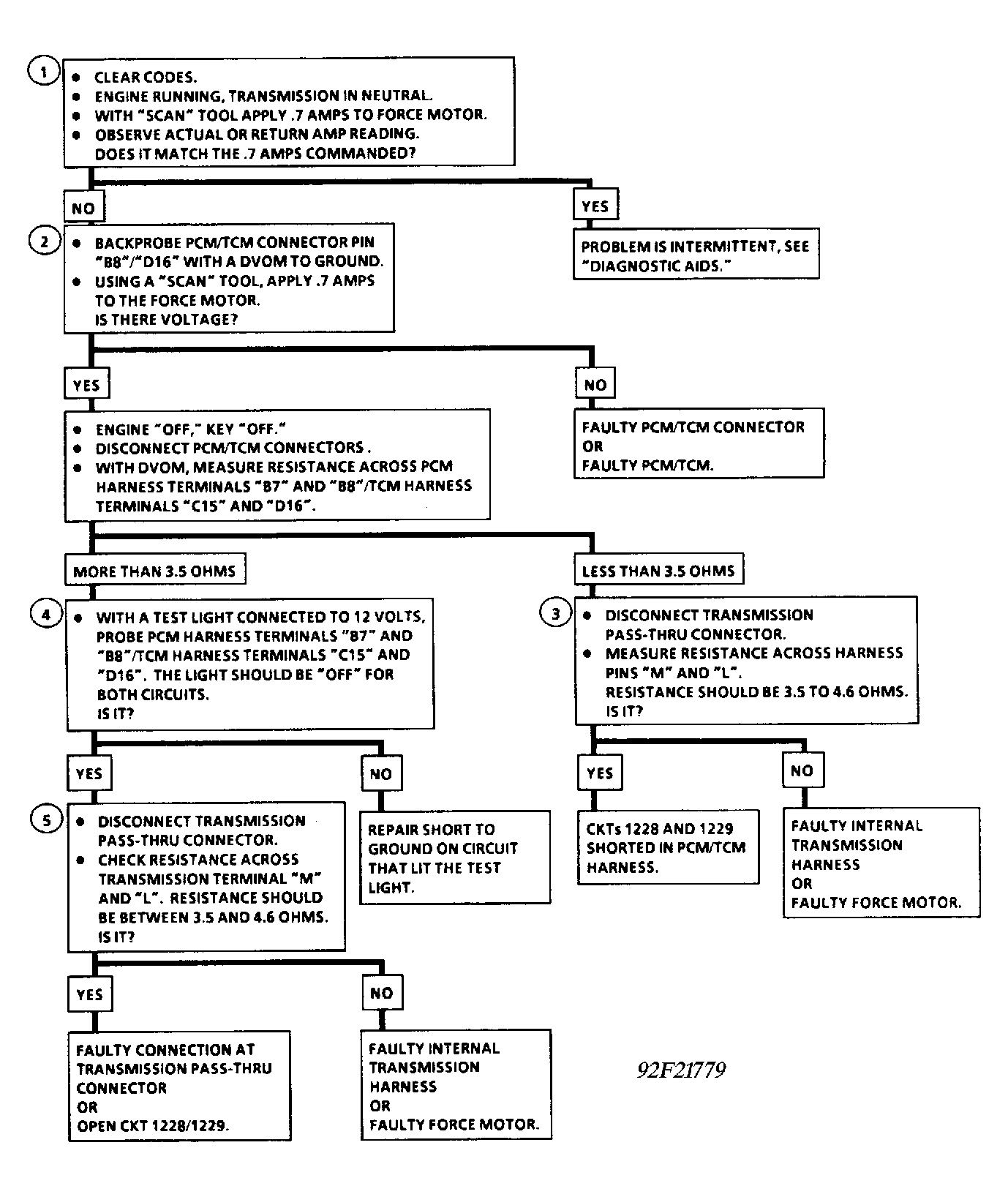

Fig 2: Force Motor Circuit Check, Flow Chart

Courtesy of GENERAL MOTORS CORP.
