Diagnostic Aids

Check all connectors. If code is intermittent, see INTERMITTENTS in TESTS W/O CODES article.

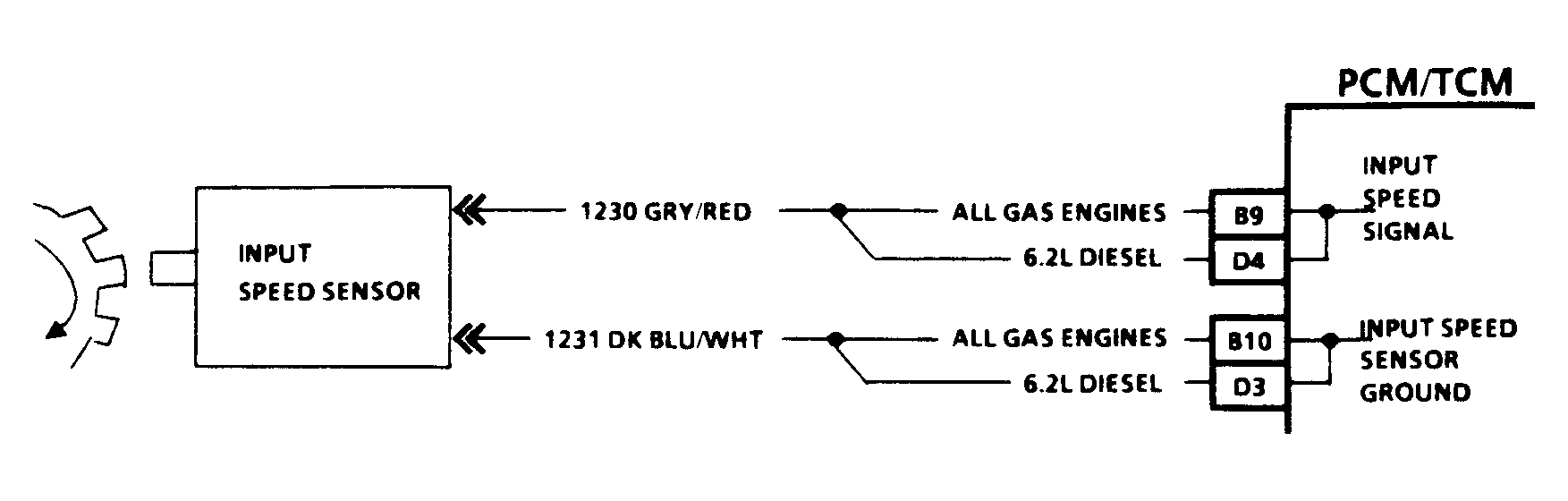

Fig 1: Input Speed Sensor Circuit Check, Schematic

Courtesy of GENERAL MOTORS CORP.

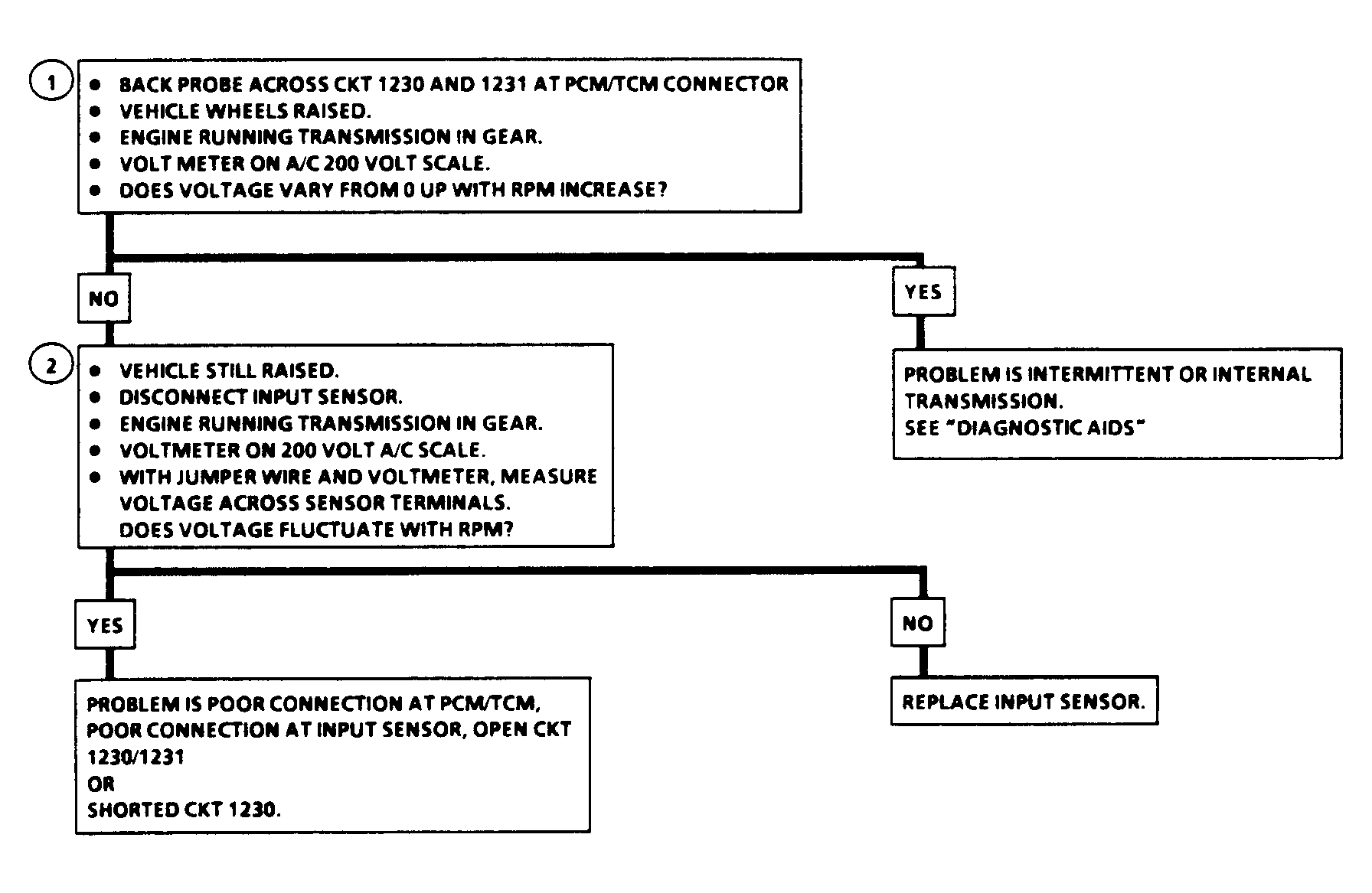

Fig 2: Input Speed Sensor Circuit Check, Flow Chart

Courtesy of GENERAL MOTORS CORP.
