Slave Cylinder: Reassembly

Lubricate NEW seal and cylinder bore with clean brake fluid. Fit NEW seal into groove in plunger. See Fig 1. Carefully install spring and plunger assembly into cylinder bore. Depress plunger with push rod, and seat snap ring in groove. Lightly grease inside of dust cover and install. Install push rod.

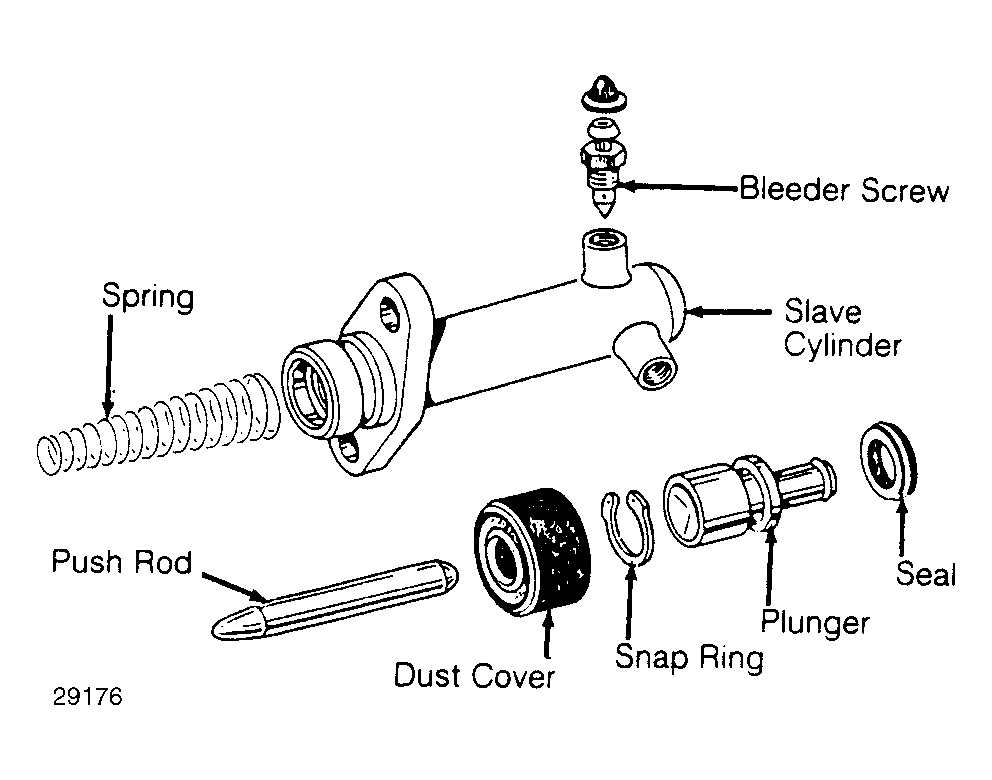

Fig 1: Exploded View Of Clutch Slave Cylinder

Courtesy of GENERAL MOTORS CORP.
