Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location | |
|---|---|---|
| Circuit Breakers | ||
| Power Accessories | At top of fuse block. | |
| Power Windows | At bottom of fuse block. | |
| Convenience Center | Left of steering column, at lower edge of dash. | |
| Fuse Block | ||
| 2.5L (VIN A) | Below left side of dash. See Figure . | |
| 2.8L (VIN R) | Below left side of dash. See Figure . | |
| 4.3L (VIN Z) | Below left side of dash. See Figure . | |

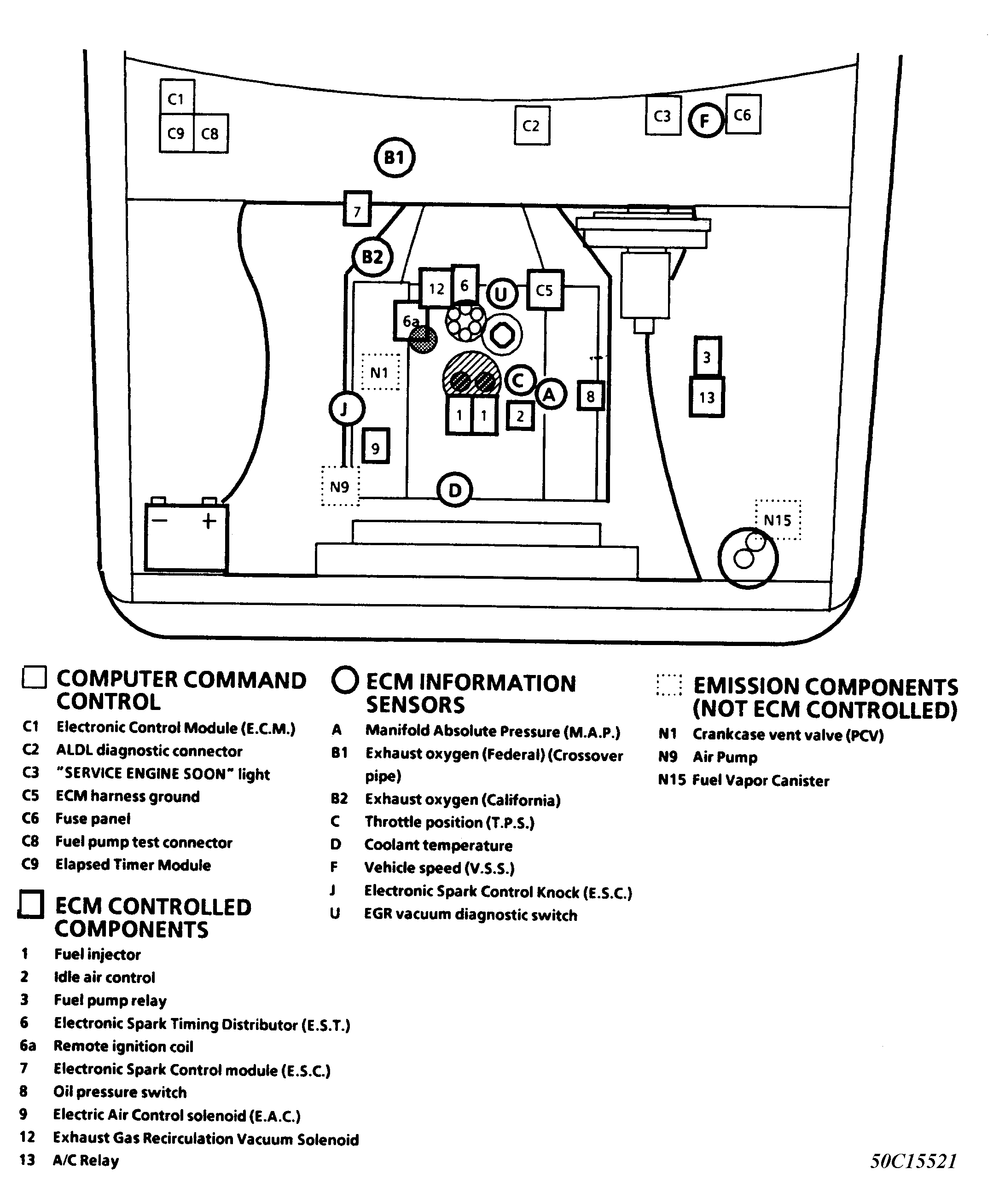

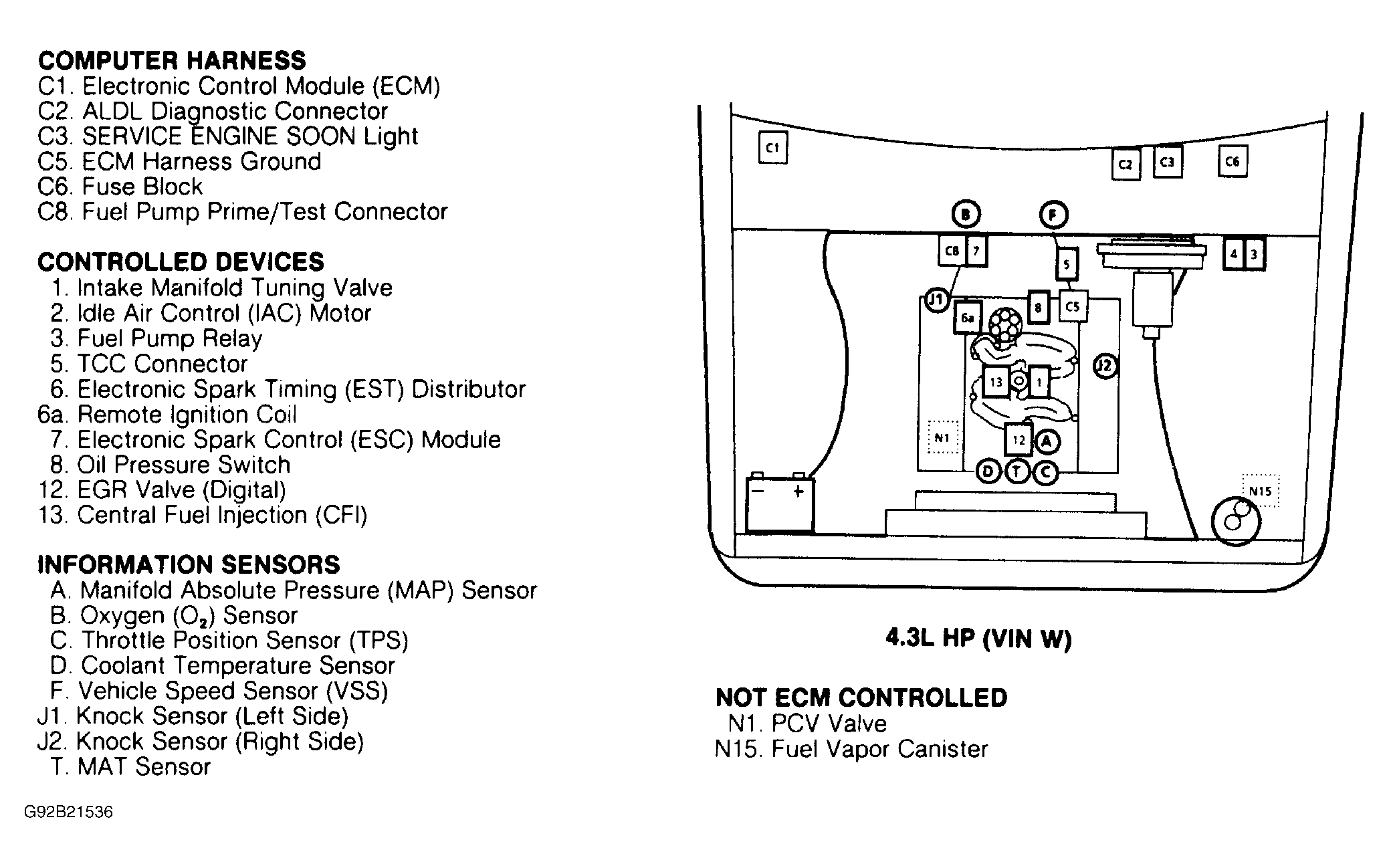

| 4.3L HP (VIN W) | Below left side of dash. See Figure . | |
| Fusible Links | ||
| Power Distribution (2.5L & 4.3L) | At rear of alternator (2 links). | |
| Power Distribution (2.8L) | At starter solenoid. | |
| Interior Lights In-line Fuse | On center of firewall. | |
