Wiring Diagrams

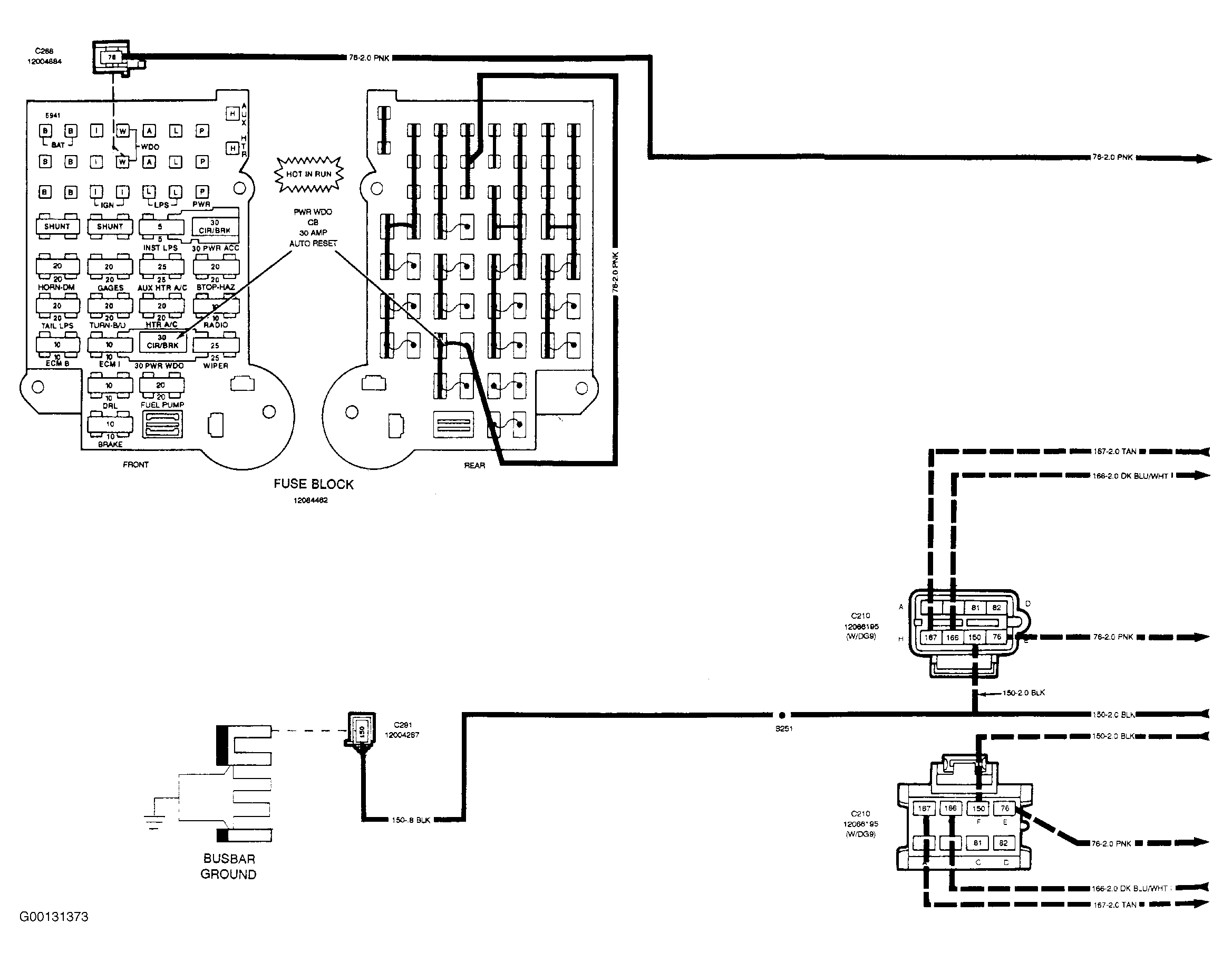

Fig 1: Power Window Wiring Diagram (1991 - 1 Of 2)

Courtesy of GENERAL MOTORS CORP.

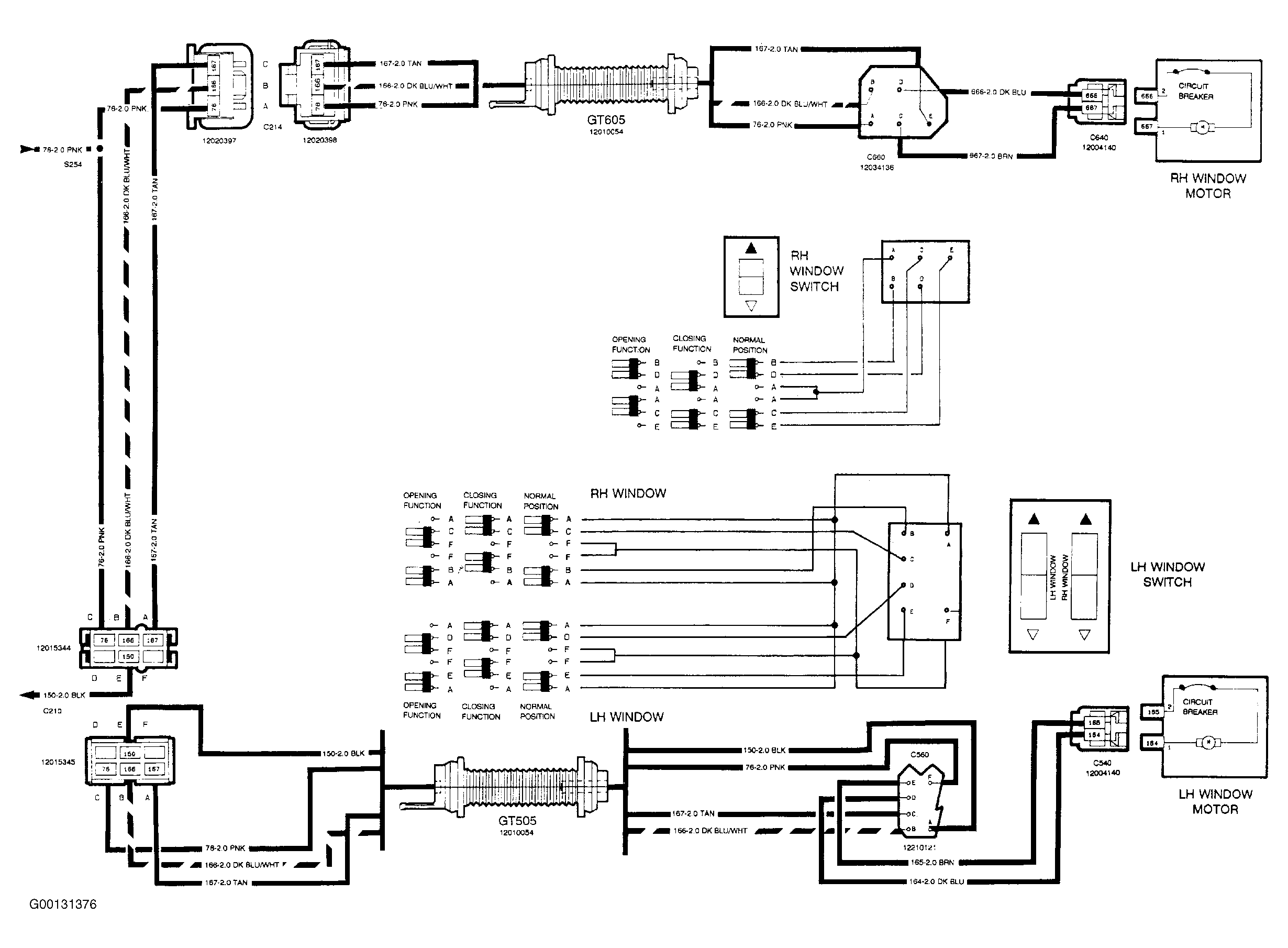

Fig 2: Power Window Wiring Diagram (1991 - 2 Of 2)

Courtesy of GENERAL MOTORS CORP.

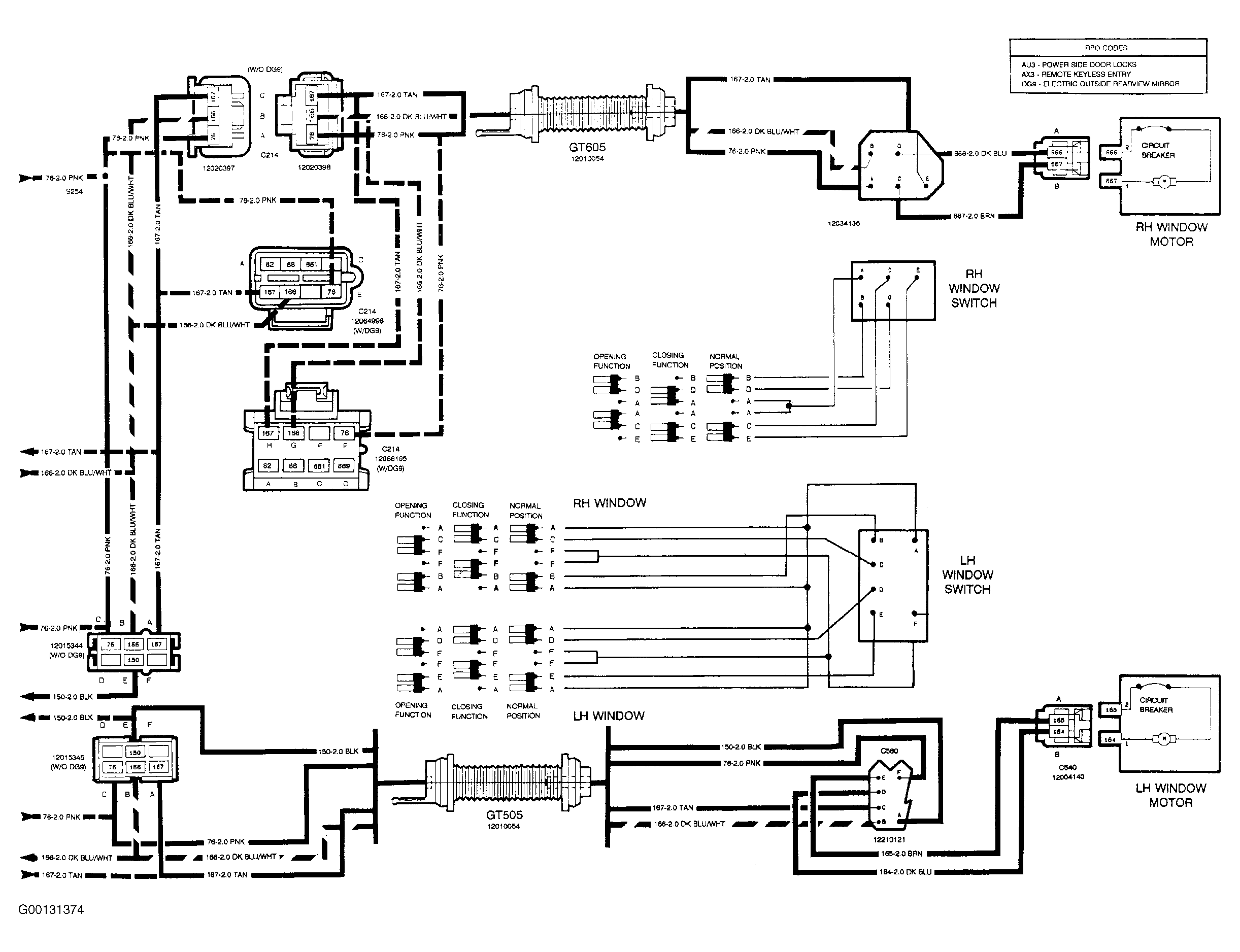

Fig 3: Power Window Wiring Diagram (1992-93 - 1 Of 2)

Courtesy of GENERAL MOTORS CORP.

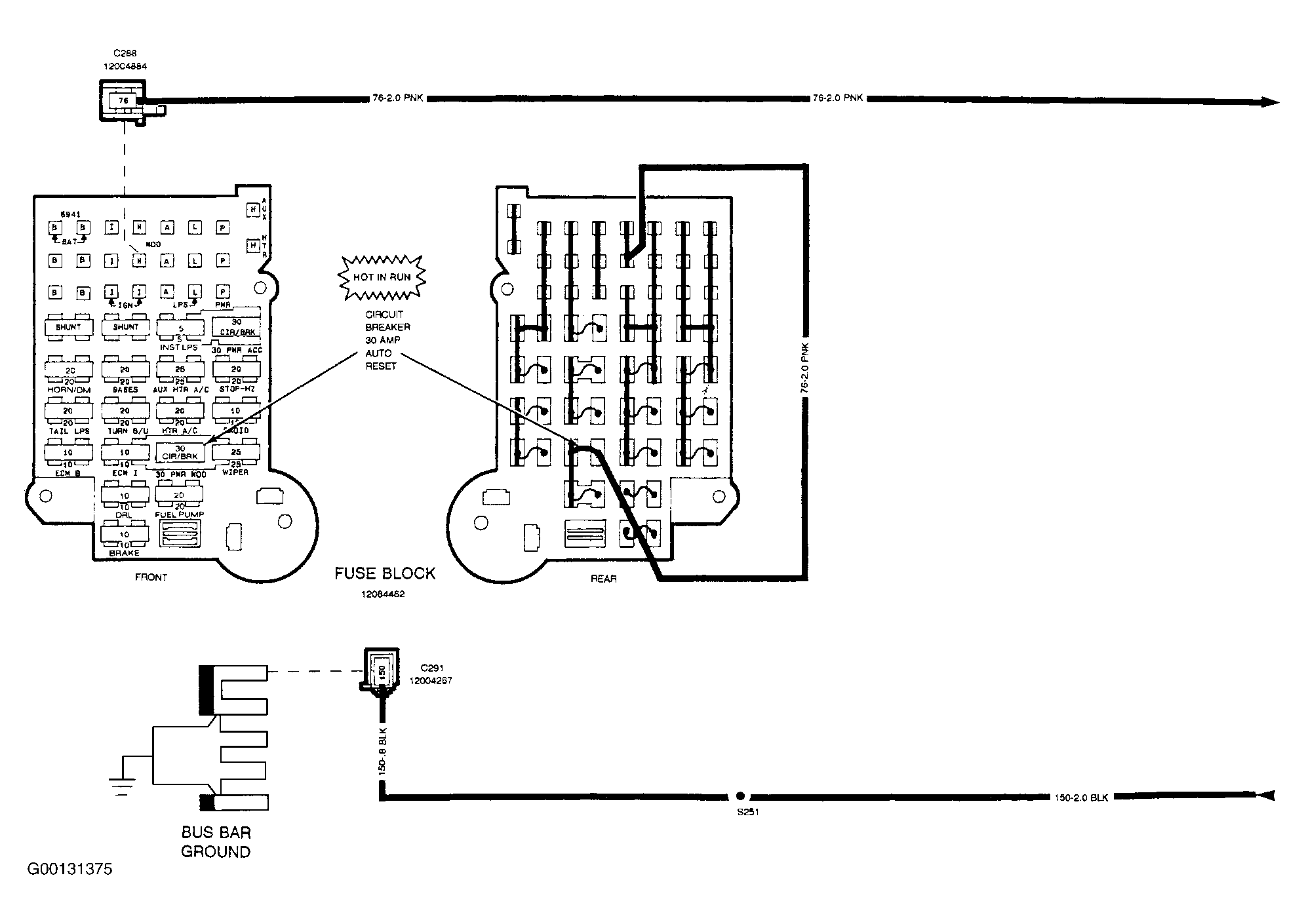

Fig 4: Power Window Wiring Diagram (1992-93 - 2 Of 2)

Courtesy of GENERAL MOTORS CORP.
