VIN Code Explanation

Numbers preceding the explanations in the legend below refer to the sequence of characters as listed on VIN identification label. See VIN example below.

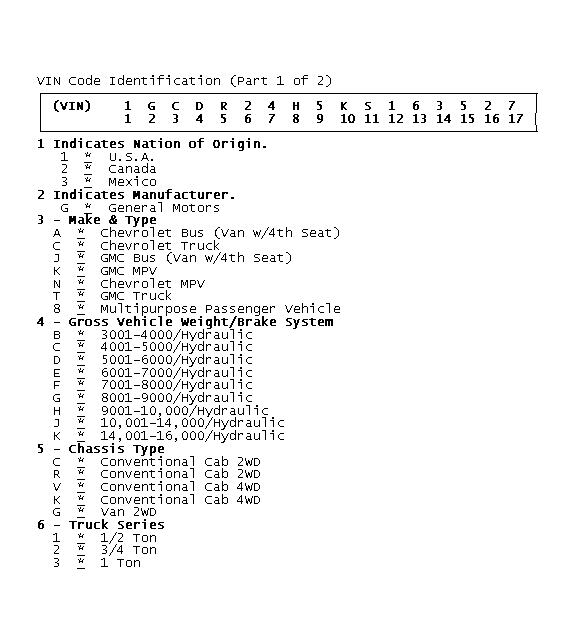

Fig 1: VIN Code Identification (Part 1 of 2)

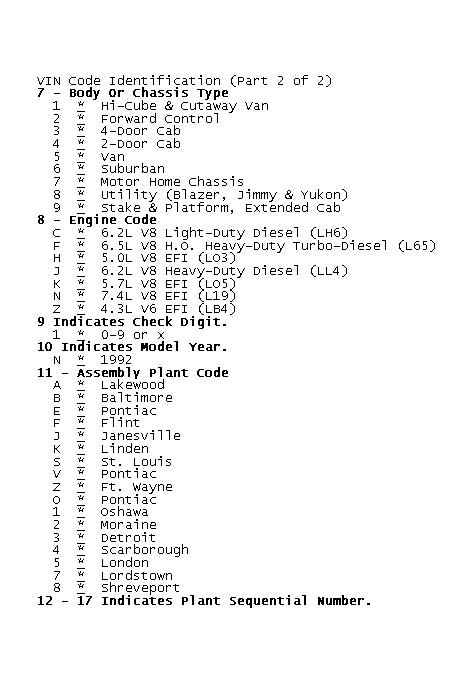

Fig 2: VIN Code Identification (Part 2 of 2)
