Diagnostic Aids

Check for poor connections at PCM/TCM and transmission pass-thru connector.

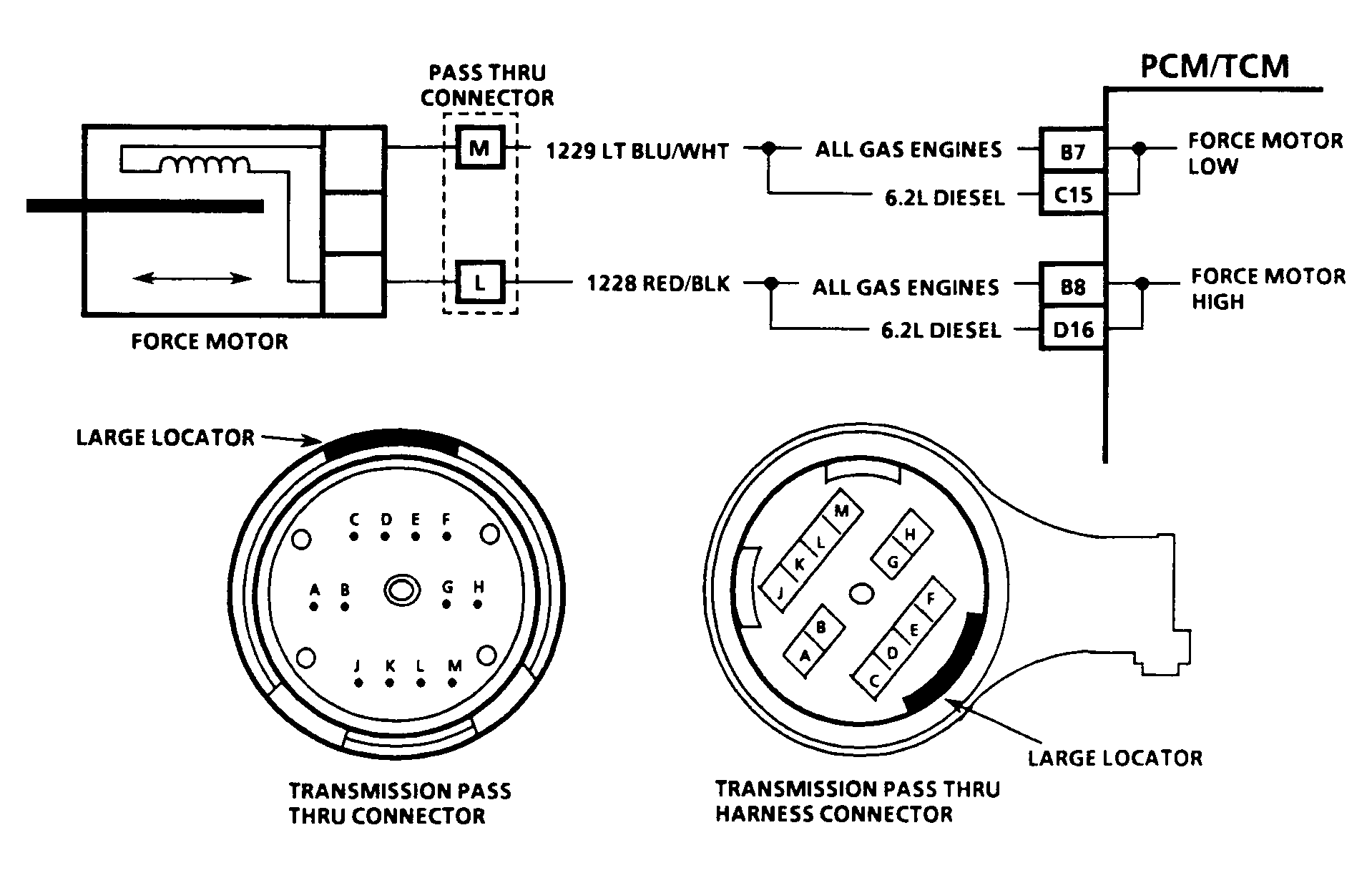

Fig 1: CODE 73, Schematic, Force Motor Current (Current Error)

Courtesy of GENERAL MOTORS CORP.

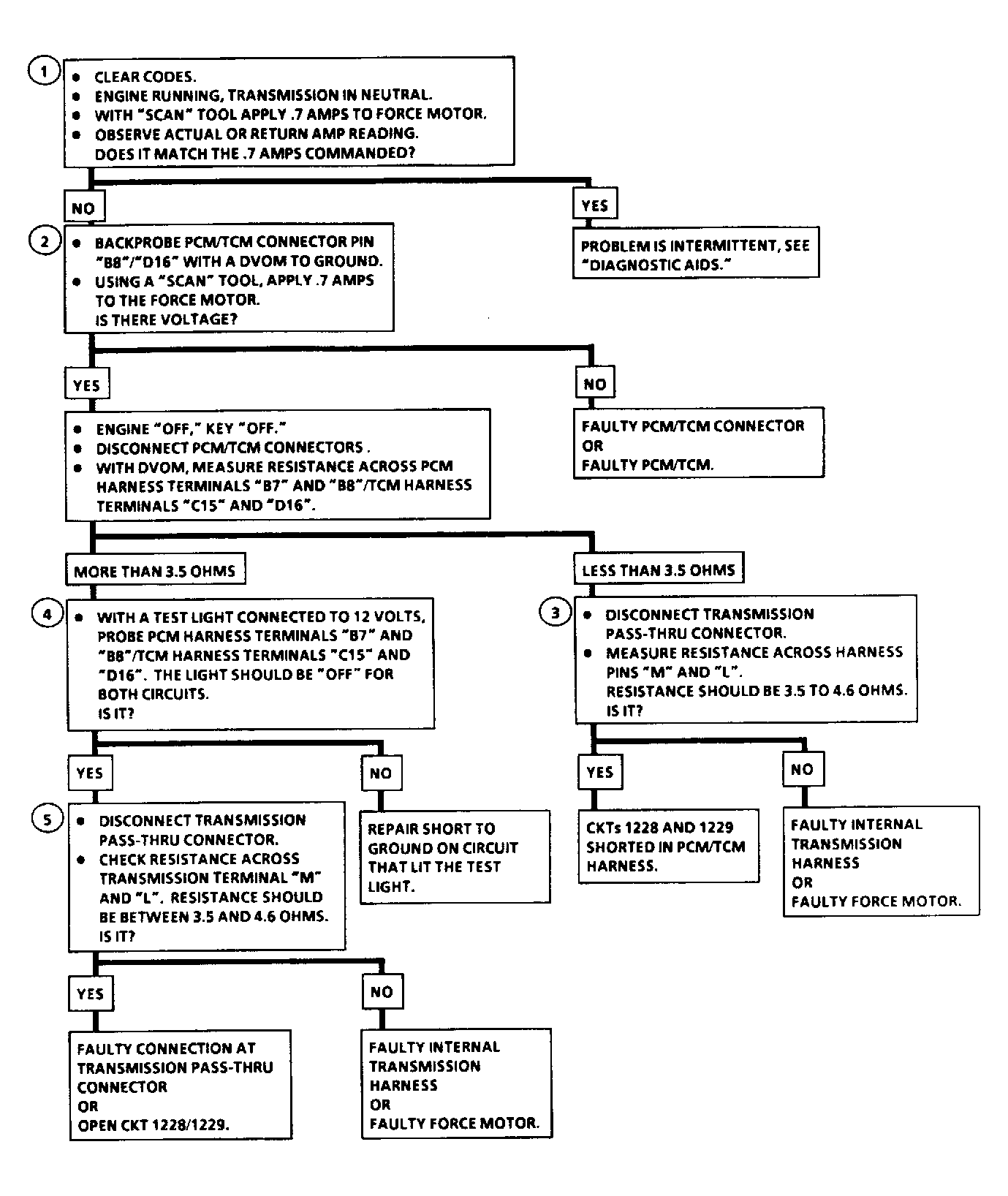

Fig 2: CODE 73, Flow Chart, Force Motor Current (Current Error)

Courtesy of GENERAL MOTORS CORP.
