Engine Cover Removal

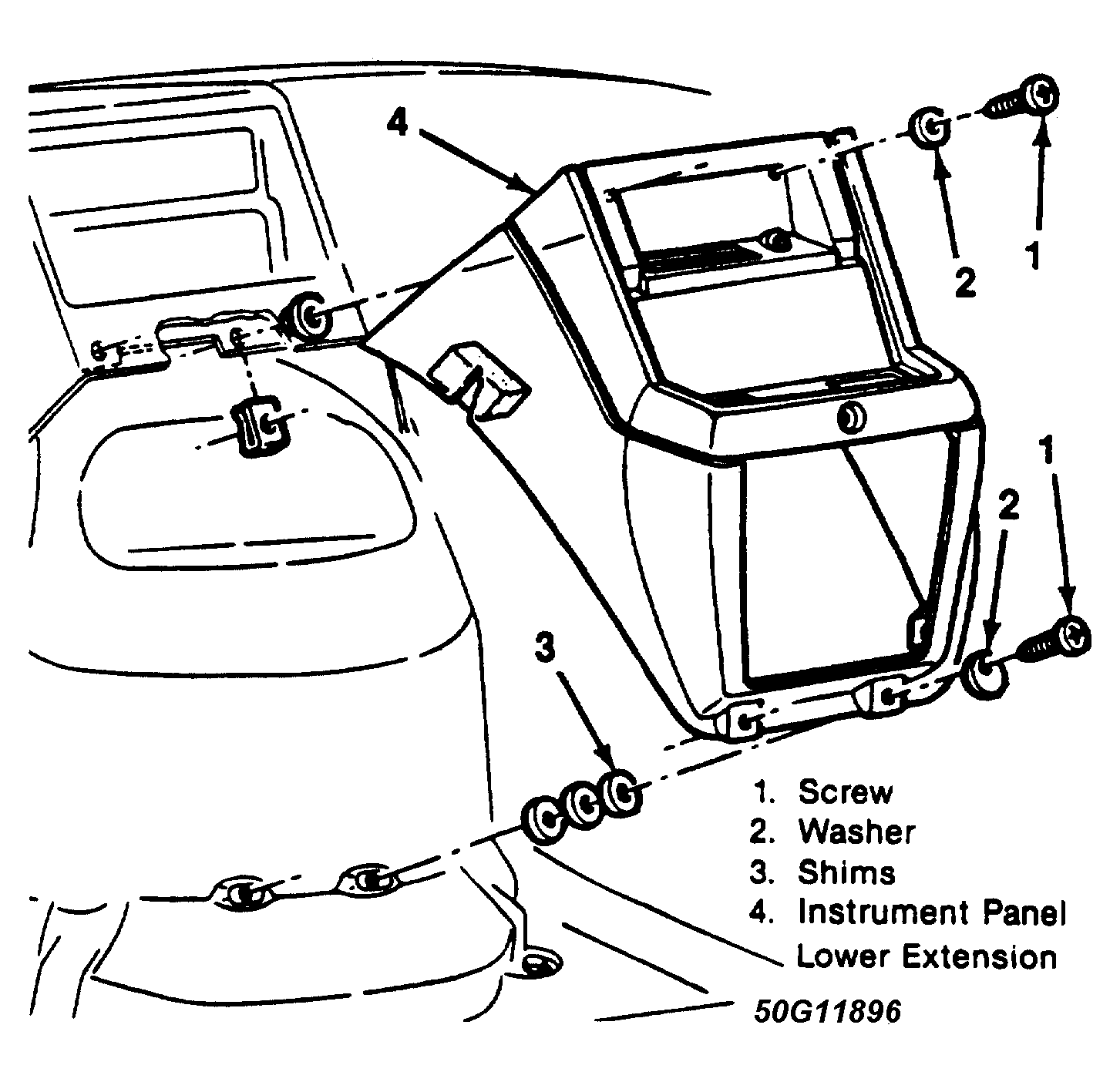

Fig 1: Engine Cover Removal (1 Of 2)
G50G11896Courtesy of GENERAL MOTORS CORP.

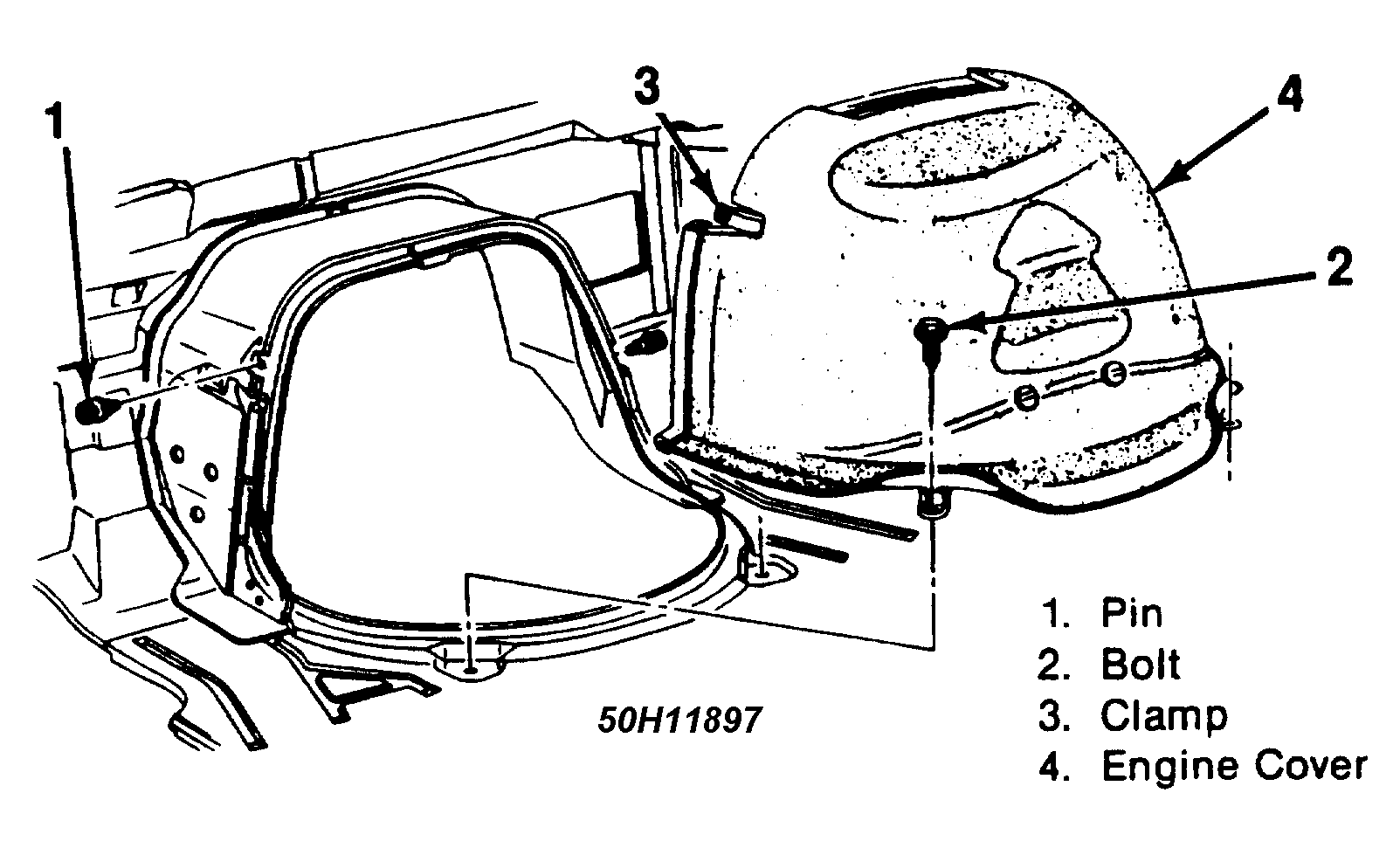

Fig 2: Engine Cover Removal (2 Of 2)
G50H11897Courtesy of GENERAL MOTORS CORP.
