Lug Nut Tightening Patterns: Notes

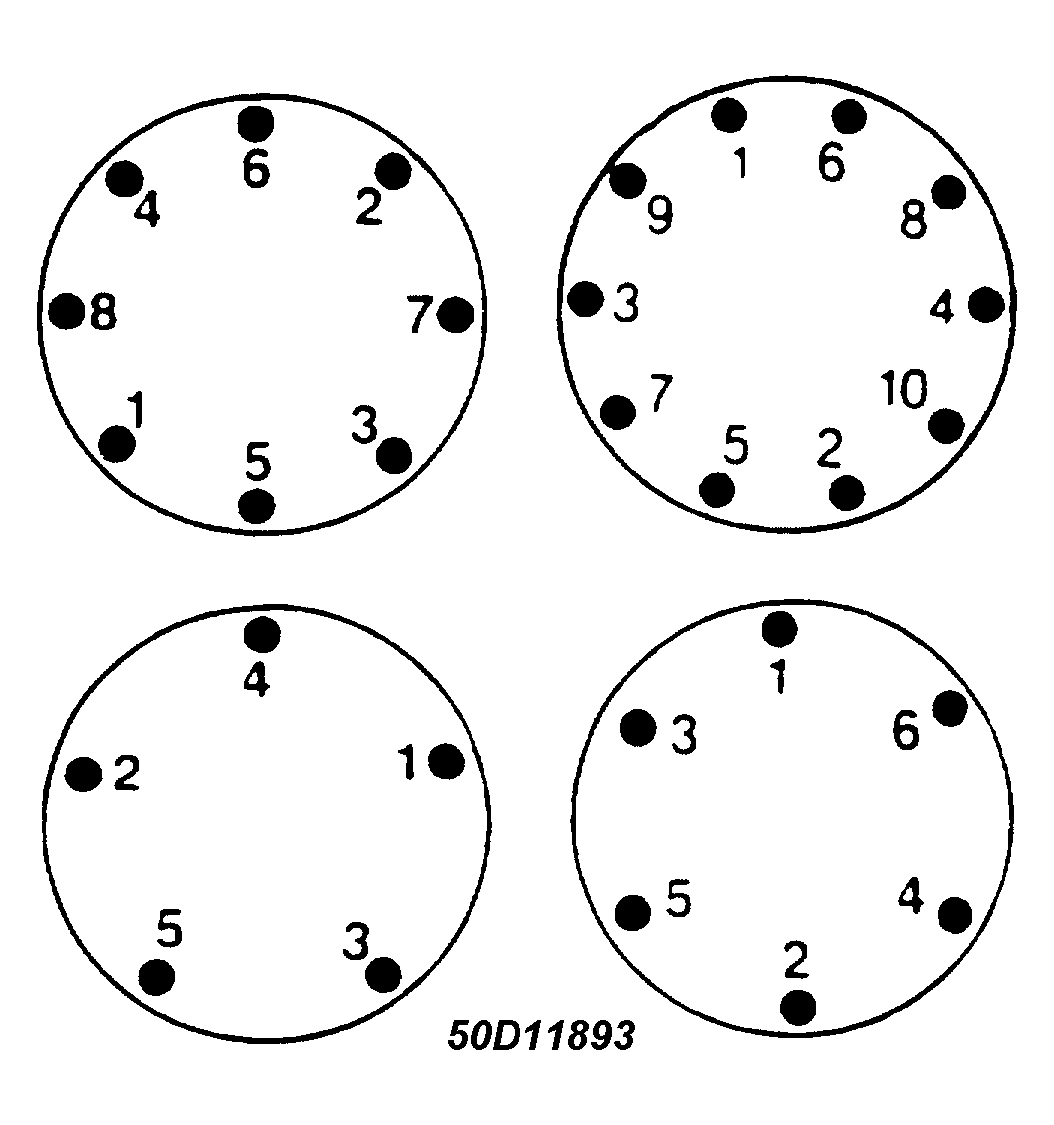

Fig 1: Wheel Lug Nut Torque Patterns

G50D11893

Courtesy of GENERAL MOTORS CORP.
