Connector Identification

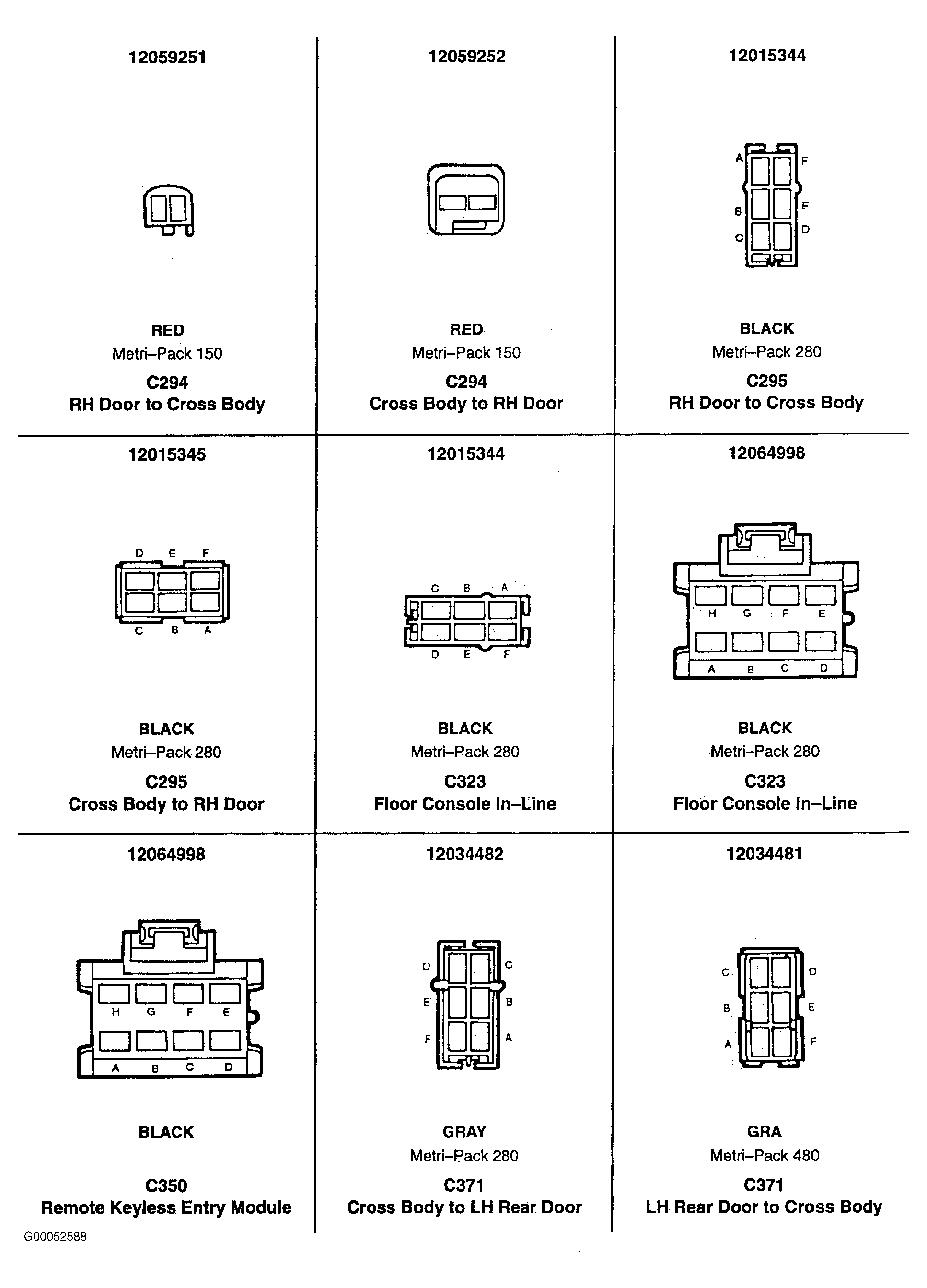

Fig 1: Connector Identification (1 Of 5)
G00052588Courtesy of GENERAL MOTORS CORP.

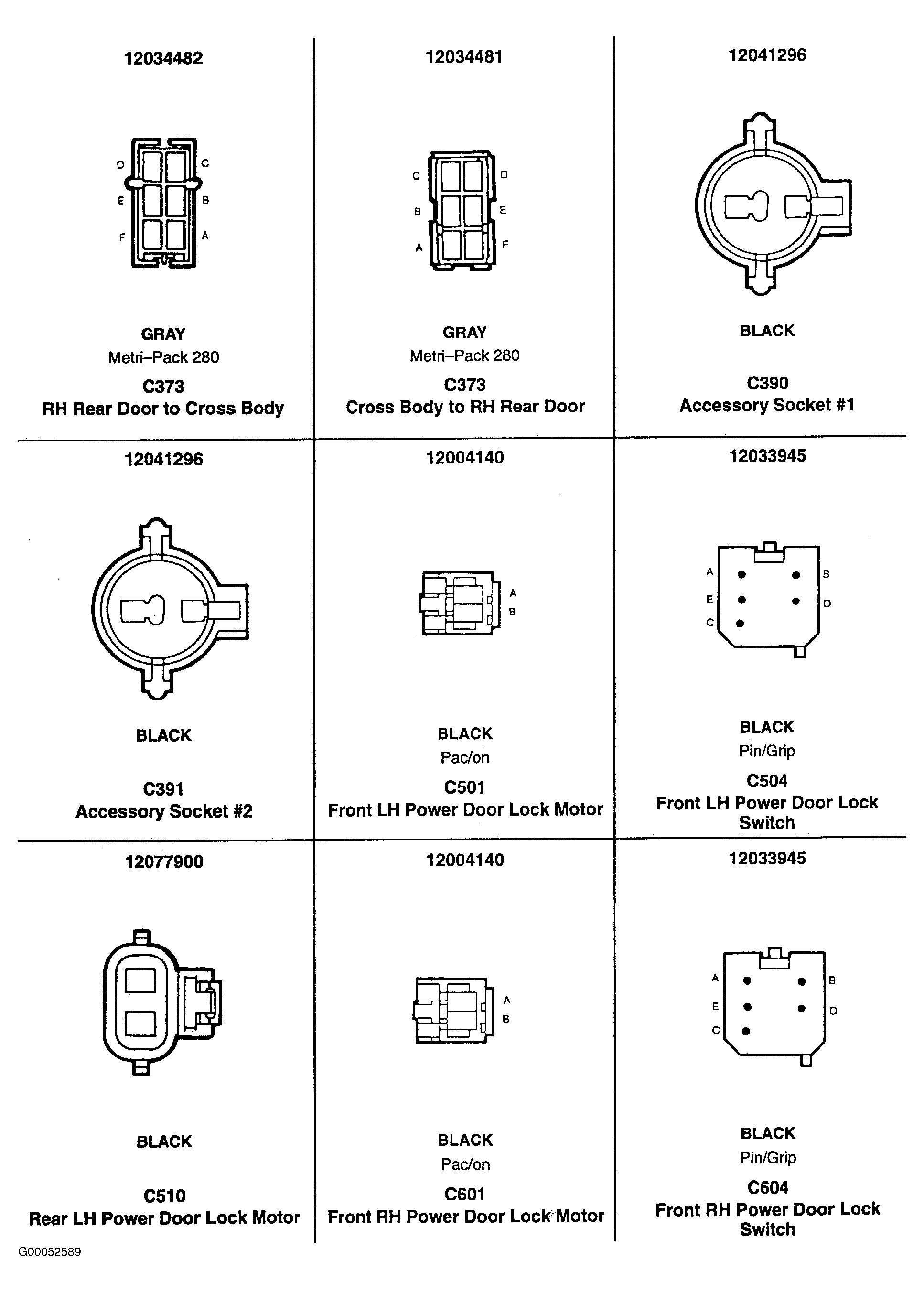

Fig 2: Connector Identification (2 Of 5)
G00052589Courtesy of GENERAL MOTORS CORP.
Fig 3: Connector Identification (3 Of 5)
G00052590Courtesy of GENERAL MOTORS CORP.

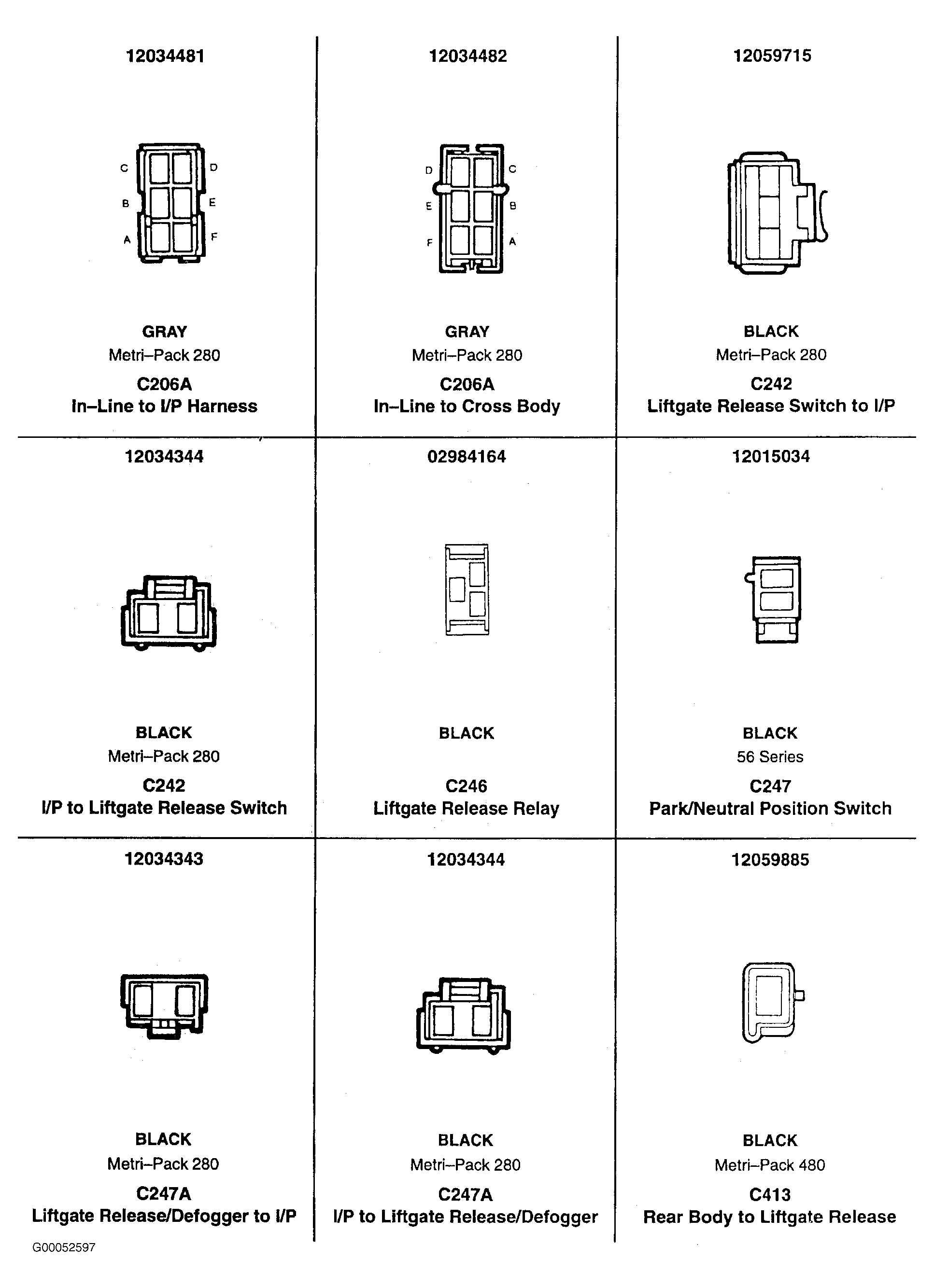

Fig 4: Connector Identification (4 Of 5)
G00052597Courtesy of GENERAL MOTORS CORP.
Fig 5: Connector Identification (5 Of 5)
G00052598Courtesy of GENERAL MOTORS CORP.
