Component Locations

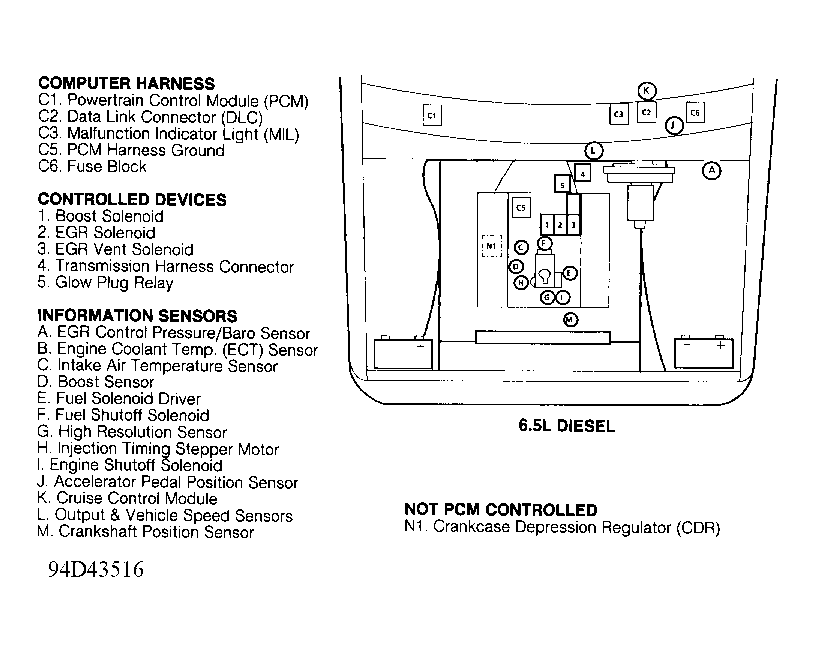

Fig 1: Component Loc. for 6.5L "C" & "K" Series

Courtesy of GENERAL MOTORS CORP.

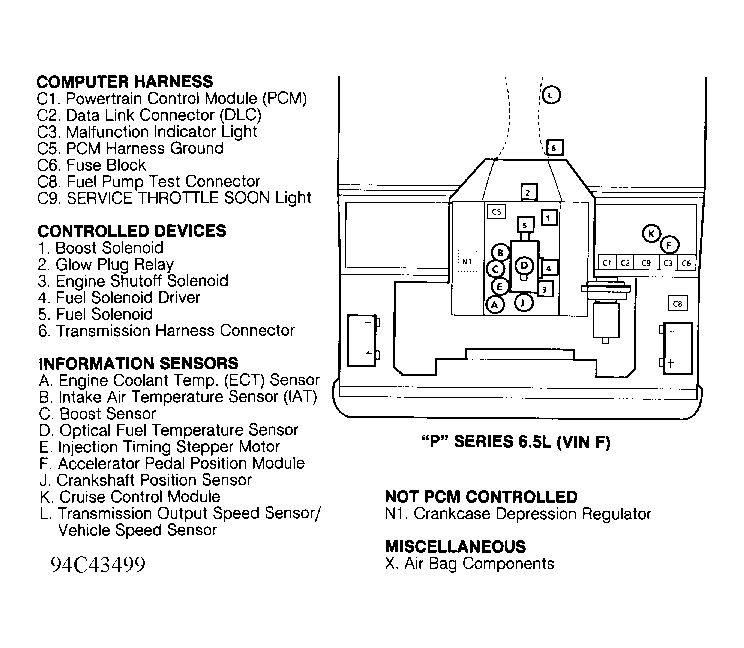

Fig 2: Component Location for 6.5L Diesel (VIN F) "P" Series

Courtesy of GENERAL MOTORS CORP.

Fig 3: Component Location for 6.5L Diesel (VIN P) "P" Series

Courtesy of GENERAL MOTORS CORP.
