Component Locations

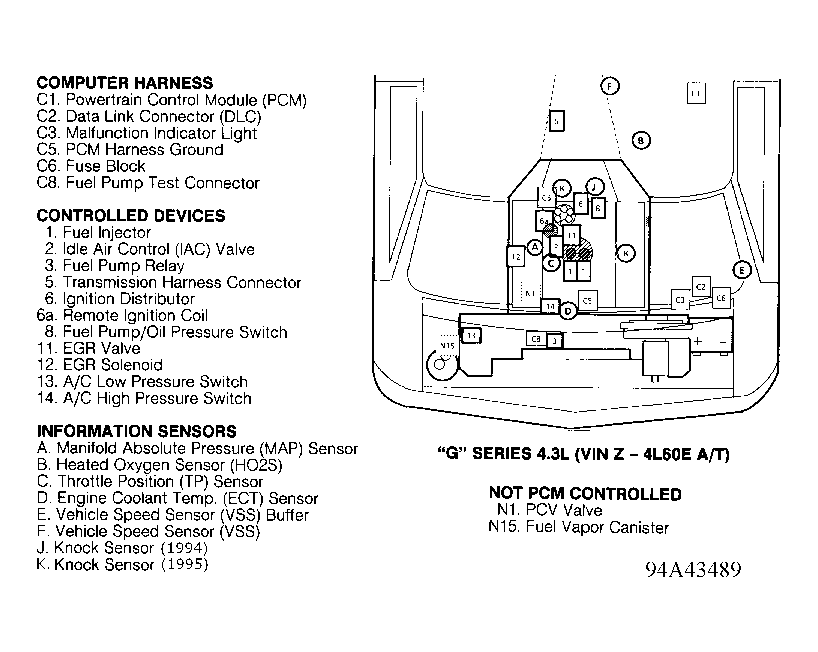

Fig 1: Component Location For 4.3L (VIN Z) "G" Series With 4L60E A/T
G94A43489Courtesy of GENERAL MOTORS CORP.

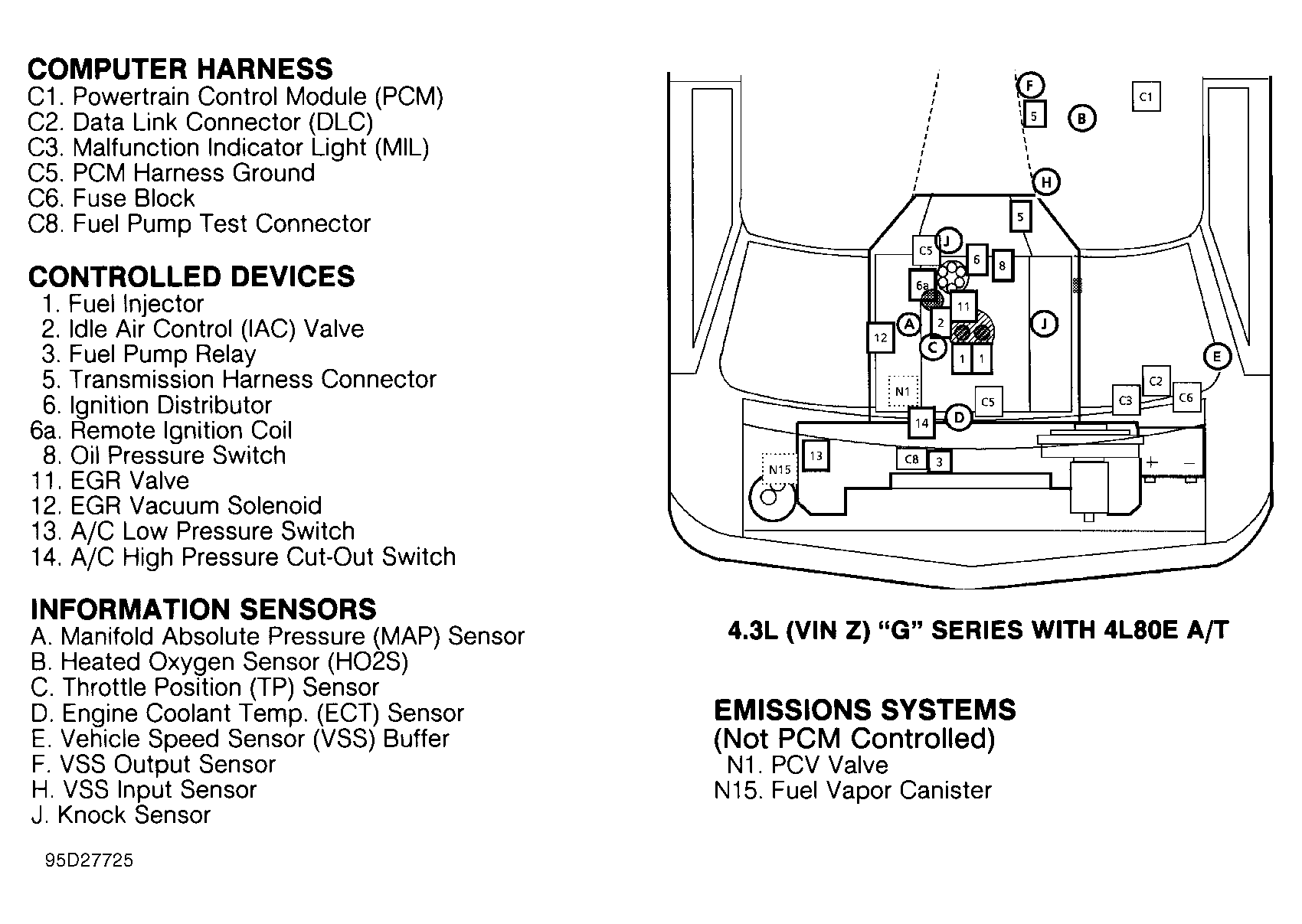

Fig 2: Component Location For 4.3L (VIN Z) "G" Series With 4L80E A/T
G95D27725Courtesy of GENERAL MOTORS CORP.

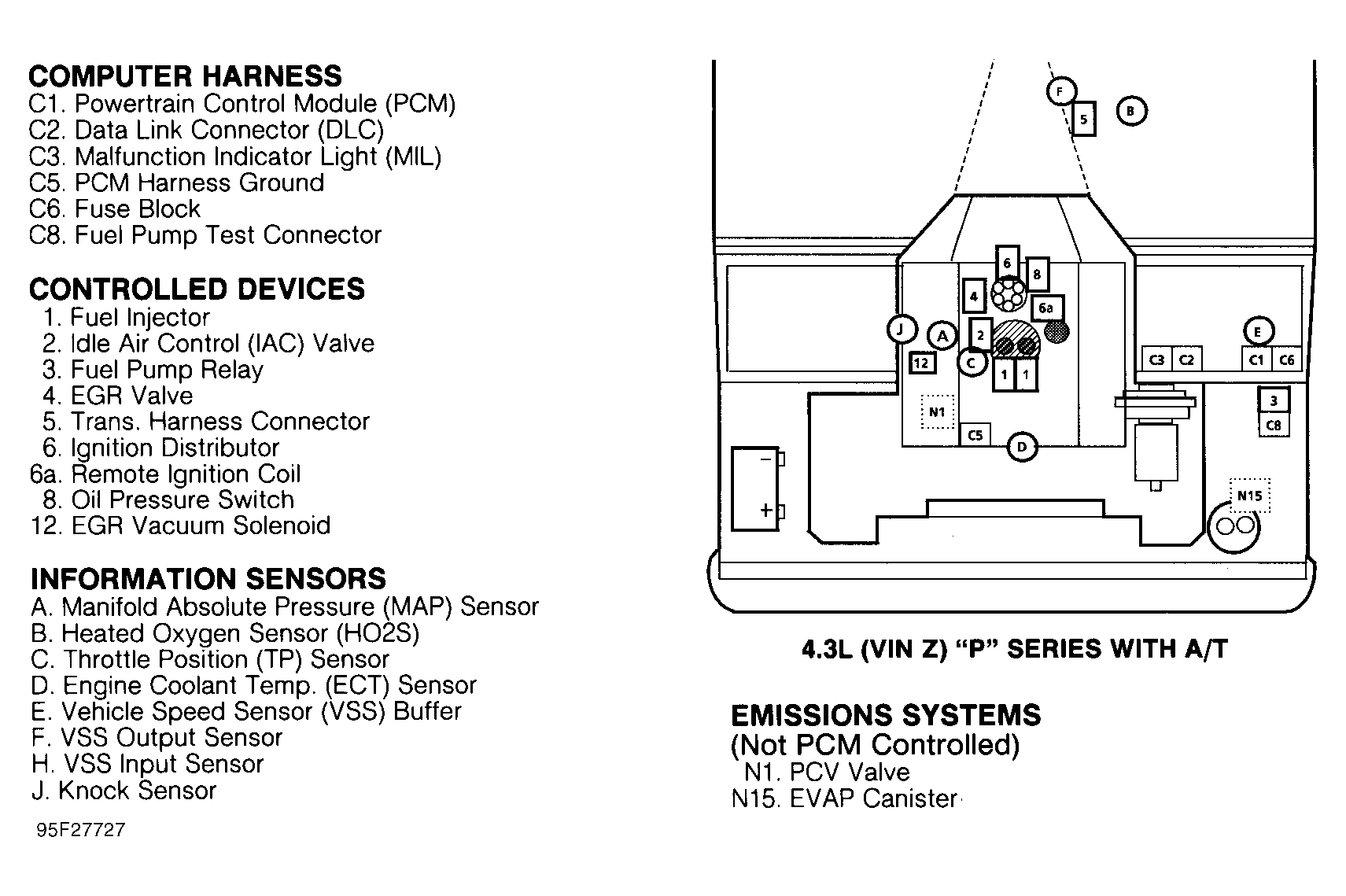

Fig 3: Component Location For 4.3L (VIN Z) "P" Series With A/T
G95F27727Courtesy of GENERAL MOTORS CORP.

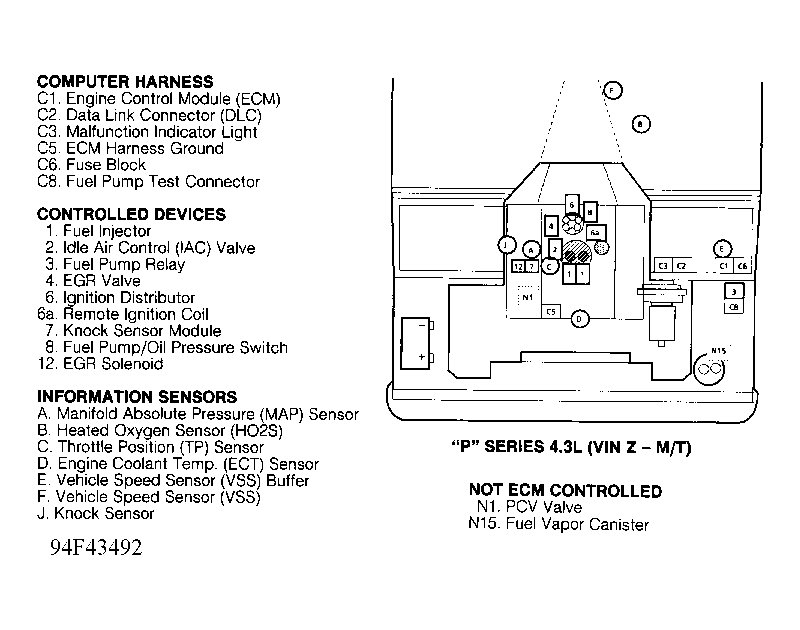

Fig 4: Component Location For 4.3L (VIN Z) "P" Series With M/T
G94F43492Courtesy of GENERAL MOTORS CORP.

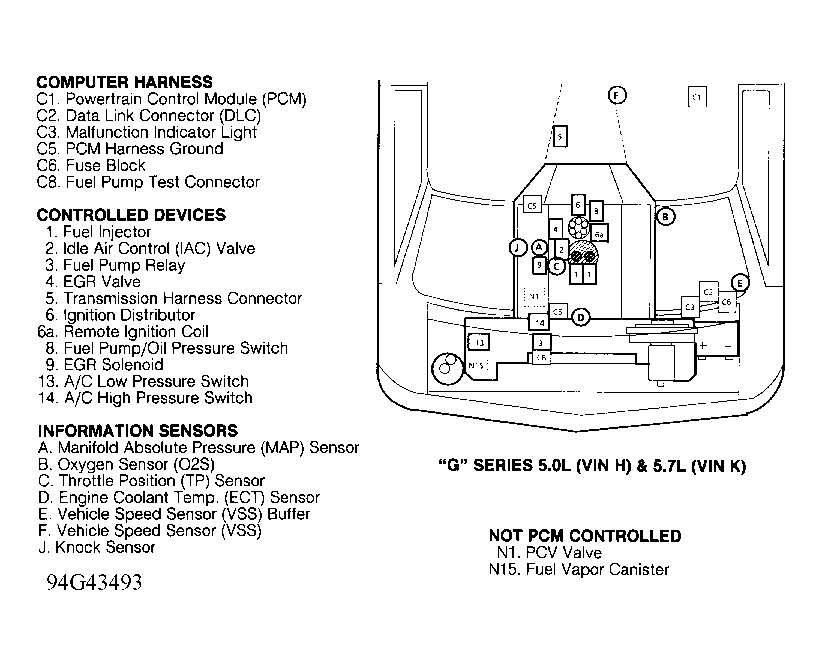

Fig 5: Component Location For 5.0L (VIN H) & 5.7L (VIN K) "G" Series With 4L60E A/T
G94G43493Courtesy of GENERAL MOTORS CORP.

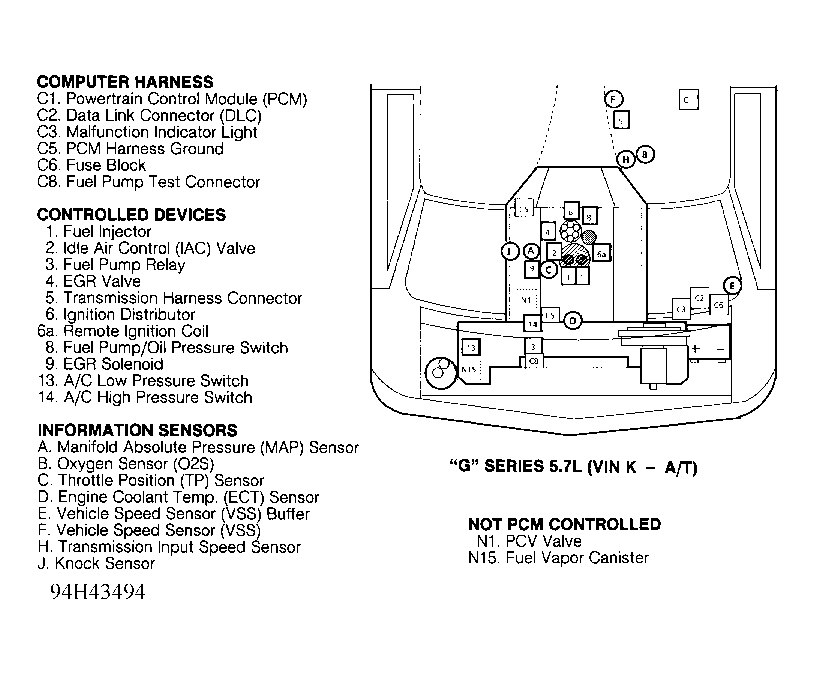

Fig 6: Component Location For 5.7L (VIN K) "G" Series With A/T With 4L80E A/T
G94H43494Courtesy of GENERAL MOTORS CORP.

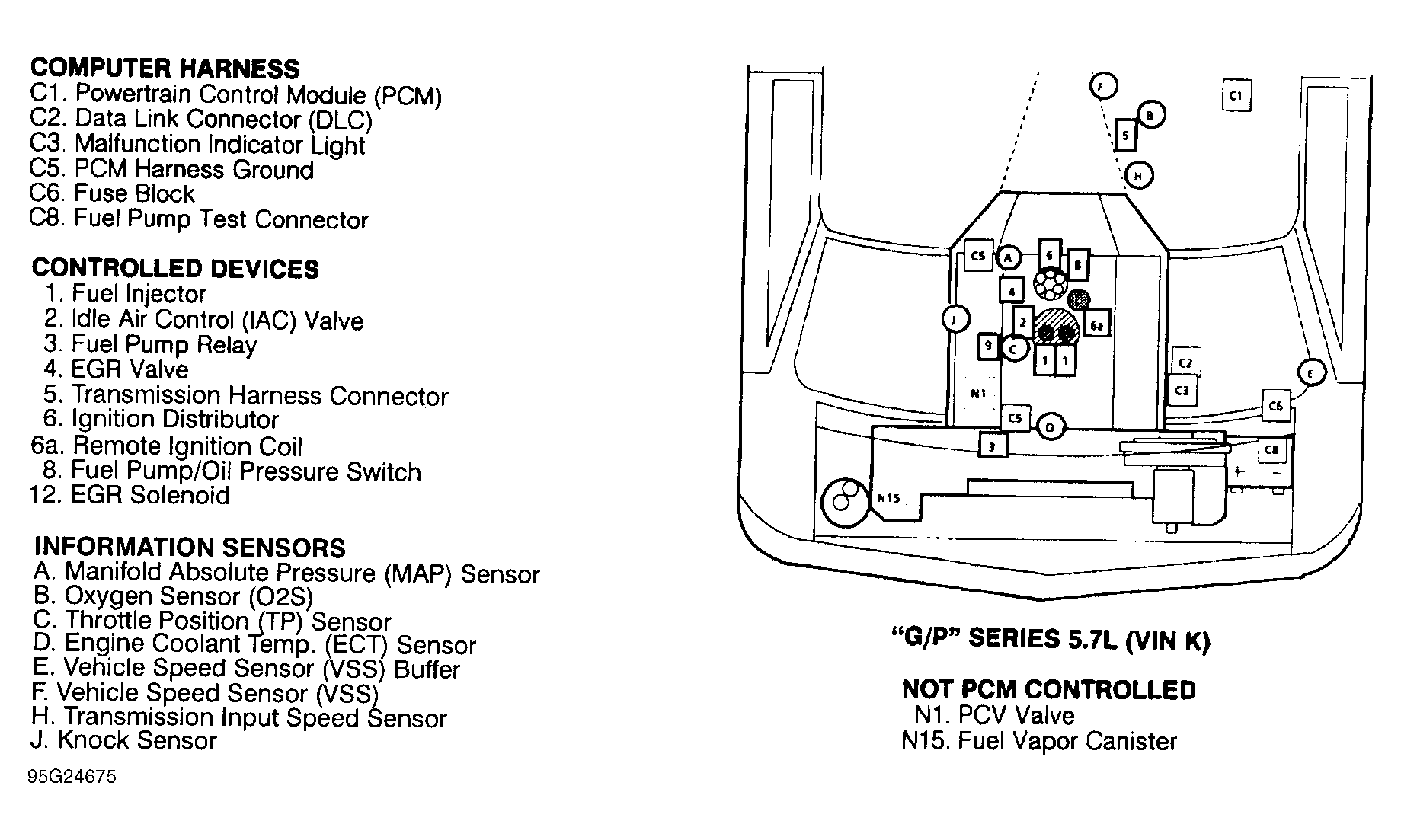

Fig 7: Component Location For 5.7L (VIN K) "G/P" Series
G95G24675Courtesy of GENERAL MOTORS CORP.

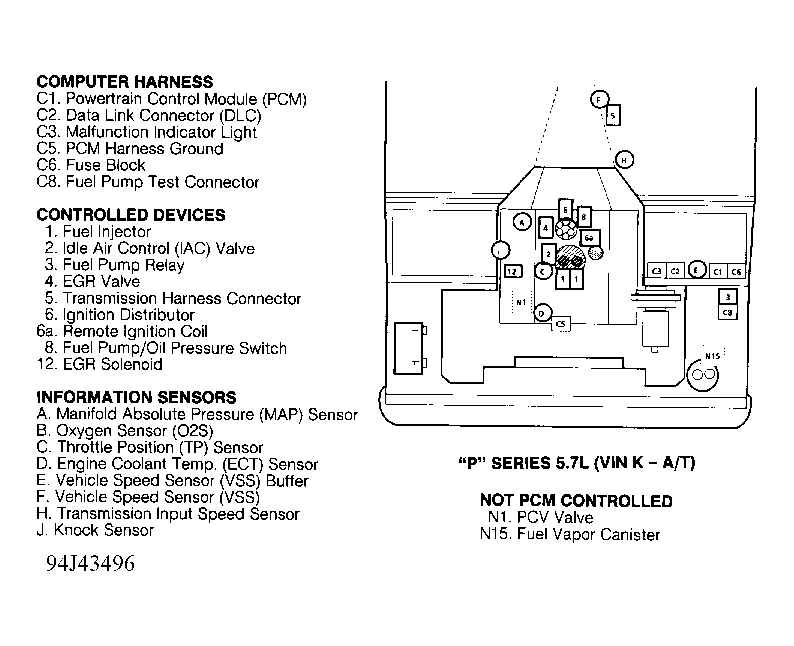

Fig 8: Component Location For 5.7L (VIN K) "P" Series With A/T
G94J43496Courtesy of GENERAL MOTORS CORP.

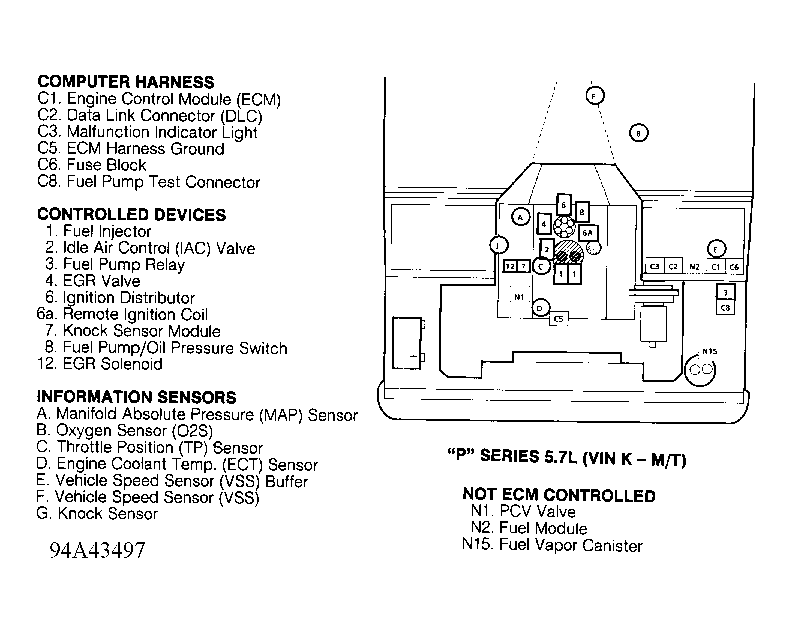

Fig 9: Component Location For 5.7L (VIN K) "P" Series With M/T
G94A43497Courtesy of GENERAL MOTORS CORP.

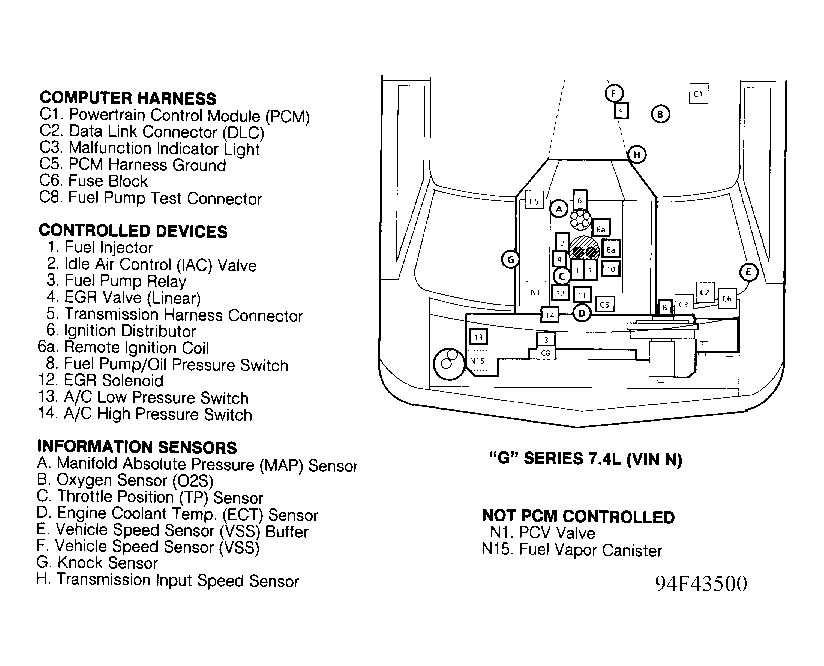

Fig 10: Component Location For 7.4L (VIN N) "G" Series
G94F43500Courtesy of GENERAL MOTORS CORP.

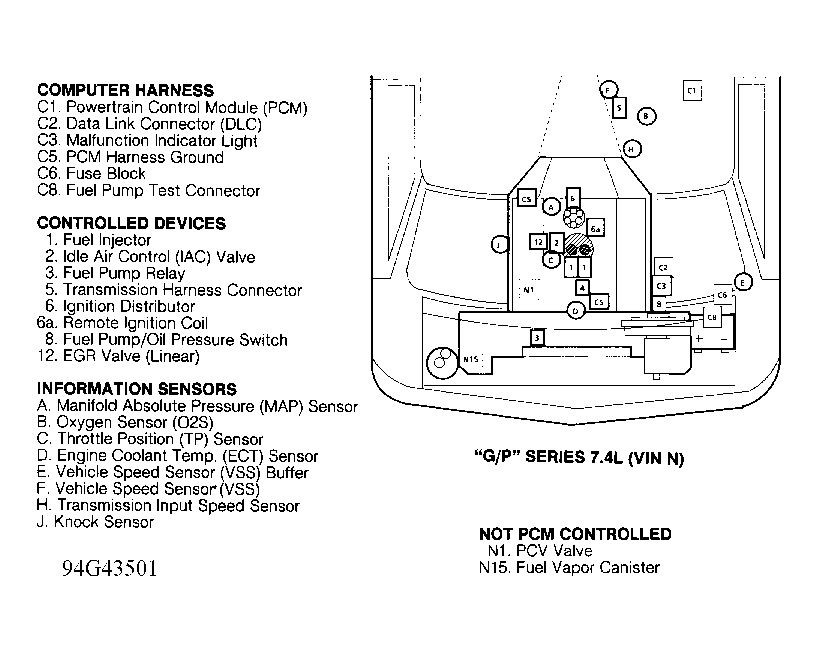

Fig 11: Component Location For 7.4L (VIN N) "G/P" Series
G94G43501Courtesy of GENERAL MOTORS CORP.
