Diagnostic Aids

Code 43 can be caused by a faulty knock sensor connection at ESC module or ECM. Also, check controller-to-ECM signal line for an open or short to ground.

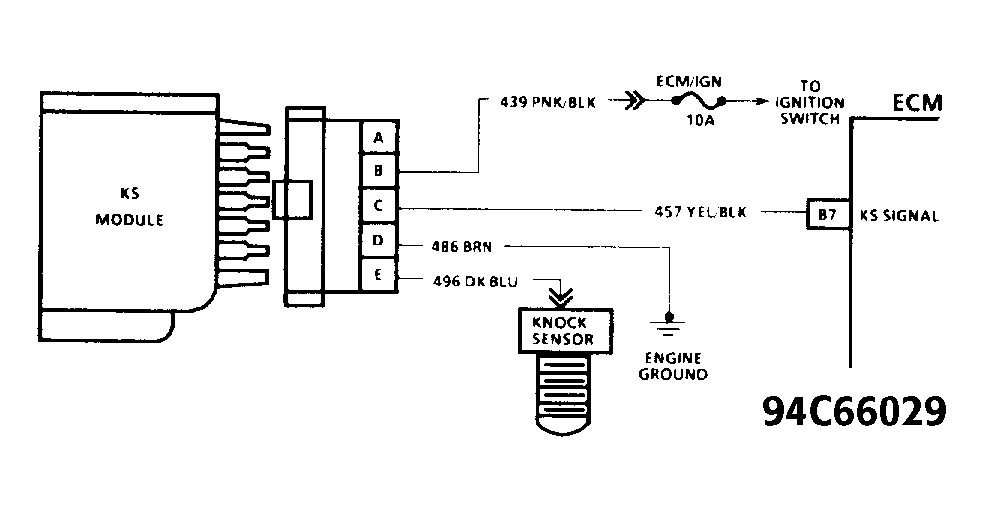

Fig 1: Code 43 Schematic ("C" & "K" Series) Knock Sensor W/ Spark Control Module

Fig 2: Code 43 Schematic ("P" Series) Knock Sensor W/ Spark Control Module

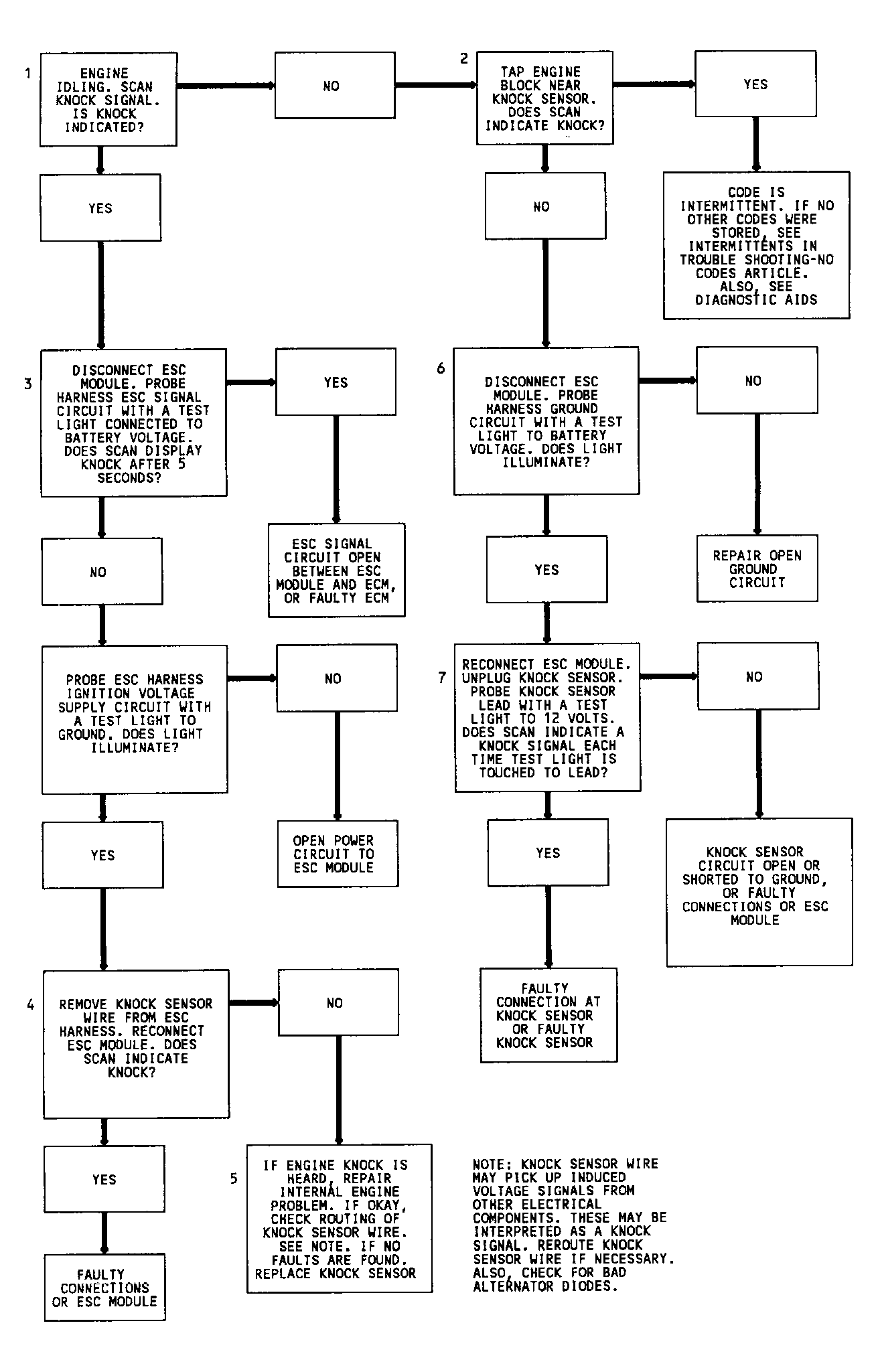

Fig 3: Code 43 Flow Chart Knock Sensor W/ Spark Control Module
