Alignment Specifications

WHEEL ALIGNMENT SPECIFICATIONS

Application

Preferred

Range

Astro & Safari

Camber ⁽¹⁾⁽³⁾

2WD

0.8

0.3-1.3

4WD

0.89

0.49-1.29

Caster ⁽¹⁾⁽³⁾

2WD

2.7

2.2-3.2

4WD

2.0

1.5-2.5

Toe-In ⁽²⁾

2WD

0.1 (2.5)

0.05-0.15 (1.5-4)

4WD

- 0.05 (- 1.5)

- 0.1-0 (- 2.5-0)

Commercial Van ⁽³⁾⁽⁴⁾, "S" & "T" Series Pickup, Blazer, Bravada, Jimmy & Sonoma

Camber ⁽¹⁾⁽³⁾

0.8

1.3

Caster ⁽¹⁾⁽³⁾

1.5-2.5

Toe-In ⁽²⁾

0.15 ⁽⁴⁾

0.1-0.2 (2.5-5)

Van

Camber ⁽¹⁾

0.5

0-1

Caster ⁽¹⁾

⁽⁵⁾

⁽⁵⁾ ±0.05

Toe-In ⁽²⁾

0 (0)

- 0.05 to 0.05 (- 1.5 to 1.5)

⁽¹⁾	Measurement in degrees.

⁽²⁾	Measurement in inches (mm).

⁽³⁾	Left and right adjustments must be within 0.5 degree of each other.

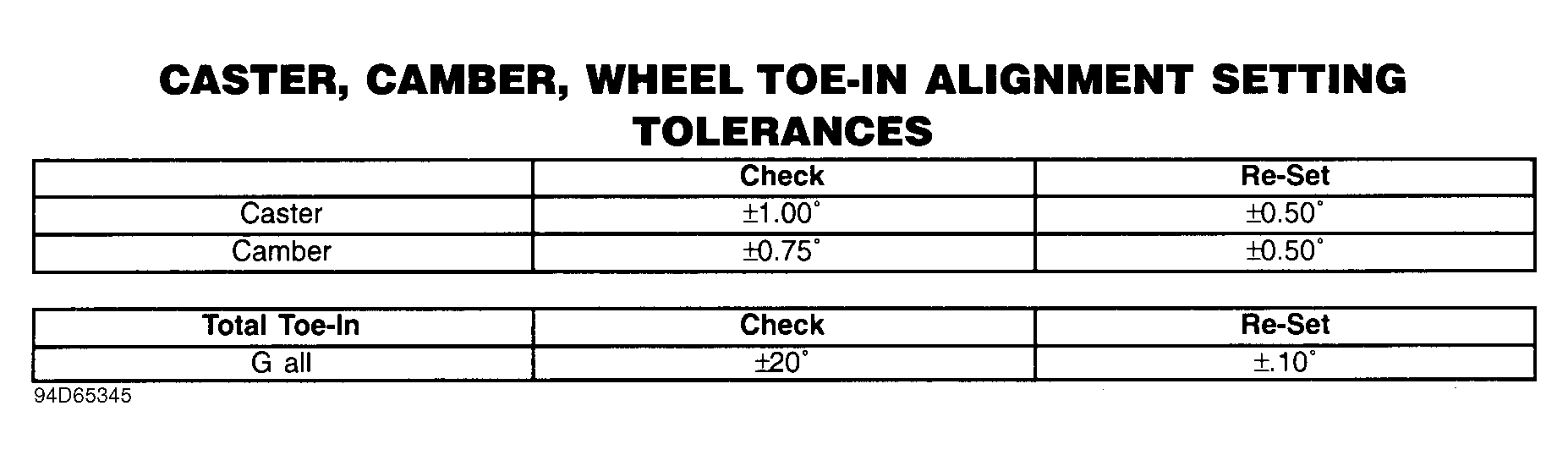

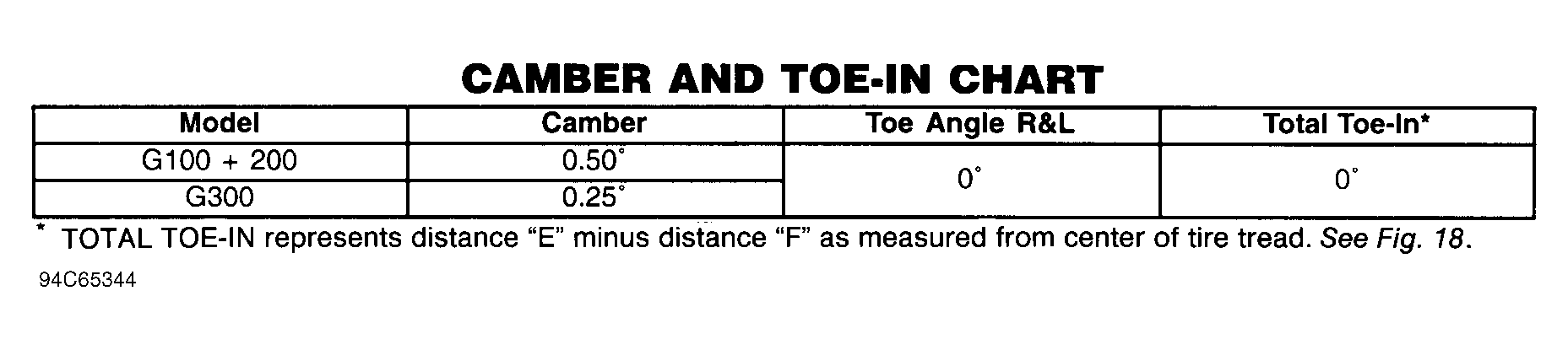

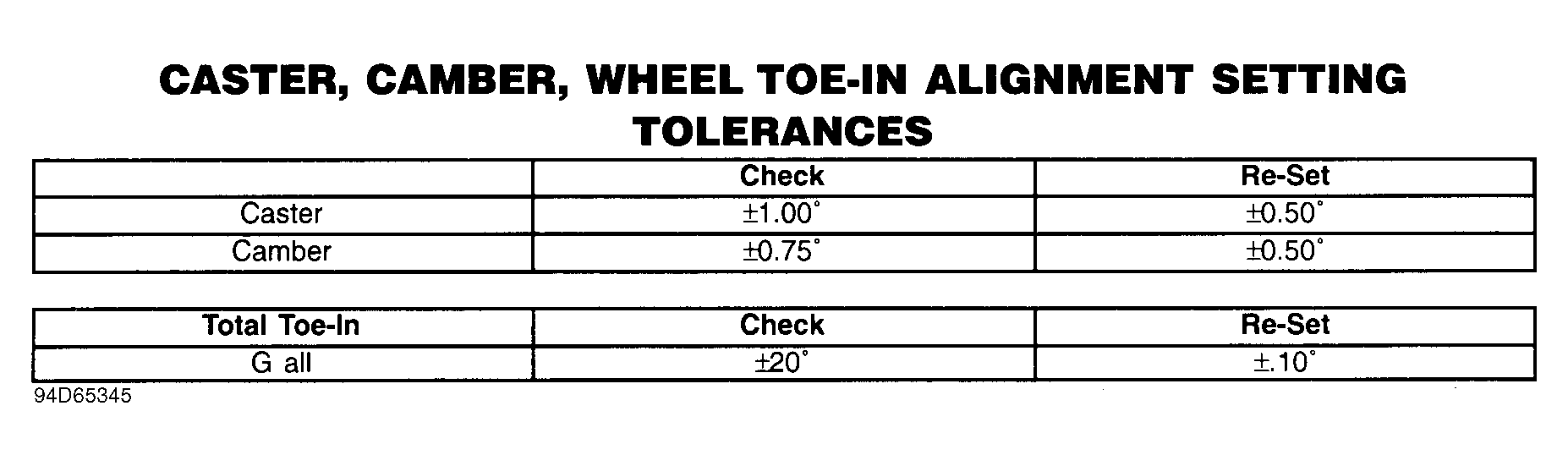

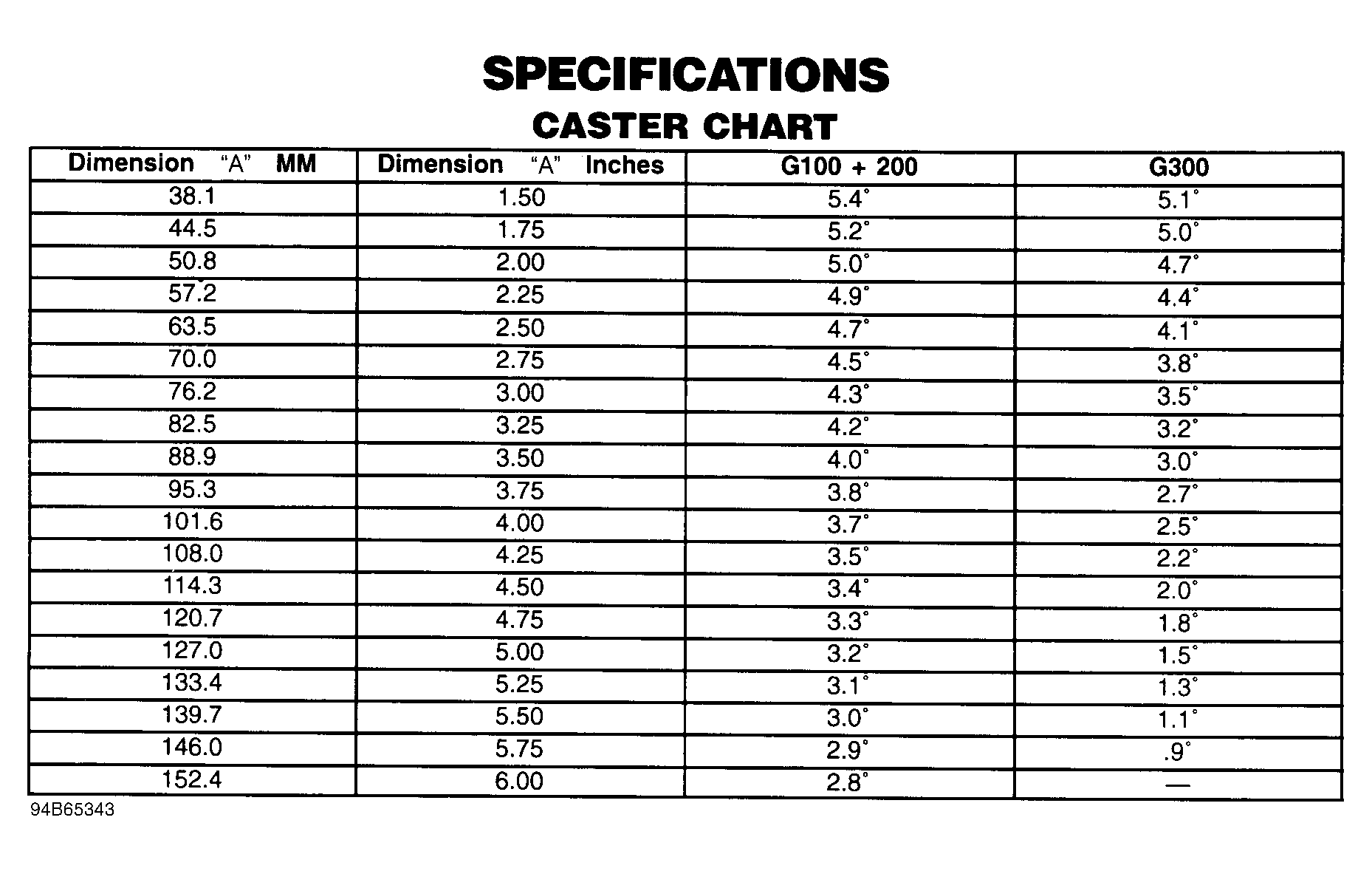

⁽⁴⁾	See Fig 1-5 for caster, camber and toe-in specifications.

⁽⁵⁾	See Fig 7 for caster, camber and toe-in specifications.

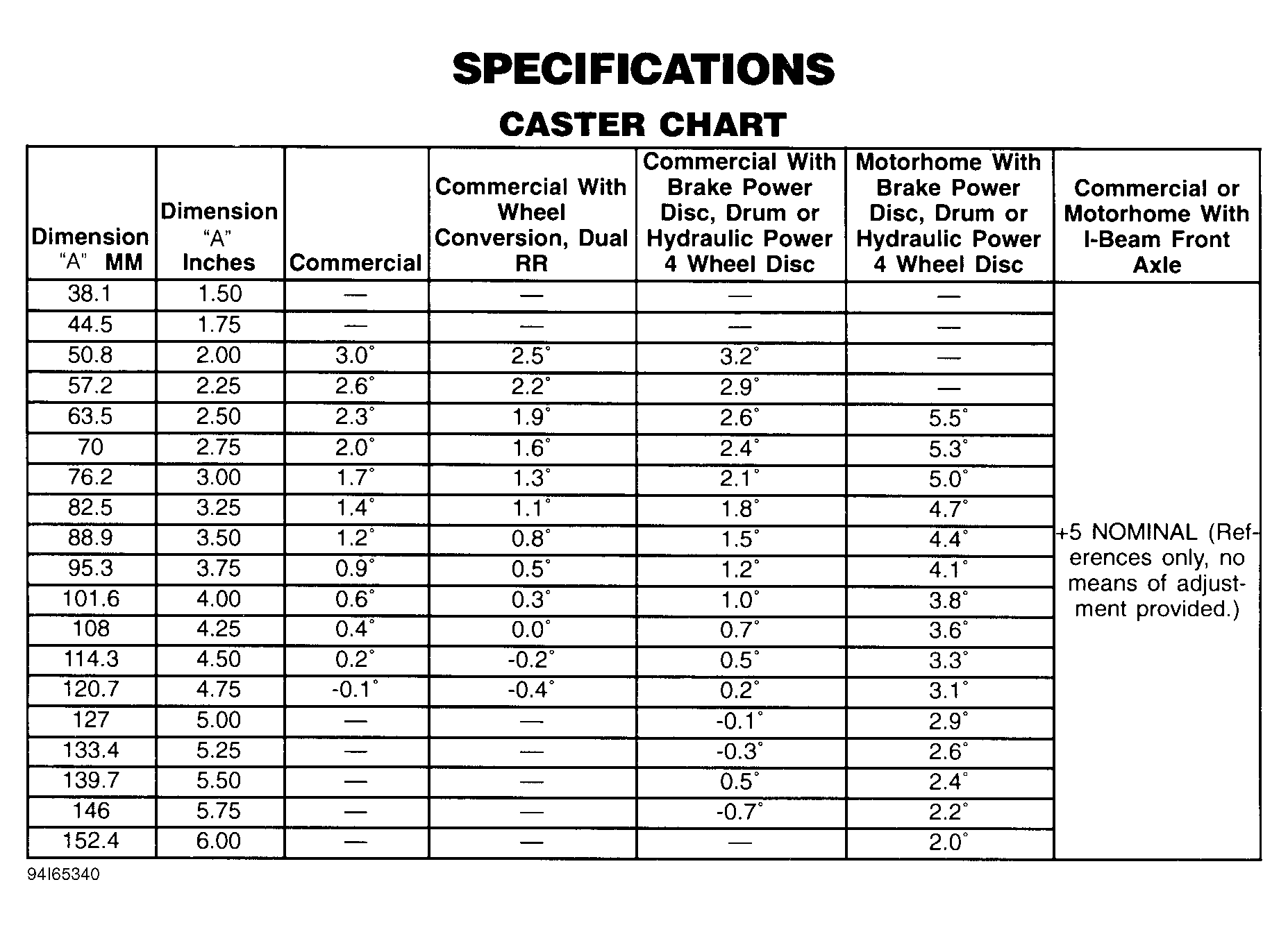

Fig 1: Caster Specifications (Commercial Van)
