Component Locations

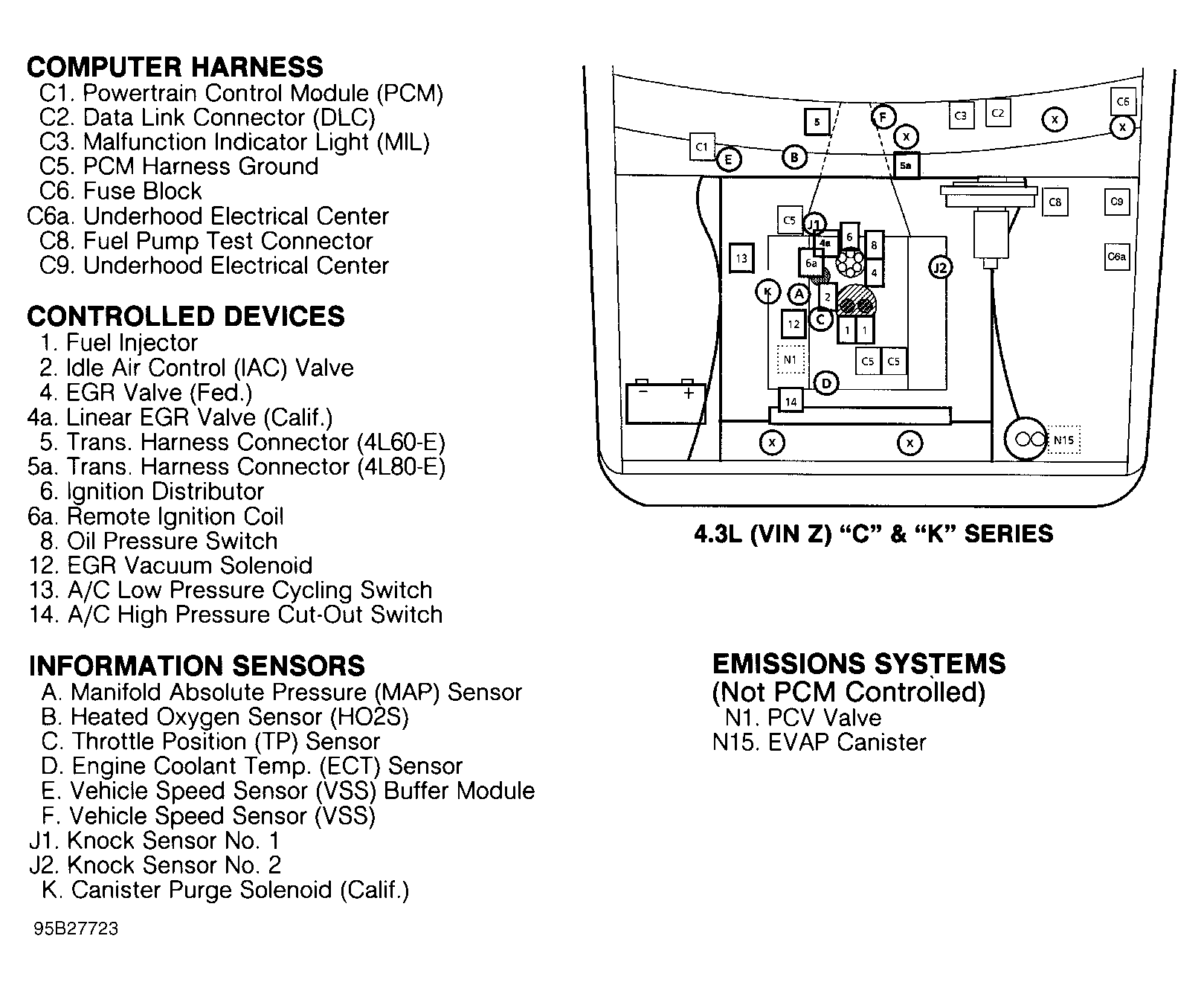

Fig 1: Component Location For 4.3L (VIN Z) "C" & "K" Series
G95B27723Courtesy of GENERAL MOTORS CORP.
Fig 2: Component Location For 4.3L (VIN Z) "G" Series W/ 4L60E A/T
G94A43489Courtesy of GENERAL MOTORS CORP.
Fig 3: Component Location For 4.3L (VIN Z) "G" Series W/ 4L80E A/T
G95D27725Courtesy of GENERAL MOTORS CORP.
Fig 4: Component Location For 4.3L (VIN Z) "P" Series With A/T
G95F27727Courtesy of GENERAL MOTORS CORP.

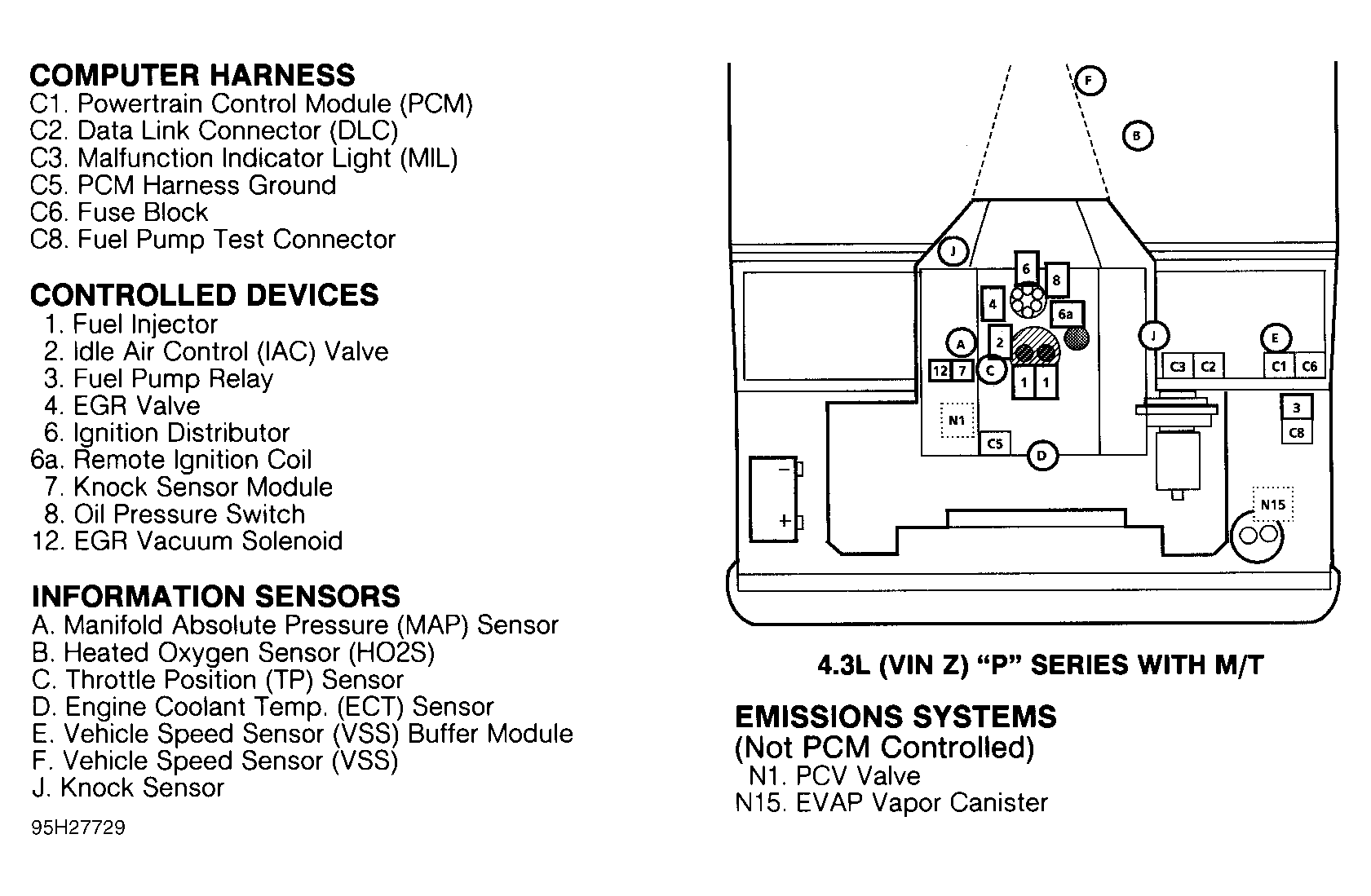

Fig 5: Component Location For 4.3L (VIN Z) "P" Series With M/T
G95H27729Courtesy of GENERAL MOTORS CORP.

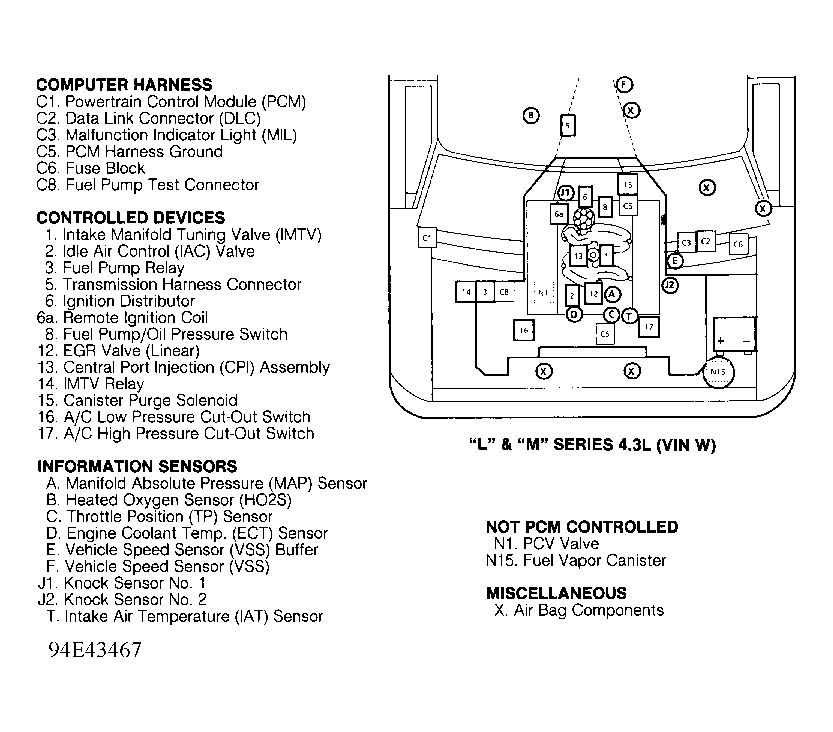

Fig 6: Component Location For 4.3L (VIN W) "L" & "M" Series
G94E43467Courtesy of GENERAL MOTORS CORP.

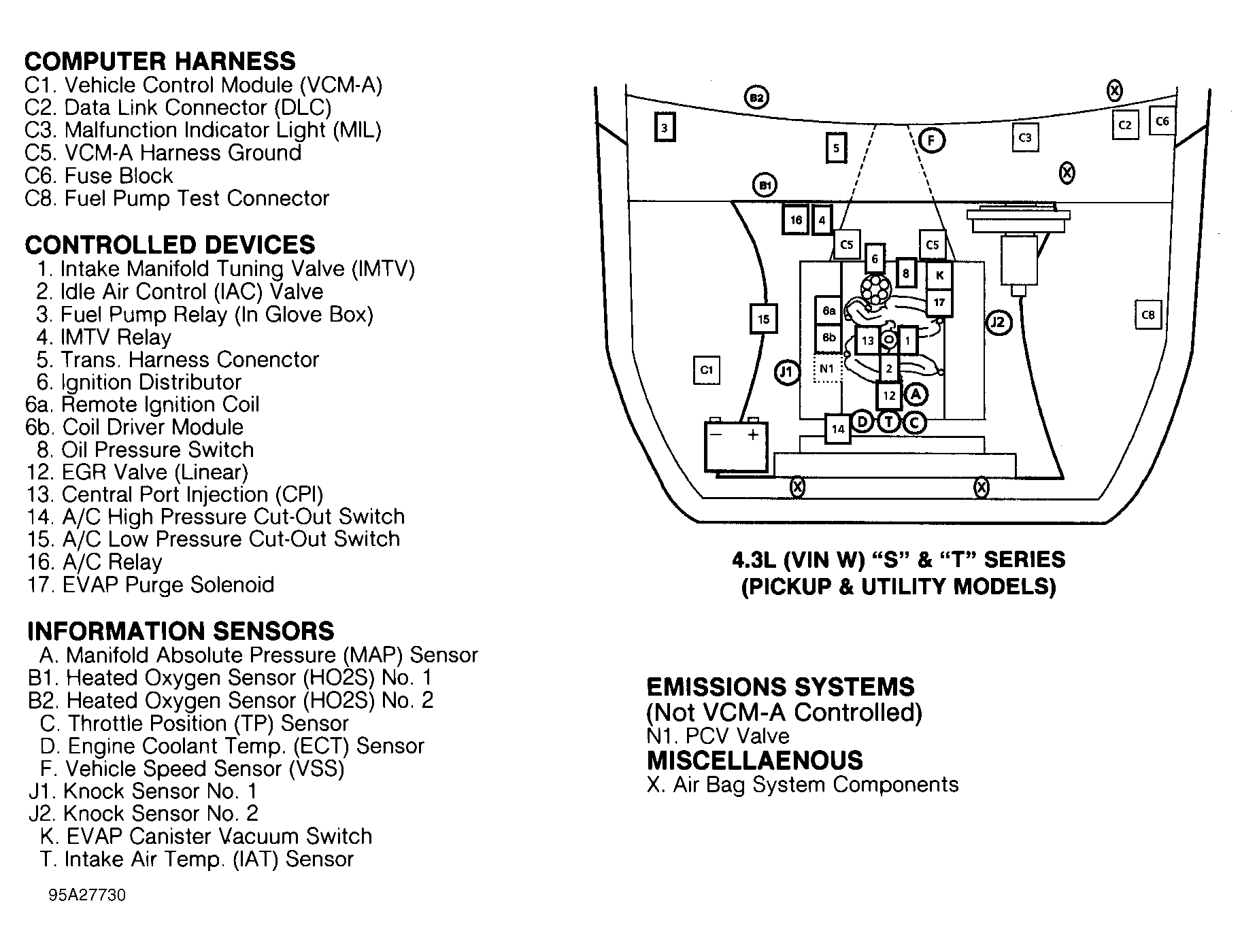

Fig 7: Component Location For 4.3L (VIN W) "S" & "T" Series (Pickup & Utility Models)
G95A27730Courtesy of GENERAL MOTORS CORP.

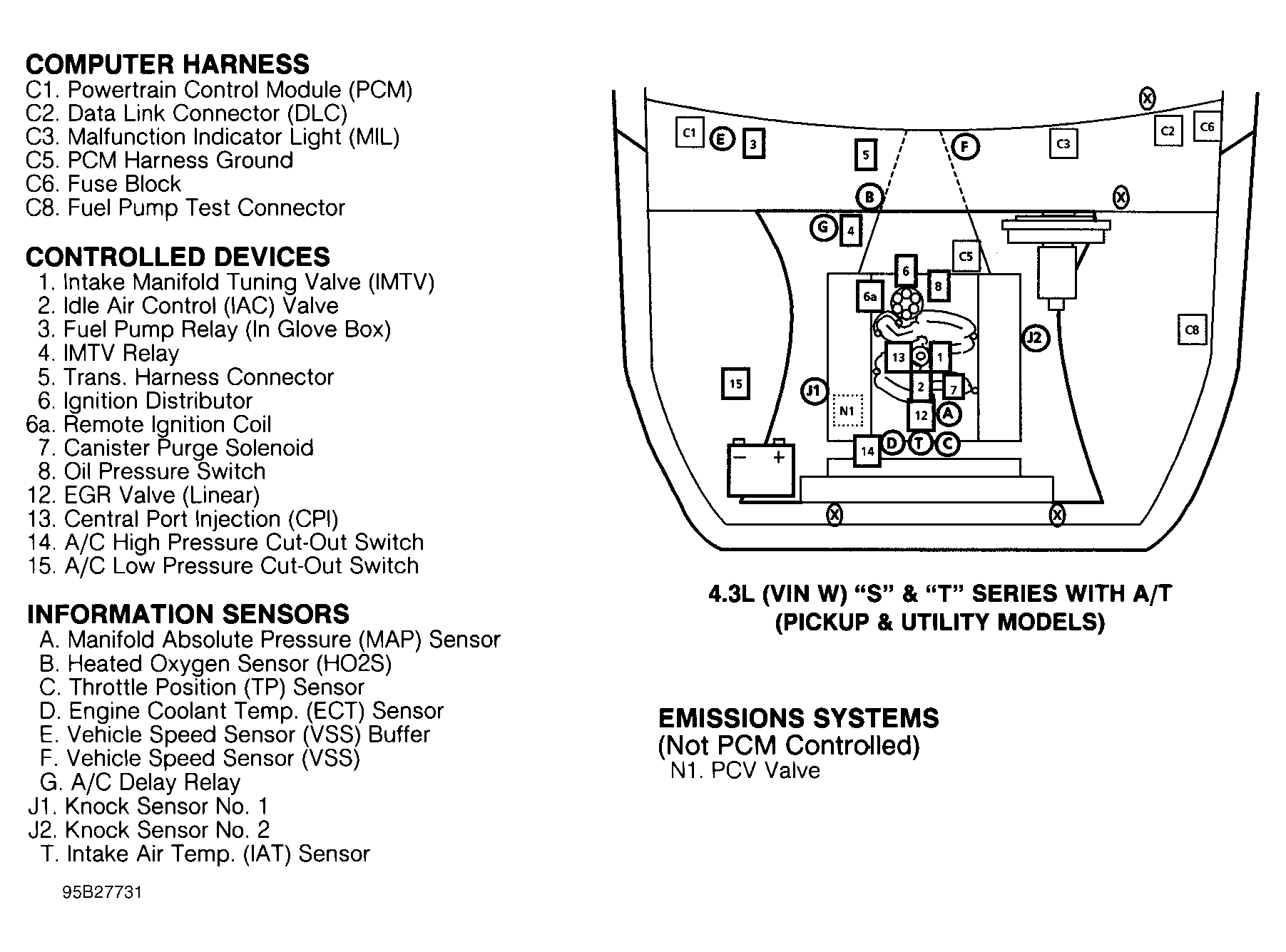

Fig 8: Component Location For 4.3L (VIN W) "S" & "T" Series W/ A/T (Pickup & Utility Models)
G95B27731Courtesy of GENERAL MOTORS CORP.

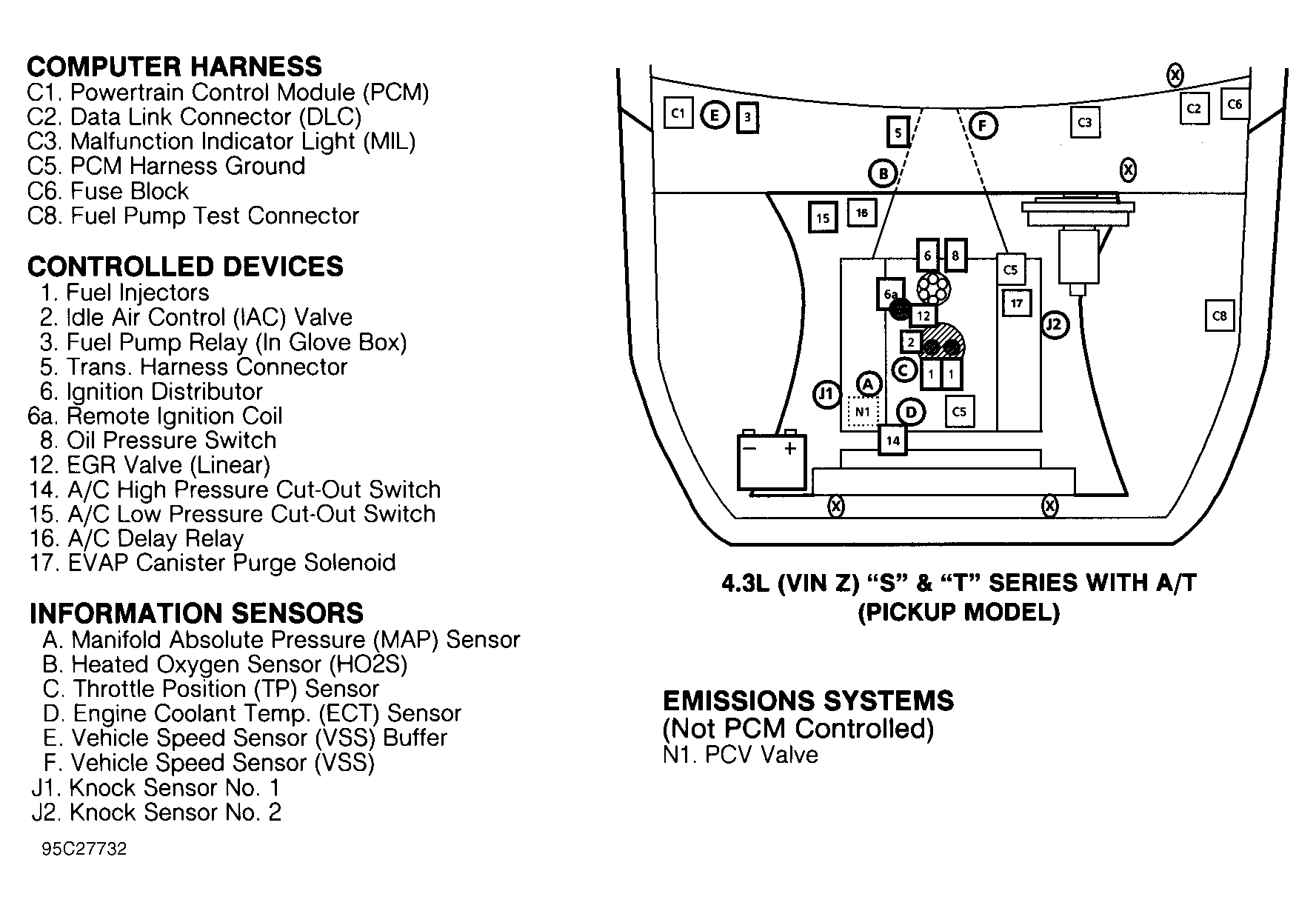

Fig 9: Component Location For 4.3L (VIN Z) "S" & "T" Series W/ A/T (Pickup)
G95C27732Courtesy of GENERAL MOTORS CORP.

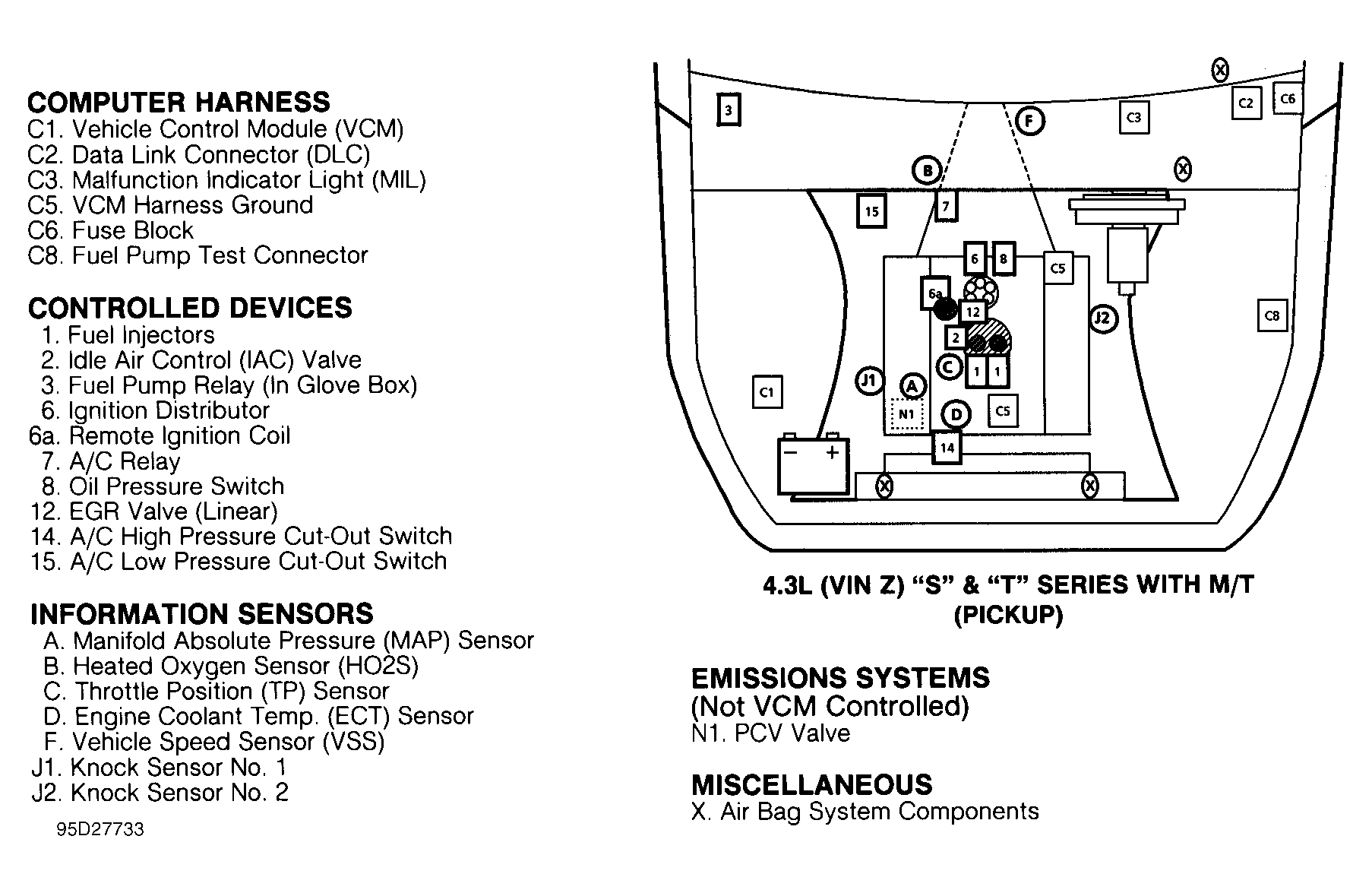

Fig 10: Component Location For 4.3L (VIN Z) "S" & "T" Series W/ M/T (Pickup)
G95D27733Courtesy of GENERAL MOTORS CORP.
