Firing Order & Timing Marks
NOTE:
For firing order and timing marks, see
Fig 1
.

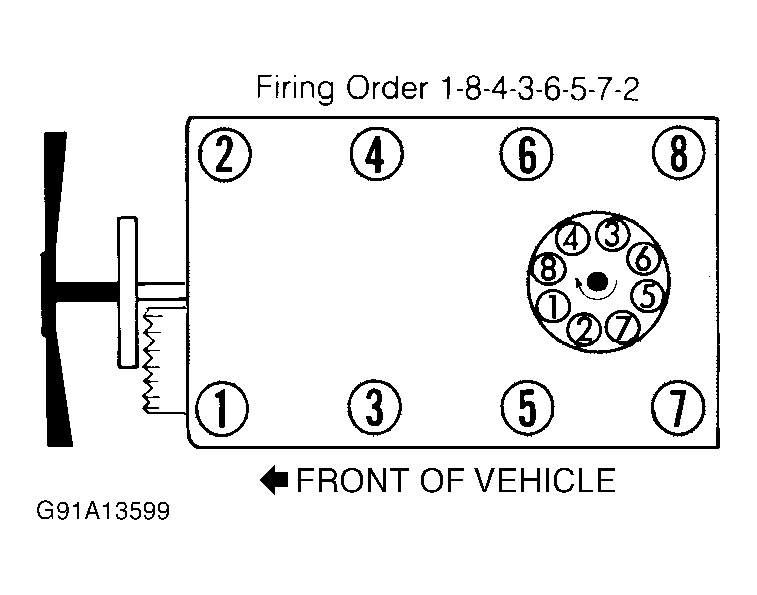

Fig 1: Firing Order & Timing Marks (7.4L VIN N)
